Bell Medium Bearpaws

Mission Equipment
Part Number: D205-564-011
Aircraft Models: Bell - 204

Price:
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; i... Read more
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Price is per aircraft. Read less

Description

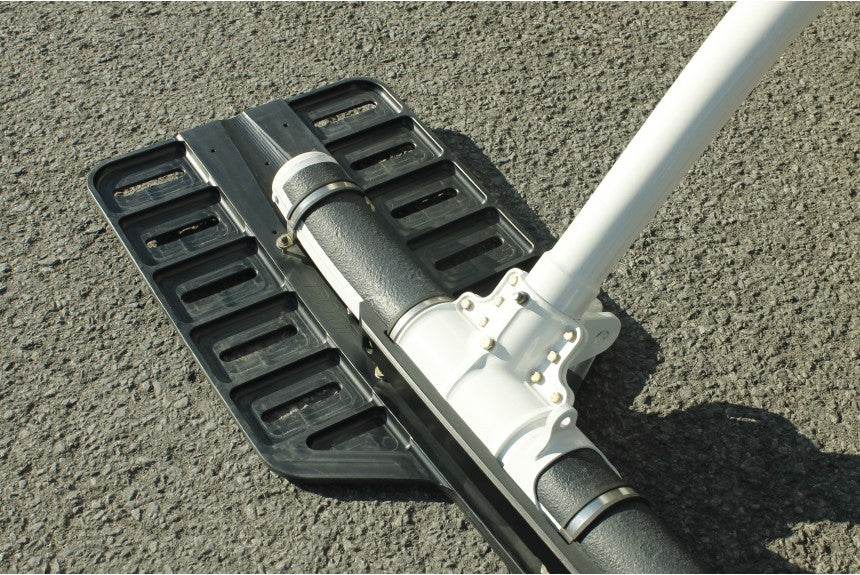

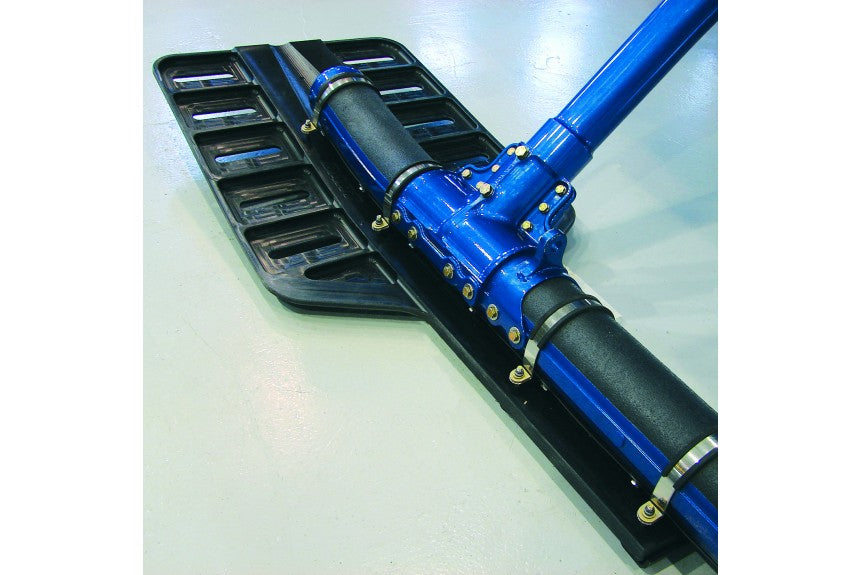

For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Price is per aircraft.

Key Features

  • Wearplates also available
  • CNC machined UHMW polymer provides consistent load transfer

Key Benefits

  • No modifications to skidtube required
  • High strength polymer with memory, deflects under critical point loading without failure and returns to original shape when unloaded
  • Keeps tail high in soft terrain to prevent tail strikes
  • Lightweight
  • Easy to install
  • Won't chip, crack or break
  • Float compatible
  • Ground handling wheel compatible
  • DART Cable guard compatible
  • Compatible on DART and OEM Skidtubes

Approvals

Approval type Authority Reference number Aircraft approved Description
STC JCAB - Japan STC-128-1-TYO 212/214B/412/412EP UHMW Polymer Bearpaw
STC EASA - Europe RC 1173 205A1/212/214B/214B1/412 UHMW Polymer Bearpaw
STC TCCA - Canada SH96-42 204B/205A/205A1/205B/212/214B/214B1/412/412CF/412EP UHMW Polymer Bearpaw
STC FAA - USA SR00571NY 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP UHMW Polymer Bearpaw

OEM Cross References

OEM Replacement / AAL-290-040-001

External Warning

N/A

Prerequisite

N/A

Compatible With

Cable Guard: D412-742-018; DART & OEM & AAI Skidtubes, DART (Apical) & OEM & AAI Floats Skidtubes (requires Bearpaw at CHG 7 or later); DART (Apical) & OEM Floats; Ground Handling Wheel; Series Fuselage Mounted Floats: 212-706-042-XXX

Not Compatible With

Skidtube Run on Landing (Heavy-Duty) Wearplates

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 23.00 lbs / 10.45 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
