Bell 407 Spray System

Mission Equipment
Part Number: 208-000000-003
Aircraft Models: Bell - 407

Price:

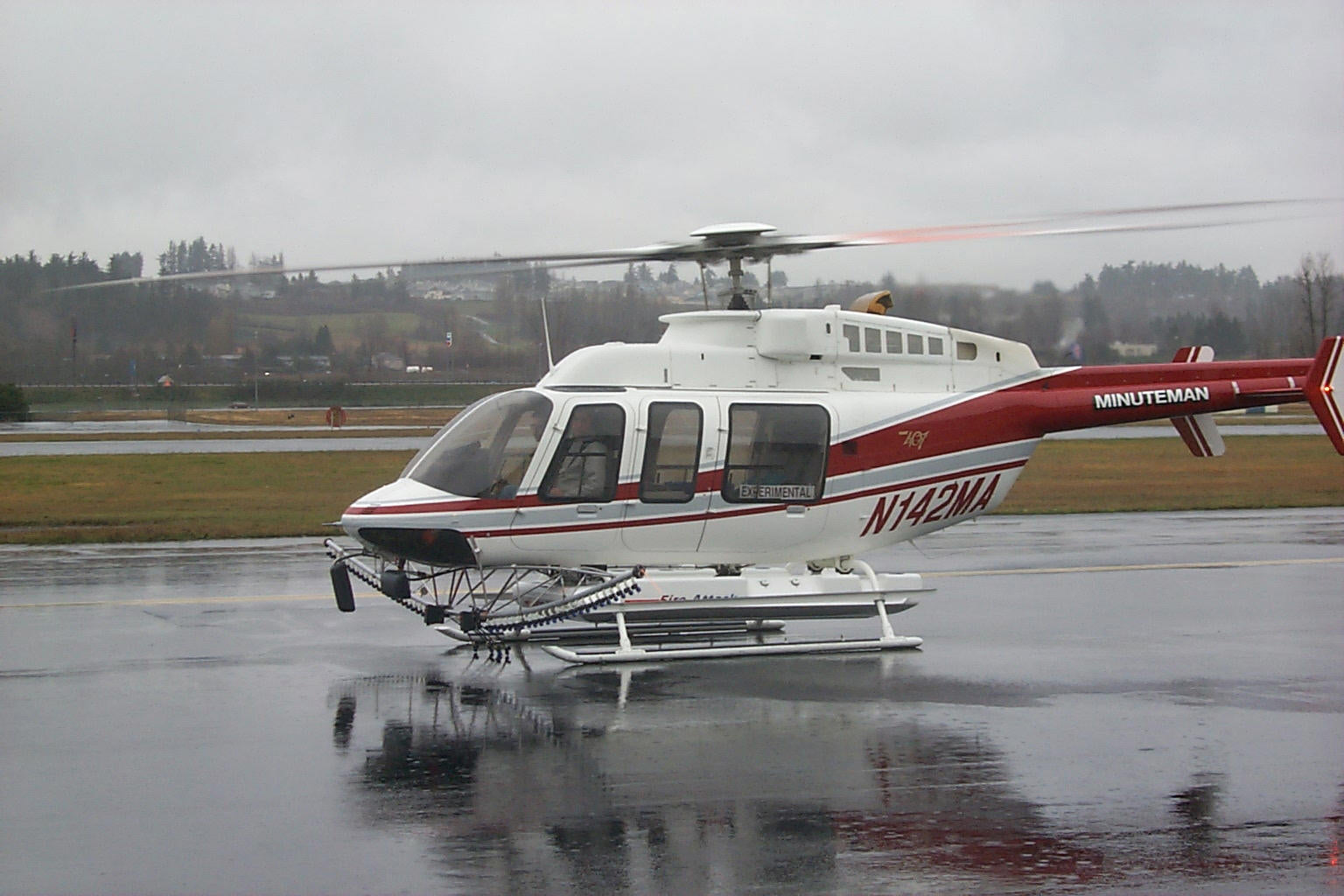

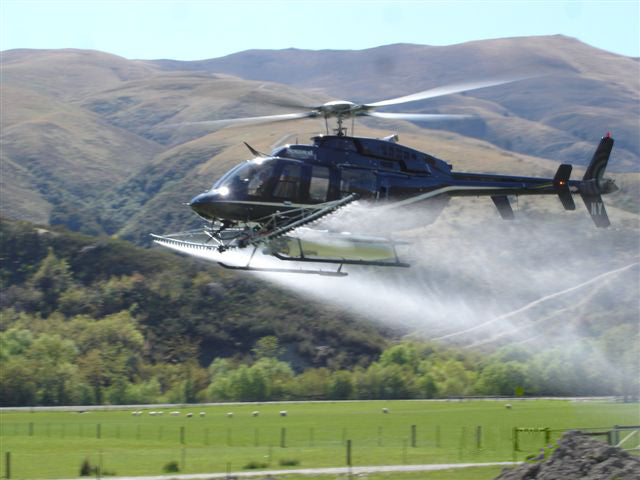

DART's Simplex Aerospace Model 208 Spray System for Bell 407. The system consists of a belly-mounted carbon fiberglass tank, which holds 871 liters (230 gallons) of liquid. Forward mounted boom, spanning 66% of rotor diameter, with optional 75% extensions.

Description

DART's Simplex Aerospace Model 208 Spray System for Bell 407. The system consists of a belly-mounted carbon fiberglass tank, which holds 871 liters (230 gallons) of liquid. Forward mounted boom, spanning 66% of rotor diameter, with optional 75% extensions.

Key Features

  • Only FAA STC'd approved Spray systems for the Bell 407
  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Forward mounted (66% rotor diameter) booms
  • Electrically driven spray pump and motor
  • 42 Nozzle Ports

Key Benefits

  • Aerodynamic design results in low drag
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes
  • Optional (75% rotor diameter) boom extensions
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available (200-500000-002)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR00768SE 407 Installation of 208 Spray System
STC TCCA - Canada SH00-13 407 Installation of 208 Spray System
STC DGCA - Mexico IA-227/2014 407 Installation of 208 Spray System
STC CAAC - China VSTC0691 407 Installation of 208 Spray System
STC ANAC - Brazil 2017S03-24 407 Installation of 208 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 255 lb / 116 kg

Load Capacity And Volume

  • Volume: 230 gal / 871 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
