Bell 212 Spray System

Mission Equipment
Part Number: 204-000000-003
Aircraft Models: Bell - 212

Price:

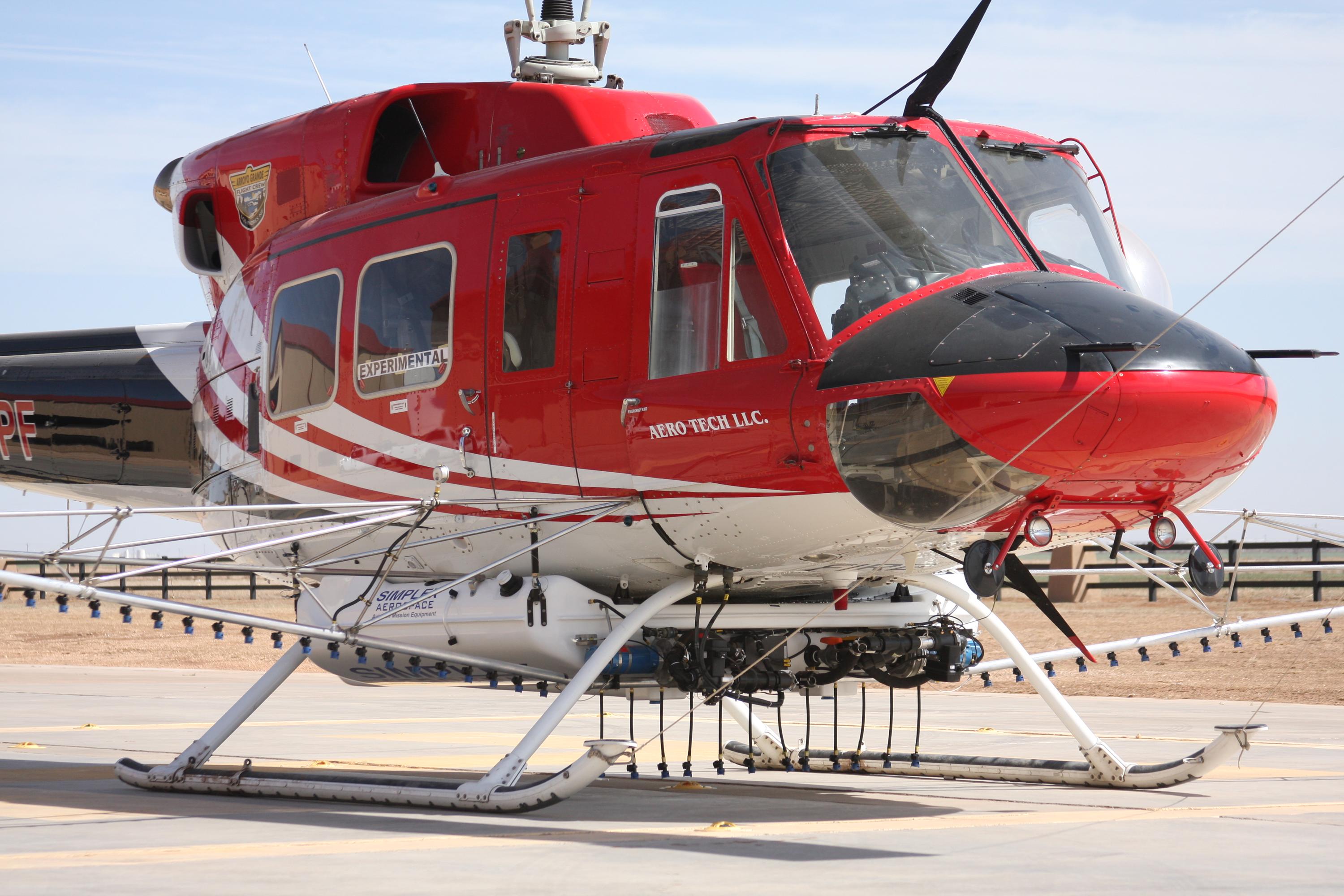

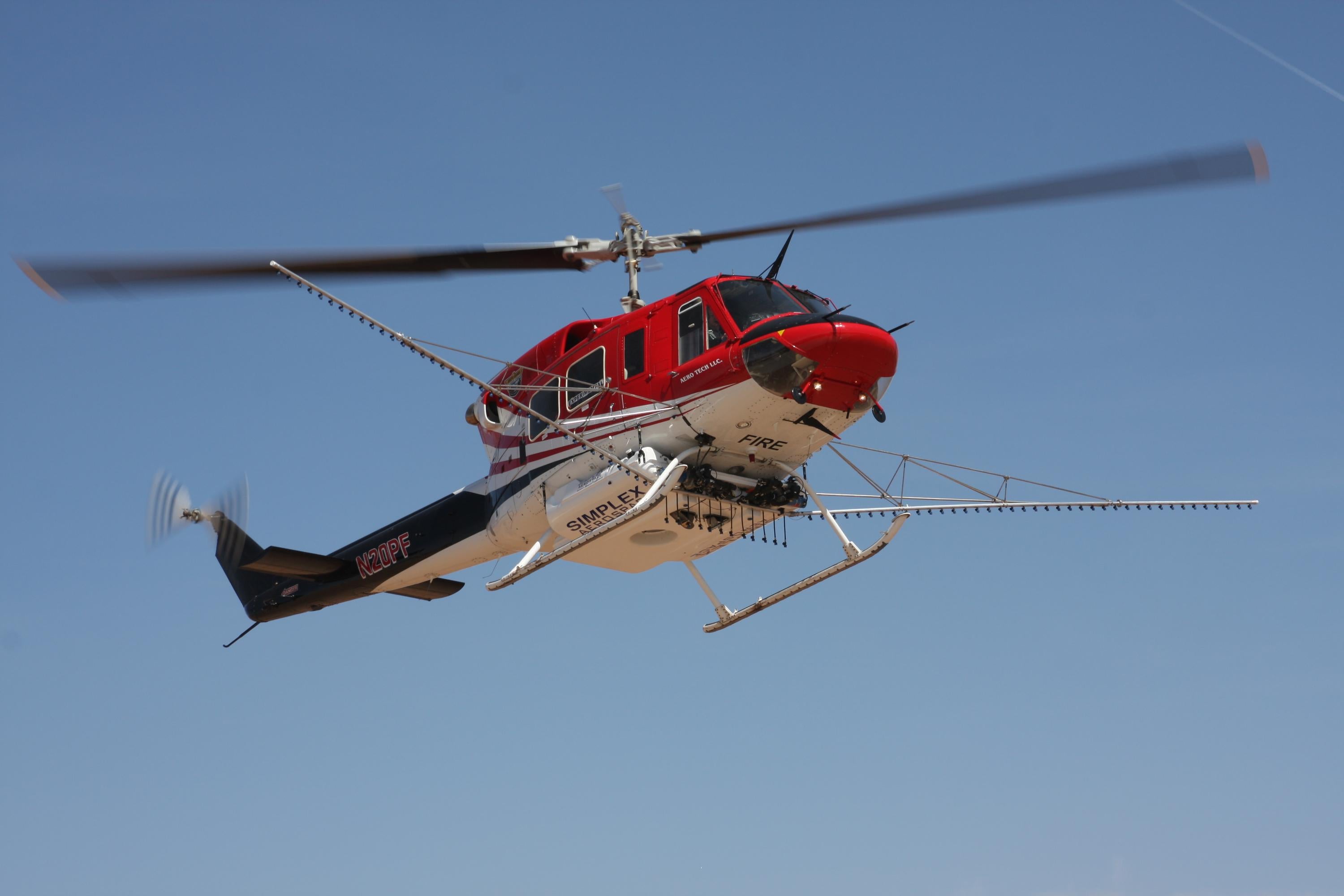

DART's Simplex Aerospace Model 204 Spray System for Bell 212. The system consists of a belly-mounted carbon fiberglass tank, which holds 1,408 liters (372 gallons) of liquid. Forward-mounted booms with a width of 10 meters (33 feet) or 14 meters (45 feet) with optional extensions.

Description

DART's Simplex Aerospace Model 204 Spray System for Bell 212. The system consists of a belly-mounted carbon fiberglass tank, which holds 1,408 liters (372 gallons) of liquid. Forward-mounted booms with a width of 10 meters (33 feet) or 14 meters (45 feet) with optional extensions.

Key Features

  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Forward mounted (80% RD) booms (33ft/10m)
  • Dual, electrically driven spray pump and motor assemblies
  • 68 Nozzle Ports

Key Benefits

  • Will fit on most Medium Bells
  • Aerodynamic design results in low drag
  • Installation/removal in 30 minutes
  • Optional (100%RD) boom extensions (45ft/14m)
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available (204-106000-003)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02276SE 212 Installation of 204 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted Category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 473 lb / 215 kg

Load Capacity And Volume

  • Volume: 372 gal / 1408 L
  • Load Capacity: N/A

Technical Documentation

N/A
