Bell 206L 'LongRanger' Spray System

Mission Equipment
Part Number: 000-007900-000
Aircraft Models: Bell - 206L

Price:

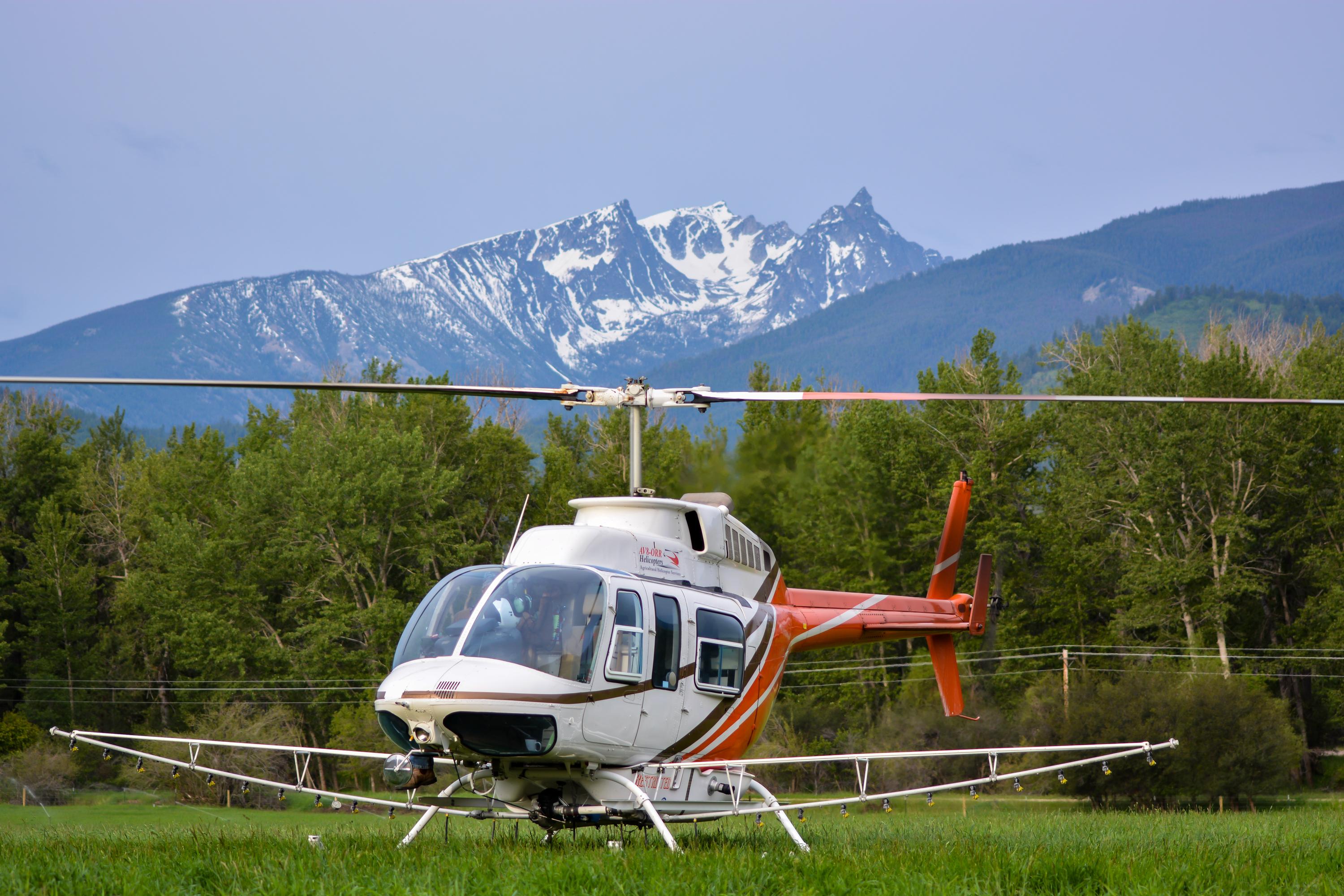

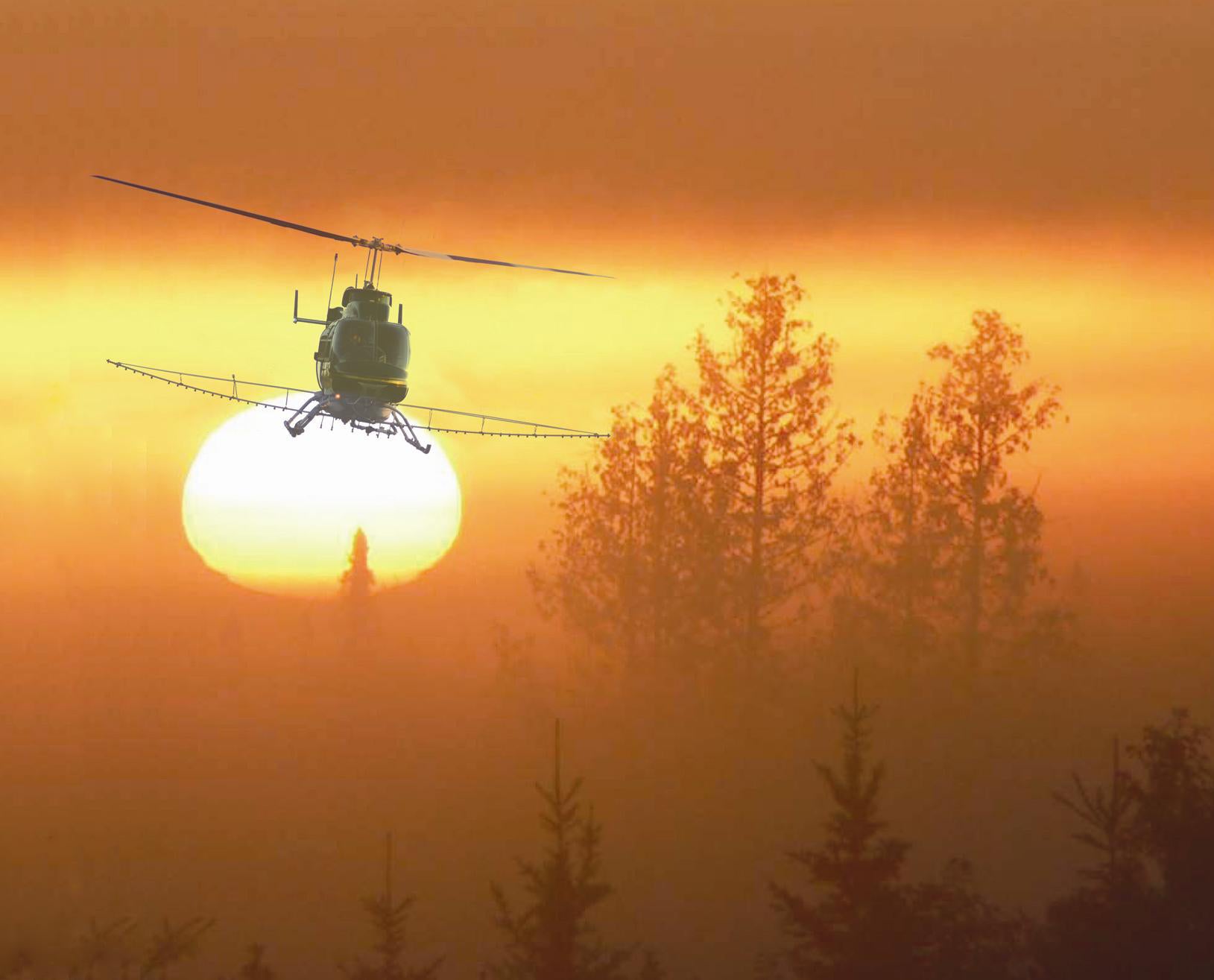

DART's Simplex Aerospace Model 7900 Spray System for Bell 206L Long Ranger. The system consists of a belly-mounted carbon fiberglass tank, which holds 606 liters (160 gallons) of liquid.

Description

DART's Simplex Aerospace Model 7900 Spray System for Bell 206L Long Ranger. The system consists of a belly-mounted carbon fiberglass tank, which holds 606 liters (160 gallons) of liquid.

Key Features

  • Simplex is the sole manufacturer of FAA STC'd Spray systems for the 206L
  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Forward mounted (77%RD) booms (29ft/9m)
  • Electrically driven spray pump and motor

Key Benefits

  • Installation/removal in 30 minutes
  • Aerodynamic design results in low drag
  • Manual Flow Controller allows operator to adjust chemical output
  • Optional (99%RD) boom extensions (37ft/11m)
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available (200-500000-002)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SH4377NM 206L/206L1/206L3/206L4 Installation of 7900 Spray System
STC TCCA - Canada SH90-22 206L/206L1/206L3/206L4 Installation of 7900 Spray System
STC DGCA - Mexico IA-513/2018 206L/206L1/206L3/206L4 Installation of 7900 Spray System
STC ANAC - Brazil 2019S04-04 206L1/206L3/206L4 Installation of 7900 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

25 hours initial install, 30 min after

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 225 lb / 102 kg

Load Capacity And Volume

  • Volume: 160 gal / 606 L
  • Load Capacity: N/A
