Bell 206 'JetRanger' Spray System

Mission Equipment
Part Number: 000-004900-000
Aircraft Models: Bell - 206A/B

Price:

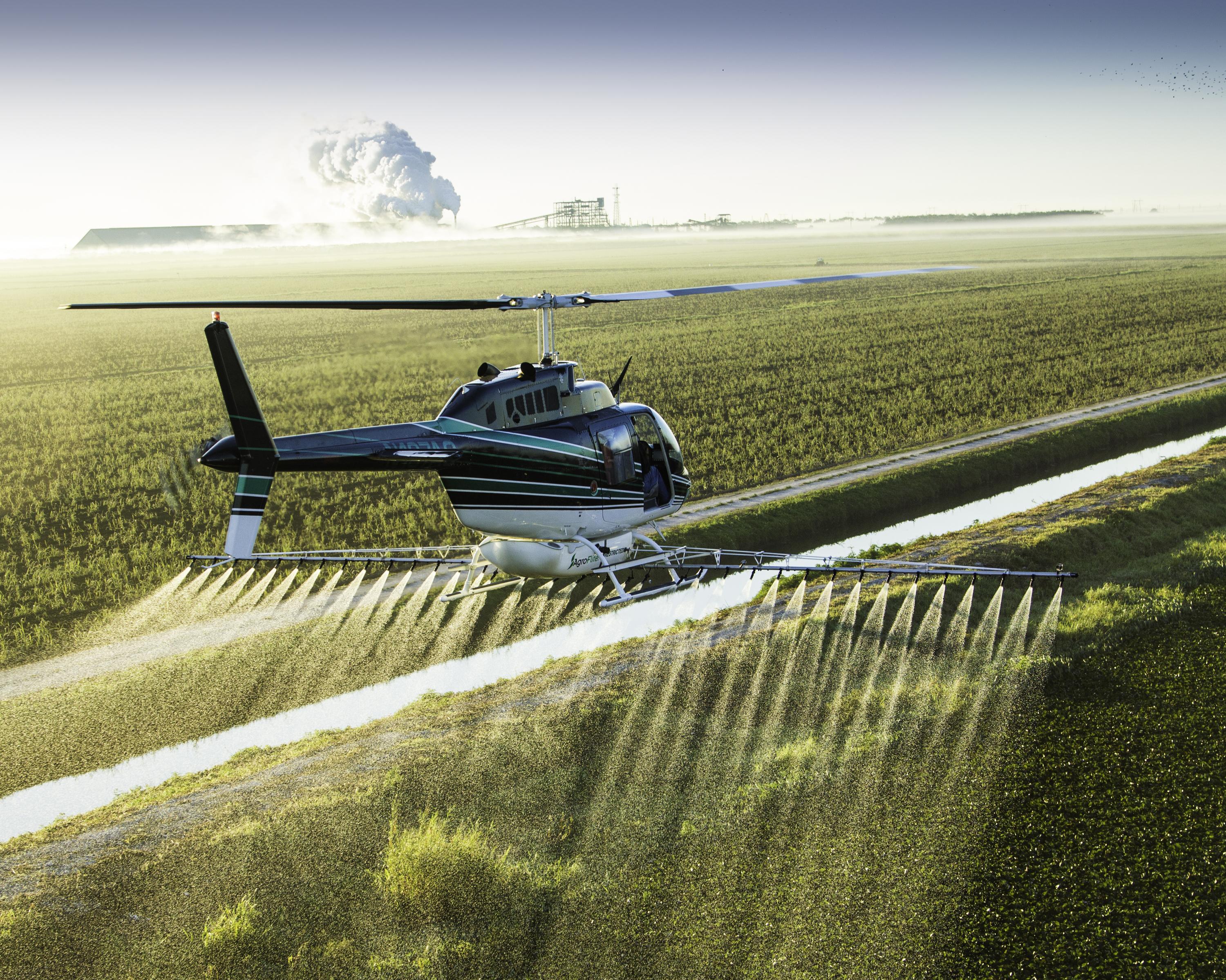

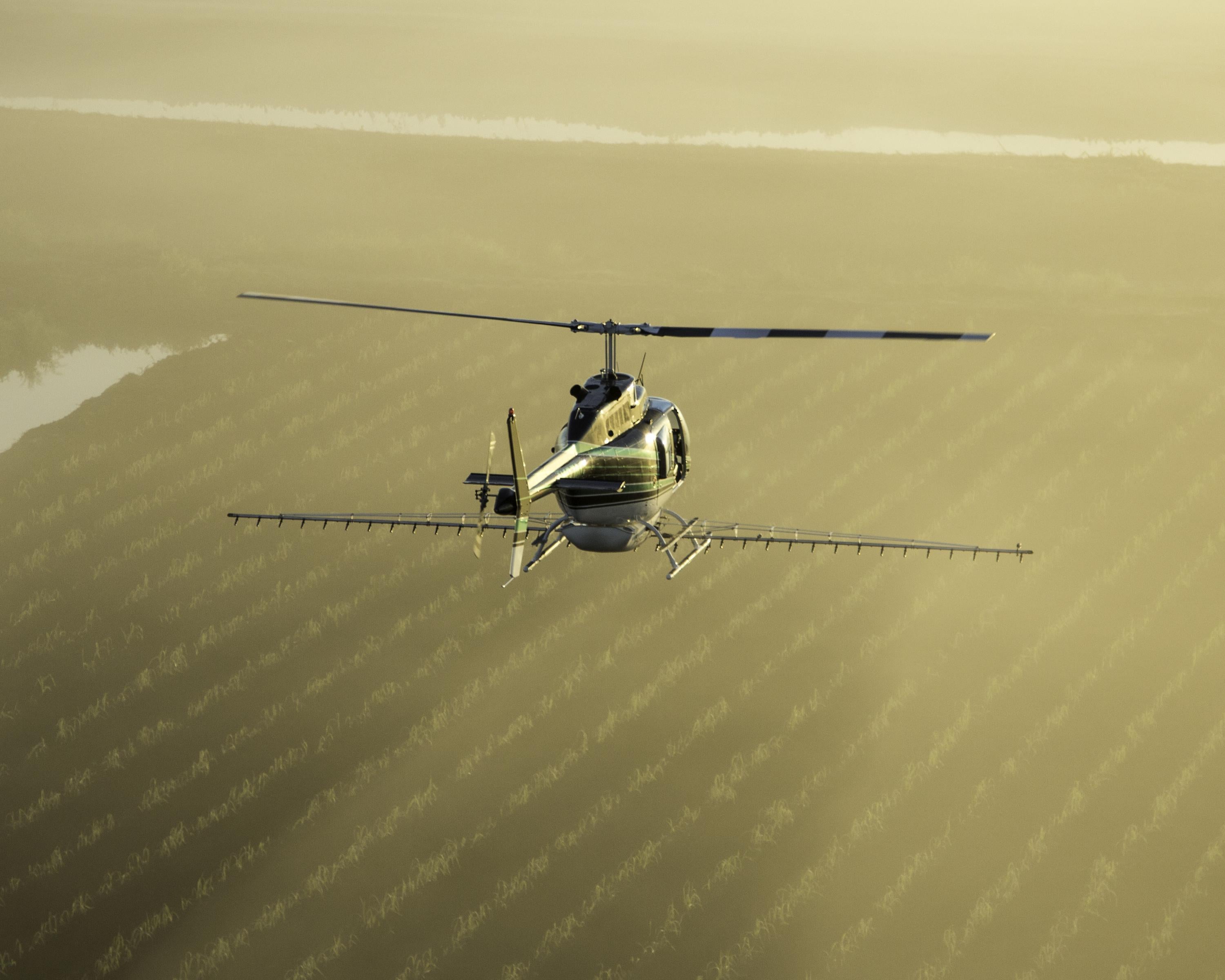

DART's Simplex Aerospace Model 4900 Spray System for Bell 206 A & B Jetranger series. The system consists of a belly-mounted carbon fiberglass tank, which holds 530 liters (140 gallons) of liquid.

Description

DART's Simplex Aerospace Model 4900 Spray System for Bell 206 A & B Jetranger series. The system consists of a belly-mounted carbon fiberglass tank, which holds 530 liters (140 gallons) of liquid.

Key Features

  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Mid-ship mounted (95% RD) booms (35ft/11m)
  • Electrically driven spray pump and motor
  • 65 Nozzle Ports

Key Benefits

  • Installation/removal in 30 minutes
  • Aerodynamic design results in low drag
  • Manual Flow Controller allows operator to adjust chemical output
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available (200-500000-002)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SH848NW 206A/206B Installation of 4900 Spray System
STC TCCA - Canada SH86-14 206A/206B Installation of 4900 Spray System
STC EASA - Europe 0479/3034 206A/206B Installation of 4900 Spray System
STC DGCA - Mexico IA-458/2017 206A/206B Installation of 4900 Spray System
STC ANAC - Brazil 2017S12-02 206A/206B Installation of 4900 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 185 lb / 84 kg

Load Capacity And Volume

  • Volume: 140 gal / 530 L
  • Load Capacity: N/A
