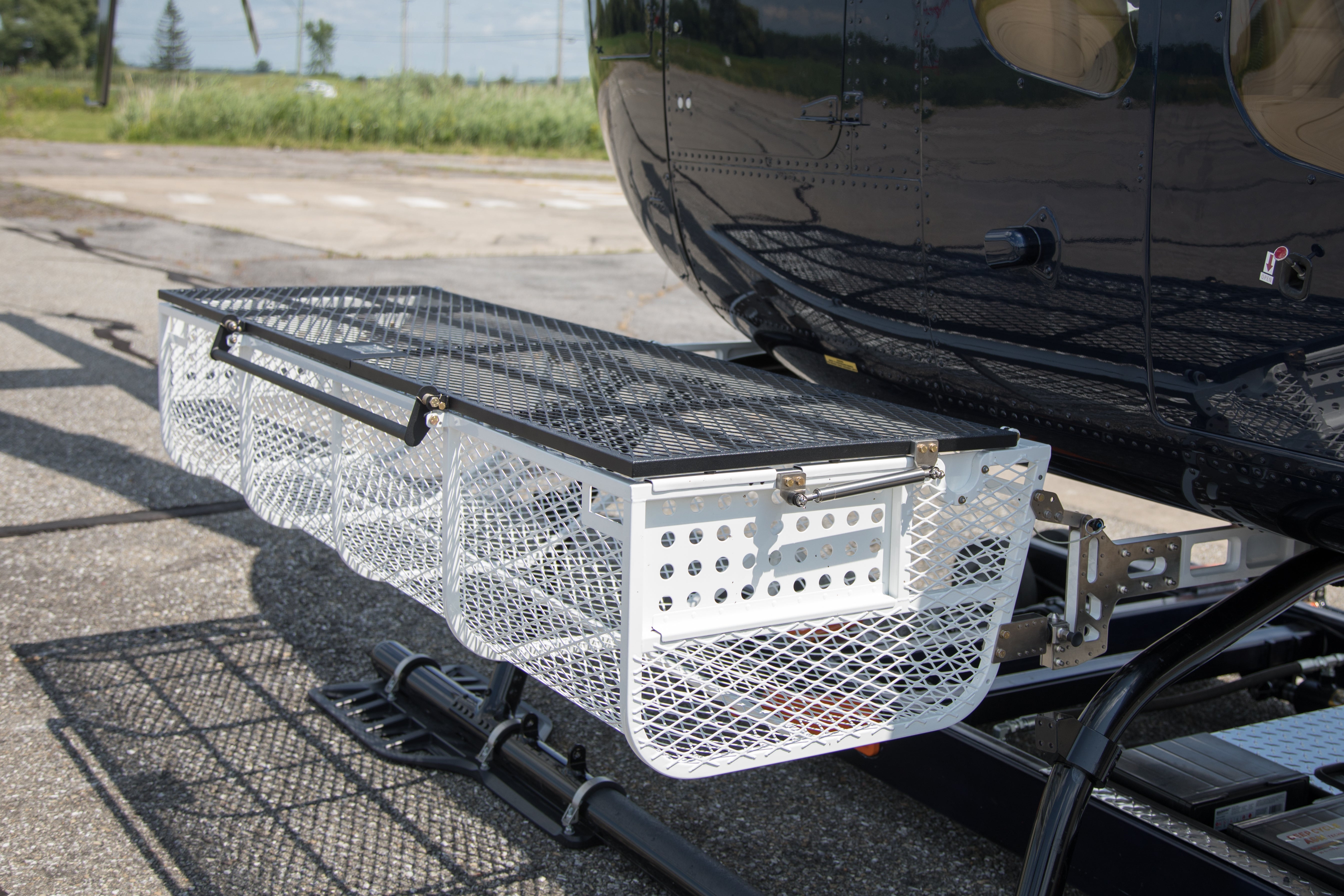

B505 Quick Release Heli-Utility-Basket™ - RH

Mission Equipment
Part Number: D505-1090-012
Aircraft Models: Bell - 505

Price:
The DART Quick Release Heli-Utility-Basket™ features a quick release mounting system that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. Reach out to our sales team for more information.

Description

The DART Quick Release Heli-Utility-Basket™ features a quick release mounting system that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. Ease of use with gas spring to assist when opening and closing the lid. Reach out to our sales team for more information.

Key Features

  • Compatible with the Standard or Extended Skid Gear
  • Corrosion-resistant stainless steel construction, with gloss white powder coat
  • Quick-Release mounting system includes Fwd/Aft Beam assemblies
  • Allows unobstructed passenger egress
  • No VNE restriction planned (TBC at flight test)
  • Self-locking handle
  • Gas piston assisted lid
  • Fixed Provisions Kit can be procured separately to equip multiple aircraft for quick transfer of the Fwd/Aft Beam Assemblies
  • Removable access panels to expand cargo capacity and fit longer cargo
  • And more...

Key Benefits

  • Allows transport of up to 150lbs external cargo
  • Carry hazardous items outside of helicopter
  • Heavy duty lid doubles as a step or walkway for maintenance
  • With the QR system, basket can be removed/installed in 1 minute. No tools required!
  • New mission profiles: Heli-Skiing; Utility and many more!

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH23-24 505 Heli-Utility-Basket Installation
STC FAA - USA SR00147IB 505 Installation of Heli-Utility-Basket

OEM Cross References

PLM-OEM 127677

External Warning

Requires removal of existing Fwd/Aft SLS-030-840-001 Landing Gear Straps with SLS-030-840-103 Cushions and replace with D505-1090-113 Fixed Provisions Kit.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Float systems, with basket installed. P/N 505-712-001/-002 Full-length OEM Flitesteps. RH maintenance Step (RH config only)

Flight Restrictions

No VNE restriction with basket installed

Installation Time

2 hrs

Dimensions And Weight

  • Length: 76" / 1.9m
  • Width: 25" / 0.64m
  • Weight Display: 67.40 lbs / 30.60 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: 154 lbs / 69.9 kg

Technical Documentation

N/A

Downloads

N/A
