AW139 Hinged Fuel Cap Kit

Mission Equipment
Part Number: D139-799-029
Aircraft Models: AgustaWestland - AW139

Price:
The new Hinged Fuel Cap Kit converts the existing locking or non-locking fuel cap to a hinged fuel cap. The Hinged Fuel Cap Kit prevents the cap from damaging the aircraft if the fuel cap is left open at takeoff. The kit consists of two plastic hinged parts that pick up on existing fasteners on the airframe and are bonded to the fuel cap. The Hinged Fuel Cap is constructed of durable CNC machined plastic to comply with lightning strike requirements. *Hinge installs o... Read more
The new Hinged Fuel Cap Kit converts the existing locking or non-locking fuel cap to a hinged fuel cap. The Hinged Fuel Cap Kit prevents the cap from damaging the aircraft if the fuel cap is left open at takeoff. The kit consists of two plastic hinged parts that pick up on existing fasteners on the airframe and are bonded to the fuel cap. The Hinged Fuel Cap is constructed of durable CNC machined plastic to comply with lightning strike requirements. *Hinge installs on existing air frame fasteners and bonds to customer supplied locking (p/n 109-0815V06-101 or equivalent) or non-locking (p/n 3G2810V00431 or equivalent) fuel cap. Not compatible with executive interior trims and HEELS kit interior trims, contact sales for more information. Price is per kit. Read less

Description

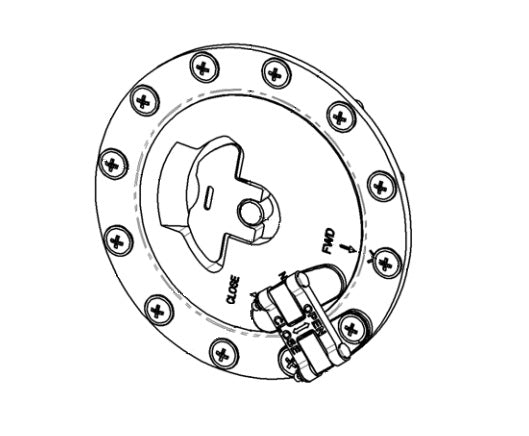

The new Hinged Fuel Cap Kit converts the existing locking or non-locking fuel cap to a hinged fuel cap. The Hinged Fuel Cap Kit prevents the cap from damaging the aircraft if the fuel cap is left open at takeoff. The kit consists of two plastic hinged parts that pick up on existing fasteners on the airframe and are bonded to the fuel cap. The Hinged Fuel Cap is constructed of durable CNC machined plastic to comply with lightning strike requirements. *Hinge installs on existing air frame fasteners and bonds to customer supplied locking (p/n 109-0815V06-101 or equivalent) or non-locking (p/n 3G2810V00431 or equivalent) fuel cap. Not compatible with executive interior trims and HEELS kit interior trims, contact sales for more information. Price is per kit.

Key Features

  • Compatible on both locking and non-locking fuel caps
  • Bonds easily to the fuel cap (no modification)
  • Attaches to existing fasteners on the filler adapter
  • Durable plastic material meets lightning strike regulations

Key Benefits

  • Prevents damage to the fuselage from the cap hanging from the lanyard
  • Allows fuel cap to pivot on the hinge rather than hang from the lanyard while refueling
  • Lower profile design

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-444/2017 AB139/AW139 Maintenance Kit Installations
STC CAAC - China VSTC0869 AB139/AW139 Installation of D139-799 Maintenance Kits
STC DCA - Malaysia VSTC/2022/016 AB139/AW139 Installation of DART D139-799 Maintenance Kits
STC EASA - Europe 10038656, Rev 1 AW139 Maintenance Kit Installations
STC ANAC - Brazil 2012S02-13 AB139/AW139 Maintenance Kit Installations
STC TCCA - Canada LoA C-11-0841 AB139/AW139 Maintenance Kit Installations
STC FAA - USA SR02138SE AB139/AW139 Maintenance Kit Installations

OEM Cross References

N/A

External Warning

Must be at least 0.50” (13mm) clearance between the trim on the cabin door and the face of the fuel cap to ensure that the door trim will not contact the Dart Hinged Fuel Cap. Kit contains parts with limited shelf life, will ship with a minimum life of 3 months.

Prerequisite

N/A

Compatible With

Serial Number 31201-sub; Serial Number 41201-sub; Locking P/N 109-0815V06-101 (or equivalent) and non-locking P/N 3G2810V00431 (or equivalent) fuel caps.

Not Compatible With

Executive Interior Trims; Heels Kit Interior Trims

Flight Restrictions

None

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 0.00 lb/ 0.00 kg net weight increase

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
