AW139 High Capacity Cargo Net

Mission Equipment
Part Number: D139-1012-011
Aircraft Models: AgustaWestland - AW139

Price:
The DART high capacity cargo net is a certified solution to increase the cargo capacity of the AW139 by up to 30%. Approved for loads up to 820 lbs. (373 kg) compared to 660 lbs. (300 kg) with the OEM net, and increased maximum cargo height by 7 inches or 18 cm, an additional 30%. Loading activities are easier and faster to complete with the high capacity cargo net owing to the net suspension design and strap buckle placement; designed to be loaded by 1 person from 1 ... Read more
The DART high capacity cargo net is a certified solution to increase the cargo capacity of the AW139 by up to 30%. Approved for loads up to 820 lbs. (373 kg) compared to 660 lbs. (300 kg) with the OEM net, and increased maximum cargo height by 7 inches or 18 cm, an additional 30%. Loading activities are easier and faster to complete with the high capacity cargo net owing to the net suspension design and strap buckle placement; designed to be loaded by 1 person from 1 cargo door. Also includes a mesh net to unitize loads consisting of multiple smaller items, preventing small articles from escaping tie down straps and becoming loose in the cargo compartment. *Includes straps, mesh net, 7 replacement tie downs and ceiling hanging provisions. Modifies 1 aircraft. Read less

Description

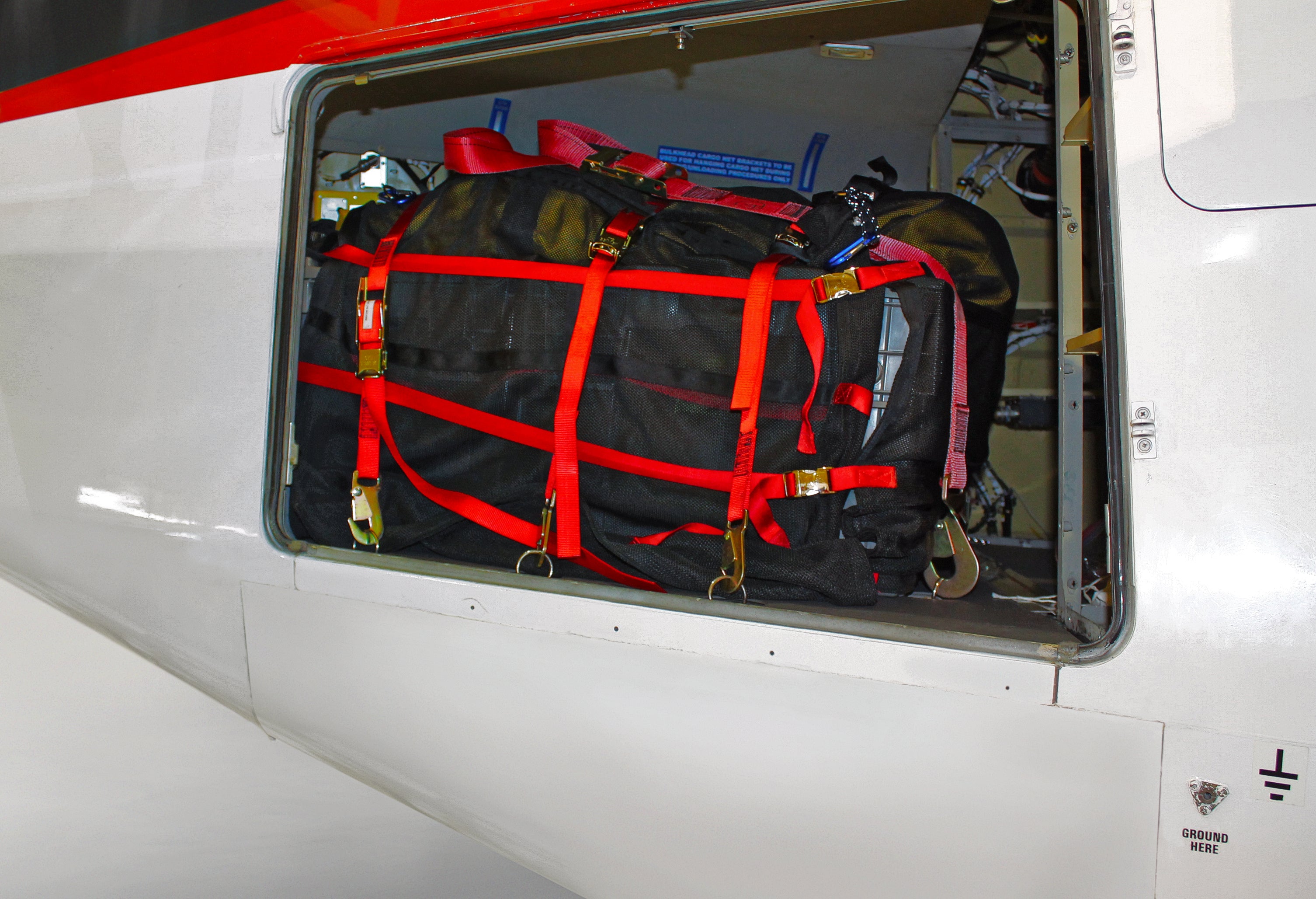

The DART high capacity cargo net is a certified solution to increase the cargo capacity of the AW139 by up to 30%. Approved for loads up to 820 lbs. (373 kg) compared to 660 lbs. (300 kg) with the OEM net, and increased maximum cargo height by 7 inches or 18 cm, an additional 30%. Loading activities are easier and faster to complete with the high capacity cargo net owing to the net suspension design and strap buckle placement; designed to be loaded by 1 person from 1 cargo door. Also includes a mesh net to unitize loads consisting of multiple smaller items, preventing small articles from escaping tie down straps and becoming loose in the cargo compartment. *Includes straps, mesh net, 7 replacement tie downs and ceiling hanging provisions. Modifies 1 aircraft.

Key Features

  • Certified cargo securing option

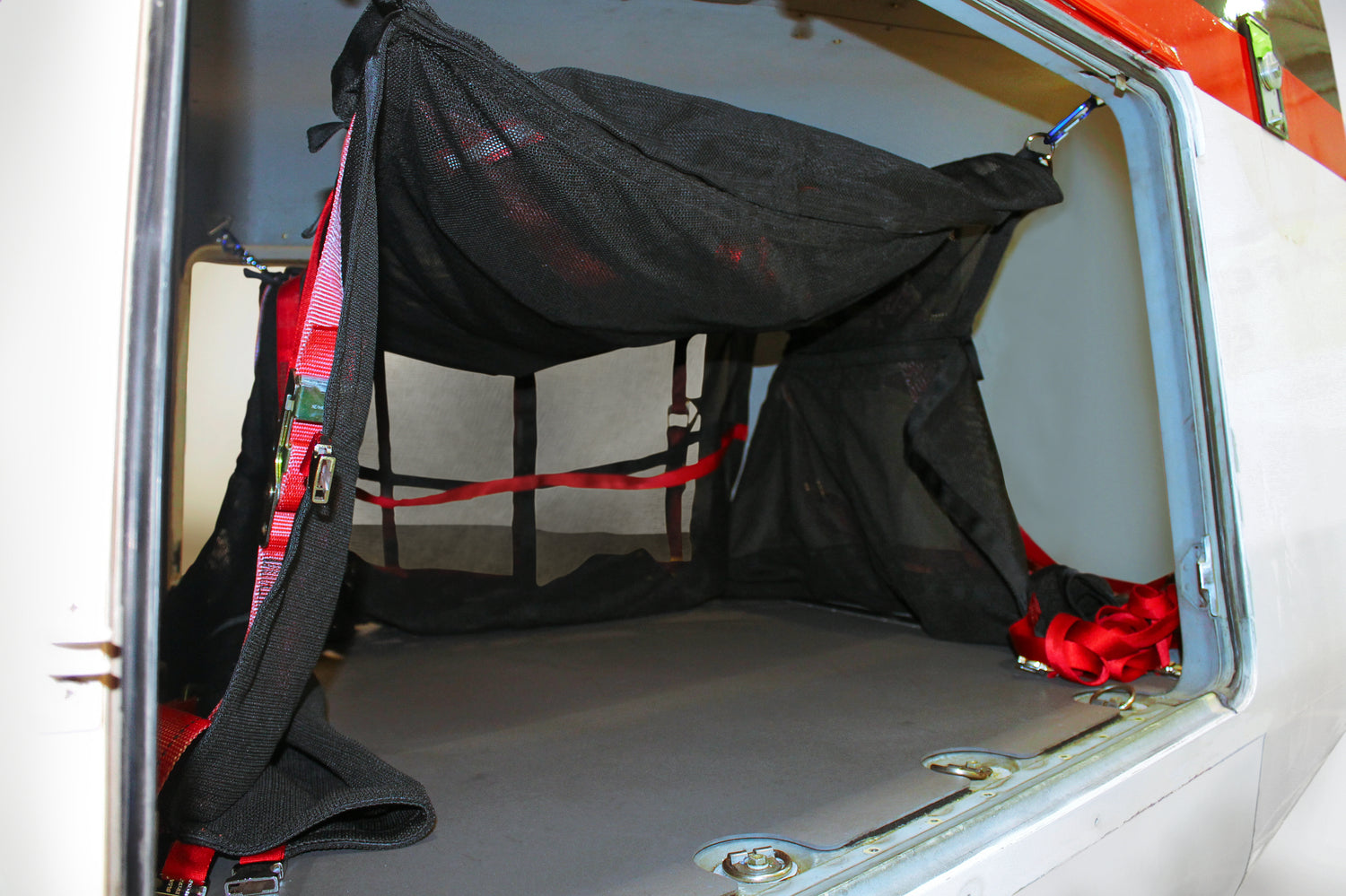

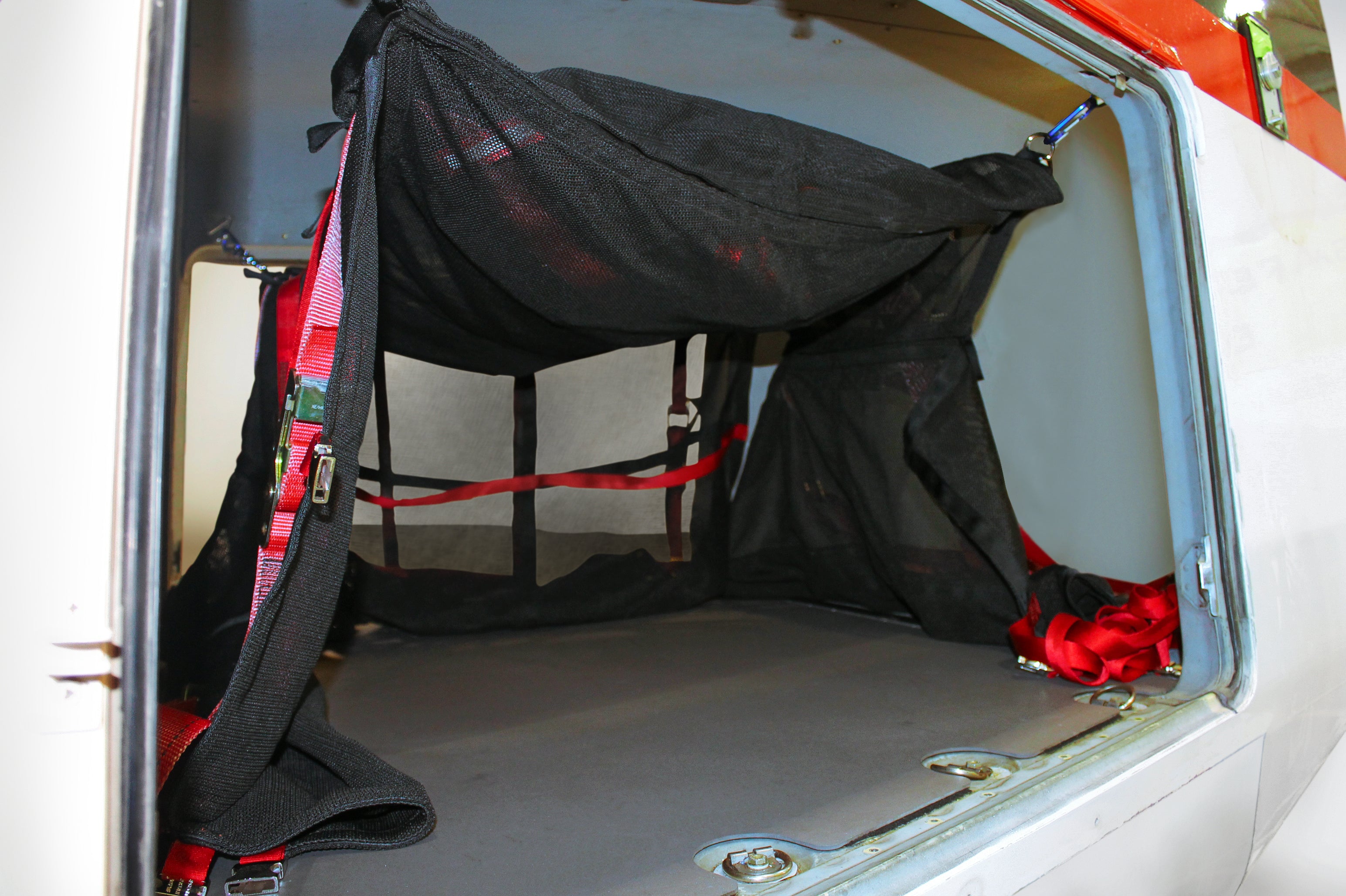

  • Net hangs from ceiling provisions for ease of loading
  • Uses seltbelt style buckles in lieu of ratcheting straps or overcenter buckles
  • Can hold 14 roller bags
  • Load securing mesh
  • Modular design

Key Benefits

  • Certified to secure 160 lbs / 73 kg more cargo than OEM options
  • 30% more cargo volume capacity compared to basic OEM net
  • Only one person required to load and secure cargo
  • Reduced ground handling workload

Approvals

Approval type Authority Reference number Aircraft approved Description
STC ANAC - Brazil 2016S05-07 AB139/AW139 Installation of Cargo Net
STC TCCA - Canada SH16-17 AB139/AW139 Cargo Net Installation
STC FAA - USA SR03788NY AB139/AW139 Installation of Cargo Net
STC EASA - Europe 10061119 AB139/AW139 Cargo net installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support. Approx 30 hours for initial installation

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 22.4 lbs / 10.2 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: 820 lbs / 372 kg

Technical Documentation

Downloads

N/A
