AW139 Gimbal Bushing Kit

Part Number: RBW6305G00132-3G
Aircraft Models: AgustaWestland - AW139

Price:

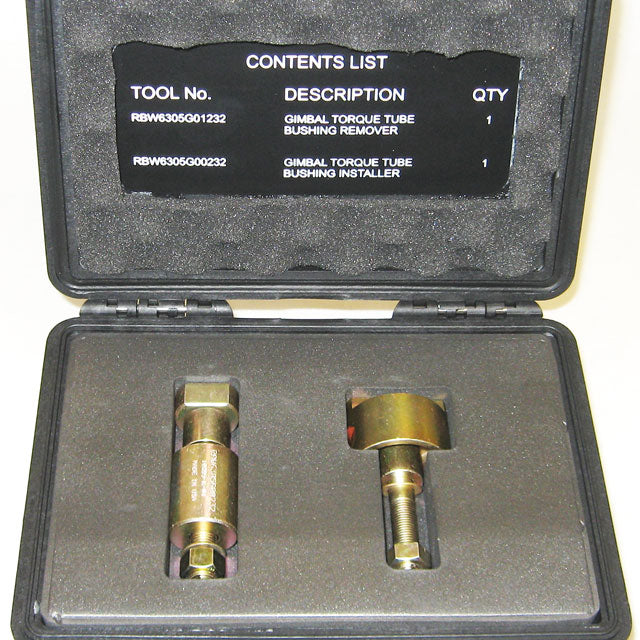

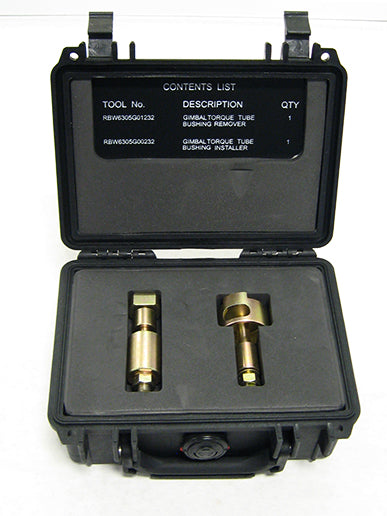

*Kit Includes: RBW6305G01232-3G, RBW6305G00232-3G. The function of this tool is to repair the MGB gimbal assembly without removing the component from the aircraft. The kit is composed of the following items: - The bushings removal tool, used to remove the two bushings from the gimbal support assembly; - The bushings installation tool, used to install the two bushings in their housings on the gimbal support assembly. It is necessary to center the bushing with its housi... Read more
*Kit Includes: RBW6305G01232-3G, RBW6305G00232-3G. The function of this tool is to repair the MGB gimbal assembly without removing the component from the aircraft. The kit is composed of the following items: - The bushings removal tool, used to remove the two bushings from the gimbal support assembly; - The bushings installation tool, used to install the two bushings in their housings on the gimbal support assembly. It is necessary to center the bushing with its housing during the installation when the components are installed. The tool must be also used to do the same activity in the torque tube assembly. Read less

Description

*Kit Includes: RBW6305G01232-3G, RBW6305G00232-3G. The function of this tool is to repair the MGB gimbal assembly without removing the component from the aircraft. The kit is composed of the following items: - The bushings removal tool, used to remove the two bushings from the gimbal support assembly; - The bushings installation tool, used to install the two bushings in their housings on the gimbal support assembly. It is necessary to center the bushing with its housing during the installation when the components are installed. The tool must be also used to do the same activity in the torque tube assembly.

Key Features

  • Fly-away case
  • Tool Layout chart located in lid

Key Benefits

  • Each tool is available to be sold separately

Approvals

N/A

OEM Cross References

OEM Replacement / 3G6305G00132

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Tech Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
