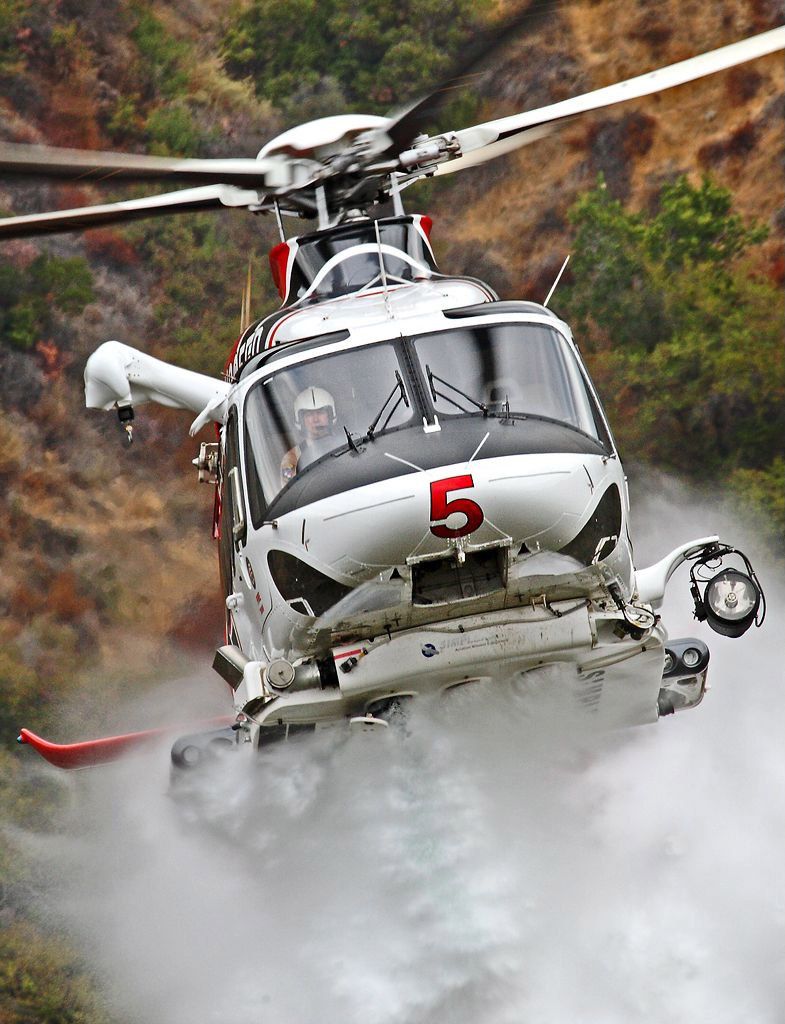

AW139 Fire Attack™ System (w/ foam)

Mission Equipment
Part Number: 326-000001-003
Aircraft Models: AgustaWestland - AW139

Price:

DART's Simplex Aerospace Model 326 GII Fire Attack™ aerial firefighting system is the 2nd generation firefighting tank for the AgustaWestland AW139 helicopter. The GII system consists of a belly-mounted tank and a DC hover refill pump and hose. The belly tank is manufactured from high-strength, low-weight carbon fiberglass material and holds 1,893 liters (500 gallons) of water.

Description

DART's Simplex Aerospace Model 326 GII Fire Attack™ aerial firefighting system is the 2nd generation firefighting tank for the AgustaWestland AW139 helicopter. The GII system consists of a belly-mounted tank and a DC hover refill pump and hose. The belly tank is manufactured from high-strength, low-weight carbon fiberglass material and holds 1,893 liters (500 gallons) of water.

Key Features

  • Cockpit camera system
  • Approved to fly at 140 KIAS with hover pump installed
  • 150 KIAS with hover pump remove
  • Internal foam injection
  • Cockpit controlled selectable drop patterns

Key Benefits

  • Installation/removal in 15 minutes
  • FAA certified for day/night VFR
  • Corrosion resistant parts

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR02351LA AW139 Installation of Model 326 Fire Attack System
STC EASA - Europe 10058981 Rev. 1 AW139 Installation of Model 326 Fire Attack System
STC JCAB - Japan STC-382-3-TYO AW139 Installation of Model 326 Fire Attack System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 498 lb / 226 kg

Load Capacity And Volume

  • Volume: 480 gal / 1817 L
  • Load Capacity: N/A

Technical Documentation
