MODEL 323 FIRE ATTACK SYSTEM


Part Number: 323-000000-001

Aircraft Models: AgustaWestland - AW119

  • In stock

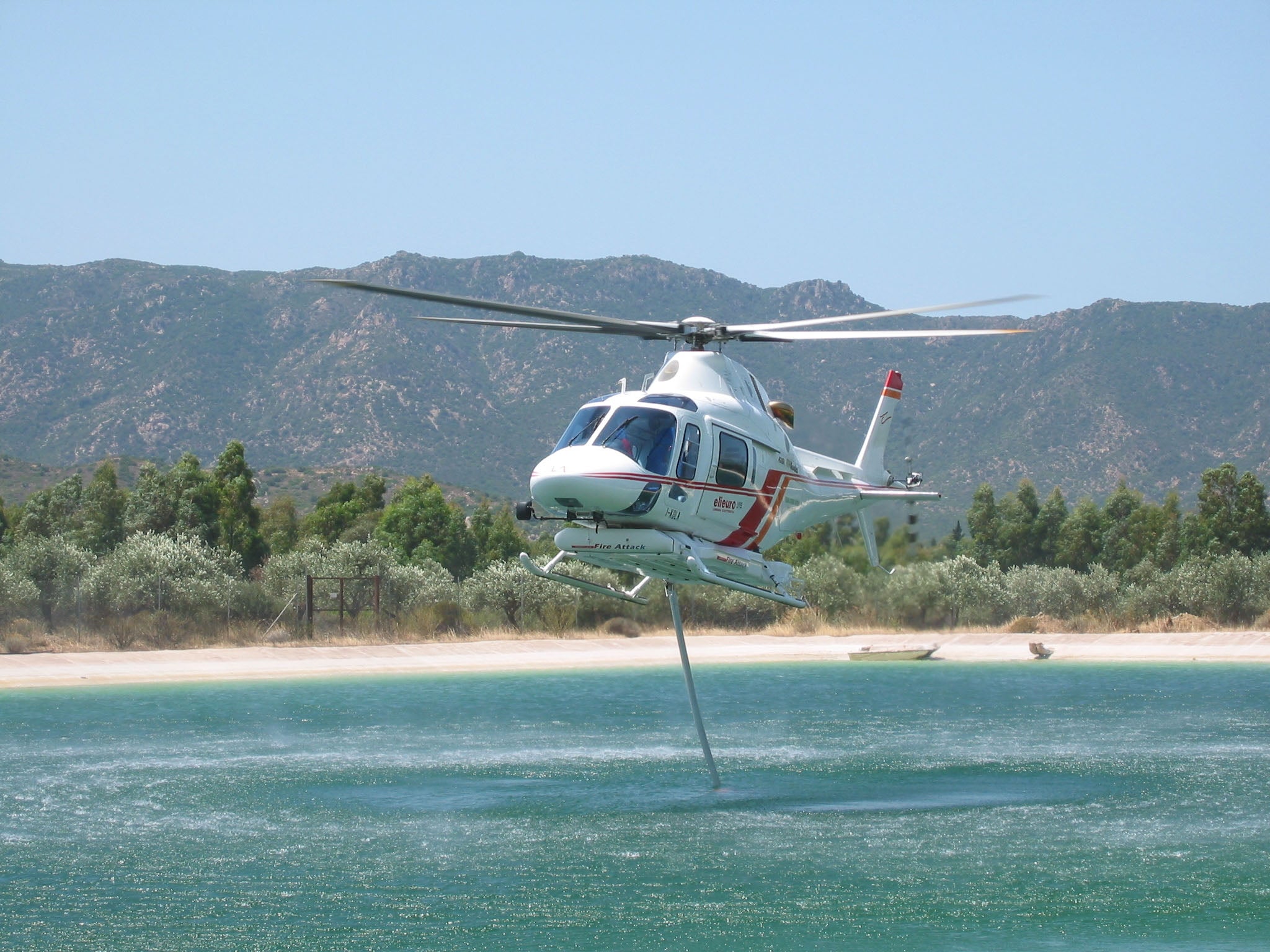

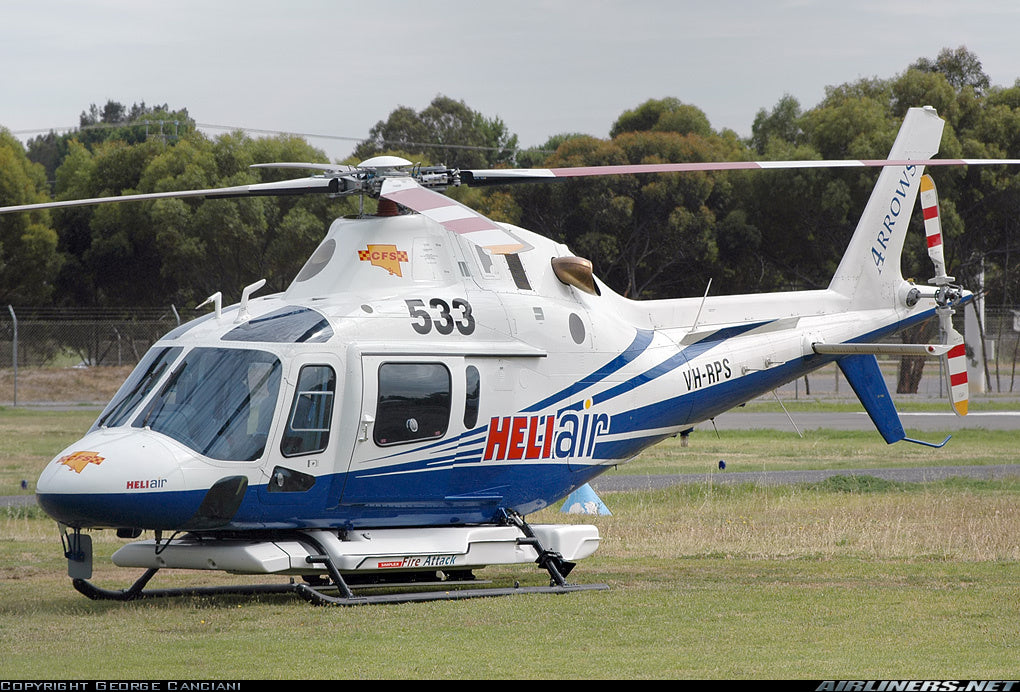

DART's Simplex Model 323 Fire Attack™ system consists of a belly-mounted tank and a DC electrical hover refill pump and hose. The belly tank is manufactured from high-strength, low-weight carbon fiberglass material and holds 1,200 liter (317 gallons) of water.


Key Features

  • The sole manufacturer of Fire Attack systems for the AW119 Koala
  • Cockpit controlled selectable drop patterns
  • Durable, lightweight carbon fiber composite matrix tank

Key Benefits

  • Built-in flight step on each side of tank
  • Installation/removal in 30 minutes
  • FAA certified for day/night VFR
  • Corrosion-resistant parts
  • Hover Refill in less than 60 seconds

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR01135SE AW119 Simplex Model 323 Fire Attack System
STC EASA - Europe EASA.IM.R.S.00711 AW119 Simplex Model 323 Fire Attack System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 318 lb / 144 kg

Load Capacity And Volume

  • Volume: 317 gal / 1200 L
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
