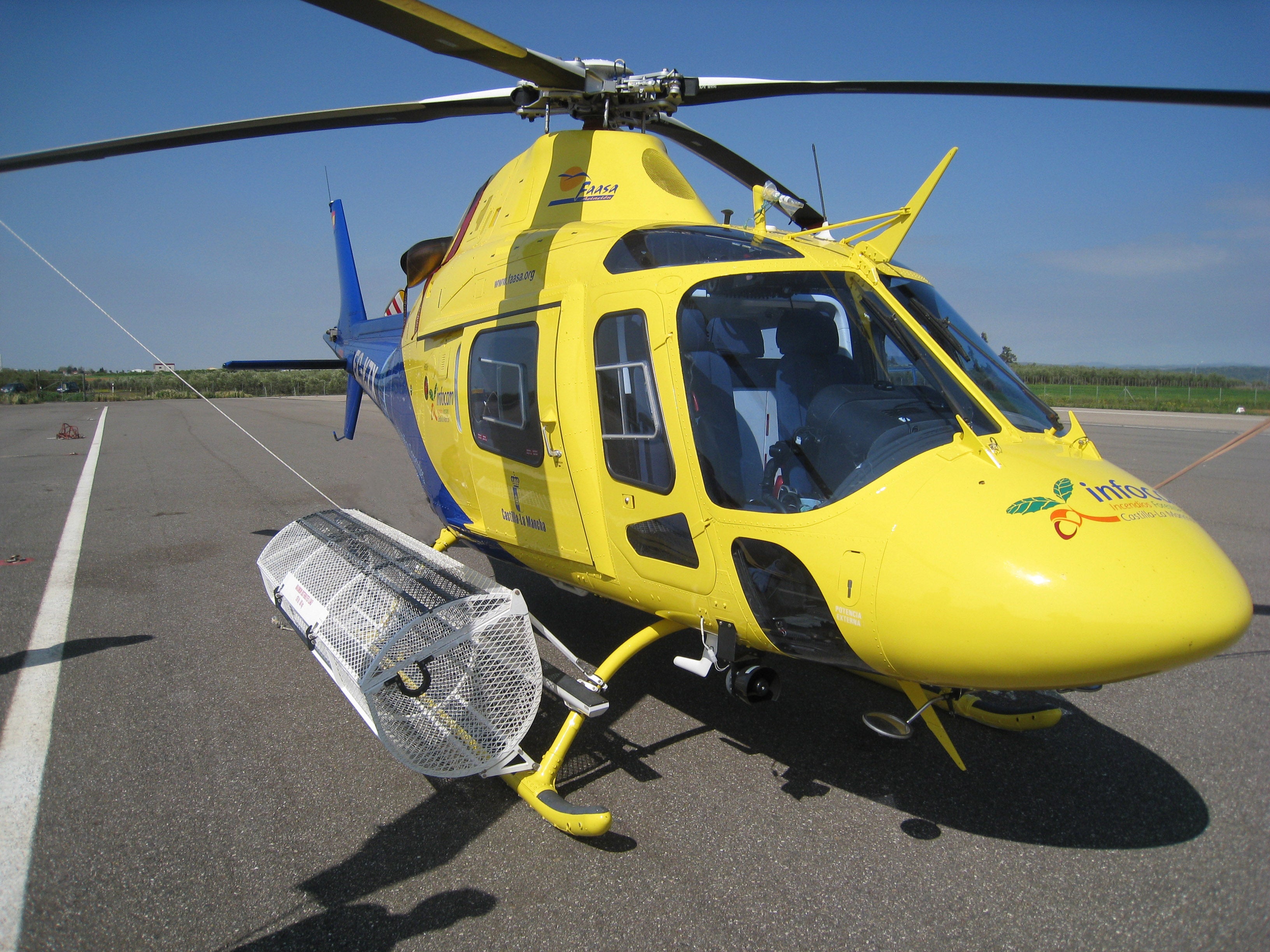

AW119 Heli-Utility-Basket™, Fits LH or RH

Mission Equipment
Part Number: D119-756-041
Aircraft Models: AgustaWestland - AW119

Price:
The DART Heli-Utility-Basket™ features an optional quick release pin kit that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a heavy duty stainless steel lid that doubles as a step and is a... Read more
The DART Heli-Utility-Basket™ features an optional quick release pin kit that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a heavy duty stainless steel lid that doubles as a step and is attached using a robust hinge system. *Includes fixed provisions. Compatible with D119-675-XXX DART Heli-Access-Steps™. For DART crosstube compatibility inquire with Customer Support about compatibility upgrade kit. AW119 Koala approved for installation on either left or right side with the exception of EASA - RH only. VNE reduced by 22-42 kias for EASA only. VFR operations only. Price is per side. Read less

Description

The DART Heli-Utility-Basket™ features an optional quick release pin kit that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of corrosion-resistant stainless steel, coated with a high-gloss, scratch-resistant white finish. Enhanced safety with a simple self-locking handle that assures lid closure and secures cargo during flight. The basket features a heavy duty stainless steel lid that doubles as a step and is attached using a robust hinge system. *Includes fixed provisions. Compatible with D119-675-XXX DART Heli-Access-Steps™. For DART crosstube compatibility inquire with Customer Support about compatibility upgrade kit. AW119 Koala approved for installation on either left or right side with the exception of EASA - RH only. VNE reduced by 22-42 kias for EASA only. VFR operations only. Price is per side.

Key Features

  • Self-locking handle
  • Prop arm keeps lid open for easy cargo loading
  • Durable scratch resistant finish
  • Easy bolt on installation
  • Optional quick release pip pin kit
  • Heavy duty lid doubles as a step or walkway for maintenance
  • Carrying handles
  • Installs to landing gear with clamps

Key Benefits

  • Corrosion-resistant stainless steel construction
  • Approved to be flown on left-hand or right-hand side (see product description)
  • No VNE restriction (see product description)
  • Does not impede access to the cargo doors
  • Allows unobstructed passenger egress
  • Fixed provisions also available separately for easy transfer

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Indonesia SR034 AW119/AW119MKII Installation of Heli-Utility Basket
STC ANAC - Brazil 2021S09-05 AW119/AW119MKII Heli-Utility-Basket™
STC EASA - Europe 10016908, Rev 1 AW119/AW119MKII Heli-Utility-Basket™
STC TCCA - Canada SH06-39 AW119/AW119MKII Heli-Utility-Basket™
STC FAA - USA SR02364NY AW119/AW119MKII Heli-Utility-Basket™

OEM Cross References

N/A

External Warning

If installing on a Koala places a life limit on the OEM fwd crosstube when basket is installed. AW119 Koala approved for installation on either left or right side with the exception of EASA - RH only. VNE reduced by 22-42 kias for EASA only.

Prerequisite

N/A

Compatible With

DART Heli-Access-Step: D119-675-XXX; DART Crosstubes: D119-796-XXX

Not Compatible With

N/A

Flight Restrictions

VFR only, EASA Koala RH only, EASA VNE restrictions. MKII has a limit of 146 lbs / 66 kg and the AW119 has a limit of 154 lbs / 70 kg under EASA.only

Installation Time

2 hrs

Dimensions And Weight

  • Length: 102" / 2.6m
  • Width: 25" / 0.64m
  • Weight Display: 118.00 lbs / 53.60 kg

Load Capacity And Volume

  • Volume: 27.0 ft3 / 0.76 m3
  • Load Capacity: 176 lbs / 79.8 kg (TCCA/FAA AW119 Koala); 146 lbs / 66.2 kg (TCCA/FAA/EASA AW119 MKII); 154 lbs / 69.9 kg (EASA AW119 Koala)

Technical Documentation

Downloads

N/A
