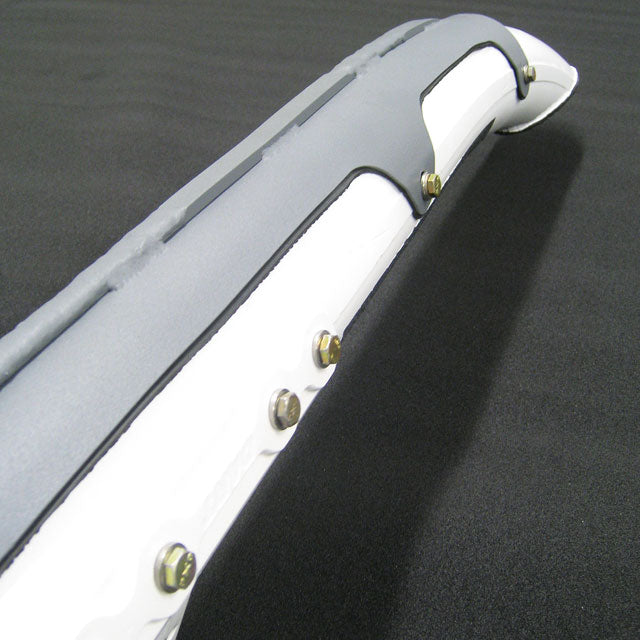

AW119 Heavy-Duty Wearplate Kit - Fits LH or RH

Part Number: D119-646-251
Aircraft Models: AgustaWestland - AW119

Price:
DART Aerospace Heavy-Duty Wearplates are specifically designed for the harsh use of training and run-on landings. The heavy-duty wearplates feature full-length stainless steel wear bars with more areas of generously overlaid highly wear resistant tungsten carbide as compared to any other available wearplates. *Installs on D119-646-211/-212 heavy duty skidtubes. Includes 2 heavy duty full-length wearplates with heavy tungsten carbide welds & associated hardware. Wearplates install with thru-bolts. Price is per skidtube

Description

DART Aerospace Heavy-Duty Wearplates are specifically designed for the harsh use of training and run-on landings. The heavy-duty wearplates feature full-length stainless steel wear bars with more areas of generously overlaid highly wear resistant tungsten carbide as compared to any other available wearplates. *Installs on D119-646-211/-212 heavy duty skidtubes. Includes 2 heavy duty full-length wearplates with heavy tungsten carbide welds & associated hardware. Wearplates install with thru-bolts. Price is per skidtube

Key Features

  • Compatible with DART skidtubes
  • Full-length stainless steel protection
  • Heavy-duty Tungsten wear bars
  • Innovative thru-bolt install design
  • Corrosion resistant compound between the skidtube and wearplate (no gaskets or sealant required)
  • Wearplates are not handed - Fits LH or RH

Key Benefits

  • Best protection available on the market
  • LH/RH interchangeable, which reduces spares inventory
  • Designed for unknown terrain landings
  • Ideal for utility and training operations

Approvals

Approval type Authority Reference number Aircraft approved Description
STC ANAC - Brazil 2015S08-04 AW119/AW119MKII D119-646 Approved OEM Replacement Skidtube
STC CAAP - Philippines LoA FV16-0023SE AW119/AW119MKII D119-646 Approved OEM Replacement Skidtube
STC CAAC - China VSTC0758 AW119MKII DART D119-646 Replacement Skidtube Installation
STC DGCA - Indonesia SR 026 AW119/AW119MKII Replacement Skidtube Installation D119-646
STC ANAC - Argentina CTS 1809.37 (A) AW119 Installation of replacement Skidtube D119-646
STC IAC AR - Russia FATA-STC030131 AW119/AW119MKII Skidtube Installation
STC EASA - Europe 10040294, Rev. 1 AW119/AW119MKII D119-646 Approved OEM Replacement Skidtube
STC TCCA - Canada LOA P-09-0407-RDIMS-5400317 AW119/AW119MKII D119-646 Approved OEM Replacement Skidtube
STC FAA - USA SR02024SE AW119/AW119MKII D119-646 Approved OEM Replacement Skidtube
Aircraft Type Certificate IAC AR - Russia CT316 AW119MKII AW119 Type Certificate
STC DGCA - India LoA 07-09/2011-AED AW119/AW119MKII DART D119-646 Replacement Skidtube Installation

OEM Cross References

N/A

External Warning

Wearpads & Wearplates have textured coating (without gaskets).

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

None

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 10.60 lbs / 4.81 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
