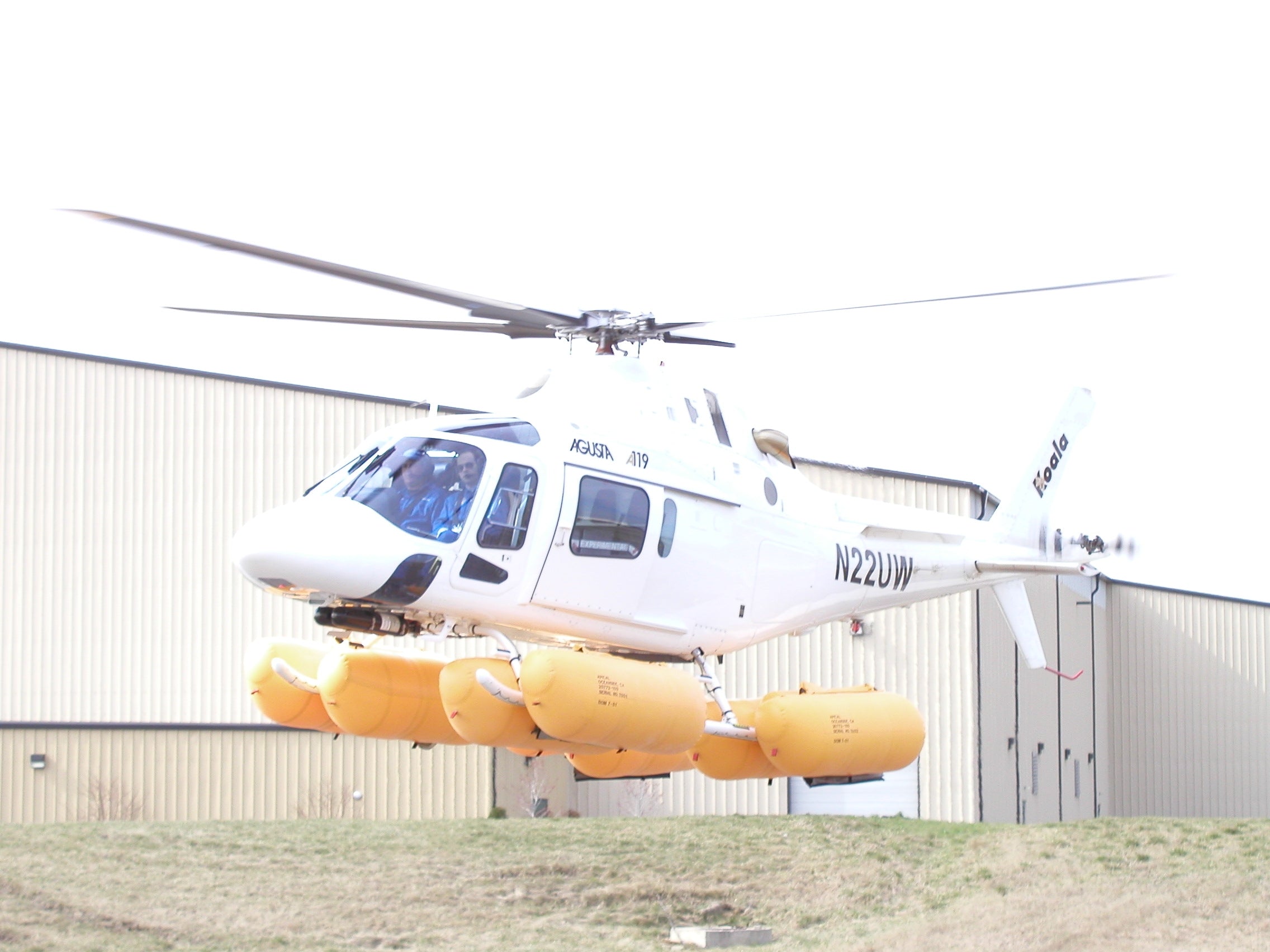

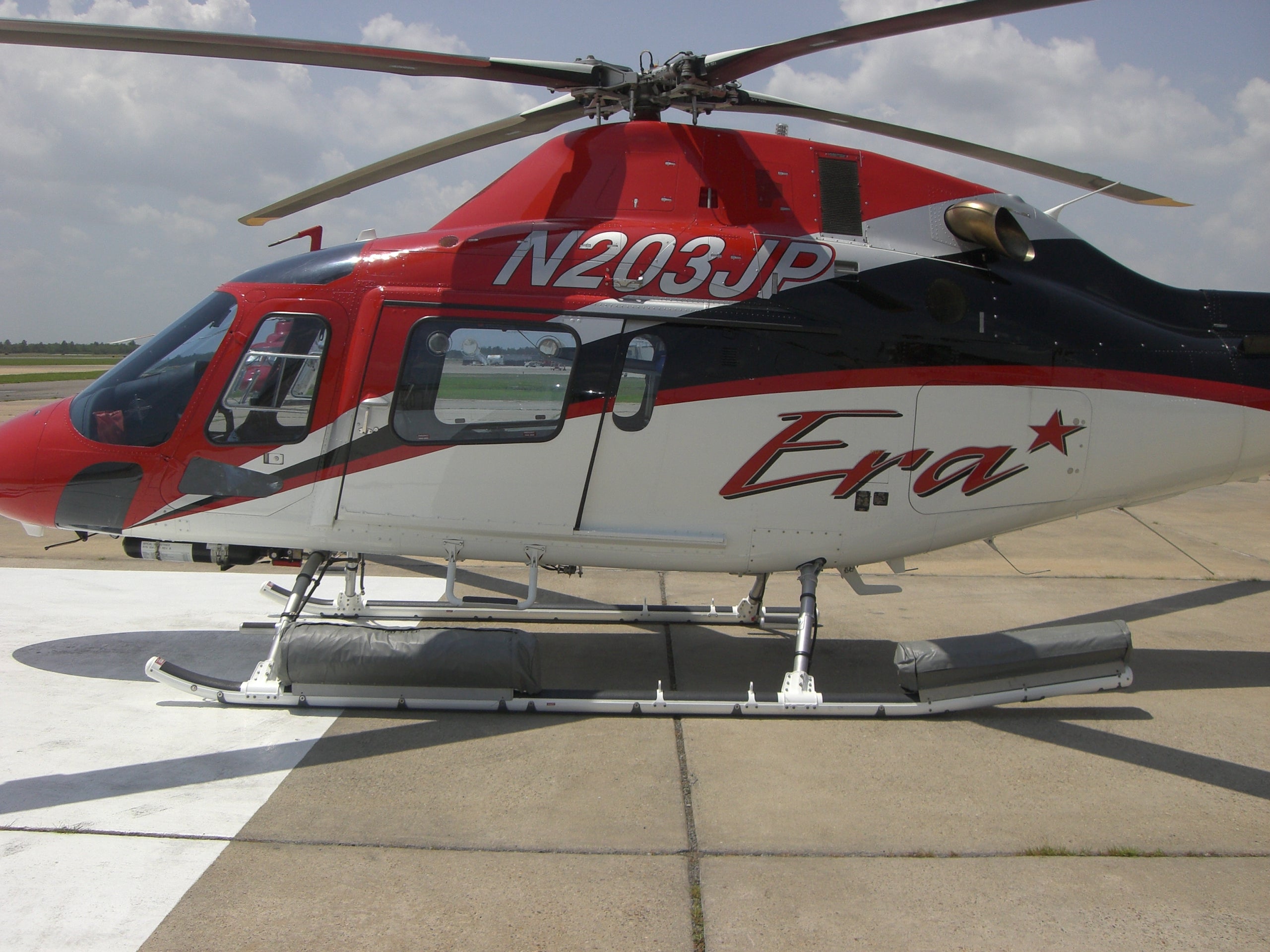

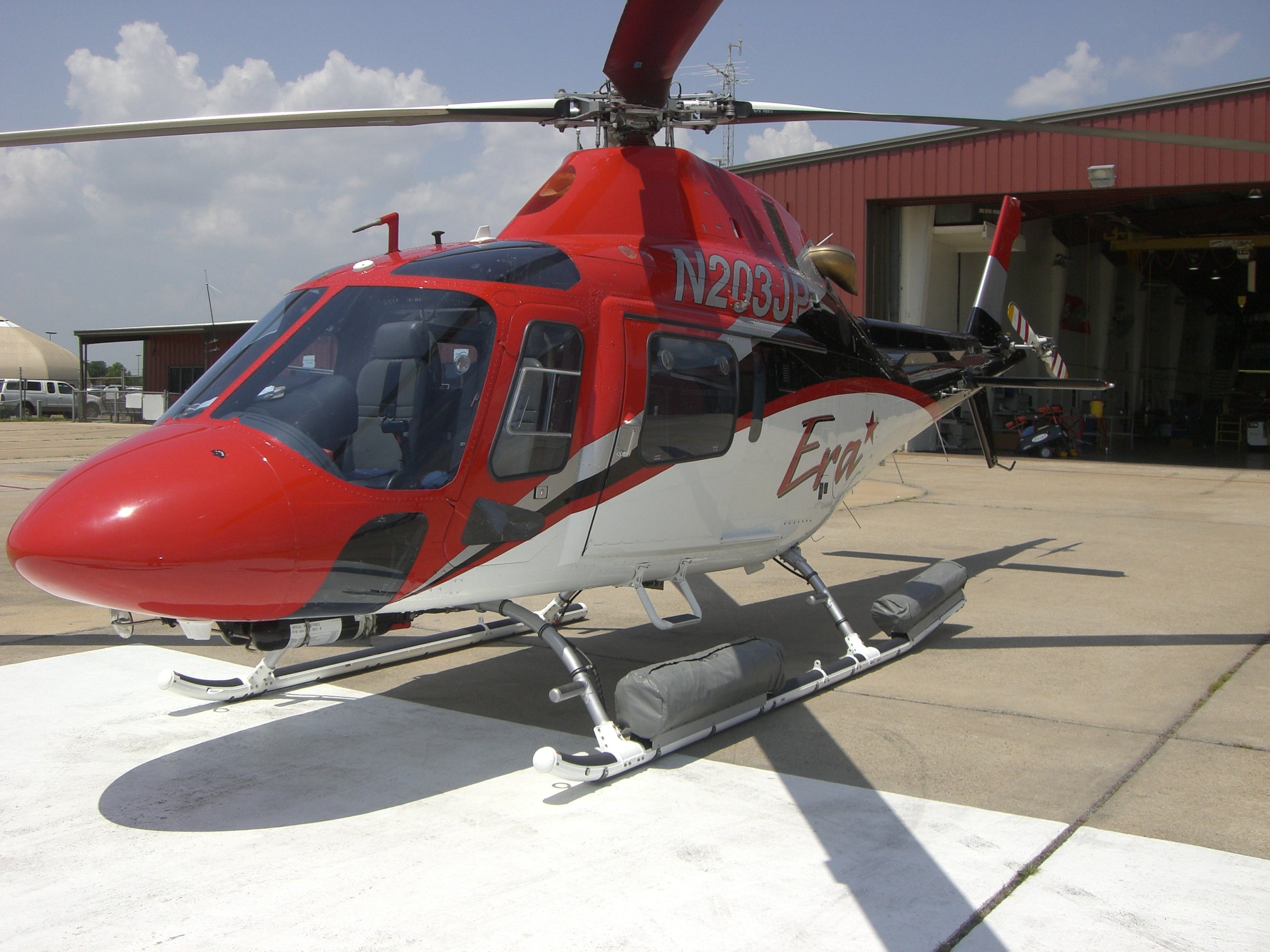

AW119 Emergency Float System with Integrated Liferafts - w/o Skid Extensions

Part Number: 651.0511
Aircraft Models: AgustaWestland - AW119
Price:
The AW119 Emergency Float System is compatible with ground handling wheels and the float bags can be removed in a matter of minutes. All hoses and fittings are stainless steel and an electrical solenoid valve with a mechanical backup is standard with the system. The cylinder valve assemblies, floats and liferafts are available as exchange items, thereby reducing maintenance and down time. All float chambers come standard with field replaceable topping/pressure relief ... Read more
The AW119 Emergency Float System is compatible with ground handling wheels and the float bags can be removed in a matter of minutes. All hoses and fittings are stainless steel and an electrical solenoid valve with a mechanical backup is standard with the system. The cylinder valve assemblies, floats and liferafts are available as exchange items, thereby reducing maintenance and down time. All float chambers come standard with field replaceable topping/pressure relief valves. The float bags are on-condition and they do not require to be returned to the factory for recertification. Factory recertification of the system is available for customers who desire OEM services. *Includes integrated liferaft. Does not include skidtube extensions, must be installed on float compatible skidtubes. Compatible with AW119KX. Price is for complete float system. Read less

Description

The AW119 Emergency Float System is compatible with ground handling wheels and the float bags can be removed in a matter of minutes. All hoses and fittings are stainless steel and an electrical solenoid valve with a mechanical backup is standard with the system. The cylinder valve assemblies, floats and liferafts are available as exchange items, thereby reducing maintenance and down time. All float chambers come standard with field replaceable topping/pressure relief valves. The float bags are on-condition and they do not require to be returned to the factory for recertification. Factory recertification of the system is available for customers who desire OEM services. *Includes integrated liferaft. Does not include skidtube extensions, must be installed on float compatible skidtubes. Compatible with AW119KX. Price is for complete float system.

Key Features

  • Associated hoses, cables, hardware & electrical components included in kit
  • Kit includes Pivot Steps
  • One 6-man liferaft and survival kit included in each FWD float
  • Available with optional: searchlight compatibility, hoist guards, fixed & removable provisions kits

Key Benefits

  • Improved safety with integrated liferafts technology
  • Exchange Program Available

Approvals

Approval type Authority Reference number Aircraft approved Description
STC CAAP - Philippines LoA 150L-16-118 AW119/AW119MKII Tri-Bag Emergency Float System
STC CAAC - China VSTC0850 AW119/AW119MKII Installation of emergency float kits
STC JCAB - Japan 70-HQT AW119MKII Tri-Bag Emergency Float System
STC EASA - Europe EASA.IM.R.S.01441 AW119/AW119MKII Tri-Bag Emergency Float System
STC TCCA - Canada P-11-0045 AW119MKII Tri-Bag Emergency Float System
STC DGCA - Indonesia SR002 AW109E/AW109S/AW109SP/AW119/AW119MKII Tri-Bag Emergency Float System
STC FAA - USA SR01392LA AW119/AW119MKII Tri-Bag Emergency Float System
STC IAC AR - Russia TCDS CT 316 AW119MKII Tri-Bag Emergency Float System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

AW119KX, DART float compatible skidtubes

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

Contact Customer Support

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 219.4 lbs / 99.52 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
