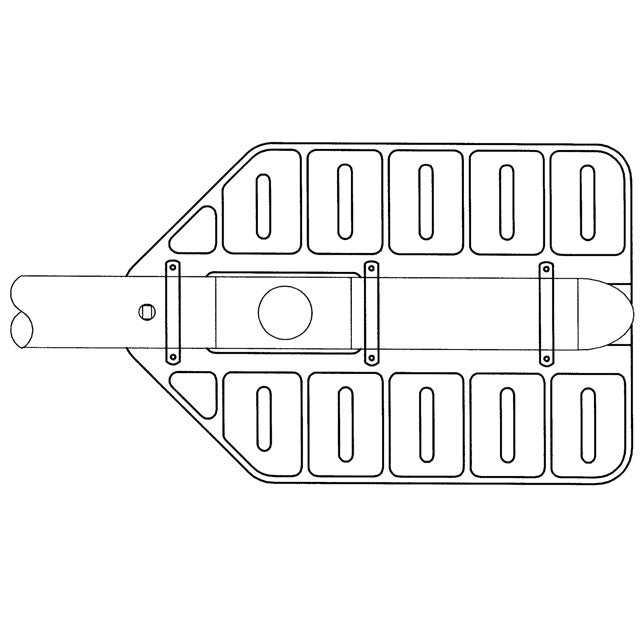

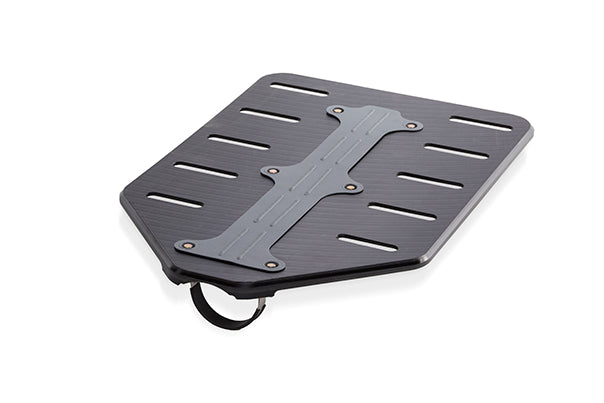

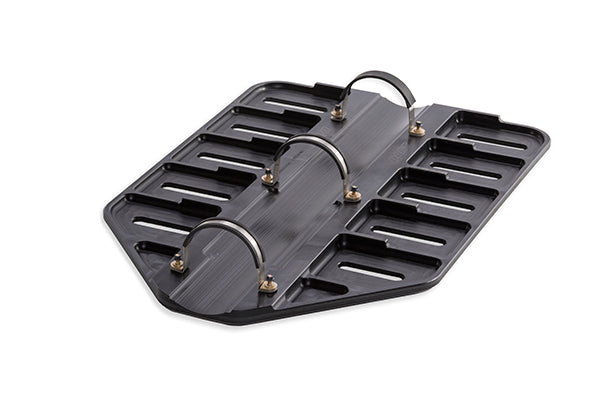

AW119/AW109 Trekker Bearpaws


Part Number: D119-647-011

Aircraft Models: AgustaWestland - AW109;AgustaWestland - AW119

  • In stock
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws are constructed of a high density polymer, not plywood, aluminum or composite; this polymer resists cracking, chipping and breaking. The one-piece machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Compatible on OEM and DART Skidtubes with Standard Wearplates & Wearpads (p/n D119-646-011-/012/-111/-112). Not compatible on DART Skidtubes with Run-on Landing Wearplates p/n D119-646-211/-212, see D119-647-013 for compatible bearpaws. Compatible with DART (Apical) Floats. Wearplates sold separately. Price is per aircraft.

Key Features

  • CNC machined UHMW polymer provides consistent load transfer

Key Benefits

  • No modifications to skidtube required
  • More durable than steel or fiberglass skis
  • High strength polymer with memory, deflects under critical point loading without failure and returns to original shape when unloaded
  • Keeps tail high in soft terrain to prevent tail strikes
  • Lightweight
  • Easy to install
  • Won't chip, crack or break
  • Float compatible
  • Compatible on DART and OEM Skidtubes

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Chile FV20-0060SE AW109S/AW119/AW119MKII Fabrication and installation of Bearpaws
STC EASA - Europe 10029107 Rev. 1 AW109S/AW119/AW119MKII UHMW Polymer Bearpaw
STC FAA - USA SR00949SE AW109S/AW119/AW119MKII UHMW Polymer Bearpaw
Aircraft Type Certificate IAC AR - Russia CT316 AW119MKII AW119 Type Certificate
STC TCCA - Canada LoAC-11-0119/C-11-0120/C-11-0121 AW109S/AW119/AW119MKII Bearpaws, Heli-Access-Step™, Cargo Mirror

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

OEM & DART Skidtubes With Standard Wearpads & Wearplates: D119-646-011/D119-646-012/D119-646-111/D119-646-112; See D119-647-013 for compatible Bearpaws; DART Floats AW109S with Trekker kit.

Not Compatible With

DART Skidtubes with Run-On Landing Wearplates: D119-646-211/D119-646-212

Flight Restrictions

None

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 15.40 lbs / 7.00 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Login

Downloads

N/A
