AW109 Emergency Float System with Integrated Liferafts

Mission Equipment
Part Number: 634.4102
Aircraft Models: AgustaWestland - AW109

Price:
The Emergency Float and Emergency Float with Integrated Liferaft technology for the AW109 consist of: 4 emergency floats (2 emergency floats and 2 floats with optional liferafts) assemblies attached to the aircraft structural float provisions. This design also utilizes aircraft electrical provisions for the floats (float arming switch, float deployment switch, liferaft deployment switch, and associated wiring). The kit also contains, at the customers option, two 6-pax... Read more

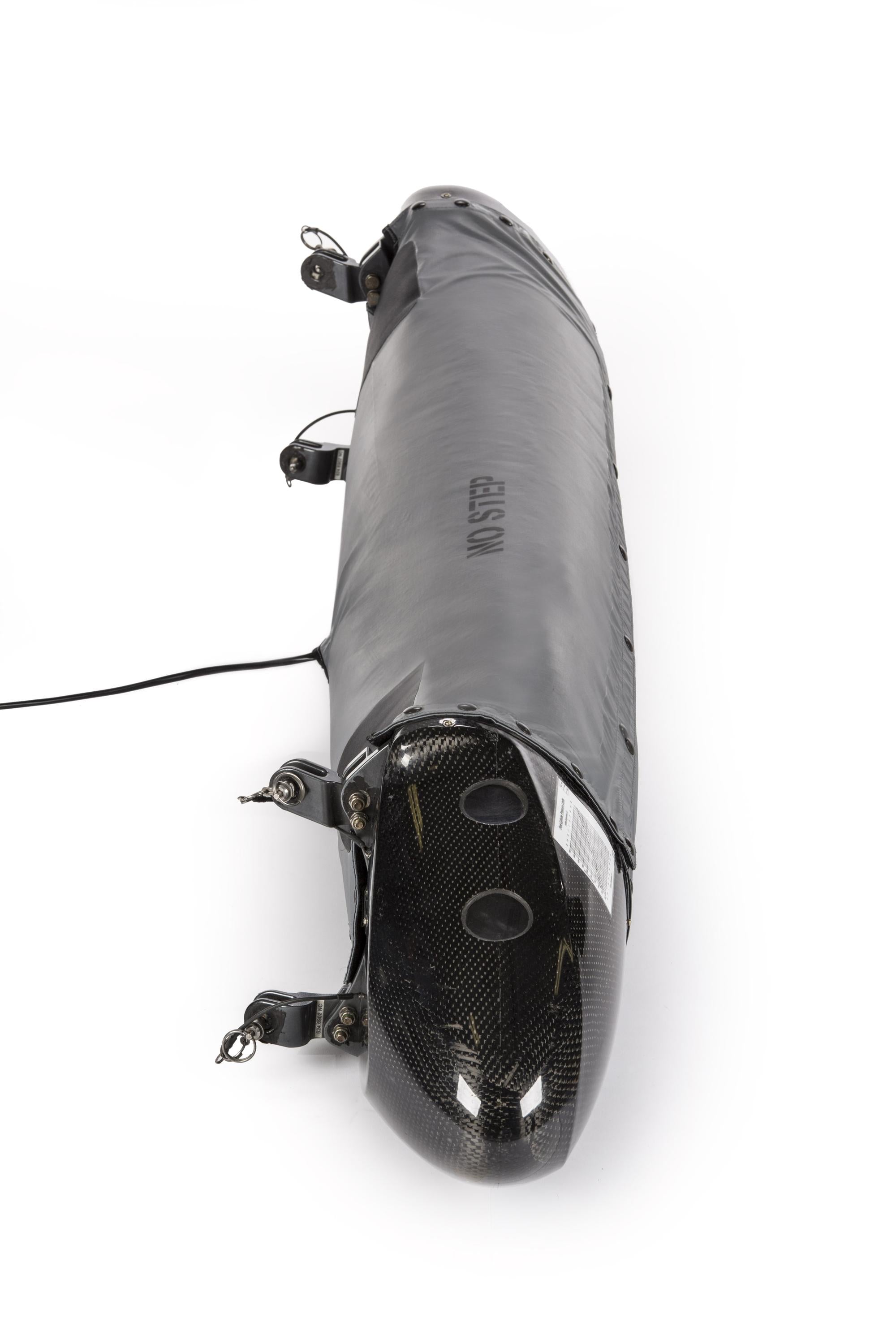

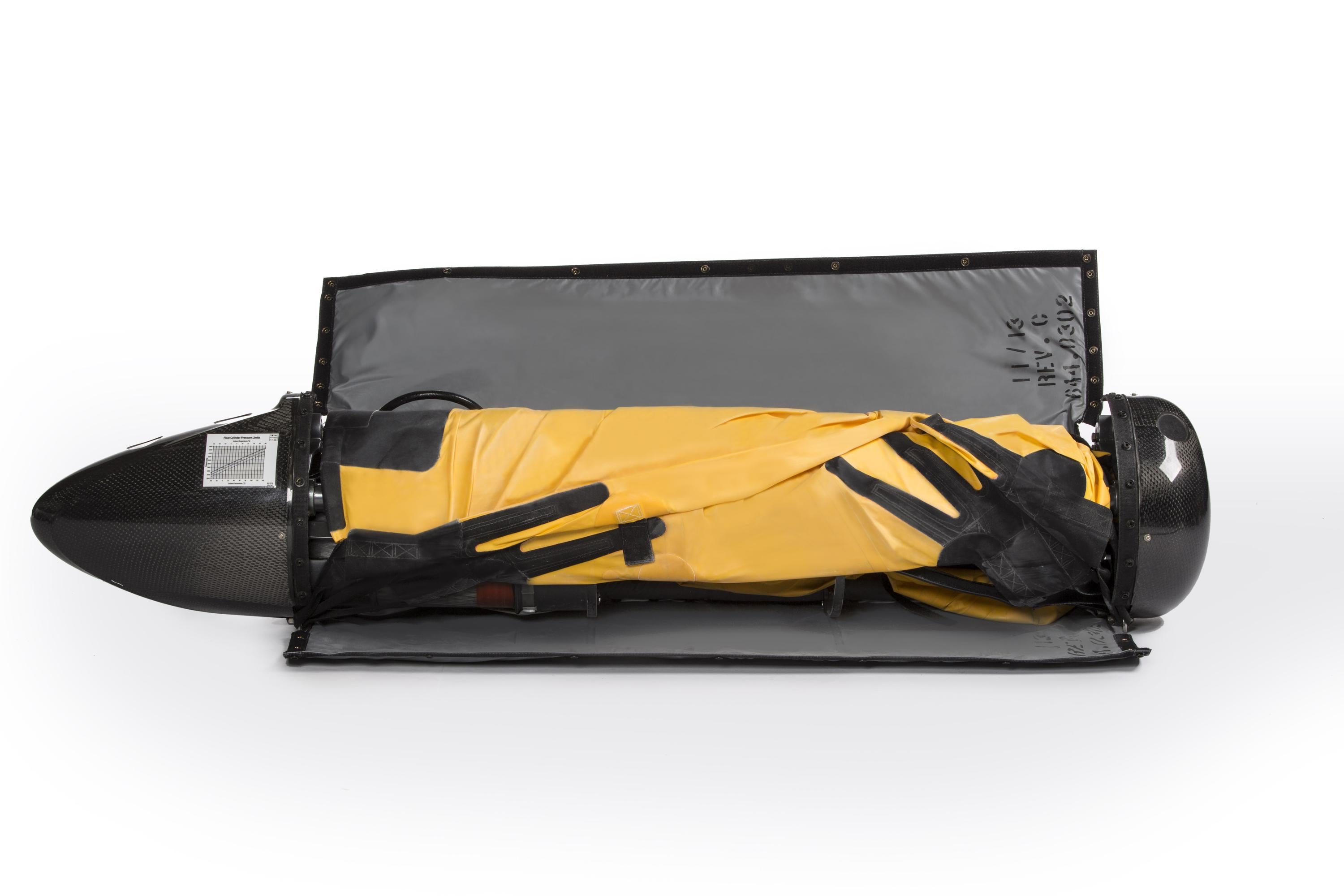

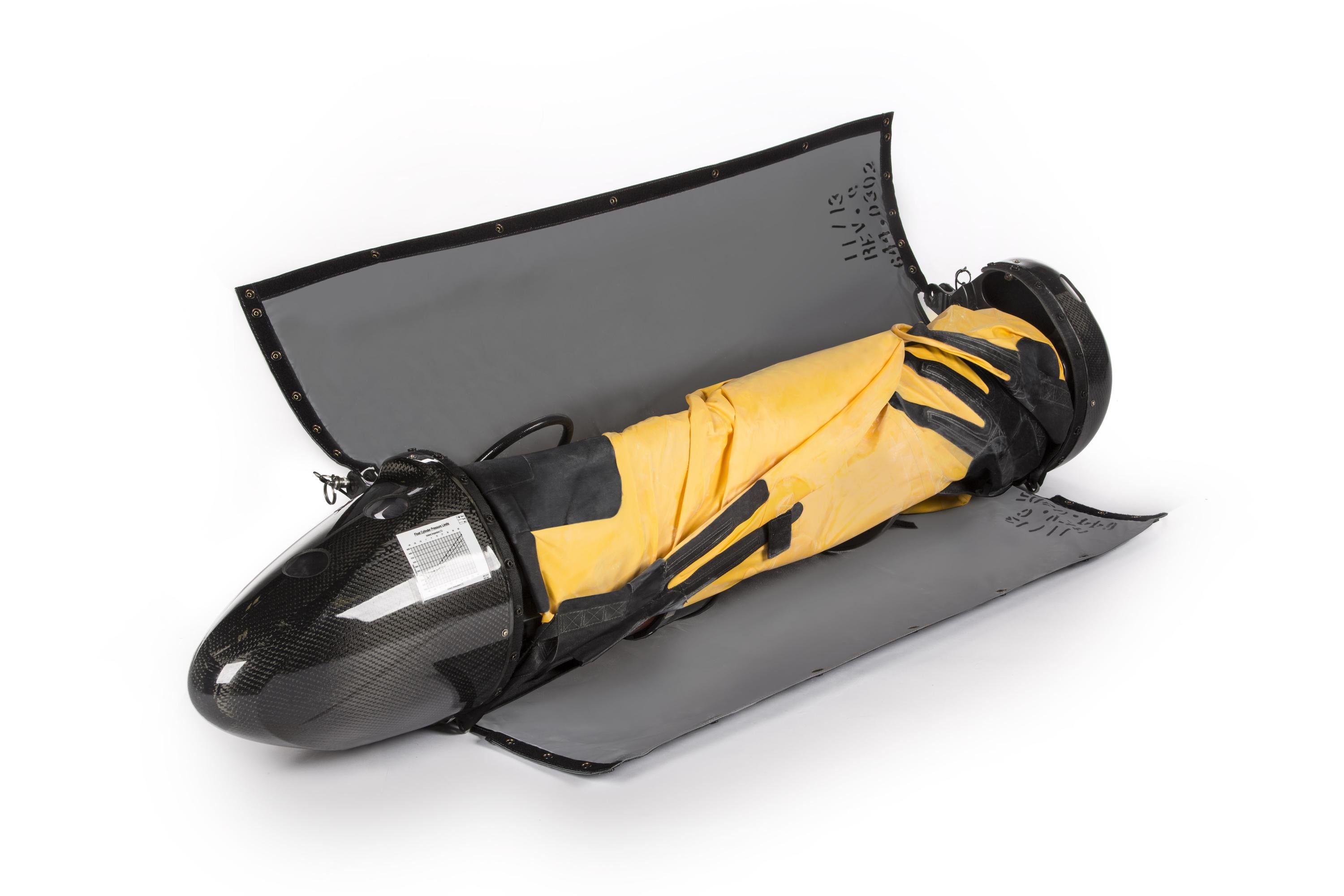

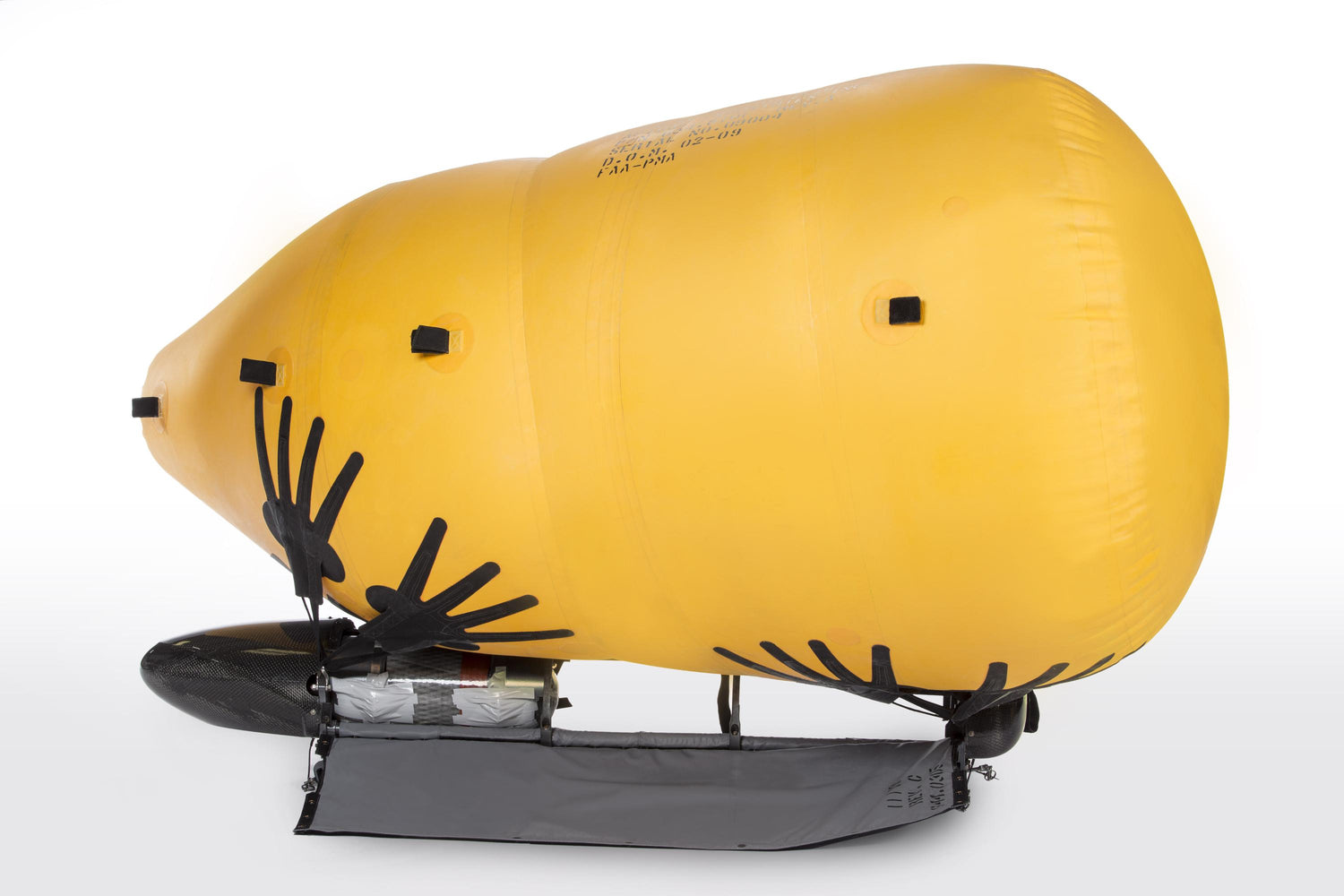

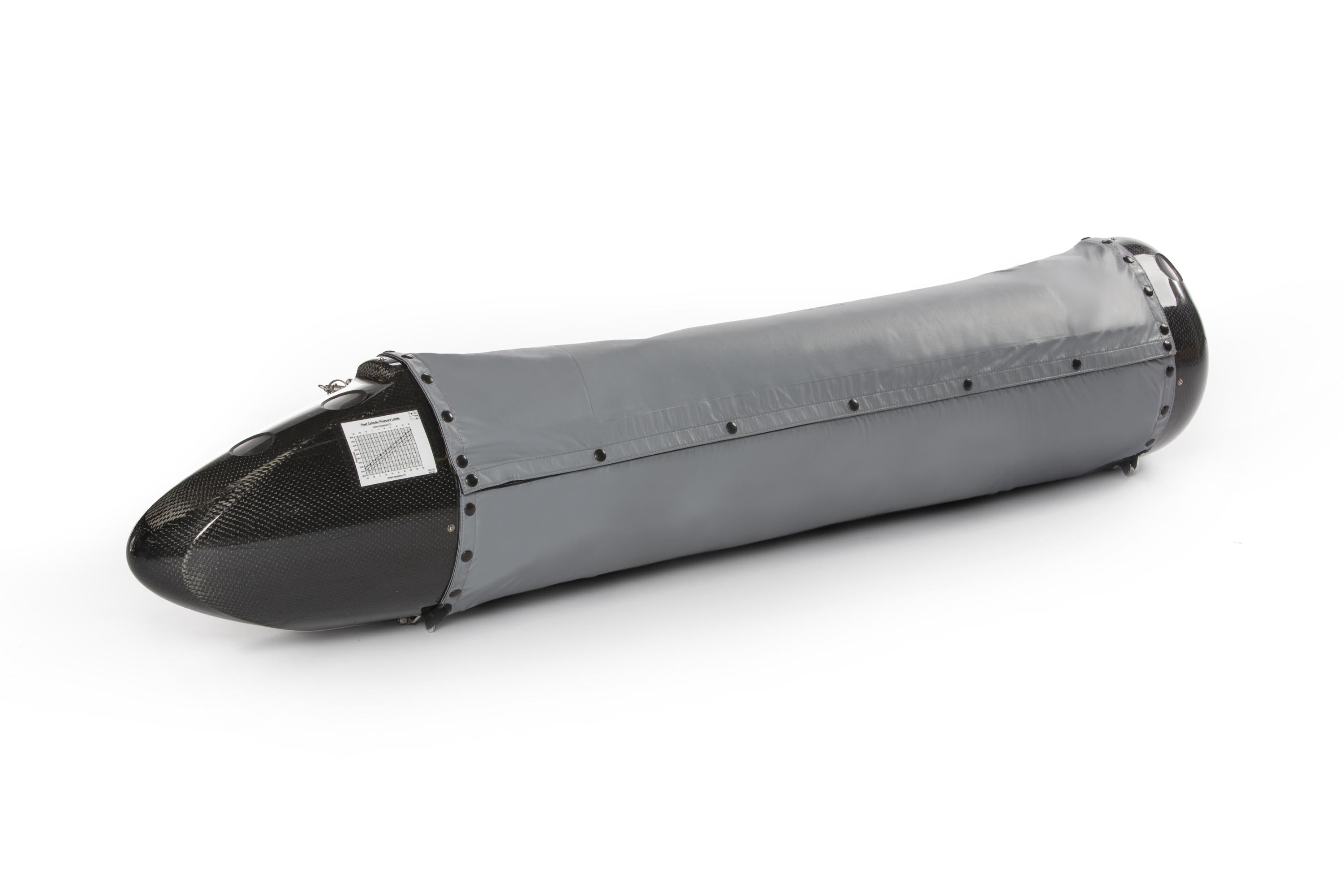

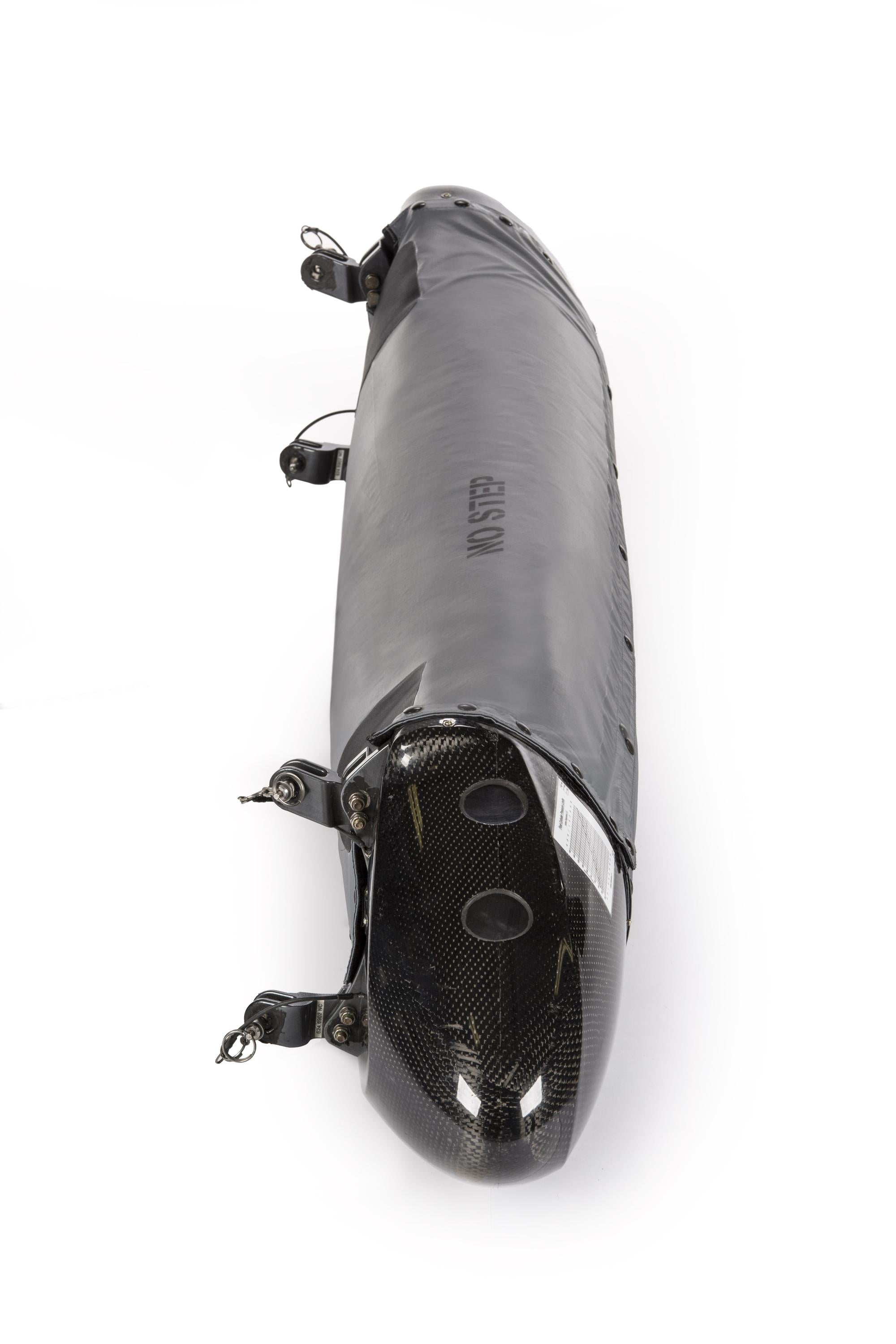

The Emergency Float and Emergency Float with Integrated Liferaft technology for the AW109 consist of: 4 emergency floats (2 emergency floats and 2 floats with optional liferafts) assemblies attached to the aircraft structural float provisions. This design also utilizes aircraft electrical provisions for the floats (float arming switch, float deployment switch, liferaft deployment switch, and associated wiring). The kit also contains, at the customers option, two 6-pax liferafts which are packed in the Fwd floats and have their own electrical inflation system. All the associated plumbing, hardware, and electrical components to complete the installation of the kit are provided. The emergency floats will allow the helicopter to land in water during an emergency landing. The floats are inflated electrically when the float deployment switch on the collective is activated. The Aft floats are designed to reduce the chance of a tail rotor strike during autorotation water landing. After a water landing, the two 6-pax liferafts are electrically inflated by operating either the center console mounted guarded switch or the overhead mounted switch. Only float system certified for the increased gross weight A109S. Other options available: - With or without integrated liferaft - Fixed Provisions only - Removable provisions only - AW109E, S, SP & Trekker compatible *Kit includes 2 Fwd & 2 Aft Cylindrical floats with integrated liferafts. Requires OEM structural and electrical provisions. Price is for complete float system. The Emergency Floats are not compatible with: • Snow Skis (Finmeccanica P/N 109-0811-99 or P/N 109G3271F01) • Sump Pads (Finmeccanica P/N 109-0811-73 or P/N 109G3272F01) • Aircraft installing the Rescue Hoist and Step Bar must be modified with the Finmeccanica Protection Kit (Finmeccanica P/N 109-0885-79 or P/N 109-0886-27) or the Apical Hoist Guard Kit (P/N 646.1000) Read less

Description

The Emergency Float and Emergency Float with Integrated Liferaft technology for the AW109 consist of: 4 emergency floats (2 emergency floats and 2 floats with optional liferafts) assemblies attached to the aircraft structural float provisions. This design also utilizes aircraft electrical provisions for the floats (float arming switch, float deployment switch, liferaft deployment switch, and associated wiring). The kit also contains, at the customers option, two 6-pax liferafts which are packed in the Fwd floats and have their own electrical inflation system. All the associated plumbing, hardware, and electrical components to complete the installation of the kit are provided. The emergency floats will allow the helicopter to land in water during an emergency landing. The floats are inflated electrically when the float deployment switch on the collective is activated. The Aft floats are designed to reduce the chance of a tail rotor strike during autorotation water landing. After a water landing, the two 6-pax liferafts are electrically inflated by operating either the center console mounted guarded switch or the overhead mounted switch. Only float system certified for the increased gross weight A109S. Other options available: - With or without integrated liferaft - Fixed Provisions only - Removable provisions only - AW109E, S, SP & Trekker compatible *Kit includes 2 Fwd & 2 Aft Cylindrical floats with integrated liferafts. Requires OEM structural and electrical provisions. Price is for complete float system. The Emergency Floats are not compatible with: • Snow Skis (Finmeccanica P/N 109-0811-99 or P/N 109G3271F01) • Sump Pads (Finmeccanica P/N 109-0811-73 or P/N 109G3272F01) • Aircraft installing the Rescue Hoist and Step Bar must be modified with the Finmeccanica Protection Kit (Finmeccanica P/N 109-0885-79 or P/N 109-0886-27) or the Apical Hoist Guard Kit (P/N 646.1000)

Key Features

  • Associated hoses, hardware & electrical components included in kit
  • Exchange program available
  • Ability to inflate all liferafts simultaneously w/actuation of single button
  • Modular system architecture with reservoirs integrated in float pod
  • Will be compliant with EASA OPS requirements

Key Benefits

  • Offered with or without integrated liferafts technology
  • Significant weight reduction compared to carrying internal liferafts
  • Easily reconfigured for quick mission changes

Approvals

Approval type Authority Reference number Aircraft approved Description
STC KOCA - Korea STCVA201603 AW109SP Cylindrical Emergency Float System
STC DGCA - India 07-38/2017-AED AW109/AW109A/AW109AII/AW109C/AW109E/AW109K2/AW109S/AW109SP Cylindrical Emergency Float System
STC CAAQ – Qatar CA/ASD/AW.MD/ASM/AM/34989 AW109/AW109A/AW109AII/AW109C/AW109E/AW109K2/AW109S/AW109SP QATAR - Emergency Float System
STC ANAC - Brazil ANAC 2008S08-04 AW109E/AW109S Cylindrical Emergency Float System
STC IAC AR - Russia CT170-A109 AW109E Cylindrical Emergency Float System
STC EASA - Europe 10016878, Rev. 3 AW109/AW109A/AW109AII/AW109C/AW109E/AW109K2/AW109S/AW109SP Cylindrical Emergency Float System
STC DGCA - Mexico IA-93/2010 AW109/AW109A/AW109AII/AW109C/AW109E/AW109K2/AW109S/AW109SP Cylindrical Emergency Float System
STC TCCA - Canada RDMS 38668811V1 AW109/AW109A/AW109AII/AW109C/AW109E/AW109K2/AW109S/AW109SP Cylindrical Emergency Float System
STC DGCA - Indonesia SR002 AW109E/AW109S/AW109SP/AW119/AW119MKII Tri-Bag Emergency Float System
STC FAA - USA SR01812LA AW109/AW109A/AW109AII/AW109C/AW109E/AW109K2/AW109S/AW109SP Cylindrical Emergency Float System
STC DCA - Malaysia VSTC/2013/003 AW109S Cylindrical Emergency Float System
STC CAAC - China VSTC0346 AW109E/AW109S Cylindrical Emergency Float System

OEM Cross References

N/A

External Warning

Also available: optional electrical system test tool: PN 652.4101.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

20 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 240.00 lbs / 108.86 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
