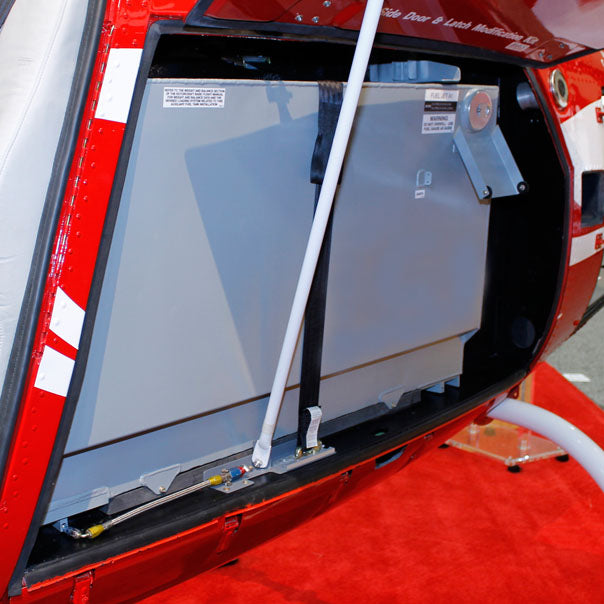

Auxiliary Fuel Tank Provisions

Part Number: D350-794-013
Aircraft Models: Airbus - AS350
Price:
*Provisions to install in additional aircraft to allow for easy transfer of tank. Requires DSI 9562-011 to be compatible with DART Spacepods™ or DSI 9599-011 to be compatible with Airbus Squirrel Cheeks (contact Sales for details). Not compatible with artificial horizon standby battery installation. 1 kit completes 1 aircraft.

Description

*Provisions to install in additional aircraft to allow for easy transfer of tank. Requires DSI 9562-011 to be compatible with DART Spacepods™ or DSI 9599-011 to be compatible with Airbus Squirrel Cheeks (contact Sales for details). Not compatible with artificial horizon standby battery installation. 1 kit completes 1 aircraft.

Key Features

N/A

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10031514 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Auxiliary Fuel Tank
STC ANAC - Brazil 2002S09-07 AS350B1/AS350B2/AS350B3/AS350BA/EC130B4 Auxiliary Fuel Tank
STC ANAC - Brazil 2002S09-08 AS350B Auxiliary Fuel Tank
STC CASA - Australia ASR063SY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank
STC IAC AR - Russia CT107-350 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 Bearpaw, Basket & Auxiliary Fuel Tank Installations
STC TCCA - Canada SH05-4 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank
STC FAA - USA SR02794NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank

OEM Cross References

N/A

External Warning

This is not eligible for installation on Aircraft that have been upgraded with any of the following: 1. AS350 B3 with Mod OP-4605 (Installation of a Fuel System Improving Crashworthiness). 2. AS350 B3 with Mod 07.20034 (Installation of a Fuel System crash resistance compatible with swing installation). 3. AS350 B/B1/B2/B3/BA/D that have been modified per FAA STC SR02492AK (Reference TCCA STC SH19-21) i.e. Installation of a Crash Resistant Fuel System (CRFS). 4. Artificial Horizon Standby Battery.

Prerequisite

N/A

Compatible With

If installing with Spacepod or Squirrel Cheeks contact Technical Support to check compatibility (DSI 9562-011/DSI 9599-011/Case 0008606).

Not Compatible With

Artificial Horizon Standby Battery Installation

Flight Restrictions

None

Installation Time

32 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 5.50 lbs / 2.49 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
