Auxiliary Fuel Tank

Part Number: D350-794-111
Aircraft Models: Airbus - AS350
Price:
The Auxiliary Fuel Tank provides additional fuel capacity that can be transferred to the main fuel tank as desired in order to extend the aircraft's operational range. After initial installation, the tank is easily removed and re-installed for maximum operational flexibility. Additional provisions kits may be installed in other aircraft to allow the tank to be quickly transferred. DART now also offers compatibility kits to make the Auxiliary Fuel Tank compatible with ... Read more
The Auxiliary Fuel Tank provides additional fuel capacity that can be transferred to the main fuel tank as desired in order to extend the aircraft's operational range. After initial installation, the tank is easily removed and re-installed for maximum operational flexibility. Additional provisions kits may be installed in other aircraft to allow the tank to be quickly transferred. DART now also offers compatibility kits to make the Auxiliary Fuel Tank compatible with DART Spacepods™ or Airbus Squirrel Cheeks (p/n DSI 9562-011 or DSI 9599-011 - contact Sales for additional information). *Replaces D350-794-011. Installs in LH side baggage compartment. Includes installation provisions. Requires DSI 9562-011 to be compatible with DART Spacepods™ or DSI 9599-011 to be compatible with Airbus Squirrel Cheeks (contact Sales for additional information). Not compatible with artificial horizon standby battery installation. Originally JCA/M47-1-01A. 1 kit completes 1 aircraft. Read less

Description

The Auxiliary Fuel Tank provides additional fuel capacity that can be transferred to the main fuel tank as desired in order to extend the aircraft's operational range. After initial installation, the tank is easily removed and re-installed for maximum operational flexibility. Additional provisions kits may be installed in other aircraft to allow the tank to be quickly transferred. DART now also offers compatibility kits to make the Auxiliary Fuel Tank compatible with DART Spacepods™ or Airbus Squirrel Cheeks (p/n DSI 9562-011 or DSI 9599-011 - contact Sales for additional information). *Replaces D350-794-011. Installs in LH side baggage compartment. Includes installation provisions. Requires DSI 9562-011 to be compatible with DART Spacepods™ or DSI 9599-011 to be compatible with Airbus Squirrel Cheeks (contact Sales for additional information). Not compatible with artificial horizon standby battery installation. Originally JCA/M47-1-01A. 1 kit completes 1 aircraft.

Key Features

  • Fixed provisions (when tank is removed) are only 5.5 lbs / 2.5 kg
  • Provisions kit allows movement between aircraft (p/n D350-794-013/-023)

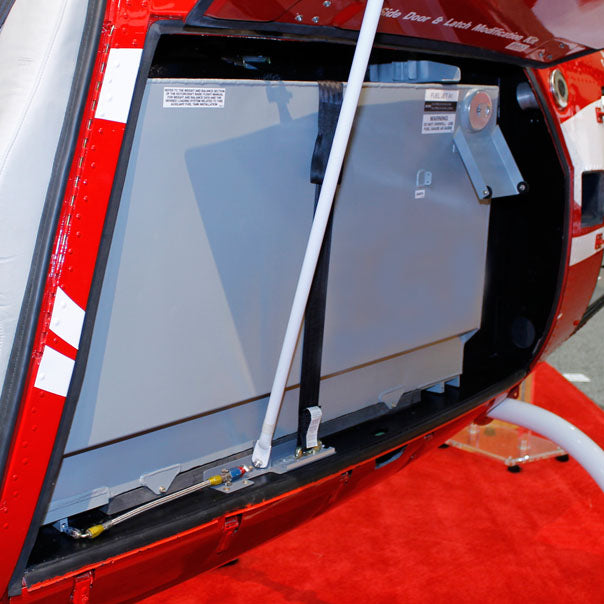

  • Installs in LH side baggage compartment

Key Benefits

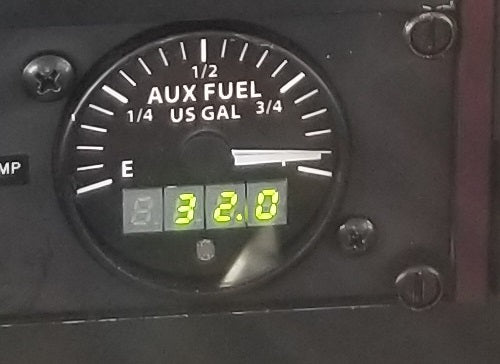

  • Includes electrical gauge and pump
  • Extends range by 25%
  • 34 US gallon/129 liter capacity of usable fuel
  • Instrument panel mounted control transfers fuel as desired

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10031514 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Auxiliary Fuel Tank
STC ANAC - Brazil 2002S09-07 AS350B1/AS350B2/AS350B3/AS350BA/EC130B4 Auxiliary Fuel Tank
STC ANAC - Brazil 2002S09-08 AS350B Auxiliary Fuel Tank
STC CASA - Australia ASR063SY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank
STC IAC AR - Russia CT107-350 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 Bearpaw, Basket & Auxiliary Fuel Tank Installations
STC TCCA - Canada SH05-4 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank
STC FAA - USA SR02794NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank

OEM Cross References

N/A

External Warning

Originally JCA/M47-1. Replaces D350-794-011. This is not eligible for installation on Aircraft that have been upgraded with any of the following: 1. AS350 B3 with Mod OP-4605 (Installation of a Fuel System Improving Crashworthiness). 2. AS350 B3 with Mod 07.20034 (Installation of a Fuel System crash resistance compatible with swing installation). 3. AS350 B/B1/B2/B3/BA/D that have been modified per FAA STC SR02492AK (Reference TCCA STC SH19-21) i.e. Installation of a Crash Resistant Fuel System (CRFS). 4. Artificial Horizon Standby Battery.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Artificial Horizon Standby Battery Installation

Flight Restrictions

None

Installation Time

0.25 hr (After initial install), approx 32 hours for fixed provisions

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 34.20 lbs / 15.51 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
