Auxiliary Fuel Tank

Mission Equipment
Part Number: D130-794-121
Aircraft Models: Airbus - EC130

Price:
The Auxiliary Fuel Tank provides additional fuel capacity that can be transferred to the main fuel tank as desired in order to extend the aircraft's operational range. After initial installation, the tank is easily removed and re-installed for maximum operational flexibility. Additional provisions kits may be installed in other aircraft to allow the tank to be quickly transferred. DART now also offers compatibility kits to make the Auxiliary Fuel Tank compatible with ... Read more
The Auxiliary Fuel Tank provides additional fuel capacity that can be transferred to the main fuel tank as desired in order to extend the aircraft's operational range. After initial installation, the tank is easily removed and re-installed for maximum operational flexibility. Additional provisions kits may be installed in other aircraft to allow the tank to be quickly transferred. DART now also offers compatibility kits to make the Auxiliary Fuel Tank compatible with Airbus Squirrel Cheeks (p/n DSI 9599-011 - contact Sales for additional information) or with DART Spacepods™ (p/n DSI 9562-011). *Replaces D130-794-021. Installs in LH side baggage compartment. Includes installation provisions. Requires DSI 9599-011 to be compatible with Airbus Squirrel Cheeks (contact Sales for additional information). Requires DSI 9562-011 for compatibility with DART Spacepod™. Compatible with Integrated Flight Systems p/n 130-00-031 and DART (Apical) floats. Not compatible with artificial horizon standby battery installation. Originally JCA/M47-1-01A. 1 kit completes 1 aircraft. Read less

Description

The Auxiliary Fuel Tank provides additional fuel capacity that can be transferred to the main fuel tank as desired in order to extend the aircraft's operational range. After initial installation, the tank is easily removed and re-installed for maximum operational flexibility. Additional provisions kits may be installed in other aircraft to allow the tank to be quickly transferred. DART now also offers compatibility kits to make the Auxiliary Fuel Tank compatible with Airbus Squirrel Cheeks (p/n DSI 9599-011 - contact Sales for additional information) or with DART Spacepods™ (p/n DSI 9562-011). *Replaces D130-794-021. Installs in LH side baggage compartment. Includes installation provisions. Requires DSI 9599-011 to be compatible with Airbus Squirrel Cheeks (contact Sales for additional information). Requires DSI 9562-011 for compatibility with DART Spacepod™. Compatible with Integrated Flight Systems p/n 130-00-031 and DART (Apical) floats. Not compatible with artificial horizon standby battery installation. Originally JCA/M47-1-01A. 1 kit completes 1 aircraft.

Key Features

  • Fixed parts (when tank is removed) are only 5.5 lbs / 2.5 kg
  • Provisions kit allows movement between aircraft (p/n D130-794-023)

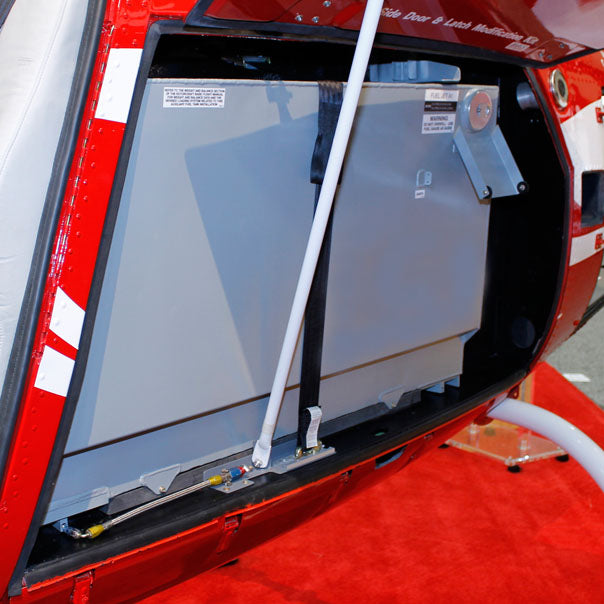

  • Installs in LH side baggage compartment
  • Compatible with DART (Apical) Floats, Spacepods™ & Airbus Squirrel Cheeks

Key Benefits

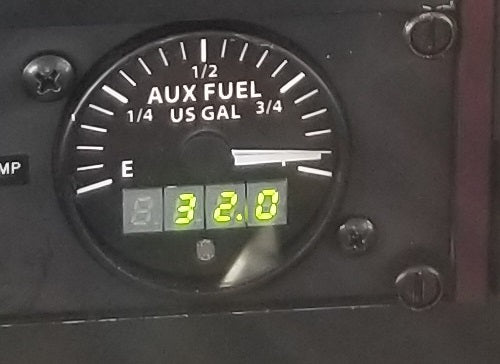

  • Includes electrical gauge and pump
  • 40 US gallon/152 liter capacity of usable fuel
  • Scratch resistant finish
  • Instrument panel mounted control transfers fuel as desired

Approvals

Approval type Authority Reference number Aircraft approved Description
STC ANAC - Brazil 2002S09-07 AS350B1/AS350B2/AS350B3/AS350BA/EC130B4 Auxiliary Fuel Tank
STC CASA - Australia ASR063SY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank
STC IAC AR - Russia CT107-350 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 Bearpaw, Basket & Auxiliary Fuel Tank Installations
STC TCCA - Canada SH05-4 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank
STC FAA - USA SR02794NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/EC130B4 Auxiliary Fuel Tank

OEM Cross References

N/A

External Warning

Replaces D130-794-021. Originally JCA/M47-1-01A.

Prerequisite

N/A

Compatible With

Integrated Flight Systems: 130-00-031; Tanks: D130-794-021 (Only)

Not Compatible With

Artificial Horizon Standby Battery Installation

Flight Restrictions

None

Installation Time

0.25 hr (after initial install)

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 34.20 lbs / 15.55 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
