AS365 Fire Attack System


Part Number: 301-000000-002

Aircraft Models: Airbus - AS365

  • In stock

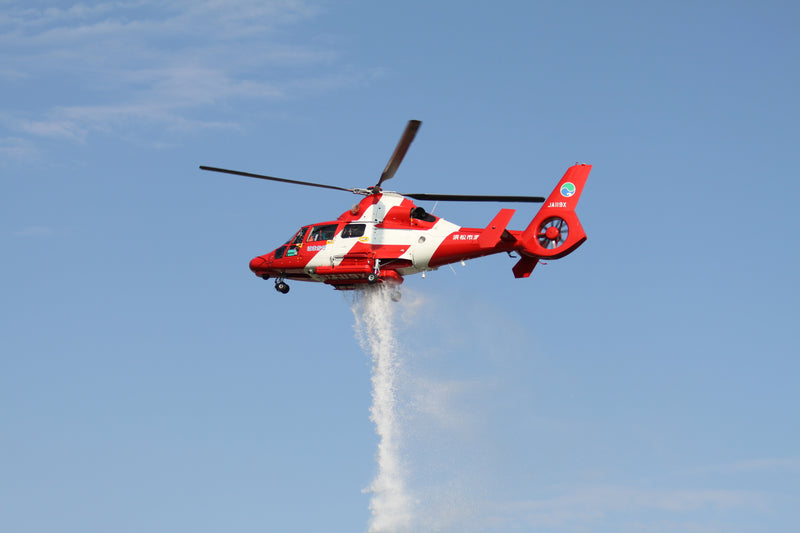

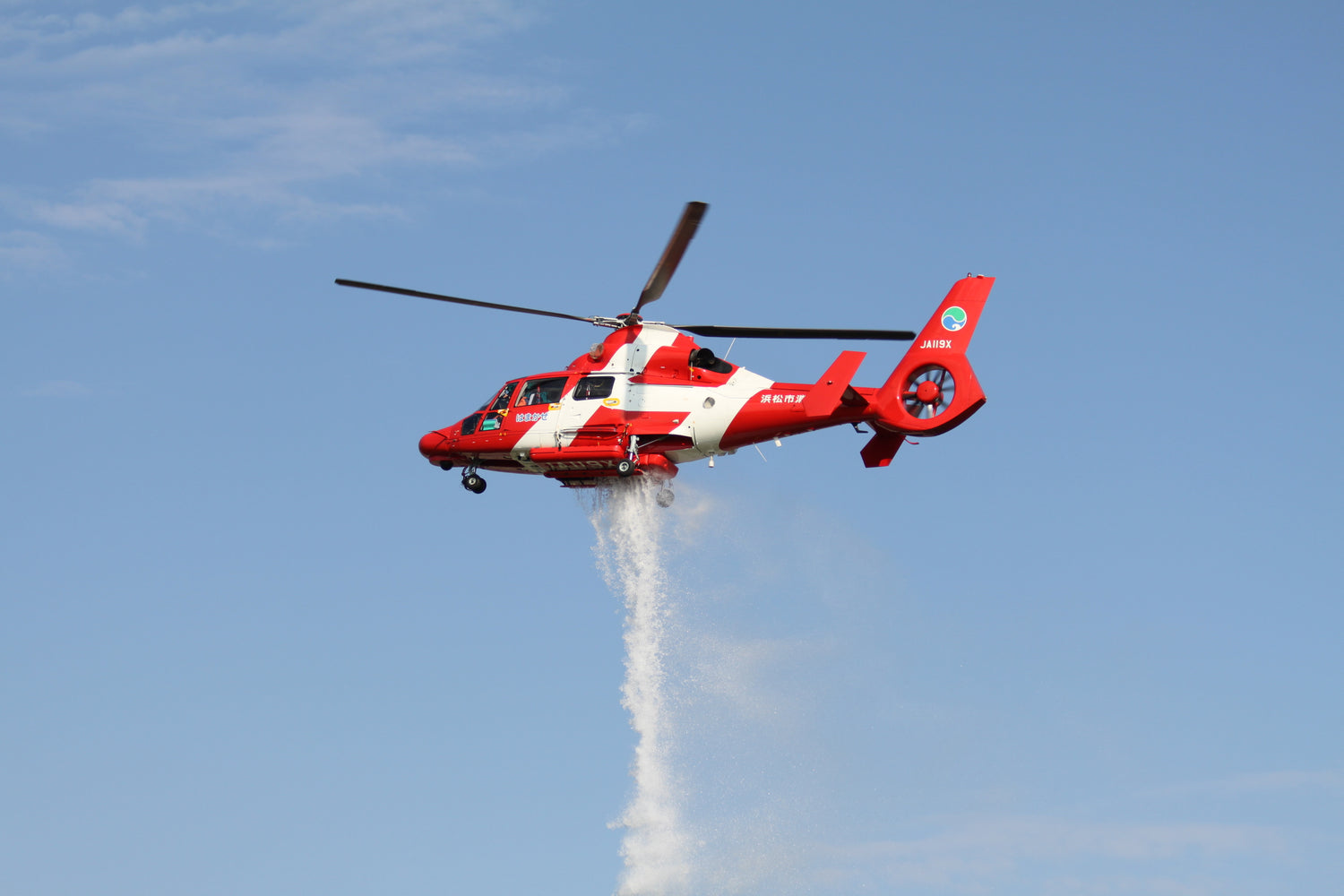

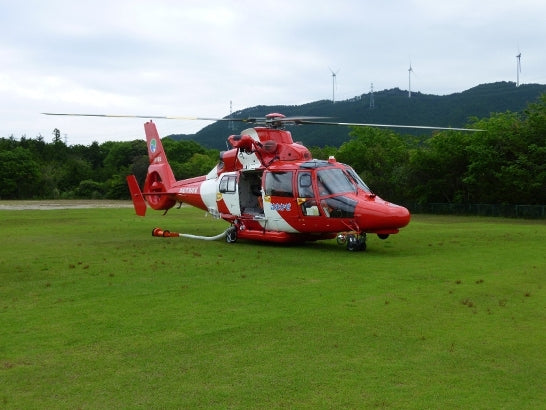

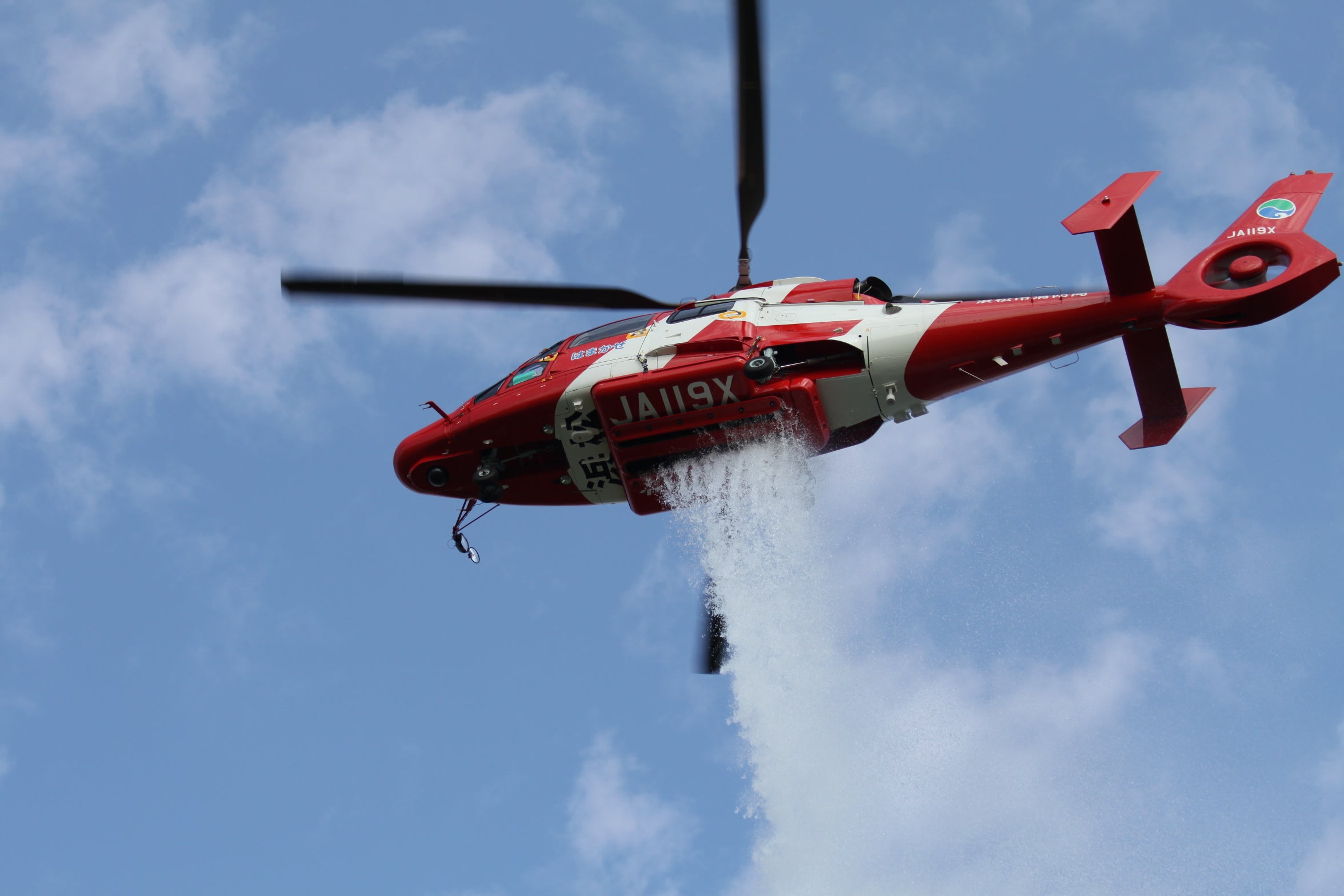

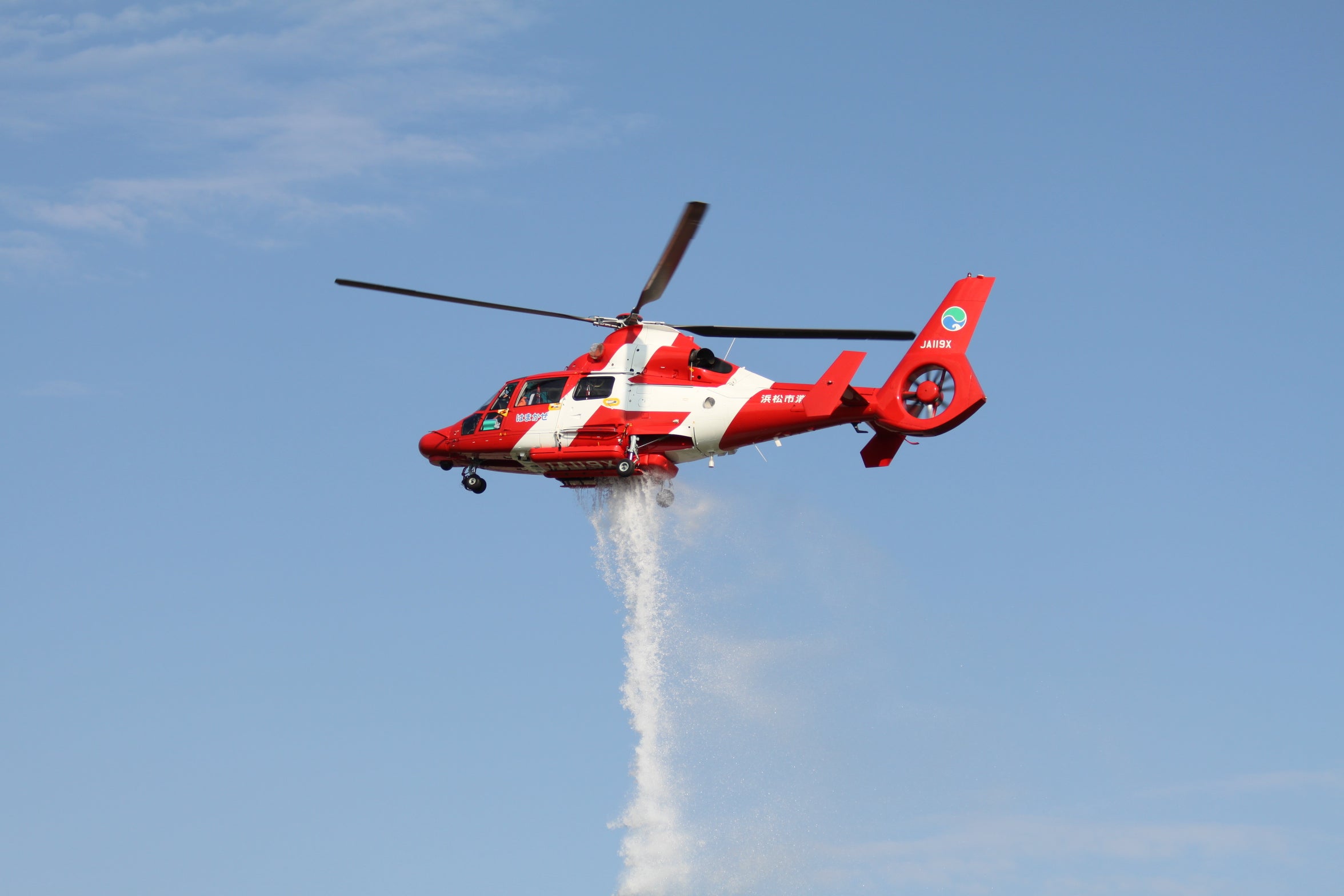

DART's Simplex Model 323 Fire Attack™ system consists of a belly-mounted tank and a DC electrical hover refill pump and hose. The belly tank is manufactured from high-strength, low-weight carbon fiberglass material and holds 1,200 liter (317 gallons) of water.


Key Features

  • Cockpit controlled selectable drop patterns
  • Internal foam injection
  • Sole manufacturer of Fire Attack systems for the Airbus 365 N Series
  • Hover refill pump with a refill rate of 1,060 liters (280 gallons) per minute

Key Benefits

  • Pilot friendly controls
  • Installation/removal in 30 minutes
  • FAA certified for day/night VFR
  • Corrosion resistant surfaces and parts

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SH8801SW-D
STC TCCA - Canada SH19-26
STC EASA - Europe 086-SI-0811
STC JCAB - Japan STC-448-TYO

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 290 lb / 132 kg

Load Capacity And Volume

  • Volume: 238 gal / 901 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
