AS350 Short Basket Installation, LH

Mission Equipment
Part Number: D350-1080-011
Aircraft Models: Airbus - AS350

Price:
The DART Cargo Basket features a quick release mounting system, that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of a high resistance steel for extra durability. Enhanced safety with an innovative double locking mechanism, that ensures the basket lid will not open, even if the handle is not completely latched.

Description

The DART Cargo Basket features a quick release mounting system, that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of a high resistance steel for extra durability. Enhanced safety with an innovative double locking mechanism, that ensures the basket lid will not open, even if the handle is not completely latched.

Key Features

  • Quick-release mounting provisions
  • Innovative Handle Design to prevent in-flight opening.

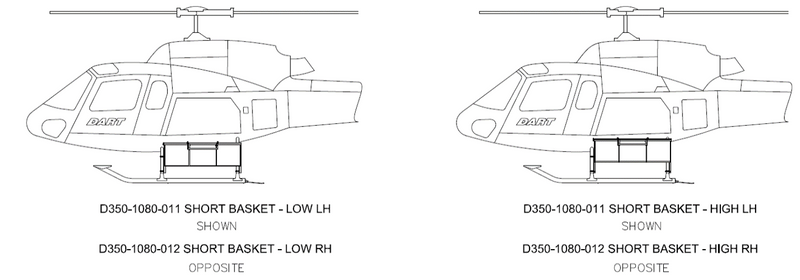

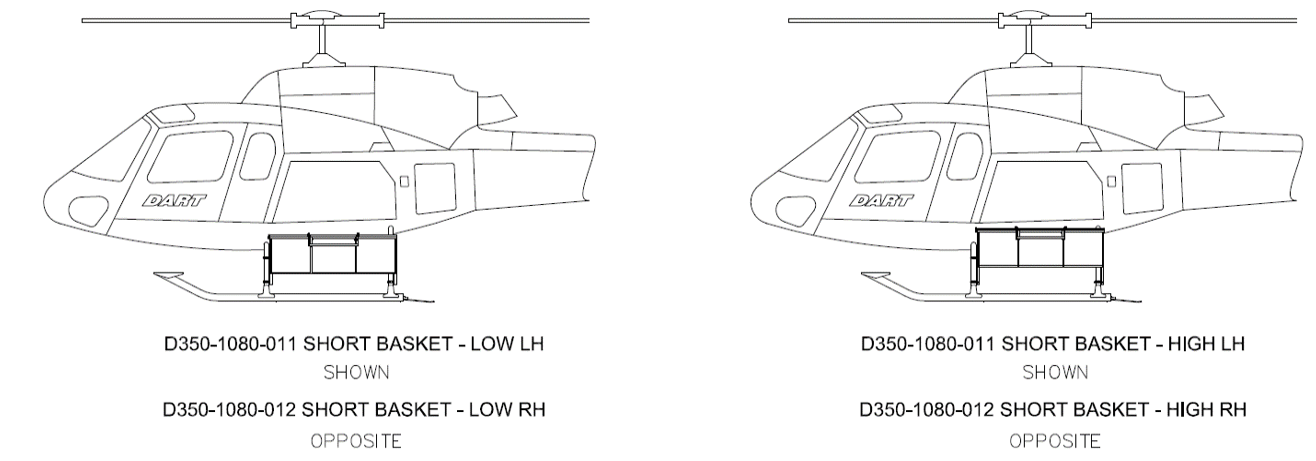

  • Can be installed in either high or low configuration
  • Compatible with Squirrel Cheeks, with D350-1080-141 kit.
  • Front-end has cutout for carrying longer items.
  • Made of light-weight alloy steel
  • Heavy Duty Lid-Walkway

Key Benefits

  • Self locking handle catches basket lid if not closed completely
  • No tooling required to remove basket
  • Mounting provisions can be easily removed
  • No tools required to remove basket assembly
  • Basket can be installed on both sides simultaneously

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH08-16 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cargo Basket Installation
STC FAA - USA SR02680NY AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cargo Basket Installation
STC EASA - Europe 10060494 AS350/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cargo Basket Installation

OEM Cross References

OEM Replacement / 77601-03-02
OEM Replacement / 77601-01-02
OEM Replacement / 77601-02-02

External Warning

For aircraft with Cargo Extenders "Squirrel Cheeks", D350-1080-141/142 kit is required, FoC with purchase.

Prerequisite

N/A

Compatible With

D350-1080-011/013 Cabin Steps

Not Compatible With

N/A

Flight Restrictions

VFR Only, no VNE Impact

Installation Time

N/A

Dimensions And Weight

  • Length: 56.8" / 1.4m
  • Width: 21" / 0.53m
  • Weight Display: 44.8lb / 20.3kg

Load Capacity And Volume

  • Volume: 10.5 ft3 / 0.30 m3
  • Load Capacity: 300 lbs / 136.1 kg

Technical Documentation

N/A

Downloads

N/A
