AS350 Long Basket Installation, RH

Mission Equipment
Part Number: D350-1080-016
Aircraft Models: Airbus - AS350

Price:
• Self locking handle catches basket lid if not closed completely • No tooling required to remove basket • Mounting provisions can be easily removed • No tools required to remove basket assembly • Basket can be installed on both sides simultaneously

Description

• Self locking handle catches basket lid if not closed completely • No tooling required to remove basket • Mounting provisions can be easily removed • No tools required to remove basket assembly • Basket can be installed on both sides simultaneously

Key Features

  • Quick-release mounting provisions
  • Innovative Handle Design to prevent in-flight opening.

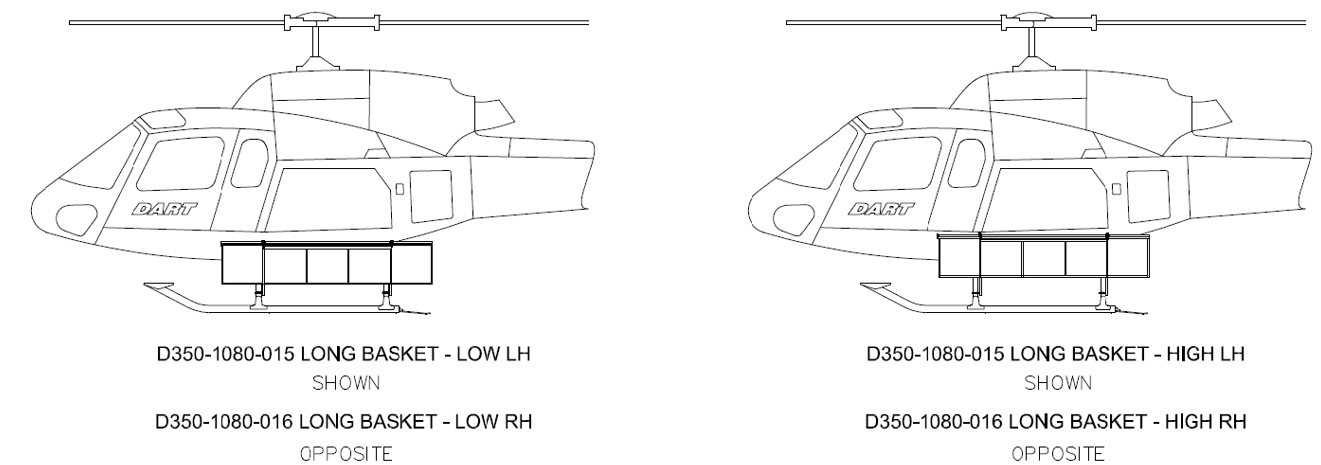

  • Can be installed in either high or low configuration
  • Compatible with Squirrel Cheeks, with D350-1080-142 kit.
  • Front-end has cutout for carrying longer items.
  • Made of light-weight alloy steel
  • Heavy Duty Lid-Walkway

Key Benefits

  • Self locking handle catches basket lid if not closed completely
  • No tooling required to remove basket
  • Mounting provisions can be easily removed
  • No tools required to remove basket assembly
  • Basket can be installed on both sides simultaneously

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH08-16 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cargo Basket Installation
STC FAA - USA SR02680NY AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cargo Basket Installation
STC EASA - Europe 10060494 AS350/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cargo Basket Installation

OEM Cross References

OEM Replacement / 78401-01-01
OEM Replacement / 78401-02-01
OEM Replacement / 78401-03-01

External Warning

For aircraft with Cargo Extenders "Squirrel Cheeks", D350-1080-141/142 kit is required, FoC with purchase.

Prerequisite

N/A

Compatible With

D350-1080-011 Cabin Steps

Not Compatible With

N/A

Flight Restrictions

VFR Only, no VNE Impact

Installation Time

N/A

Dimensions And Weight

  • Length: 93" / 2.4m
  • Width: 21" / 0.53m
  • Weight Display: 70.3lb / 31.9kg

Load Capacity And Volume

  • Volume: 17.3 ft3 / 0.50 m3
  • Load Capacity: 250 lbs / 113.4 kg

Technical Documentation

N/A

Downloads

N/A
