Description
The DART Cargo Basket features a quick release mounting system, that enables the operator to remove and install the basket quickly, without tools. The basket is constructed of a high resistance steel for extra durability. Enhanced safety with an innovative double locking mechanism, that ensures the basket lid will not open, even if the handle is not completely latched.
Key Features
- Quick-release mounting provisions
- Innovative Handle Design to prevent in-flight opening.

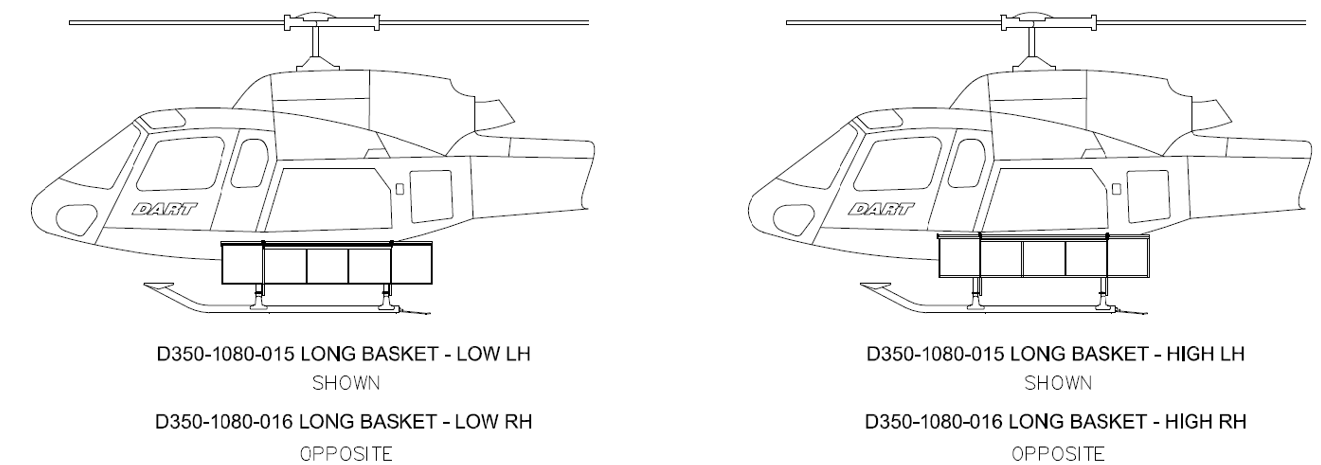

- Can be installed in either high or low configuration
- Compatible with Squirrel Cheeks, with D350-1080-141 kit.
- Front-end has cutout for carrying longer items.
- Made of light-weight alloy steel
- Heavy Duty Lid-Walkway
Key Benefits
- Self locking handle catches basket lid if not closed completely
- No tooling required to remove basket
- Mounting provisions can be easily removed
- No tools required to remove basket assembly
- Basket can be installed on both sides simultaneously
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH08-16 | AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Cargo Basket Installation |
| STC | FAA - USA | SR02680NY | AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Cargo Basket Installation |
| STC | EASA - Europe | 10060494 | AS350/AS350B1/AS350B2/AS350B3/AS350BA/AS350D | Cargo Basket Installation |
