Description
DART Heavy Duty Wearplates are designed for enhanced Protection for Demanding Operations. While OEM wearplates are engineered for durability under standard operating conditions but training flights, utility missions, and run-on landings impose significantly greater wear demands. Additionally, operations involving high gross weight landings on rocky or abrasive surfaces can result in substantial damage to skidtubes when using standard protection.

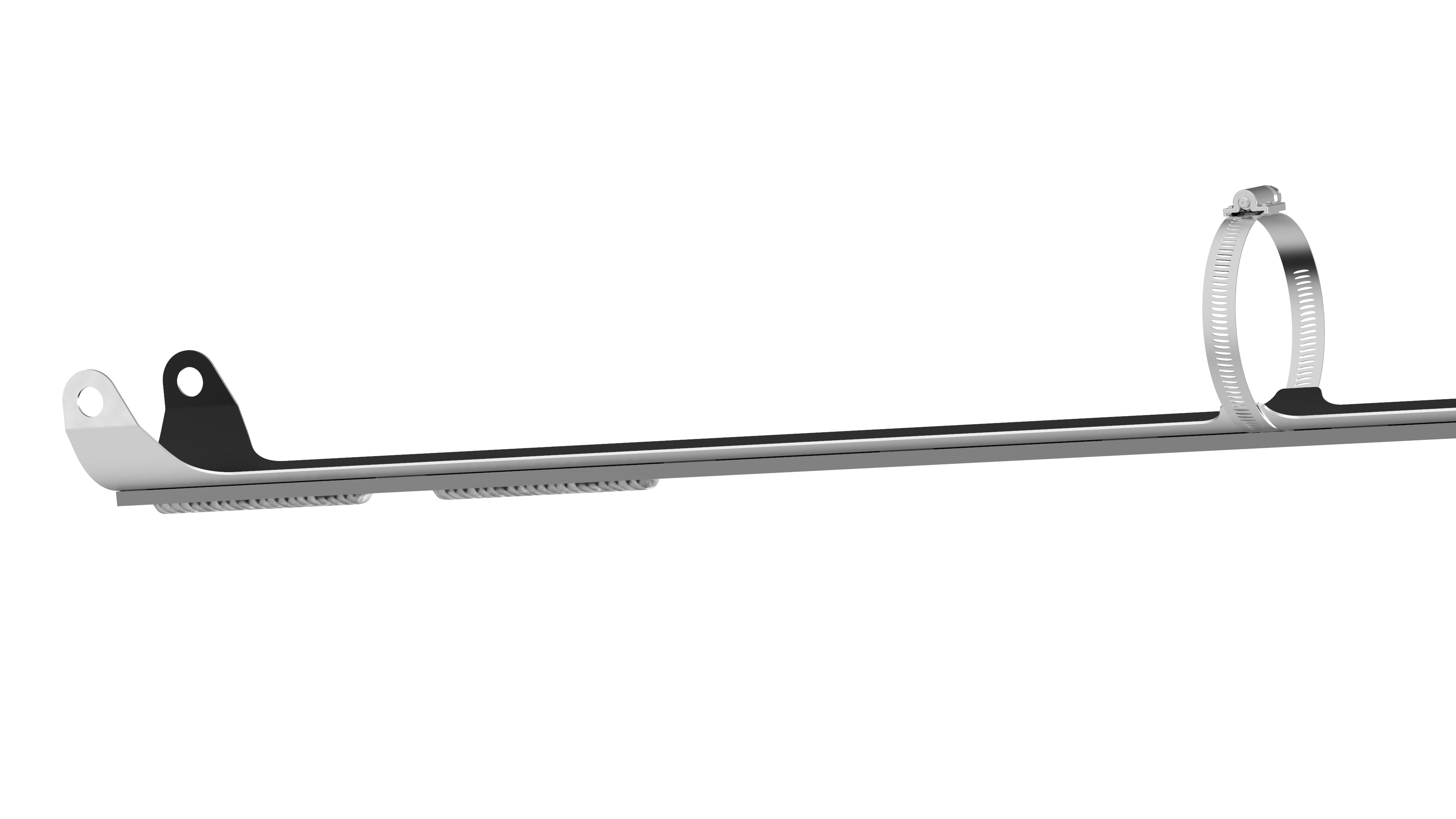

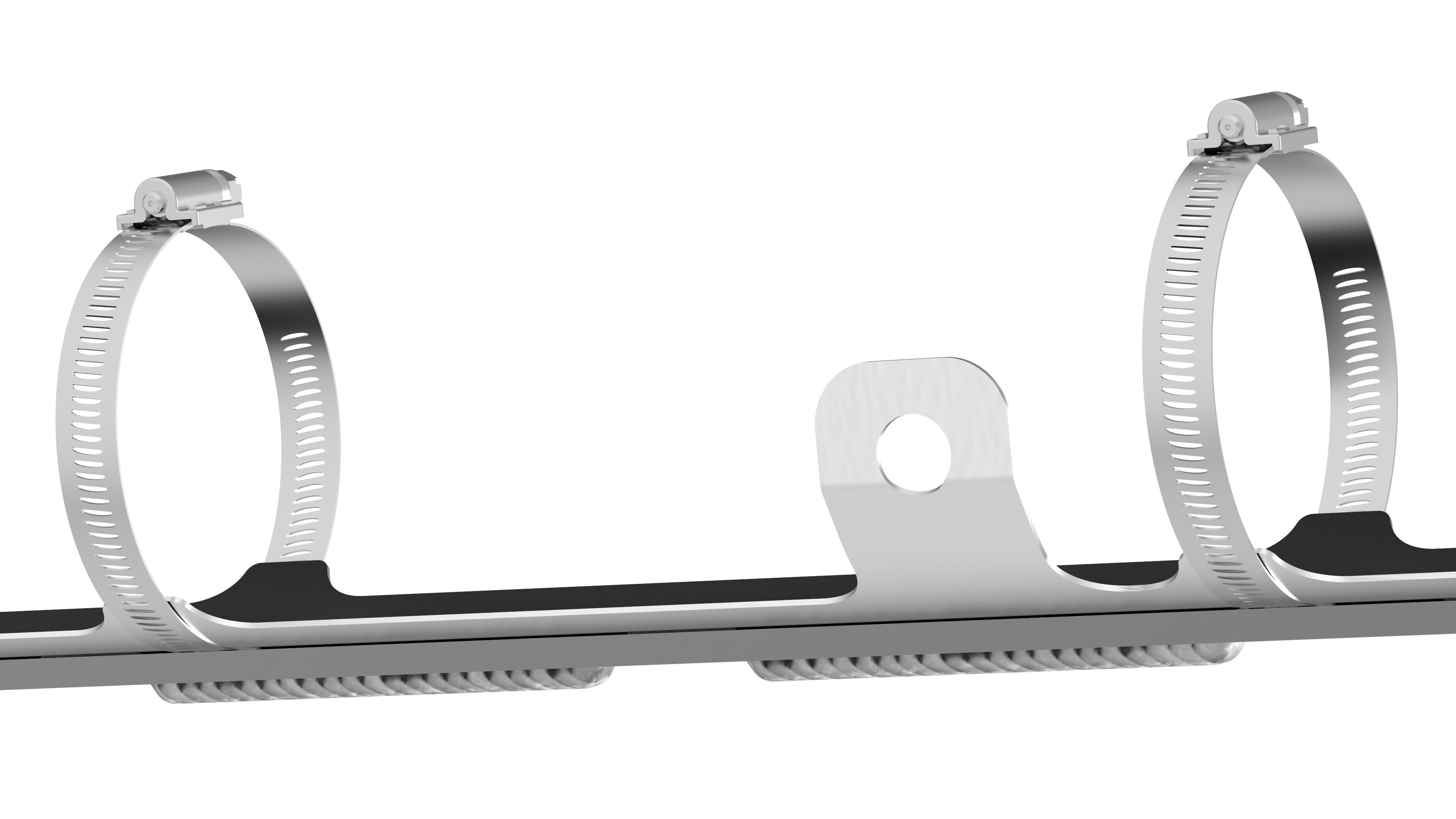

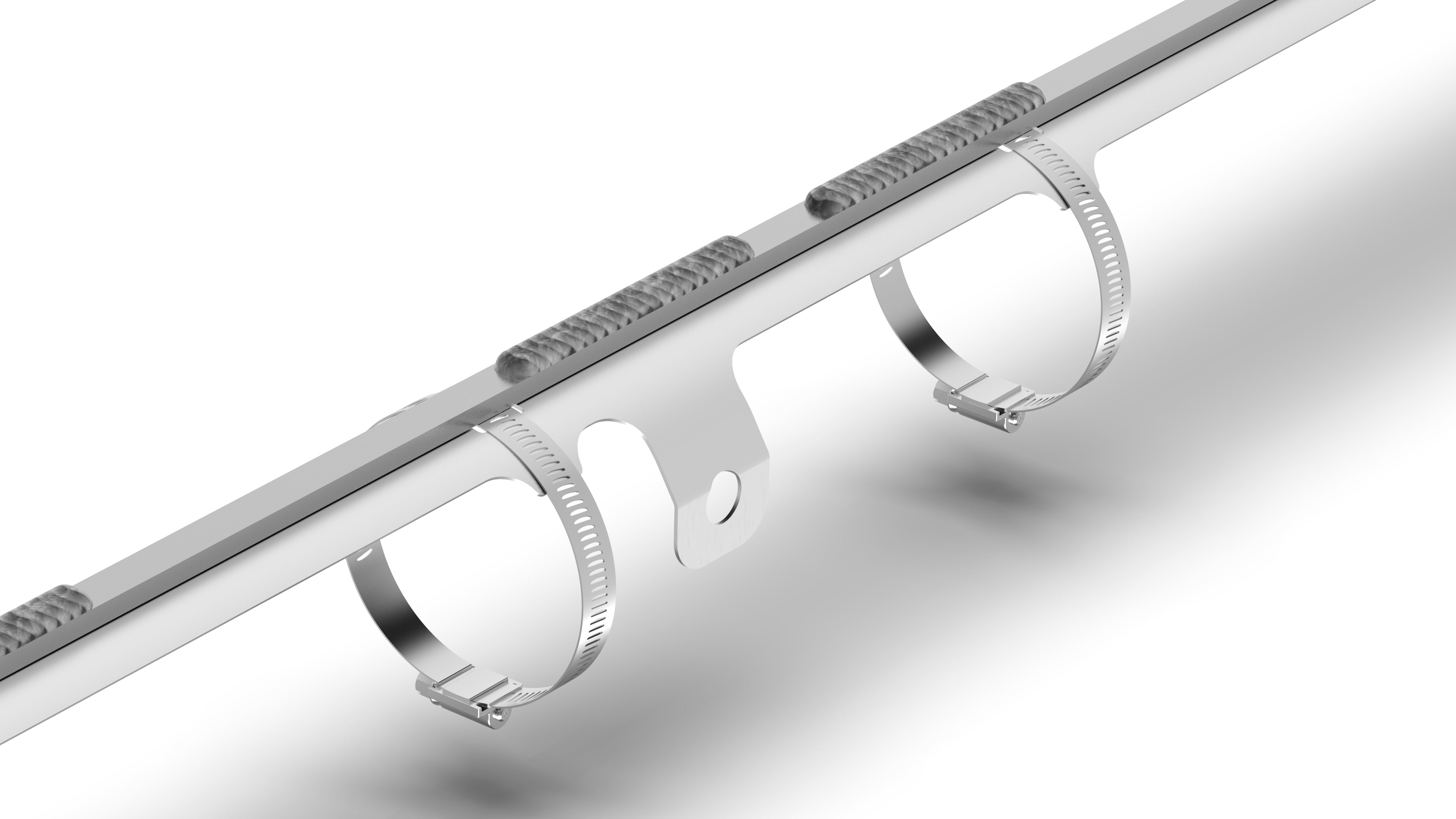

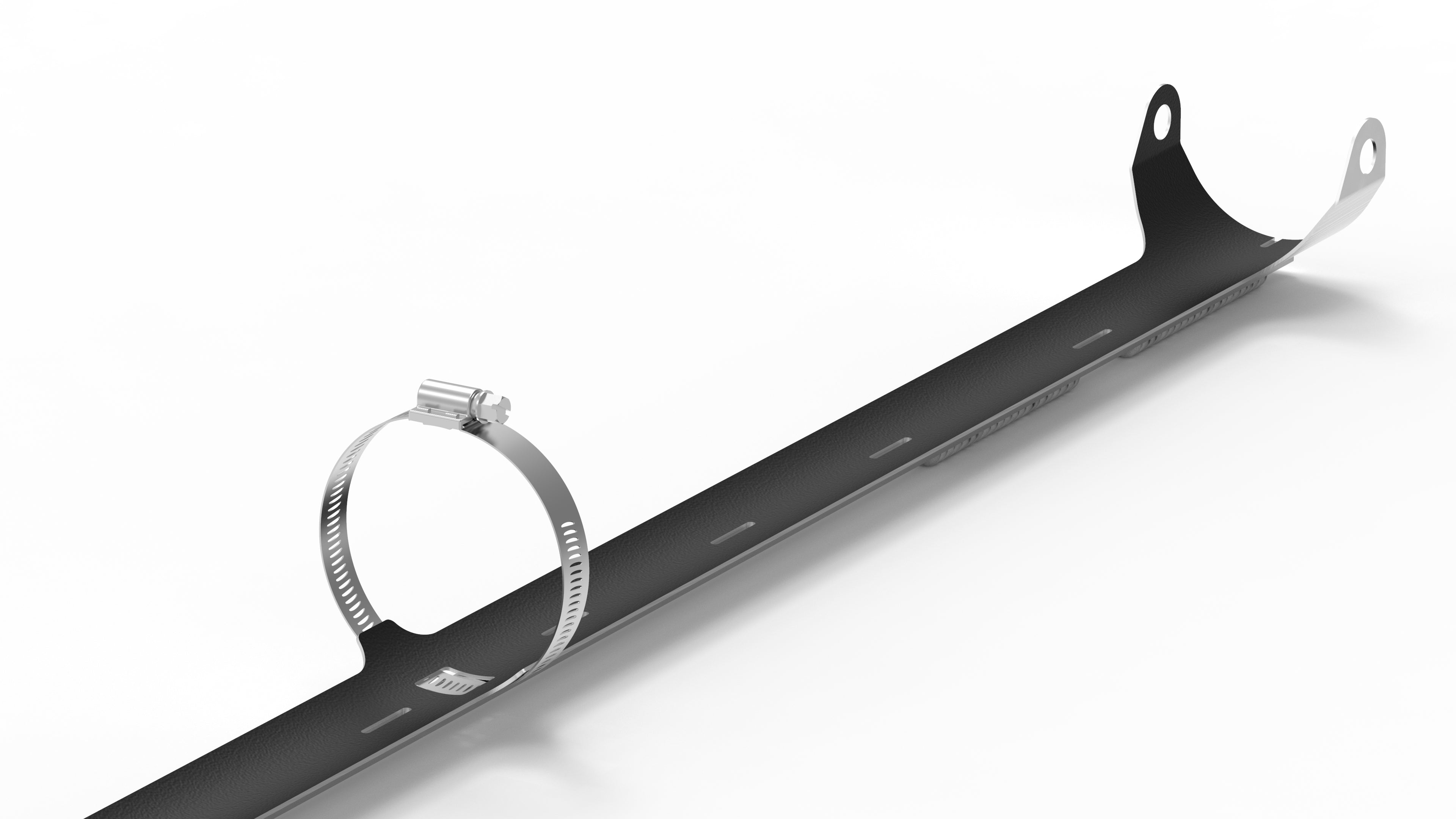

To address these challenges, DART offers Heavy Duty Wearplates specifically designed for rigorous applications. These wearplates are fully compatible with OEM skidtubes and are engineered for quick and secure installation using clamp mounts and a fastener on each saddle. This configuration not only simplifies replacement but also prevents rotational movement of the wearplate on the skidtube.

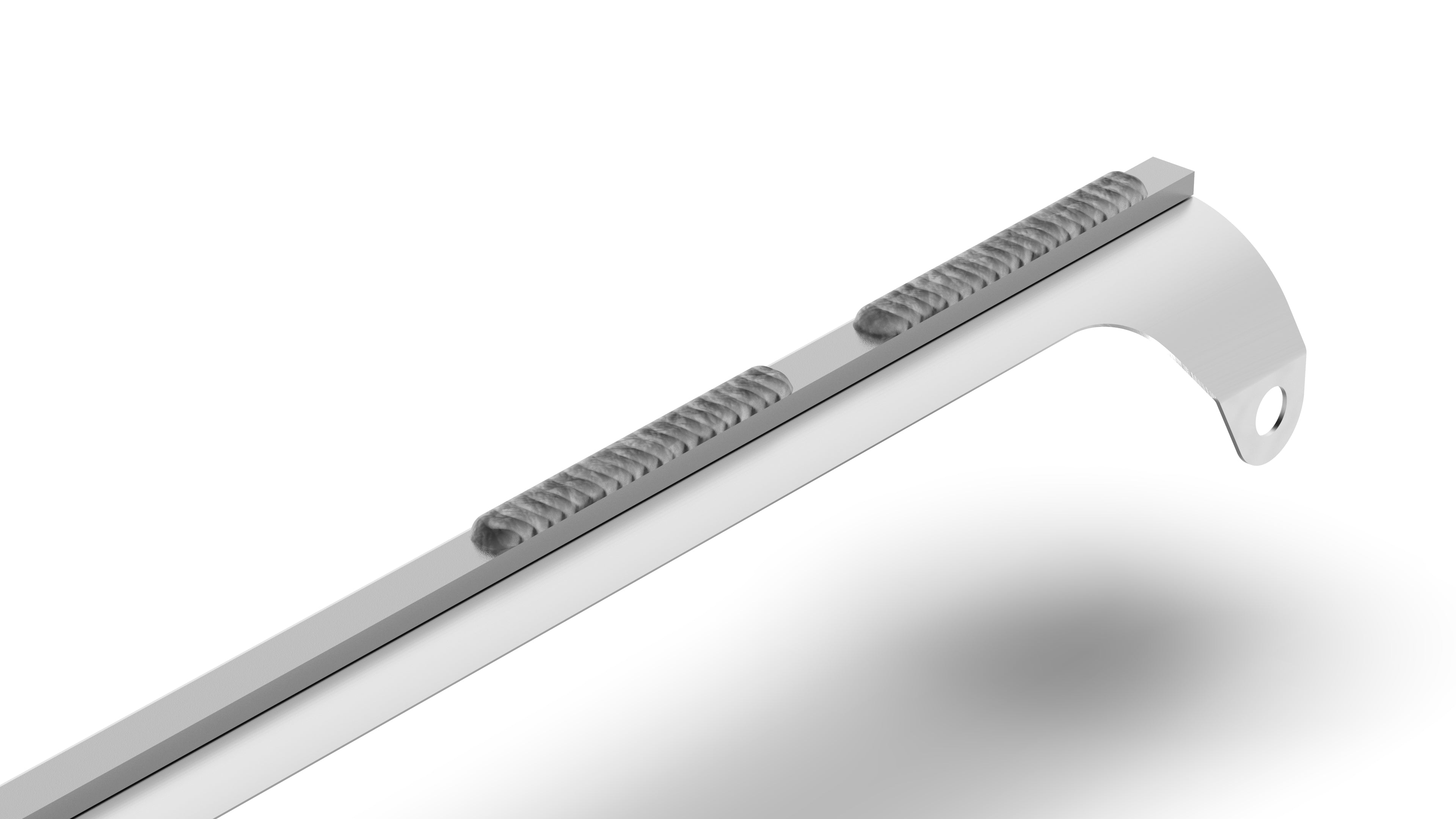

Constructed from corrosion-resistant stainless steel, DART’s Heavy Duty Wearplates feature a full-length stainless steel wear bar with generously overlaid, highly wear-resistant tungsten carbide. Installation is completed with a corrosion-resistant compound between the skidtube and the wearplates, eliminating the need for additional gaskets or sealants.
Package Includes:

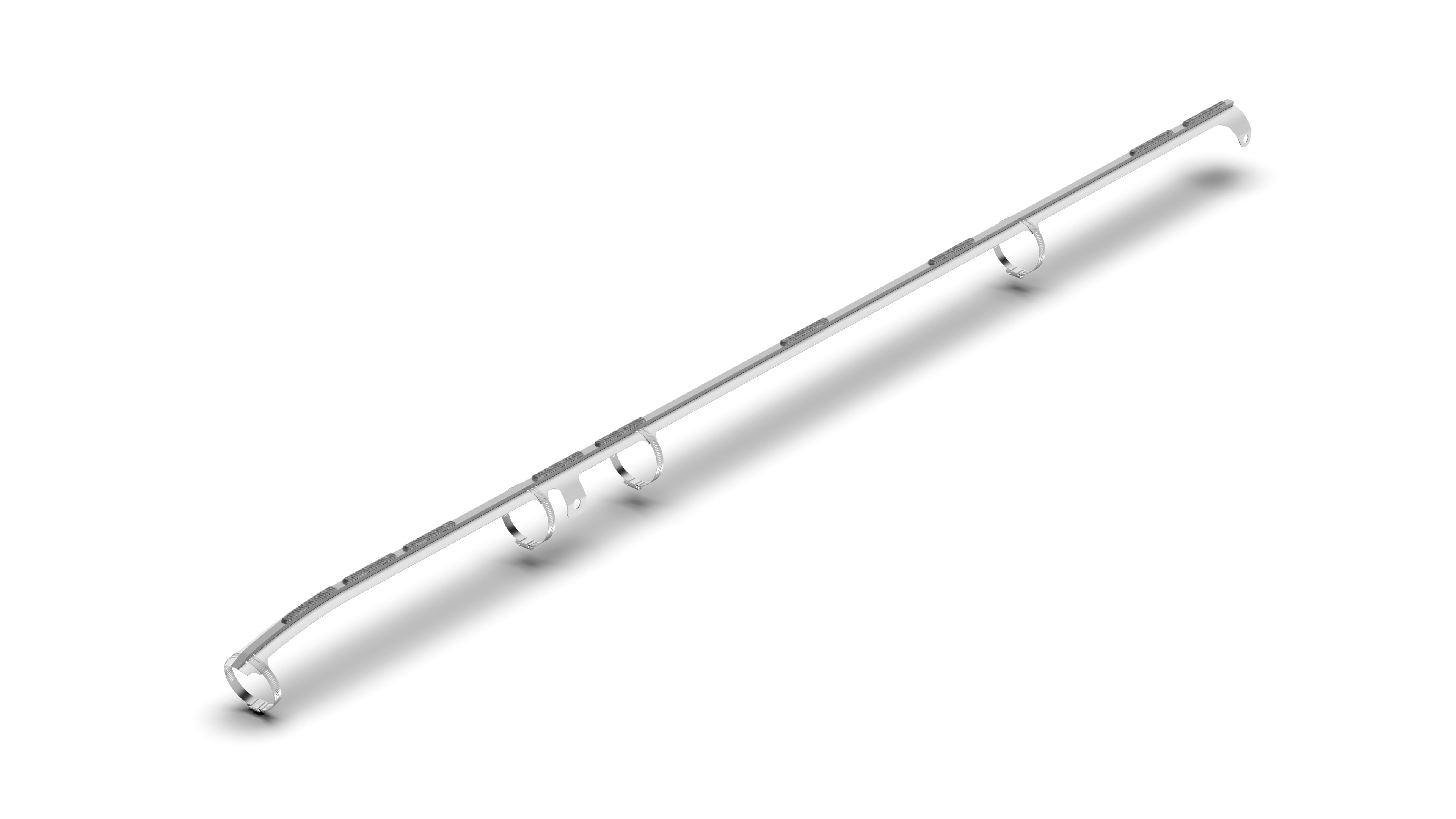

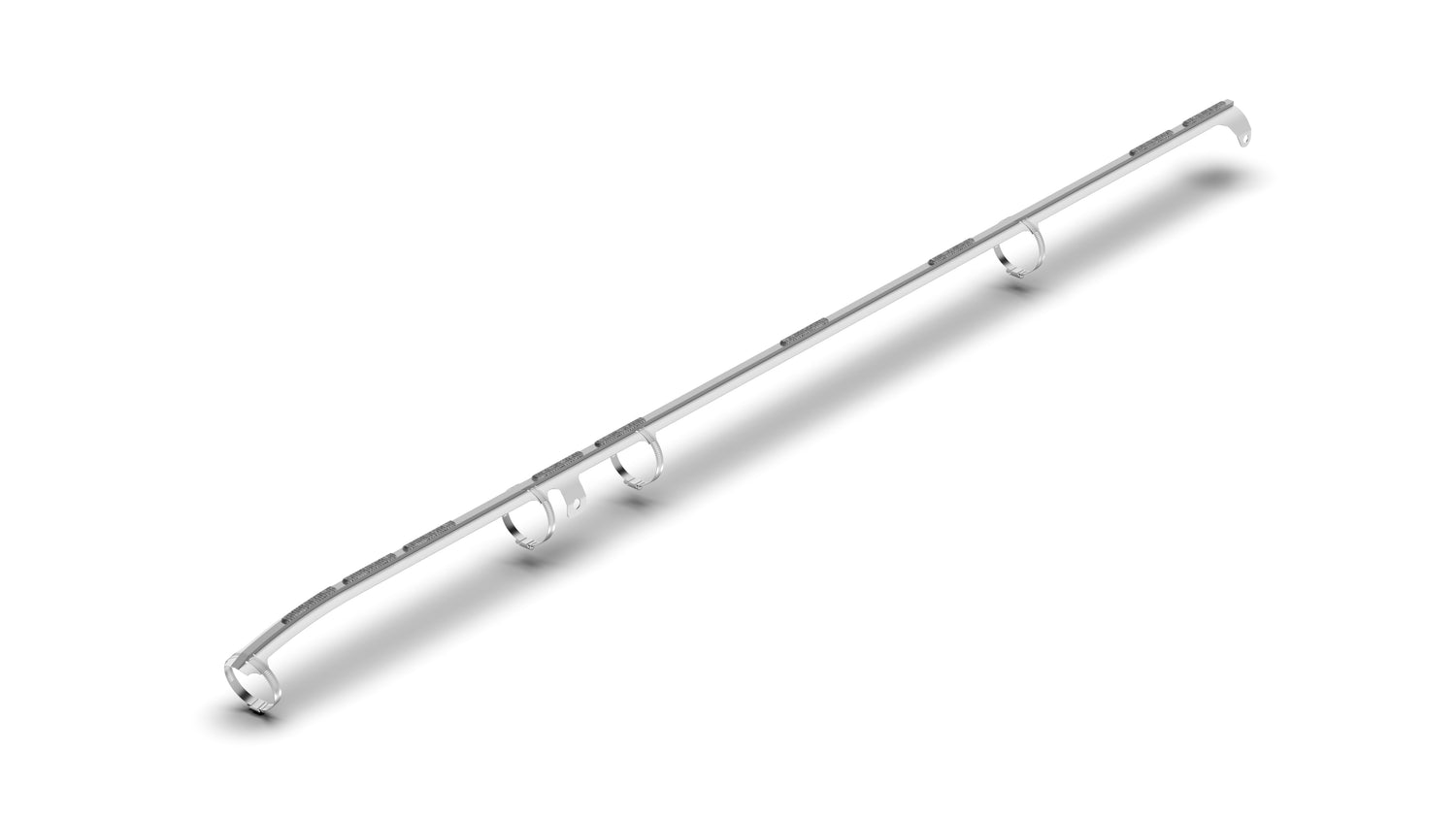

• 2 x Stainless steel wearplates with heavy-duty tungsten carbide welds.
• Complete mounting hardware.
• Price is per aircraft.
Key Features

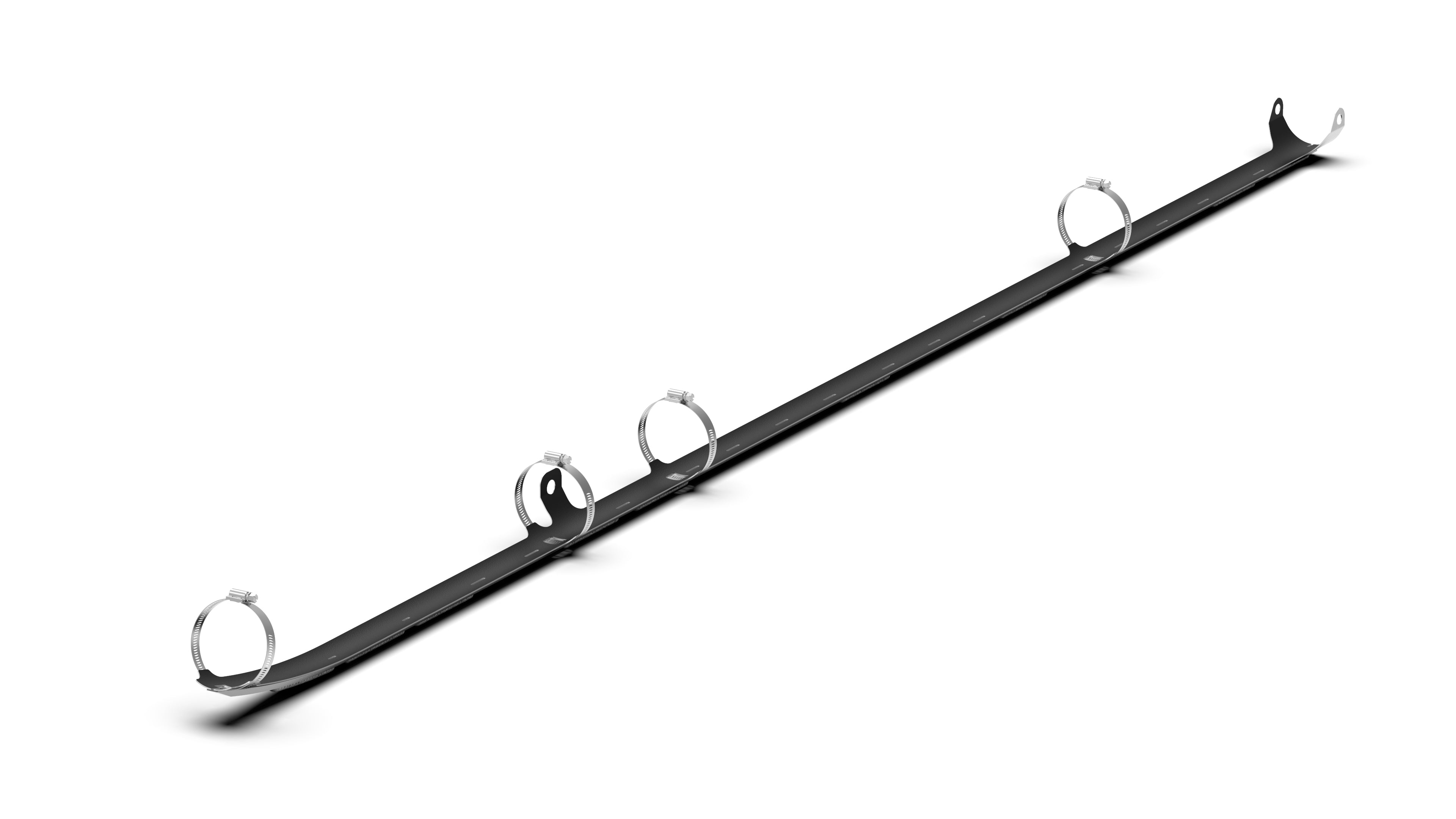

• Includes both Right-Hand (RH) & Left-Hand (LH) full-length wearplates. • Designed exclusively for compatibility with OEM Skidtubes. • Constructed from corrosion-resistant stainless steel with heavy-duty tungsten carbide welds. • Provides full-length protection along the skidtube surface. • Supplied with stainless steel installation clamps for secure mounting. • Interfaces directly with saddles to prevent rotation during operation.
Key Benefits
• Enhanced wear resistance for extended service life. • Requires no modifications to OEM Skidtubes. • Quick and efficient installation using supplied clamps. • Installs cleanly—no sealant or gaskets required. • Optimized for training operations, rugged & rocky landing environments.
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH16-54 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Skidtube Wearplate Kit |
| STC | ANAC - Brazil | 2017S03-12 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Skidtube wearplate kit |
| STC | EASA - Europe | 10060926 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Installation of skidtube wearplate |
| STC | FAA - USA | SR03889NY | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Installation of skidtube wearplate kit |
