Description

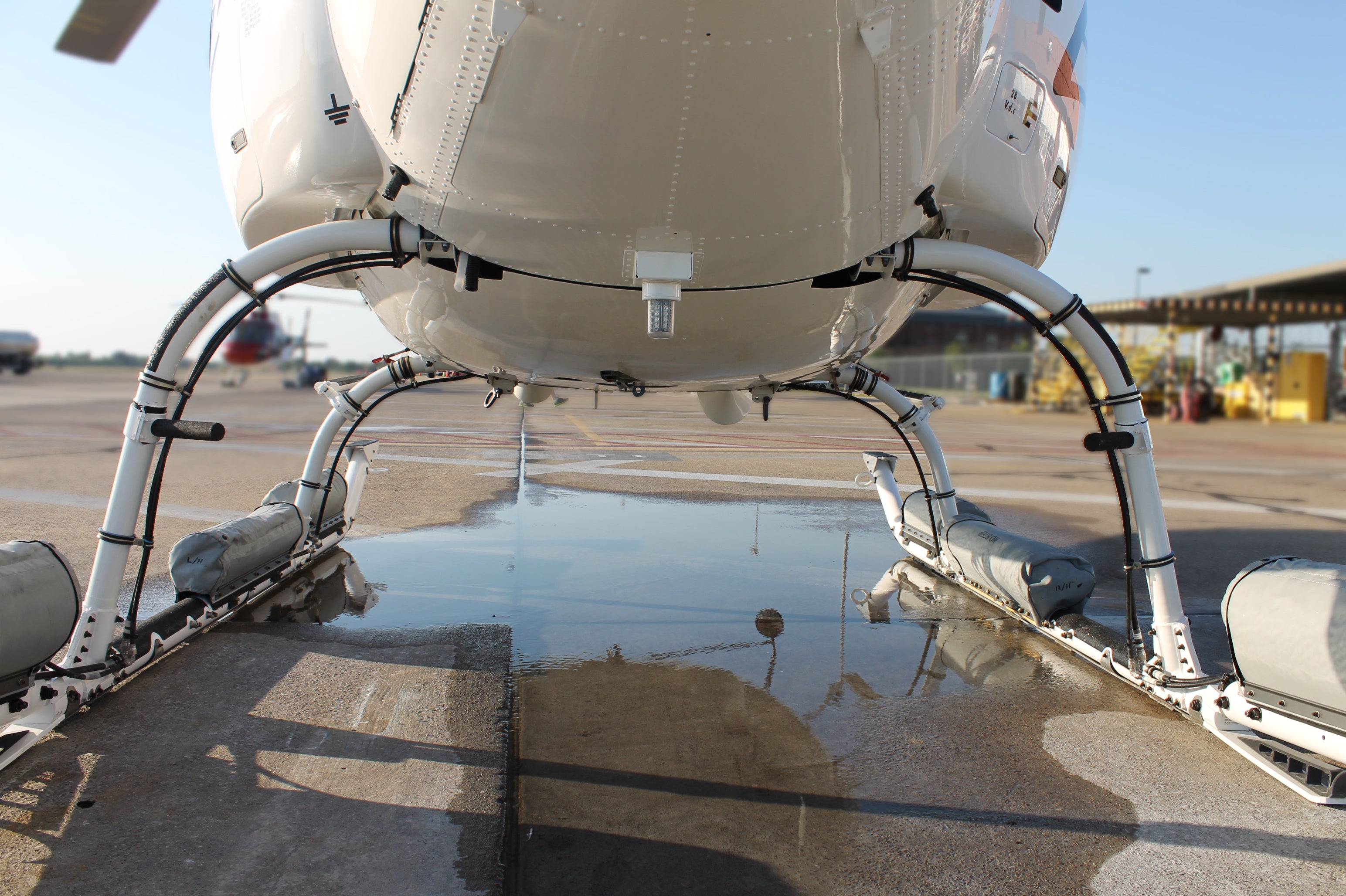

Helicopter operators count on DART Aerospace Crosstubes for safety, durability, and compatibility. We currently offer replacement high gear crosstubes for Airbus AS350/AS355 model helicopters. Our Crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using split bolt-on saddles. Our Crosstubes are manufactured from high strength stainless steel for superior corrosion resistance without a weight penalty. Fabrication is done by means of an environmentally friendly turning process and design employs clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. All DART crosstubes come out of the box painted white and ready to install on your helicopter. Furthermore, DART crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria.
*Comes complete with split bolt-on saddles. Compatible with DART & OEM Skidtubes. Replaces D350-748-201.
Key Features
- Stainless steel construction
- Split bolt-on saddles
- Thru-bolt installation
- Clamp-on stainless steel supports to avoid holes in high stress regions of the crosstube.
- Manufactured by means of an environmentally friendly turning process
- Comes out of the box painted white and ready to install on your helicopter
Key Benefits
- On-condition replacement based on max spread criteria and not on number of landings
- Compatible with DART & OEM Skidtubes
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | 10016903, Rev.2 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | D350-748 Approved OEM Replacement Crosstube |
| STC | ANAC - Brazil | 2009S04-04 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2/AS355N | D350-748 Approved OEM Replacement Crosstube |
| STC | TCCA - Canada | SH06-27 | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | D350-748 Approved OEM Replacement Crosstube |
| STC | FAA - USA | SR02359NY | AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | D350-748 Approved OEM Replacement Crosstube |
