AS350/AS355 Quick Release Upgrade Kit for Emergency AFT Floats with Liferafts

Part Number: 20326-1400
Aircraft Models: Airbus - AS350
Price:
When installing the Quick Release Upgrade Kit, the AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 4 minutes. The hoses also have quick release features, facilitating removal if the mission does not require over water operations. *System includes quick release hardware to upgrade existing 20326-500 floats to add functionality to quickly remove/reinstall the floats within 4 minutes. The quick release f... Read more
When installing the Quick Release Upgrade Kit, the AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 4 minutes. The hoses also have quick release features, facilitating removal if the mission does not require over water operations. *System includes quick release hardware to upgrade existing 20326-500 floats to add functionality to quickly remove/reinstall the floats within 4 minutes. The quick release features are composed of: QR Shoulder Screws for floats, QR Couplers and Dust Caps for hoses and QR Liferaft Reservoir Cover. Not compatible with D350-794-111 Aux Fuel Tank due to reservoir installation location in the side baggage compartment. Read less

Description

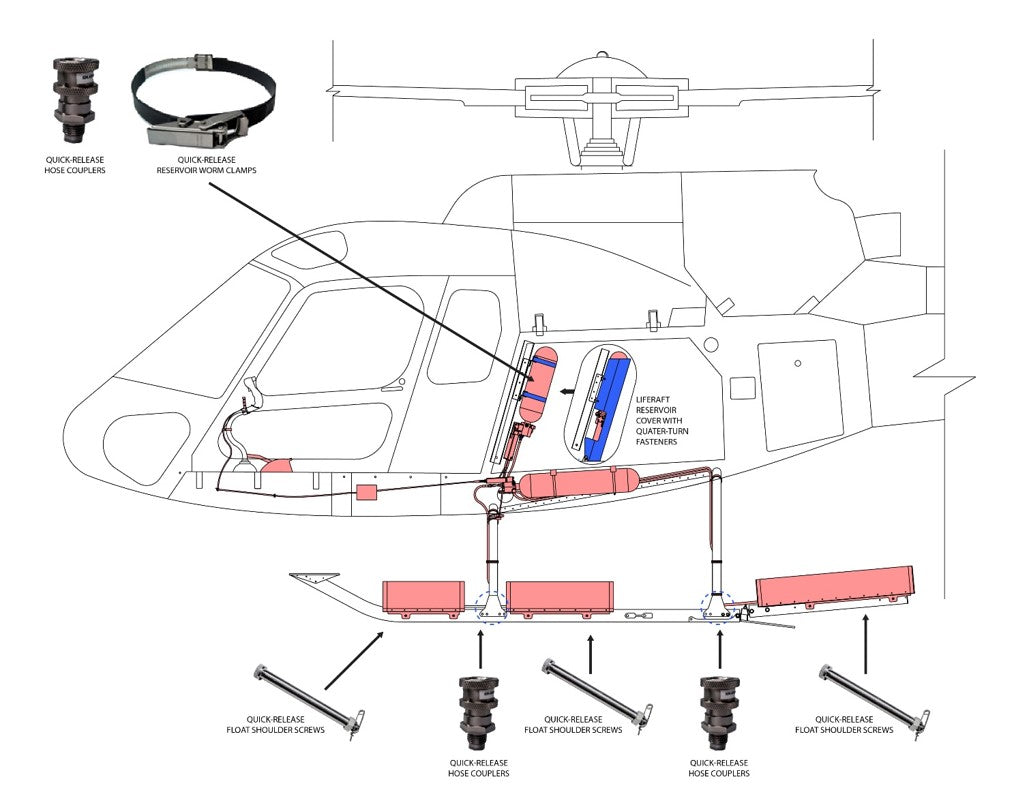

When installing the Quick Release Upgrade Kit, the AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 4 minutes. The hoses also have quick release features, facilitating removal if the mission does not require over water operations. *System includes quick release hardware to upgrade existing 20326-500 floats to add functionality to quickly remove/reinstall the floats within 4 minutes. The quick release features are composed of: QR Shoulder Screws for floats, QR Couplers and Dust Caps for hoses and QR Liferaft Reservoir Cover. Not compatible with D350-794-111 Aux Fuel Tank due to reservoir installation location in the side baggage compartment.

Key Features

N/A

Key Benefits

  • Upgrades your current AFT floats to quick release
  • Ideal for multi-mission operators
  • Designed to quickly remove/reinstall AFT float within 4 minutes
  • Solution for rapid & significant weight reduction: - Quickly remove the floats - Reduces downtime and required man-hour
  • Reduced installation time (5 hrs)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-198/2013 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC IAC AR - Russia FATA-STC03024 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Installation of Emergency Floats
STC ANAC - Brazil 2020S04-08 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Installation of Emergency Floats
STC EASA - Europe 10028493 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System
STC EASA - Europe EASA.IM.R.S.00619 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC TCCA - Canada P-10-0007 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System
STC TCCA - Canada SH97-69 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC FAA - USA SR00470LA AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC FAA - USA SR00645LA AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Aux Fuel Tank: D350-794-111

Flight Restrictions

N/A

Installation Time

5 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 5.00 lbs/ 2.27 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation
