AS350/AS355 Quick Release Upgrade Kit Emergency Float System with Liferafts

Part Number: 20326-1500
Aircraft Models: Airbus - AS350
Price:

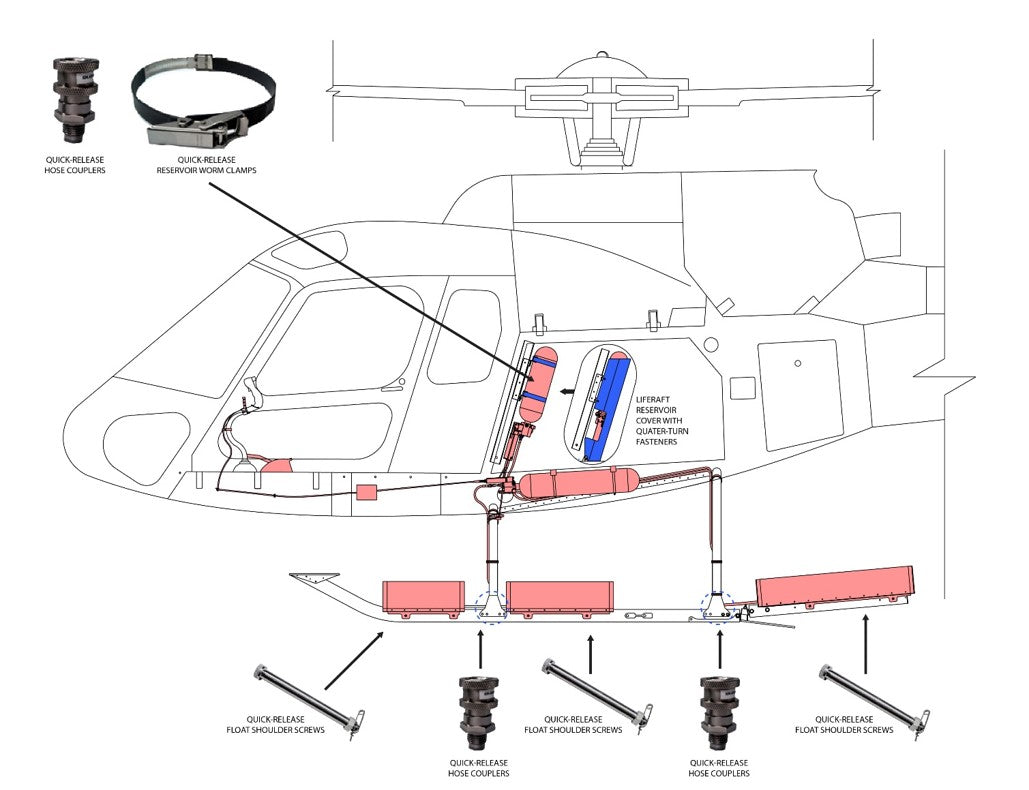

When installing the Quick Release Upgrade Kit, the FWD, MID and AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 12 minutes. The hoses also have quick release features,  facilitating removal if the mission does not require over water operations. *System includes quick release hardware to upgrade existing 20326-600 system to add functionality to quickly remove/reinstall the floats within 12 minutes. The... Read more
When installing the Quick Release Upgrade Kit, the FWD, MID and AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 12 minutes. The hoses also have quick release features,  facilitating removal if the mission does not require over water operations. *System includes quick release hardware to upgrade existing 20326-600 system to add functionality to quickly remove/reinstall the floats within 12 minutes. The quick release features are composed of: QR Shoulder Screws for floats, QR Couplers and Dust Caps for hoses, and QR Liferaft Reservoir Cover. Not compatible with D350-794-111 Aux Fuel Tank due to reservoir installation location in the side baggage compartment. System is for installation on high gear only. Read less

Description

When installing the Quick Release Upgrade Kit, the FWD, MID and AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 12 minutes. The hoses also have quick release features,  facilitating removal if the mission does not require over water operations. *System includes quick release hardware to upgrade existing 20326-600 system to add functionality to quickly remove/reinstall the floats within 12 minutes. The quick release features are composed of: QR Shoulder Screws for floats, QR Couplers and Dust Caps for hoses, and QR Liferaft Reservoir Cover. Not compatible with D350-794-111 Aux Fuel Tank due to reservoir installation location in the side baggage compartment. System is for installation on high gear only.

Key Features

N/A

Key Benefits

  • Upgrades your current float system to quick release
  • Ideal for multi-mission operators
  • Quick Release Upgrade Kit is designed to quickly remove/reinstall the floats within 12 minutes
  • Solution for rapid & significant weight reduction: - Quickly remove the floats - Reduces downtime and required man-hour
  • Reduced installation time (5 hrs)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-198/2013 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC IAC AR - Russia FATA-STC03024 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Installation of Emergency Floats
STC ANAC - Brazil 2020S04-08 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Installation of Emergency Floats
STC EASA - Europe 10028493 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System
STC EASA - Europe EASA.IM.R.S.00619 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC TCCA - Canada P-10-0007 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System
STC TCCA - Canada SH97-69 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC FAA - USA SR00470LA AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC FAA - USA SR00645LA AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Aux Fuel Tank: D350-794-111

Flight Restrictions

N/A

Installation Time

5 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 5.00 lbs/ 2.27 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
