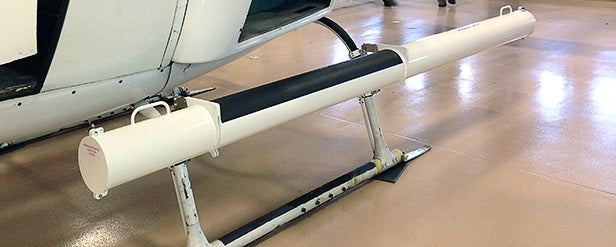

AS350/AS355 Quick Release Long Cargo Tube With Mounting Provisions - Fits LH/RH

Mission Equipment
Part Number: D350-607-641
Aircraft Models: Airbus - AS350

Price:
The Quick Release Long Cargo Tube is a unique, easy-to-install solution to transport your long or oversized cargo (antennas, metal rods, core samples, etc.). It can easily be removed by 1 person allowing you to go from one mission to another in minutes. The tube installs with the same mounting system used for our Quick Release Heli-Utility Basket™ and features integrated handles to carry it.

Description

The Quick Release Long Cargo Tube is a unique, easy-to-install solution to transport your long or oversized cargo (antennas, metal rods, core samples, etc.). It can easily be removed by 1 person allowing you to go from one mission to another in minutes. The tube installs with the same mounting system used for our Quick Release Heli-Utility Basket™ and features integrated handles to carry it.

Key Features

  • Durable gloss white, scratch resistant finish
  • Manufactured from 6061-T6 aluminum
  • Quick release mounting system
  • Integrated carrying handles
  • No VNE restriction

Key Benefits

  • Greater versatility for long cargo transportation (up to 12 ft long)
  • Can be installed by 1 person in less than 1 minute without the use of tools (after initial installation)
  • Approved to be flown on left-hand, right-hand or both sides simultaneously
  • Mounting system can be used with other D350-607-5XX baskets

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DCA - Malaysia VSTC/2020/017 AS350B/AS350B2/AS350B3/AS350BA/AS355F1/AS355F2/AS355NP/EC130T2 Heli Utility Basket
STC CAAC - China VSTC0977A AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli-Utility-Basket and Long Cargo Tube Installation
STC DGAC – Ecuador ACTS-20-005 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli Utility Basket
STC EASA - Europe 10016996 Rev. 3 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Basket Installation
STC ANAC - Brazil 2007S03-03 AS350B1/AS350B2/AS350B3/AS350BA/EC130B4 Heli-Utility-Basket
STC ANAC - Brazil 2007S03-04 AS350B Heli-Utility-Basket
STC ANAC - Brazil 2007S03-05 AS355F1/AS355F2/AS355N Heli-Utility-Basket
STC ANAC - Brazil 2007S03-06 HB-350B Heli-Utility-Basket
STC IAC AR - Russia CT107-350 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/EC130B4/EC130T2 Bearpaw, Basket & Auxiliary Fuel Tank Installations
STC TCCA - Canada SH94-14 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli-Utility-Basket and Long Cargo Tube Installation
STC FAA - USA SR00213NY AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP/EC130B4/EC130T2 Heli-Utility-Basket and Long Cargo Tube Installation

OEM Cross References

N/A

External Warning

Not compatible with low gear.

Prerequisite

N/A

Compatible With

• D350-607-511 basket mounting system. • Spacepod™ & Squirrel Cheek Compatible

Not Compatible With

Low Gear

Flight Restrictions

No VNE restriction with 1 or 2 baskets installed. Autorotation VNE restricted to 100 KIAS.

Installation Time

0.50 hr

Dimensions And Weight

  • Length: 145" / 3.7m
  • Width: 8" / 0.20m O.D.7.75" / 0.19m I.D
  • Weight Display: 62.60 lbs / 28.40 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: 280 lbs / 127 kg

Technical Documentation

Downloads

N/A
