AS350/AS355 Quick Release Emergency AFT Floats with Liferafts

Mission Equipment
Part Number: 20326-1100
Aircraft Models: Airbus - AS350

Price:
This system provides two 6-man Liferafts integrated into the AFT Floats. The AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 4 minutes. The hoses also have quick release features, facilitating removal if the mission does not require over water operations. *Provides floats for aircraft with previously installed float system. Kit includes AFT Cylindrical floats with integrated liferafts for high skid in... Read more
This system provides two 6-man Liferafts integrated into the AFT Floats. The AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 4 minutes. The hoses also have quick release features, facilitating removal if the mission does not require over water operations. *Provides floats for aircraft with previously installed float system. Kit includes AFT Cylindrical floats with integrated liferafts for high skid installation and inflation system. Includes additional functionality to quickly remove/re-install the floats within 4 minutes. The quick release feature is composed of: QR Shoulder Screws for floats, QR Couplers and Dust Caps for hoses and QR Liferaft Reservoir Cover. Not compatible with D350-794-111 Aux Fuel Tank due to reservoir installation location in the side baggage compartment. Read less

Description

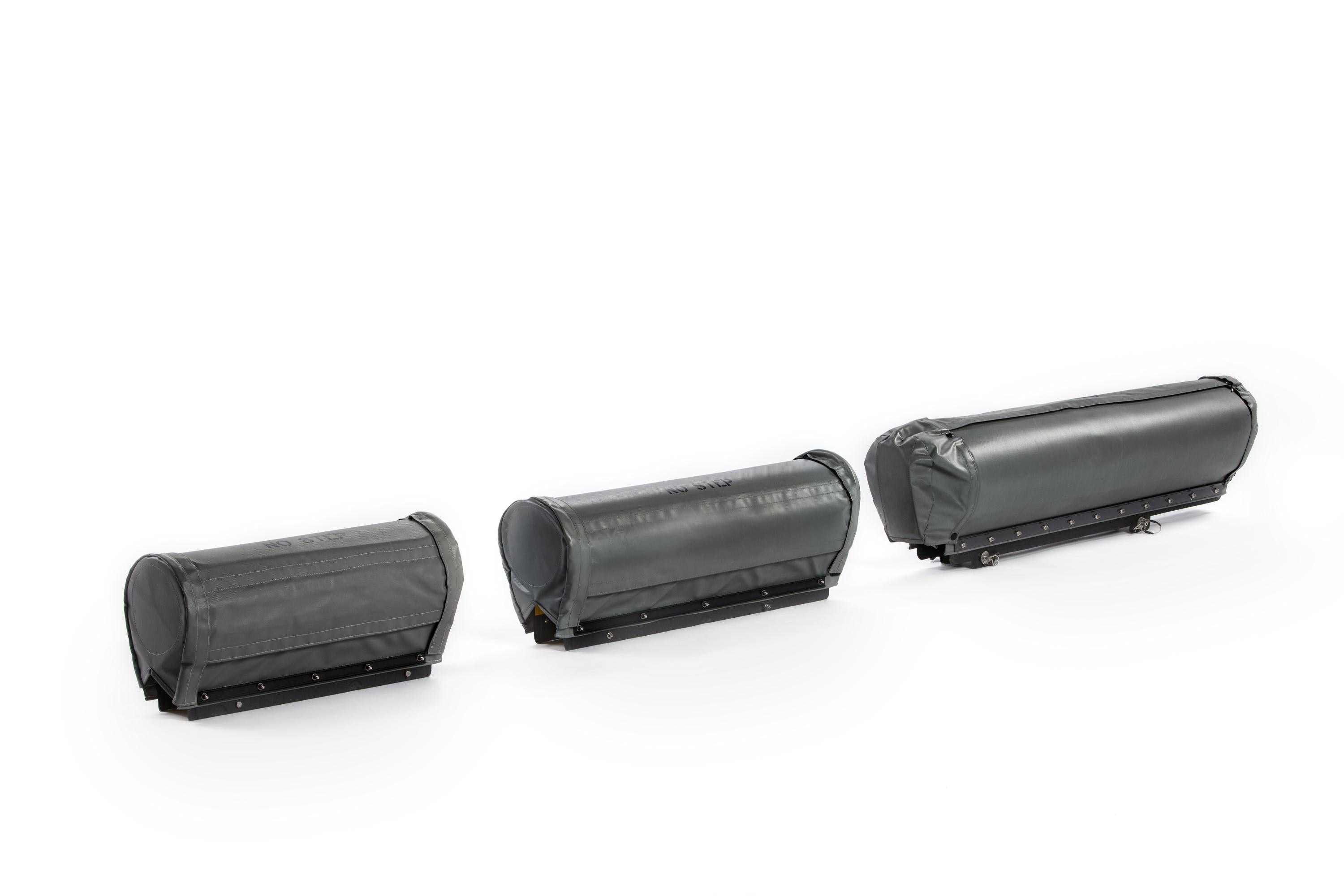

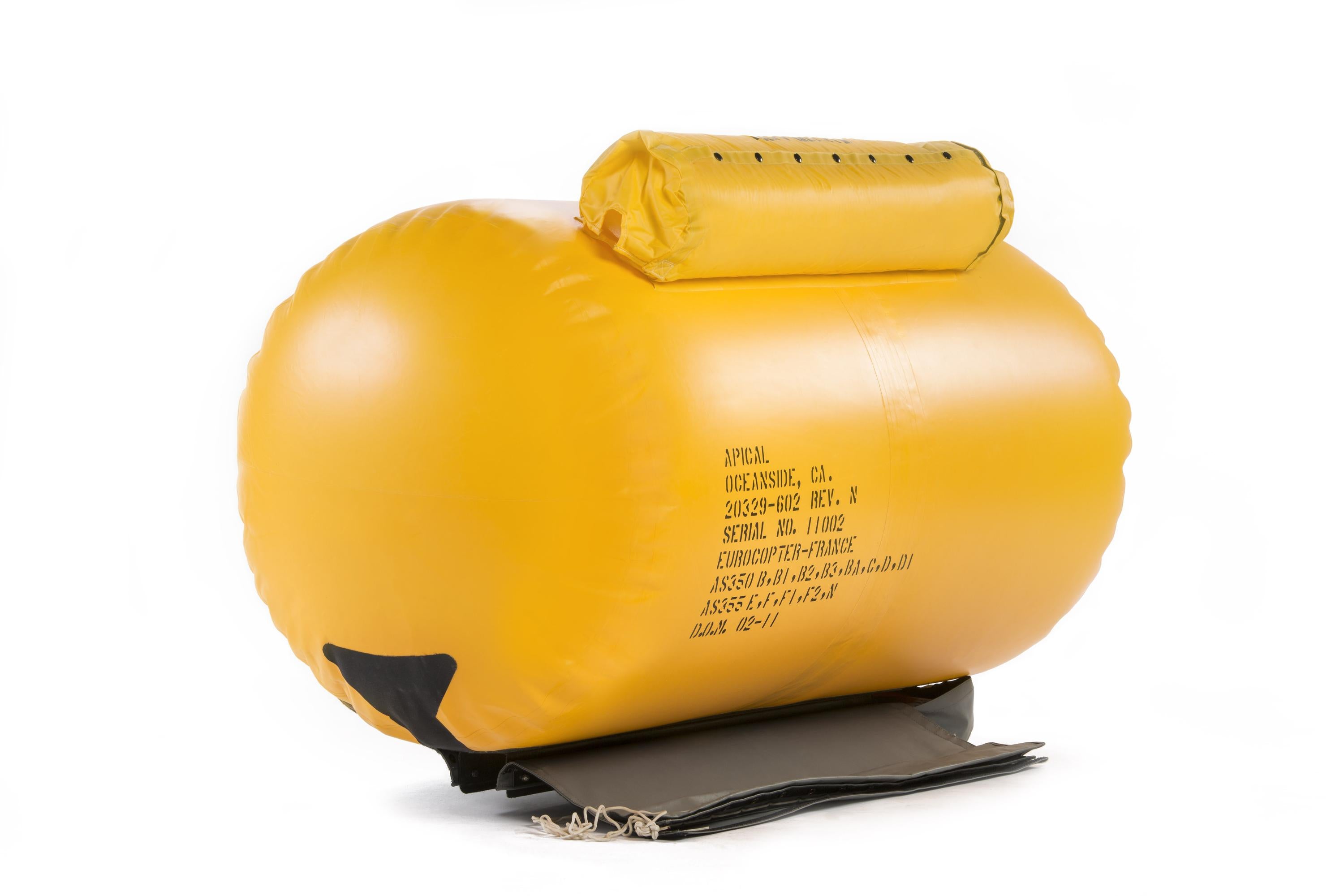

This system provides two 6-man Liferafts integrated into the AFT Floats. The AFT floats are fastened to the skidtubes using quick release screws, thereby allowing removal of the floats within 4 minutes. The hoses also have quick release features, facilitating removal if the mission does not require over water operations. *Provides floats for aircraft with previously installed float system. Kit includes AFT Cylindrical floats with integrated liferafts for high skid installation and inflation system. Includes additional functionality to quickly remove/re-install the floats within 4 minutes. The quick release feature is composed of: QR Shoulder Screws for floats, QR Couplers and Dust Caps for hoses and QR Liferaft Reservoir Cover. Not compatible with D350-794-111 Aux Fuel Tank due to reservoir installation location in the side baggage compartment.

Key Features

  • Equipped with Quick Release System
  • Two 6-man integrated liferafts included
  • No life limit on inflatables (Floats & Liferafts)
  • Exchange program available

Key Benefits

  • Upgrades your current float system with integrated liferafts
  • Designed to quickly remove/re-install AFT float within 4 minutes
  • Solution for rapid & significant weight reduction: - Quickly remove the floats   - Reduces downtime and required man-hour
  • Reduced installation time (14 hrs)
  • Certified to take off after water landing for AS350

Approvals

Approval type Authority Reference number Aircraft approved Description
STC DGCA - Mexico IA-198/2013 AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC IAC AR - Russia FATA-STC03024 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Installation of Emergency Floats
STC ANAC - Brazil 2020S04-08 AS350B/AS350B1/AS350B2/AS350B3/AS350BA Installation of Emergency Floats
STC EASA - Europe 10028493 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System
STC EASA - Europe EASA.IM.R.S.00619 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC TCCA - Canada P-10-0007 AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System
STC TCCA - Canada SH97-69 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC FAA - USA SR00470LA AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D Cylindrical Emergency Float System
STC FAA - USA SR00645LA AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Cylindrical Emergency Float System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

Aux Fuel Tank: D350-794-111

Flight Restrictions

N/A

Installation Time

14 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 91.00 lbs / 41.36 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
