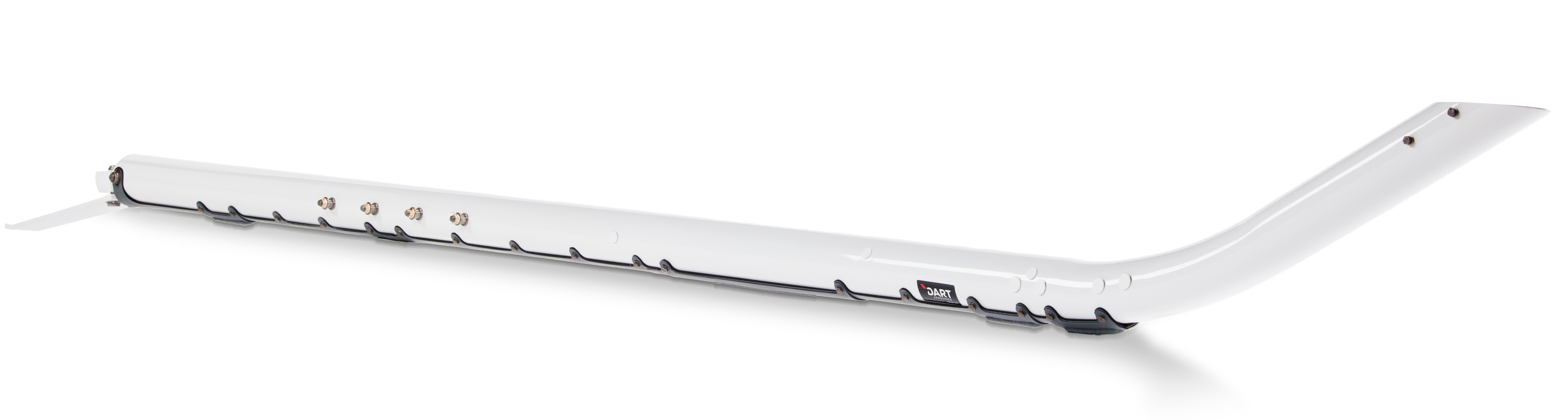

AS350/355 - Skidtubes - Standard w/ Standard Wearplates - RH

Part Number: D350-636-022
Aircraft Models: Airbus - AS350

Price:
We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace's revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength ... Read more
We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace's revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength of the I-beam made from 6061-T6 aluminum. In DART Aerospace skidtubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skidtubes. Comes standard with full-length wearplates & tungsten carbide welded wearpads . DART also offers skidtubes with heavier duty run-on landing wearplates that feature 1 full-length stainless steel wear bar with more areas of generously overlaid highly wear resistant tungsten carbide compared to any other available wearplates. *Comes with full length stainless steel wearplates & wearpads & blade. Compatible with DART and OEM Crosstubes. Read less

Description

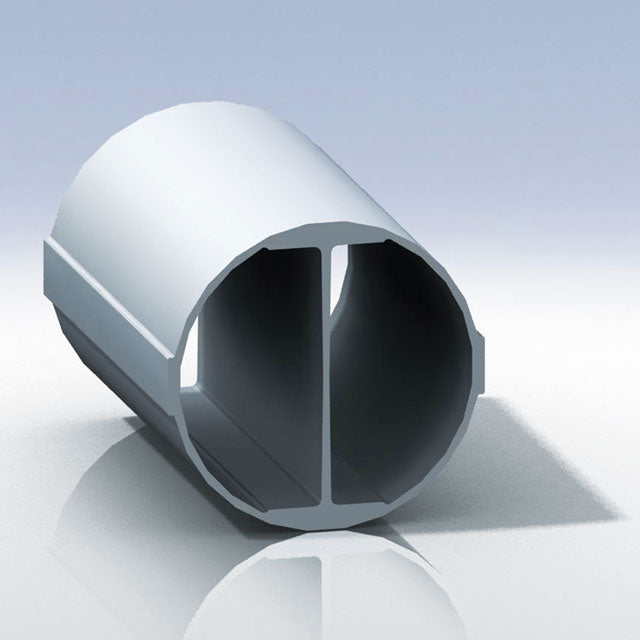

We believe that conventional skidtubes are under-designed for the types of landings most helicopters encounter. Conventional skidtubes are ill-equipped to face the critical loading conditions encountered when landing on uneven ground. Under these conditions, simple round tubes tend to puncture, dent and bend because they cannot maintain their shape. DART Aerospace's revolutionary patented Round-I-Beam™ technology combines the conventional round tube with the strength of the I-beam made from 6061-T6 aluminum. In DART Aerospace skidtubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skidtubes. Comes standard with full-length wearplates & tungsten carbide welded wearpads . DART also offers skidtubes with heavier duty run-on landing wearplates that feature 1 full-length stainless steel wear bar with more areas of generously overlaid highly wear resistant tungsten carbide compared to any other available wearplates. *Comes with full length stainless steel wearplates & wearpads & blade. Compatible with DART and OEM Crosstubes.

Key Features

  • No float compatibility - provisions removed
  • Full-length stainless steel wearplates and wearpads with tungsten carbide welds
  • Patented I-beam construction
  • Made from 6061-T6 aluminum
  • Blade and Wearplates included

Key Benefits

  • Compatible with DART and OEM Crosstubes
  • Ideal for AS350 Operators not performing Offshore missions
  • 10 times more resistant to crushing due to I-Beam construction
  • Repairable/weldable

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10033942 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP D350-636 Approved OEM Replacement Skidtube
STC ANAC - Brazil 2009S05-01 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS355F/AS355F1/AS355F2/AS355N D350-636 Approved OEM Replacement Skidtube
STC TCCA - Canada SH99-7 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP D350-636 Approved OEM Replacement Skidtube
STC FAA - USA SR00646SE AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP D350-636 Approved OEM Replacement Skidtube
PMA FAA - USA PQ2021NM Supplement No 2 AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP Approved Replacement for Part Numbers 350A41-1016-0151/-0251/-1061/-1063/-1070/-1155/-1161/-1163/-1170/-1171/-1255/-1261/-1262/-1263/-1361/-1362/-1363/-4806/-4906 350A41-1080-03/-02/

OEM Cross References

OEM Replacement / 350A41-1079-0251
OEM Replacement / 350A41-1016-1351
OEM Replacement / 350A41-1016-4906
OEM Replacement / 350A41-1016-1361
OEM Replacement / 350A41-1016-1161
OEM Replacement / 350A41-1016-1171
OEM Replacement / 350A41-1016-1163
OEM Replacement / 350A41-1016-1155
OEM Replacement / 350A41-1016-1362
OEM Replacement / 350A41-1016-1363

External Warning

If you require PMA; order D350-636-022-PMA.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

2 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 29.7 lbs / 13.5 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
