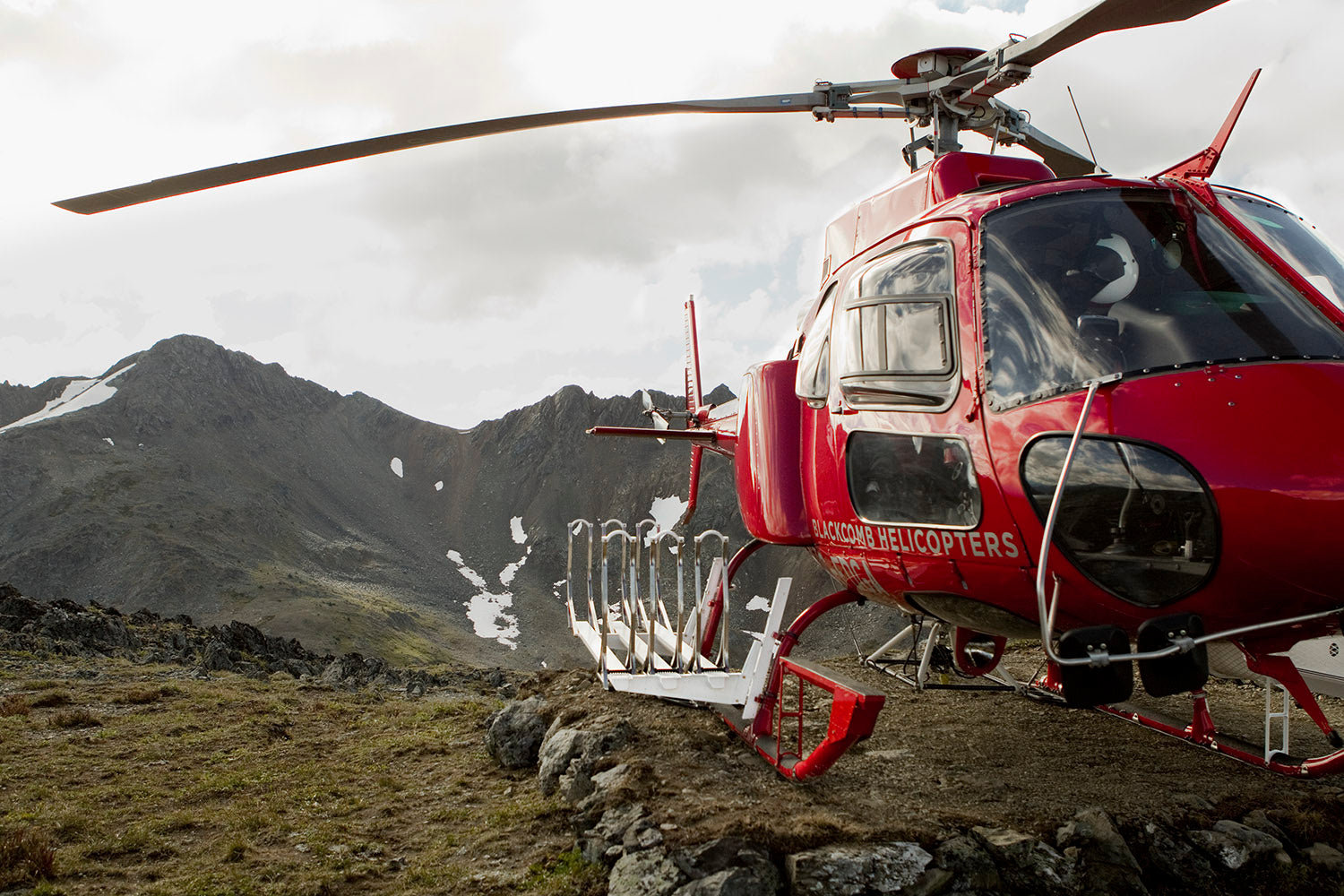

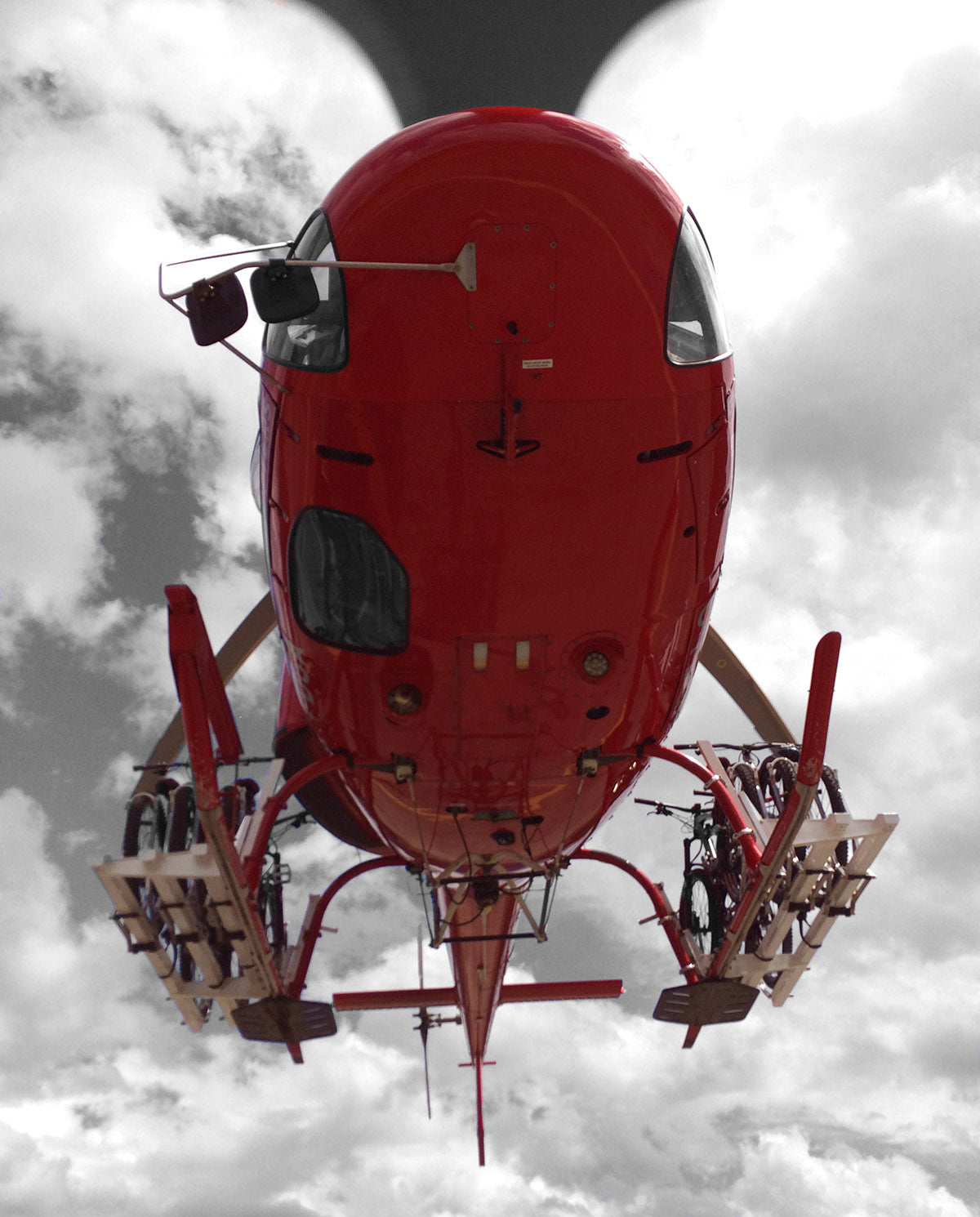

AS350/355 Bicycle Rack, No Mounts, LH
Part Number: D350-1081-041
Aircraft Models: Airbus - AS350
- In stock
Expand your mission profile with DART Aerospace's bike rack system! Using the same mounts as DART's D350-1080 series cargo baskets, you can swap to and from the bike rack and baskets in no time!
Couldn't load pickup availability
Key Features
- Uses the same mounts as the D350-1080 series cargo baskets.
- Mounts are not included
- Can fit up to 3 bikes, weighing up to 50 lbs each
- Accommodates bikes with tires up to 4" wide
- On short bike frames, can accommodate 26" tires.
- On long bike frames, can accommodate 29" tires.
Key Benefits
- Allows the transport of up to 3 bicycles per side
- With two bicycle racks, you can legally transport 6 bikes with a full load of passengers
- Swap bikes between bike racks in mere seconds
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | TCCA - Canada | SH16-29 | AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Bicycle Rack Installation |
| STC | FAA - USA | SR03913NY | AS350/AS350B/AS350B1/AS350B2/AS350B3/AS350BA/AS350D/AS355/AS355E/AS355F/AS355F1/AS355F2/AS355N/AS355NP | Bicycle Rack Installation |
| STC | EASA - Europe | 10060495 | AS350/AS350B1/AS350B2/AS350B3/AS350BA/AS350D | Bicycle Rack Installation |
OEM Cross References
N/A
External Warning
For aircraft with Cargo Extenders "Squirrel Cheeks", D350-1080-141/142 kit is required.
Prerequisite
N/A
Compatible With
N/A
Not Compatible With
N/A
Flight Restrictions
VFR Only, VNE 105 KIAS, AS355 only: Category A operations prohibited
Installation Time
N/A
Dimensions And Weight
- Length: N/A
- Width: N/A
- Weight Display: 61.8 lbs / 28.0 kg
Load Capacity And Volume
- Volume: N/A
- Load Capacity: 150lbs /68.1kgs
Technical Documentation
Downloads
N/A
