Airbus 350 B, C, D Spray System

Mission Equipment
Part Number: 000-005100-000
Aircraft Models: Airbus - AS350

Price:

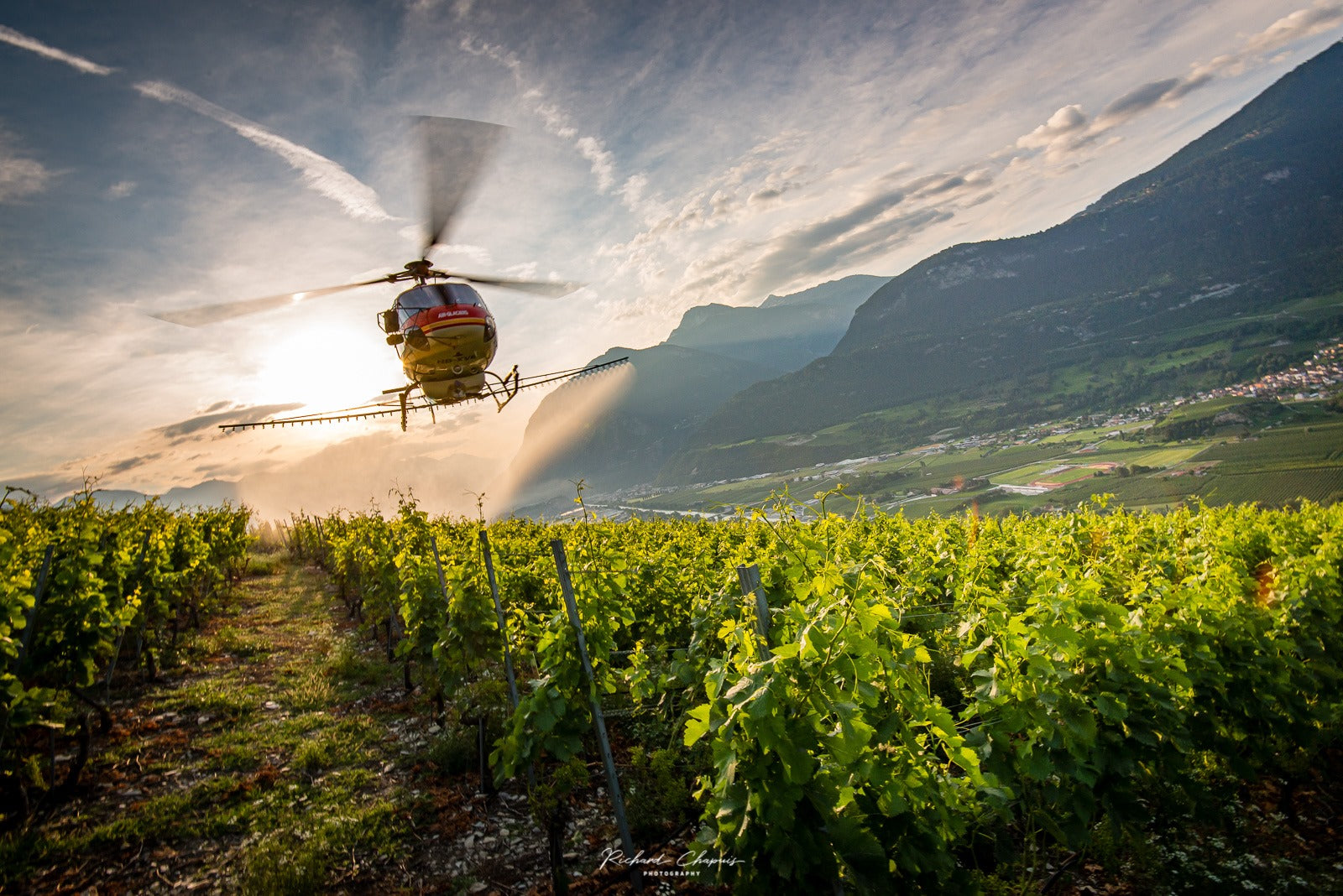

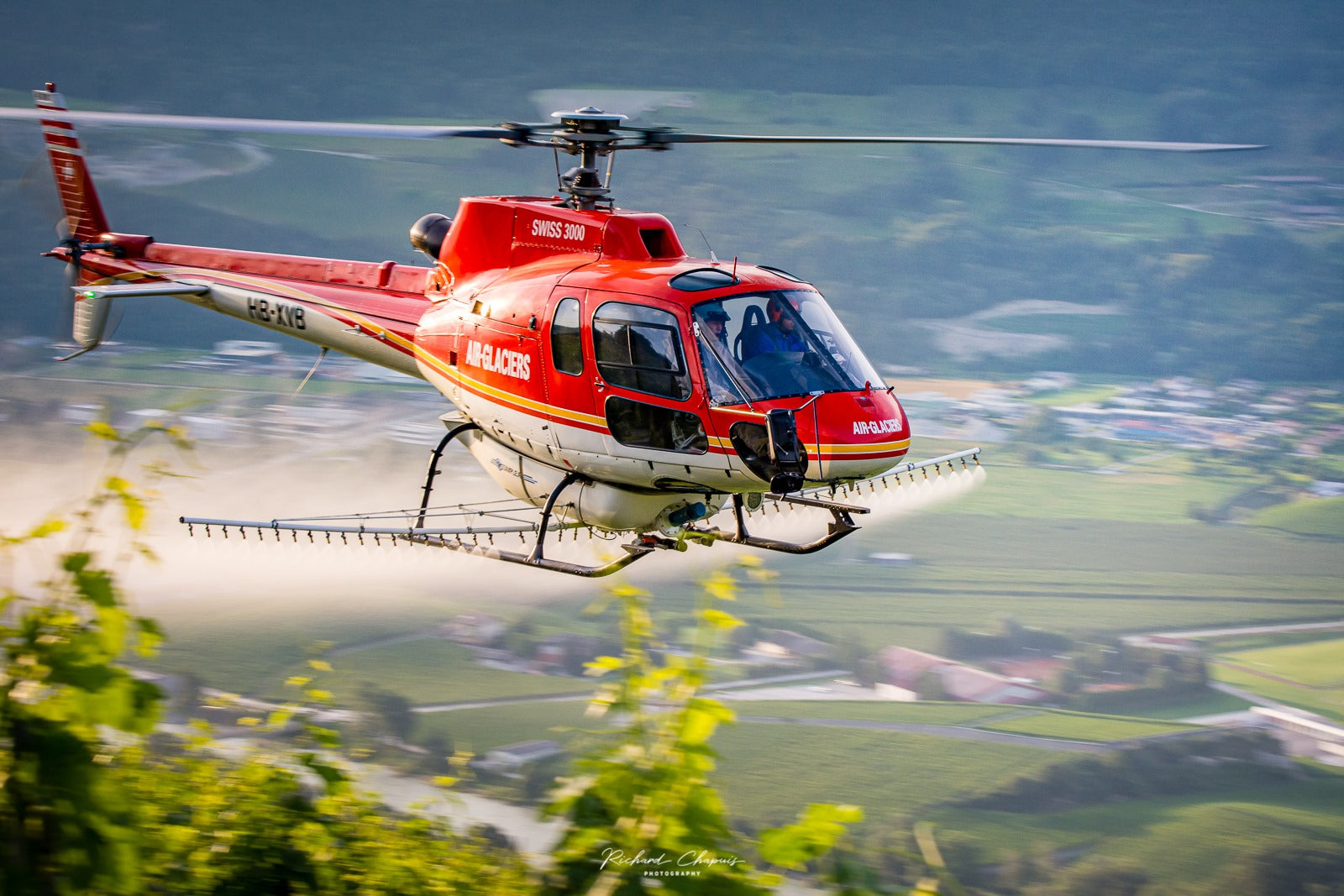

The Simplex Aerospace Model 5100 Spray System for the Airbus AS-350 B, C & D.The system consists of a belly-mounted carbon fiberglass tank, which holds 681 litres (180 gallons) of liquid.

Description

The Simplex Aerospace Model 5100 Spray System for the Airbus AS-350 B, C & D.The system consists of a belly-mounted carbon fiberglass tank, which holds 681 litres (180 gallons) of liquid.

Key Features

  • Durable, chemical resistant, carbon fiber composite matrix tank
  • Mid-ship mounted (88% RD) booms (31ft/9m)
  • Electrically driven spray pump and motor
  • 65 Nozzle Ports

Key Benefits

  • Aerodynamic design results in low drag
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes
  • Optional (102%RD) boom extensions (36ft/11m)
  • Atomizer and GPS/Flow Control compatible
  • Spares Kit available (200-500000-002)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SH1160NW AS350B/AS350D Installation of 5100 Spray System
STC TCCA - Canada SH90-20 AS350B/AS350D Installation of 5100 Spray System
STC LBA - Germany 322/10/3048/94 AS350B Installation of 5100 Spray System

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 250 lb / 113 kg

Load Capacity And Volume

  • Volume: 180 gal / 681 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
