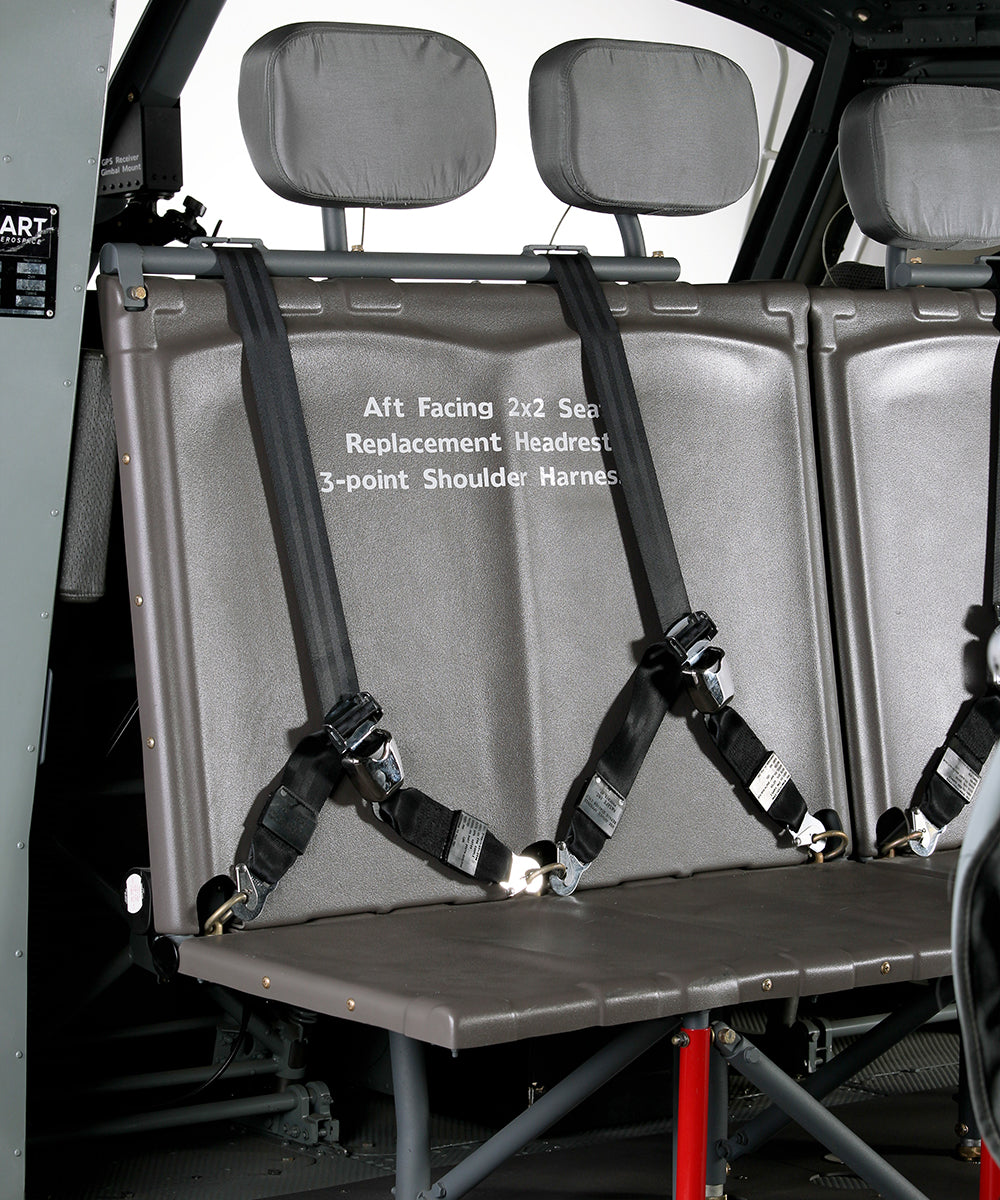

Product image 1, can be opened in a modal.
D412-769-011
Product image 2, can be opened in a modal.
D412-769-011

Aft Facing 2X2 Place Seat


Part Number: D412-769-011

Aircraft Models: Bell - 205;Bell - 412

  • In stock STOCK STOCK Please contact sales for a lead time Please contact sales for a lead time
The DART Aft Facing 2x2 Place Seats are direct replacements for OEM Aft facing utility seating and install easily into existing floor provisions. The seats come fully assembled and include headrests and seatbelt rings. 2 place seats may be installed together or individually for maximum versatility. Each 2 place seat may be installed on one side or in the center of the aircraft. The lightweight frame is powder coated. Seat pans are durable, high strength, impact resistant aerospace grade plastic that cleans easily with mild detergent and does not require any fire retardant treatment. Seat pans and backs are independently replaceable and are easily removed and reinstalled without seat frame disassembly. When ordered as spares, the seat backs and pans are LH/RH interchangeable. *Comes fully assembled with headrests and seatbelt rings. Compatible with existing floor provisions, OEM lap belts & DART Shoulder Harnesses D412-702-345. Price is per aircraft.

Key Features

  • Lightweight

Key Benefits

  • Quick installation (snaps into existing provisions)
  • Easy to clean, no need to send away for fire retardant treatment
  • Easy to replace, no need to disassemble seat for replacements
  • Replacement backs and bottoms are LH/RH interchangeable
  • Also available - Shoulder Harness kits

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10027063, Rev.1 205A1/205B/212/412/412EP D412-769 Aft Facing Seat Installation
STC TCCA - Canada SH08-38 205A1/205B/212/214B/214B1/412/412CF/412EP Aft Facing Seat Installation
STC FAA - USA SR02682NY 205A1/205B/212/214B/214B1/412/412CF/412EP Installation of Aft Facing Seat

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

Existing Floor Provisions; OEM Lap Belts; DART Shoulder Harnesses: D412-702-345

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

0.5 hr

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 60.00 lbs / 27.20 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
