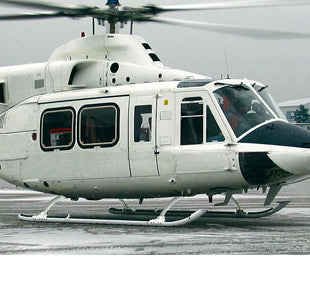

Aft Crosstube - Low Standard

Part Number: D412-664-209
Aircraft Models: Bell - 412

Price:
Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of ... Read more
Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART low Aft crosstubes are not life-limited (excluding 412 high Aft); they are to be replaced on-condition according to a max spread criteria. *Measures 20" from ground to bottom of crosstube under-support. Compatible with DART/OEM/AAI Standard Skidtubes. Read less

Description

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART low Aft crosstubes are not life-limited (excluding 412 high Aft); they are to be replaced on-condition according to a max spread criteria. *Measures 20" from ground to bottom of crosstube under-support. Compatible with DART/OEM/AAI Standard Skidtubes.

Key Features

  • Clamp-on stainless steel supports (no rivets)

Key Benefits

  • Not life limited
  • Easy thru-bolt installation

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01304 204B/205A1/205B/212/214B/214B1/412/412EP D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC TCCA - Canada SH01-9 204B/205A1/205B/212/214B/214B1/412/412CF/412EP D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC FAA - USA SR01298NY 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC DGCA - Mexico IA-316/2015 204B/205A1/205B/212/214B/214B1/412/412CF/412EP Crosstube Installation

OEM Cross References

OEM Replacement / 412-320-104
OEM Replacement / 412-050-002-101
OEM Replacement / 412-050-002-103
OEM Replacement / 412-050-002-105
OEM Replacement / 412-050-002-107

External Warning

N/A

Prerequisite

N/A

Compatible With

DART/OEM/AAI Standard Skidtubes.

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 42.50 lbs / 19.28 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
