Description

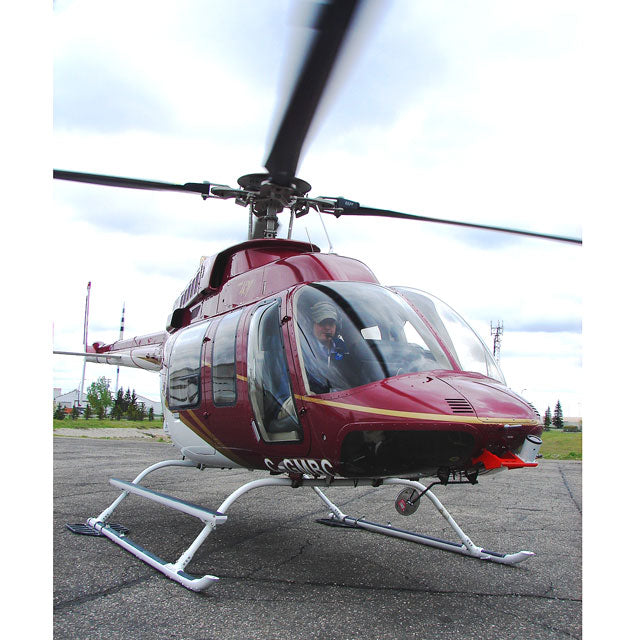

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART crosstubes are not life-limited; they are to be replaced on-condition according to a max spread criteria.
*Measures 25 in. from ground to bottom of crosstube. Compatible with DART/OEM/AAI Standard and Float Skidtubes. Maximum possible gross weight with DART Crosstubes installed is 5,250 lbs. Do not exceed RFM/RFMS limits.
Key Features
- Clamp-on stainless steel supports (no rivets)
- Compatible with DART/OEM/AAI skidtubes
- Comes out of the box painted white and ready to install on your helicopter
Key Benefits
- Not life limited
- Easy thru-bolt installation
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | ANAC - Brazil | 2009S08-17 | 407 | D206-667 Approved OEM Replacement Crosstube |
| STC | EASA - Europe | EASA.IM.R.S.01179 | 206A/206B/206L/206L1/206L3/206L4/407 | D206-667 & D407-667 Approved OEM Replacement Crosstube |
| STC | TCCA - Canada | SH01-5 | 206A/206B/206L/206L1/206L3/206L4/407 | D206-667 & D407-667 Approved OEM Replacement Crosstube |
| STC | FAA - USA | SR01304NY | 206A/206B/206L/206L1/206L3/206L4/407 | D206-667 & D407-667 Approved OEM Replacement Crosstube |
| STC | DGCA-Mexico | IA-787/2022 | 206A/206B/206L/206L1/206L3/206L4/407 | STC for D206-667 crosstubes |
