Description

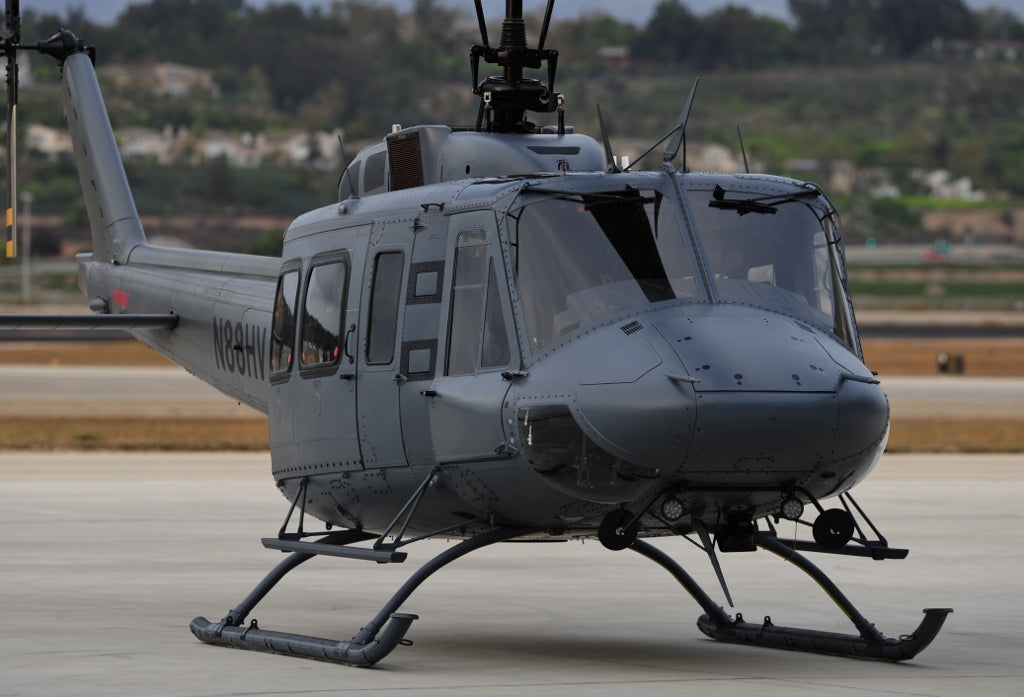

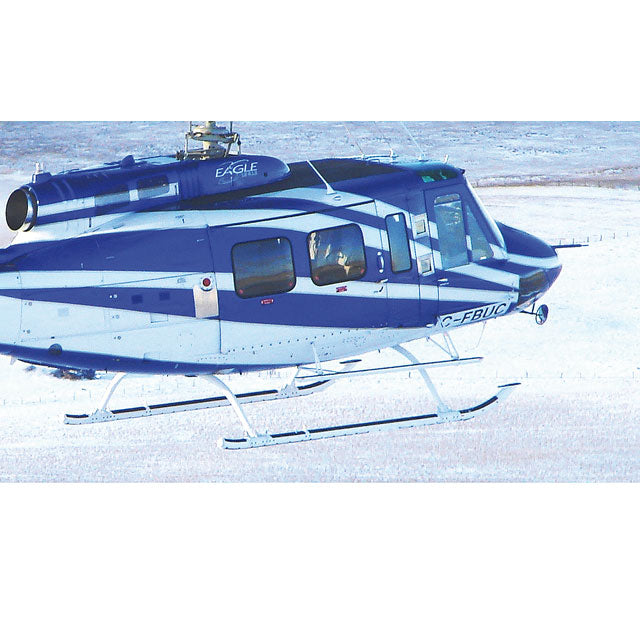

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART high Aft crosstubes are not life-limited (excluding 412 high Aft); they are to be replaced on-condition according to a max spread criteria.
*Measures 25" from ground to bottom of crosstube under-support. Compatible with DART/OEM/AAI Standard & Float Skidtubes.
Key Features
- Clamp-on stainless steel supports (no rivets)
- Compatible with DART/OEM/AAI skidtubes
- Comes out of the box painted white and ready to install on your helicopter
Key Benefits
- Not life limited
- FAA approved for UH-1B & UH-1
- Easy thru-bolt installation
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | JCAB - Japan | STC-523-TYO | 412EP | D212-664 & D412-664 Crosstube |
| STC | EASA - Europe | EASA.IM.R.S.01304 | 204B/205A1/205B/212/214B/214B1/412/412EP | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | TCCA - Canada | SH01-9 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | FAA - USA | SR01298NY | 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | DGCA - Mexico | IA-316/2015 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | Crosstube Installation |
