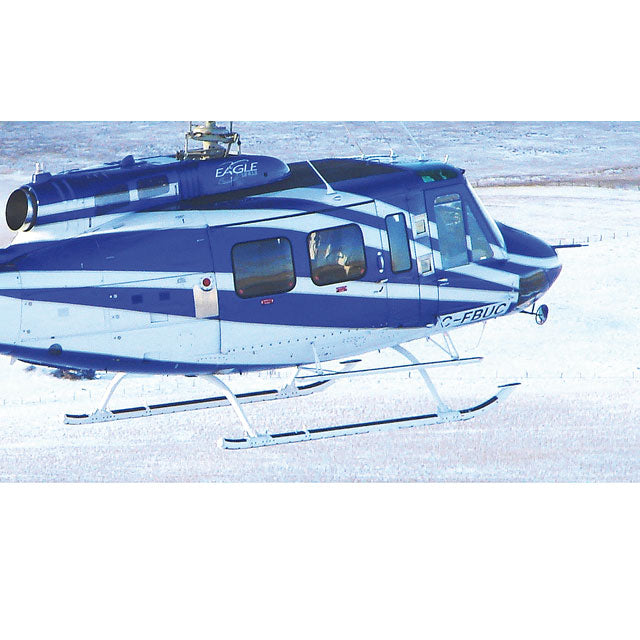

Aft Crosstube - High

Part Number: D412-664-203
Aircraft Models: Bell - 412

Price:
Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of ... Read more
Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART high Aft crosstubes are life-limited to 10 000 cycles. *Measures 26" from ground to bottom of crosstube under-support. Life limit 10,000 landings. Read less

Description

Helicopter pilots count on DART Aerospace crosstubes for safety, durability, and compatibility. Our crosstubes have been designed to be compatible with both DART Round-I-Beam™ and OEM Skidtubes and are easily installed using a thru-bolt system rather than with short bolts into anchor nuts. The crosstubes are manufactured by means of an environmentally friendly turning process and utilize clamp-on stainless steel supports to avoid rivet holes in high stress regions of the crosstube. DART high Aft crosstubes are life-limited to 10 000 cycles. *Measures 26" from ground to bottom of crosstube under-support. Life limit 10,000 landings.

Key Features

  • Now TCCA/FAA/EASA approved to 12,200 lb gross weight
  • Clamp-on stainless steel supports (no rivets)
  • Compatible with DART & OEM Skidtubes

Key Benefits

  • Direct OEM Replacement
  • Easy thru-bolt installation

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01304 204B/205A1/205B/212/214B/214B1/412/412EP D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC TCCA - Canada SH01-9 204B/205A1/205B/212/214B/214B1/412/412CF/412EP D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC FAA - USA SR01298NY 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb)
STC DGCA - Mexico IA-316/2015 204B/205A1/205B/212/214B/214B1/412/412CF/412EP Crosstube Installation

OEM Cross References

OEM Replacement / 412-050-045-105
OEM Replacement / 412-050-045-107
OEM Replacement / 412-050-045-107A
OEM Indirect Replacement / 412-050-011-101
OEM Indirect Replacement / 412-050-011-103
OEM Indirect Replacement / 412-050-011-105
OEM Indirect Replacement / 412-050-011-107
OEM Replacement / 412-050-045-103
OEM Replacement / 412-320-104

External Warning

If interested in a Stainless Steel Crosstube with a longer life limit, please see P/N D412-664-403.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 47.00 lbs / 21.32 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
