Aerial Cleaning for BELL 407

Part Number: 508-000000-000
Aircraft Models: Bell - 407

Price:
DART's Simplex Aerial Cleaning and De-Icing System represents the third generation of Aerial Cleaning equipment delivering superior performance and value to helicopter operators and power utility providers. Routine cleaning of powerline insulators and windmills has been shown to significantly enhance power transmission and generation efficiency by 10%

Description

DART's Simplex Aerial Cleaning and De-Icing System represents the third generation of Aerial Cleaning equipment delivering superior performance and value to helicopter operators and power utility providers. Routine cleaning of powerline insulators and windmills has been shown to significantly enhance power transmission and generation efficiency by 10%

Key Features

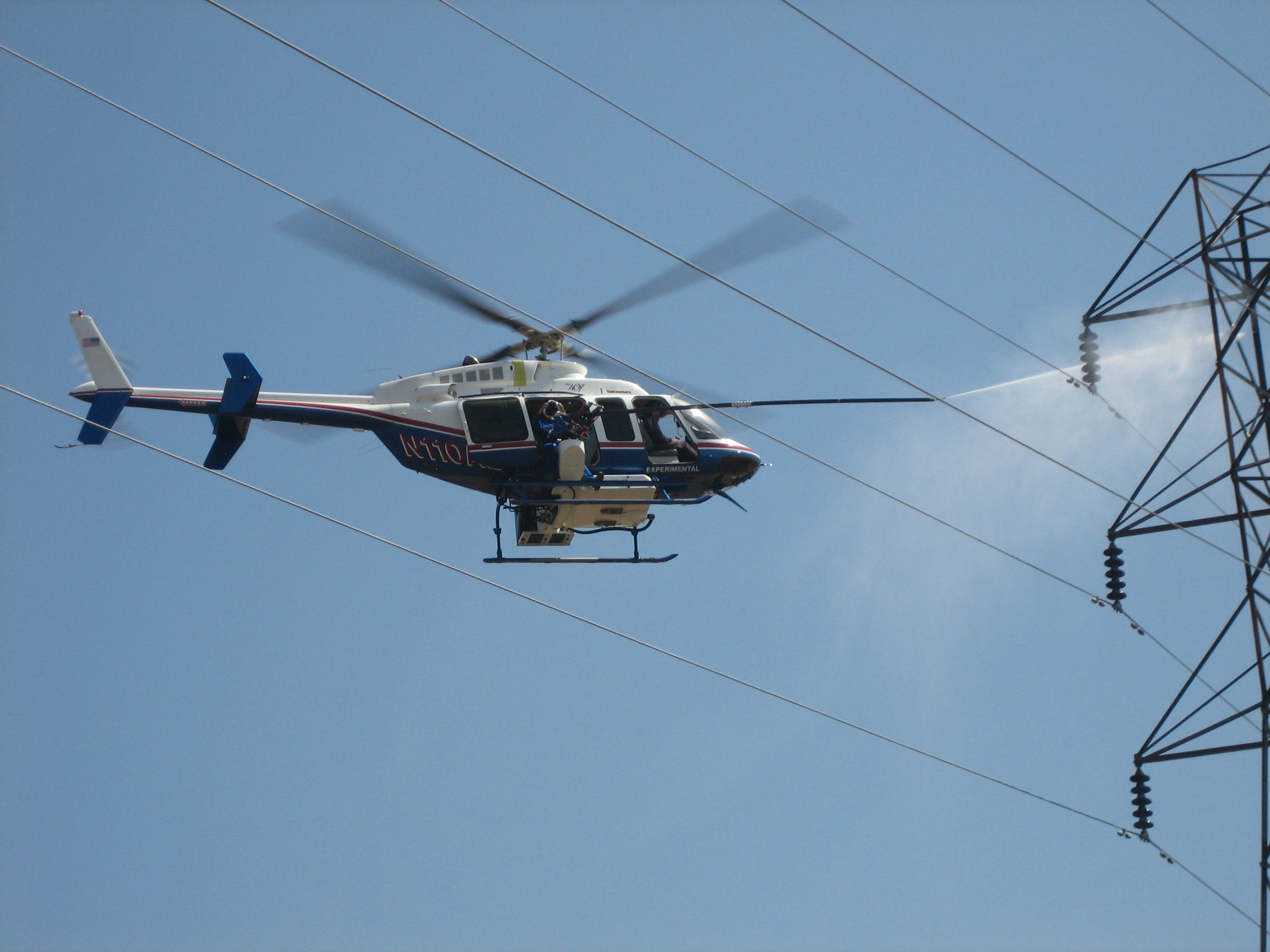

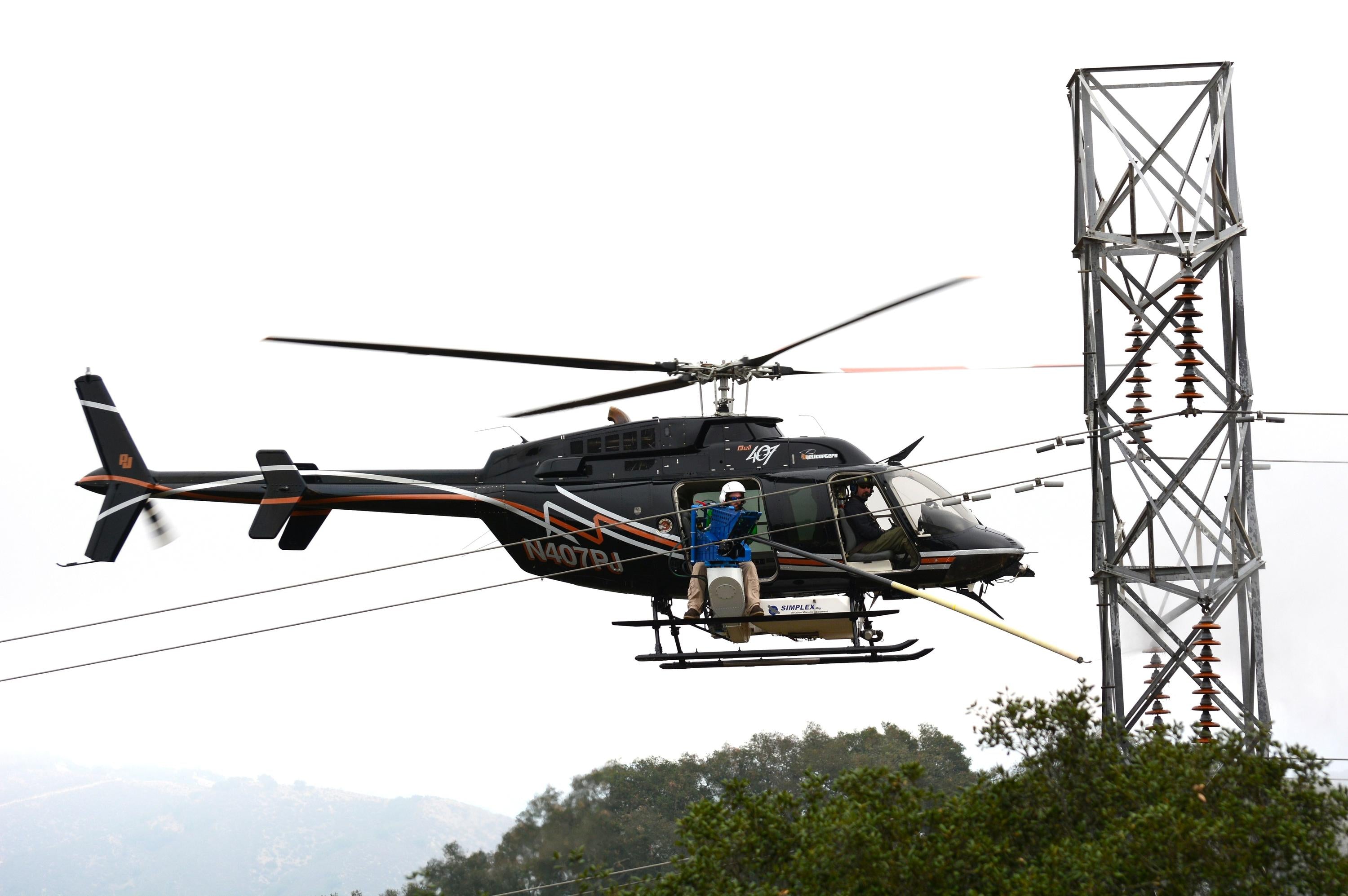

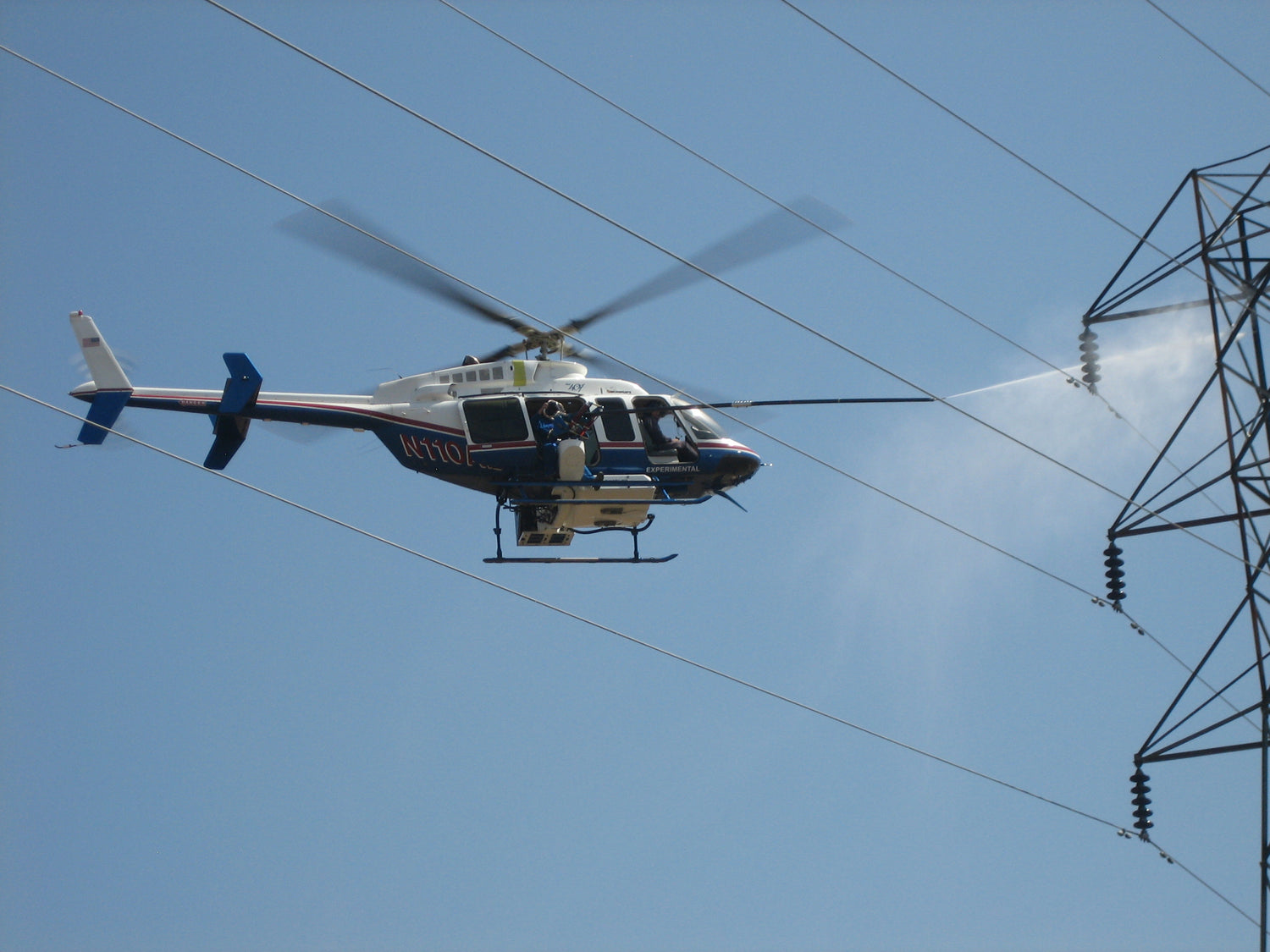

  • High-pressure spray cleans Powerline insulators and Windmills blades
  • Insulated boom allows for live power washing w/ ionized water
  • High strength, low weight composite belly tank
  • Double safety lock mechanism prevents boom interference with main and tail rotors
  • Boom extends at least one-meter past rotor diameter

Key Benefits

  • FAA certified for day VFR
  • Installation/removal in 30 minutes after initial install
  • Training available; system installation and maintenance, mission training for flight, boom operation and ground coordination
  • Simplex is the sole manufacturer of Aerial Cleaning and De-Icing Systems for the Bell 407

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR020896SE 407
STC CAAC - China VSTC0690 407
STC ANAC - Brazil CST2013S08-16
STC TCCA - Canada SH17-6 407

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 722 lb / 327 kg

Load Capacity And Volume

  • Volume: 120 gal / 455 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
