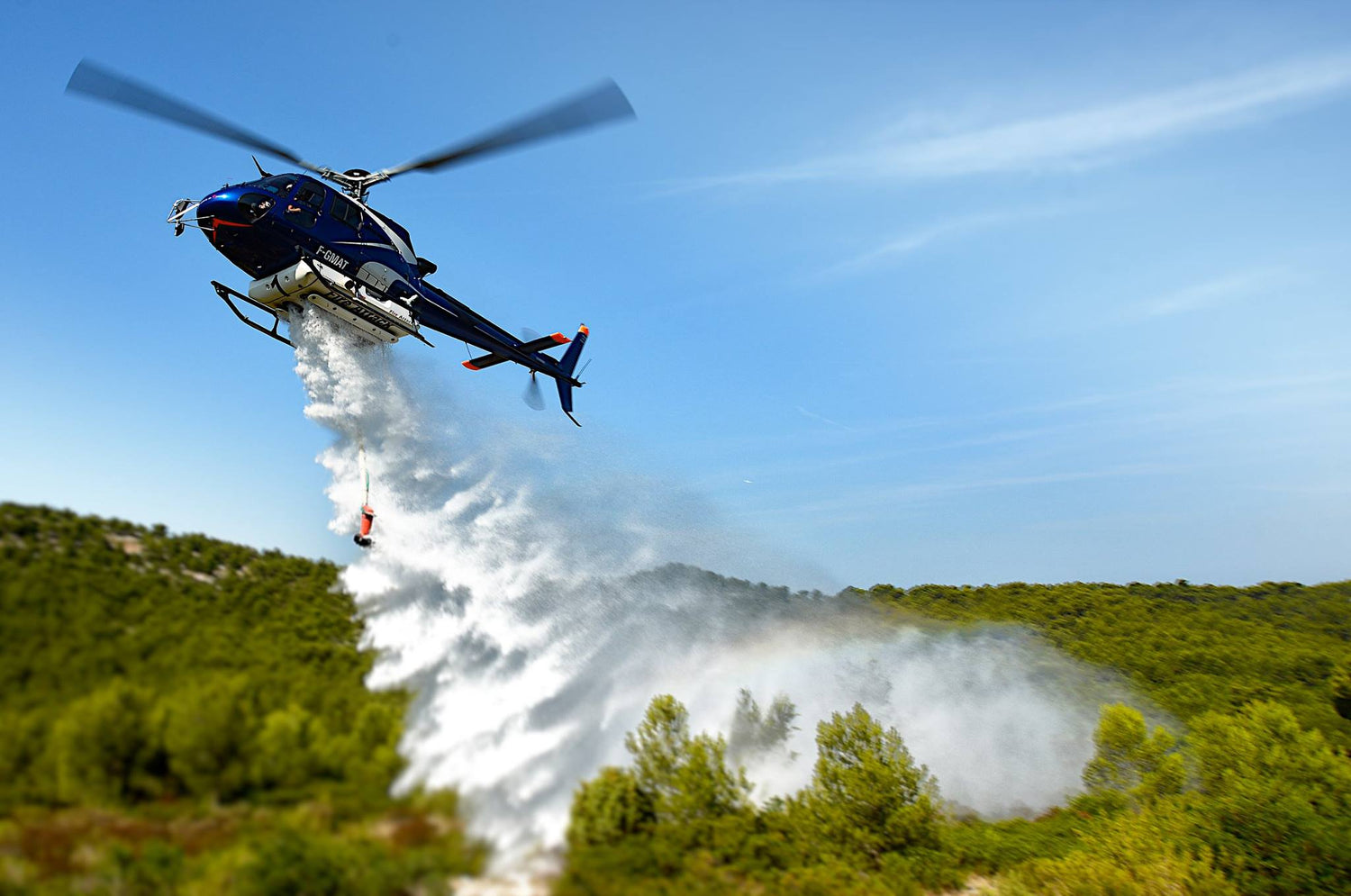

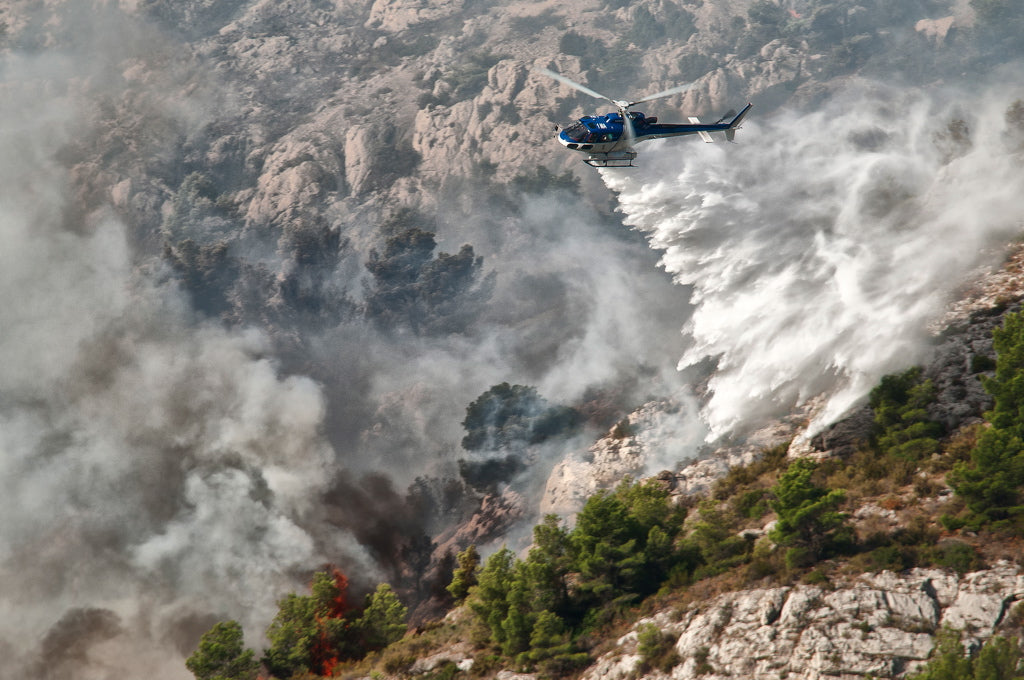

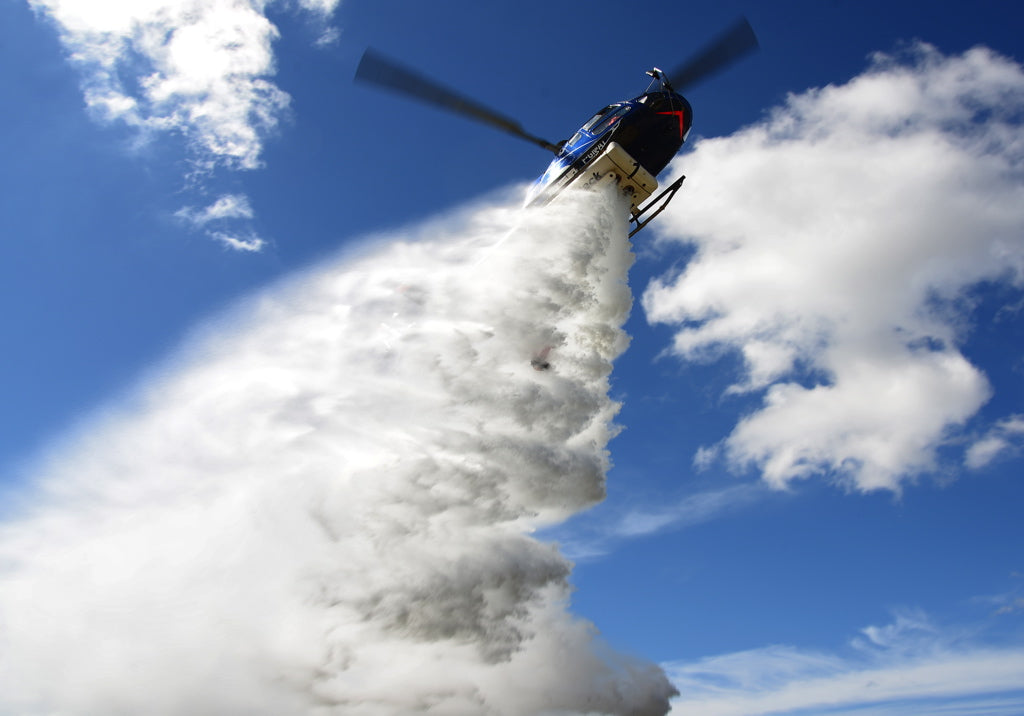

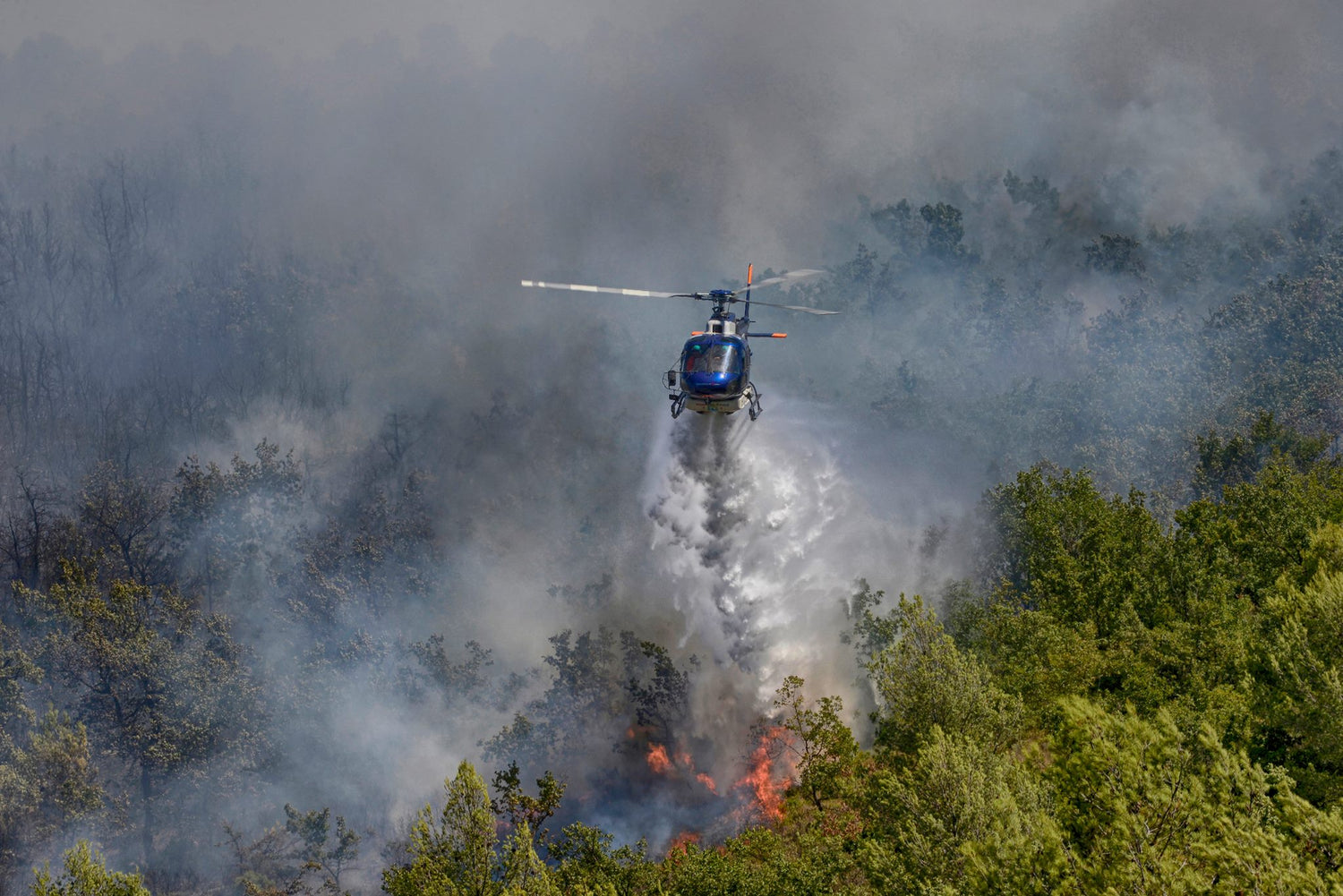

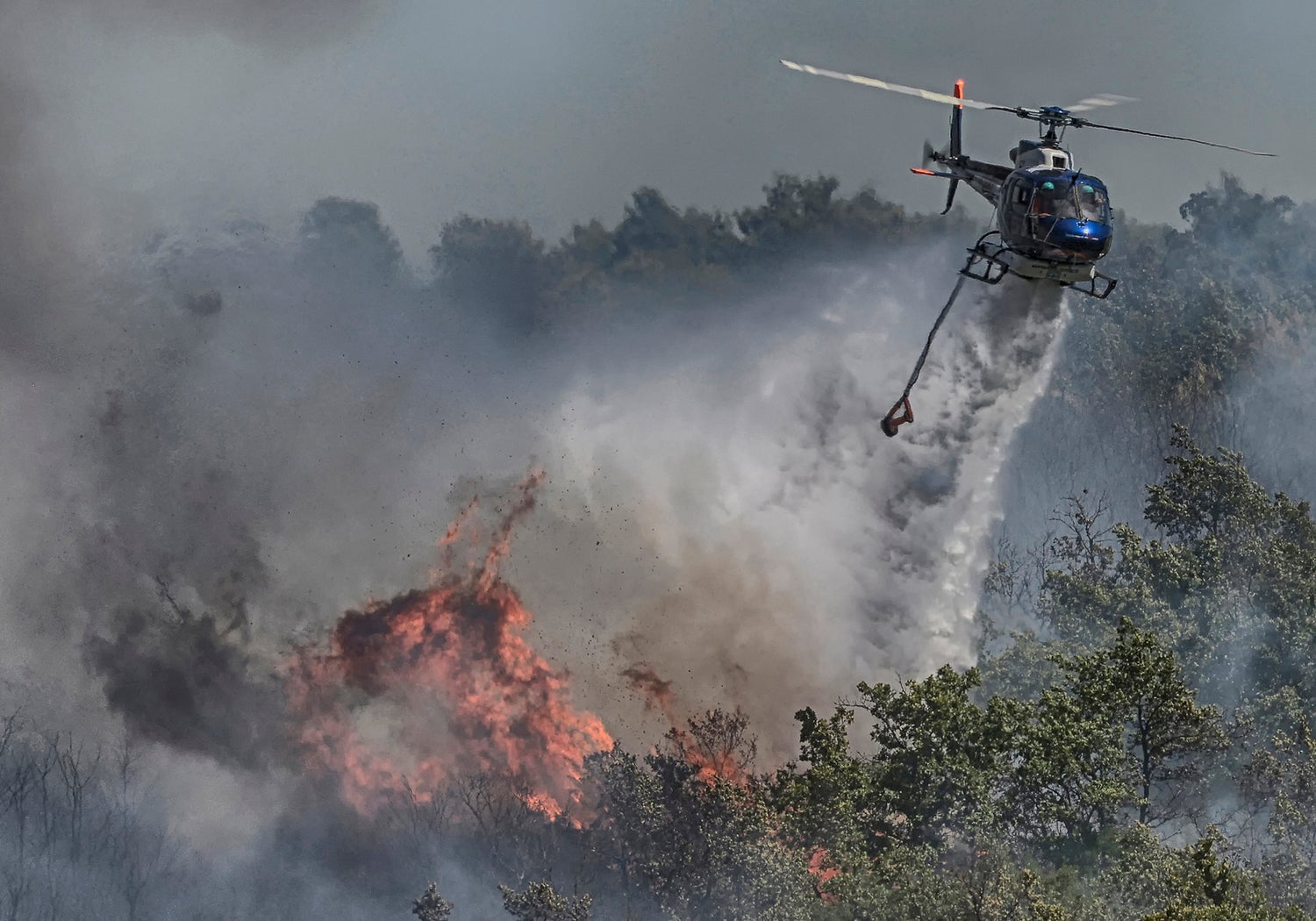

A-Star Fire Attack™ System

Part Number: 310-000000-003
Aircraft Models: Airbus - AS350

Price:

DART's Simplex Aerospace Model 310 consists of a belly-mounted carbon fiberglass tank, which comes in three sizes: 900 liters (238 gallons), 1,100 liters (290 gallons) or 1,200 liters (317 gallons). Other features of the tank include a hover refill pump with a refill rate of 1,192 liters (315 gallons) per minute, internal foam injection system, corrosion-resistant parts, cockpit controlled selectable drop patterns, and rapid installation/removal.

Description

DART's Simplex Aerospace Model 310 consists of a belly-mounted carbon fiberglass tank, which comes in three sizes: 900 liters (238 gallons), 1,100 liters (290 gallons) or 1,200 liters (317 gallons). Other features of the tank include a hover refill pump with a refill rate of 1,192 liters (315 gallons) per minute, internal foam injection system, corrosion-resistant parts, cockpit controlled selectable drop patterns, and rapid installation/removal.

Key Features

  • Durable, carbon fiber composite matrix tank
  • 1200L (317 Gal) capacity
  • *Optional 900L (238 Gal) tank capacity
  • *Optional 1100L (291 Gal) tank capacity
  • Internal foam injection

Key Benefits

  • Cockpit controlled selectable drop patterns
  • FAA certified for day/night VFR
  • Installation/removal in 30 minutes
  • Spares Kits available (310-106001-002) (310-106001-001)

Approvals

Approval type Authority Reference number Aircraft approved Description
STC FAA - USA SR00684SE
STC EASA - Europe IM.R.S.0078
STC TCCA - Canada SR00684SE
STC DGCA - Mexico IA-158/2012
STC CAAC - China VSTC0868
STC ANAC - Brazil 2016S12-01

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

Restricted category

Installation Time

30 min

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 302 lb / 137 kg

Load Capacity And Volume

  • Volume: 317 gal / 1200 L
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
