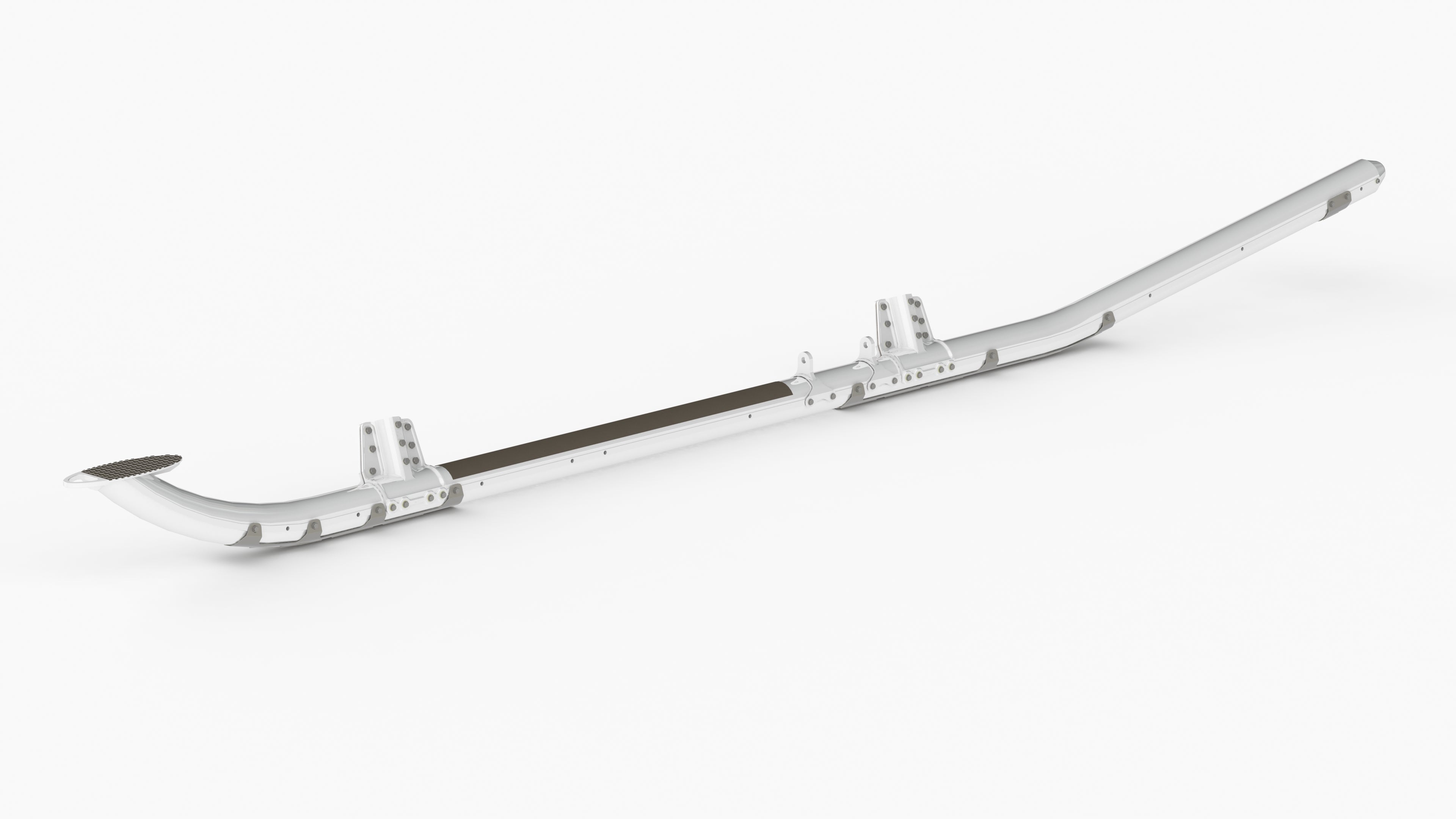

505 - Skidtube - Float w/ Basic Wearplates - RH


Part Number: D505-1057-014

Aircraft Models: Bell - 505

  • A few left in stock!
DART’s B505 float skid tubes are also constructed with patented I-Beam technology, which combines the conventional round tube with the strength of the central I-Beam. In DART Aerospace skid tubes, the central I-beam web absorbs most of the impact on landing so the tube maintains its integrity. Even with the addition of a central web, the weight is comparable to that of conventional skid tubes. Comes standard with full-length tungsten carbide welded wear plates. Also now available with heavier duty run-on landing wear plates that feature stainless steel wear bars with more areas of generously overlaid highly wear resistant tungsten carbide compared to any other available wear plates.

Key Features

  • No life limit
  • One-piece Float Skidtube design, no extensions required
  • Only applicable to the RH of the aircraft
  • Includes and intergrated towing lug/step
  • Includes thru bolt, basic wearplates
  • Includes CNC machined, split, bolt on saddles
  • I-beam construction
  • Round shape for ease of use
  • Easy to install, pre-drilled for floatation equipment
  • Compatible with OEM GHW
  • Shipped glossy black from factory

Key Benefits

  • Replace on condition, no cycle limit
  • 10 times more resistant to crushing due to I-Beam technology
  • Full-length stainless steel wearplates with tungsten carbide welds
  • Reduced inventory of spares (tubes are not handed)
  • Easy wearplate installation and removal for inspection/replacement
  • Compatible with OEM Crosstubes & saddles
  • Save 1.4lbs/0.64kg per side vs skid extensions

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH19-31 505 Skidtube installation
STC FAA - USA SR04387NY 505 Skidtube Installation
STC EASA - Europe 10070898 505 Skidtube Installation
STC DGCA - Mexico IA-645/2019 505 Skidtube Installation
STC CAAP - Philippines C-21-0233 505 Skidtube installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: N/A

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

N/A

Downloads

N/A
