429 - Wearplates - OEM Replacement - Full-Length RH + LH


Part Number: D429-1056-015

Aircraft Models: Bell - 429

  • A few left in stock!

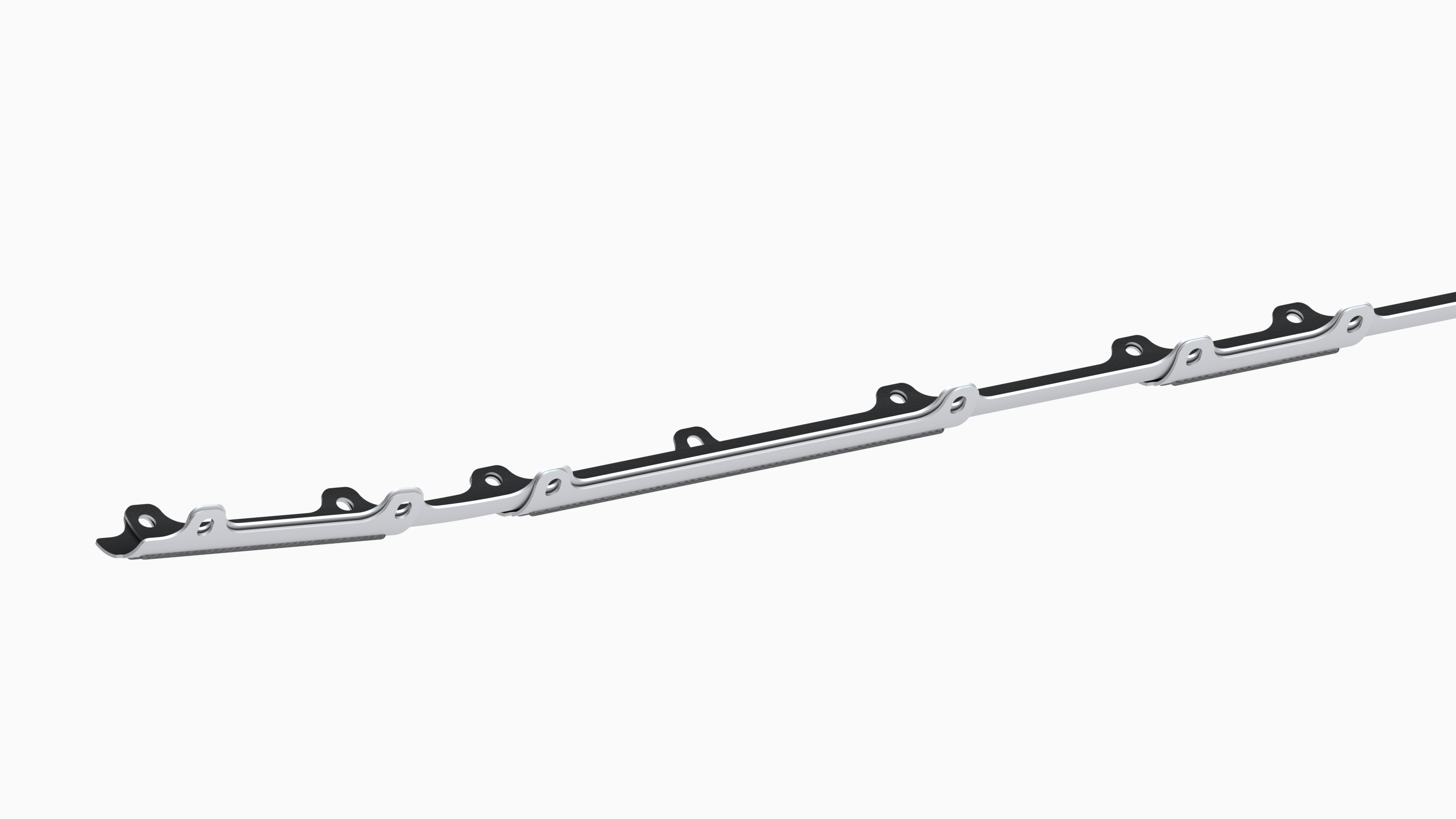

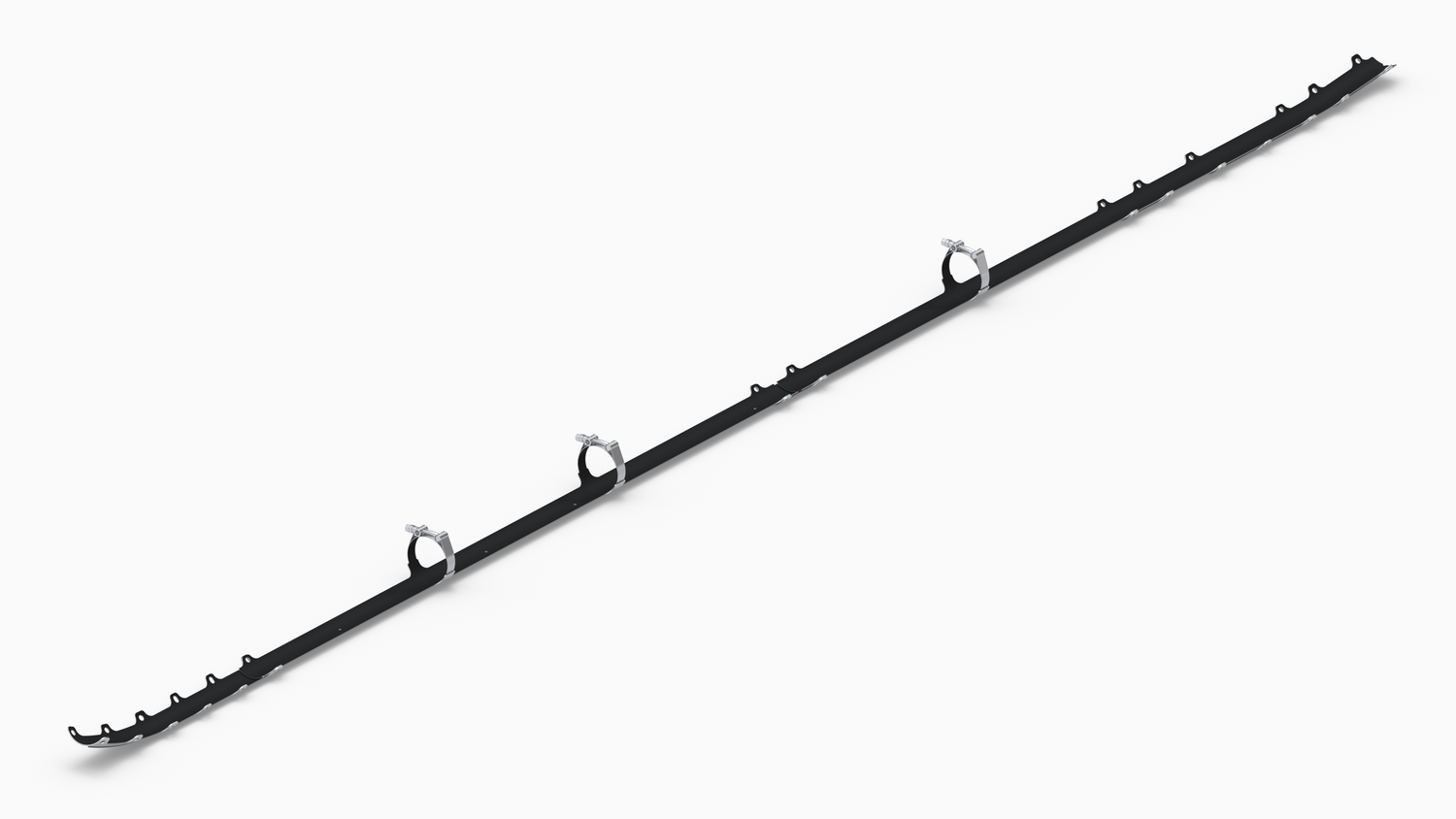

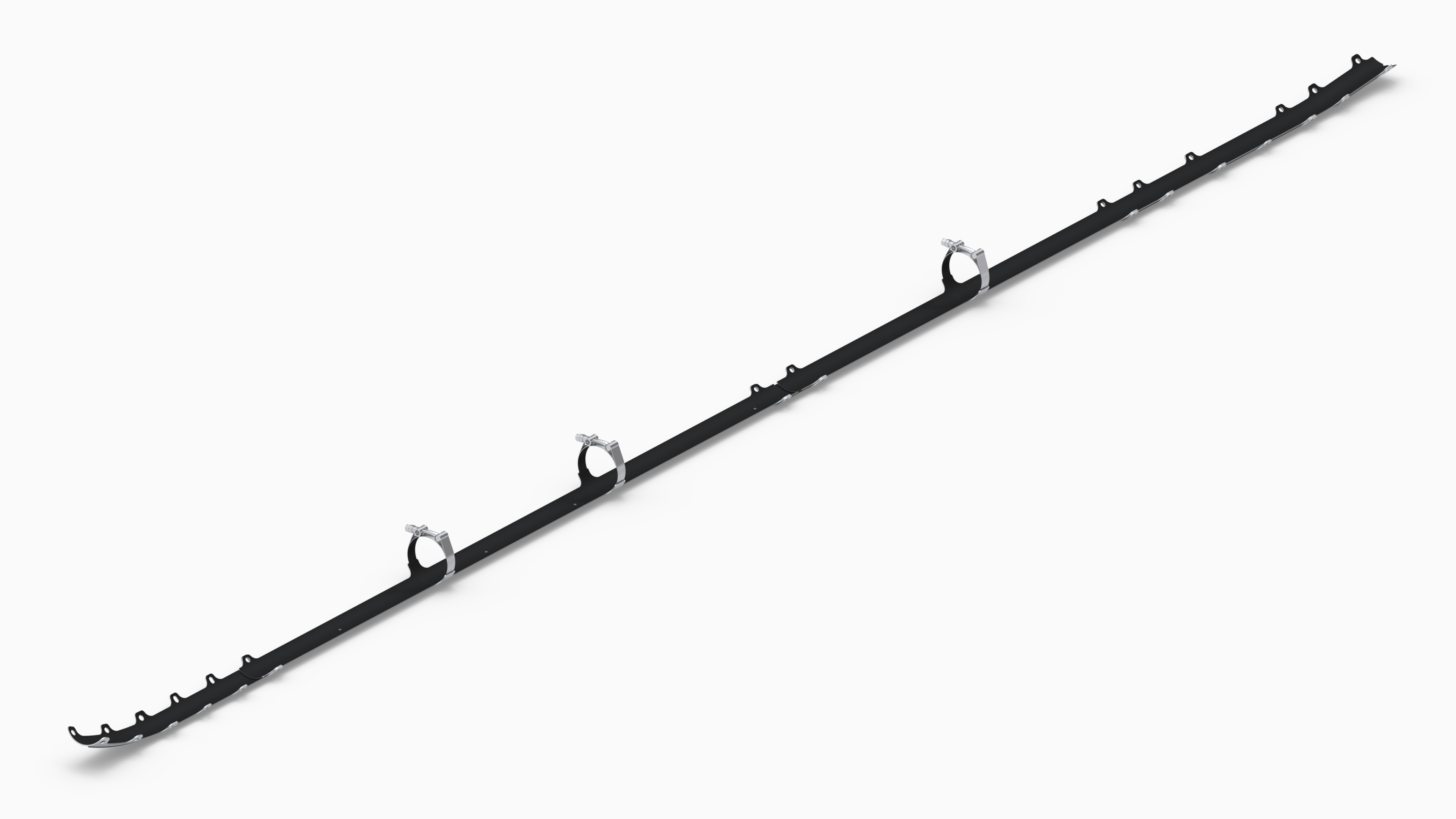

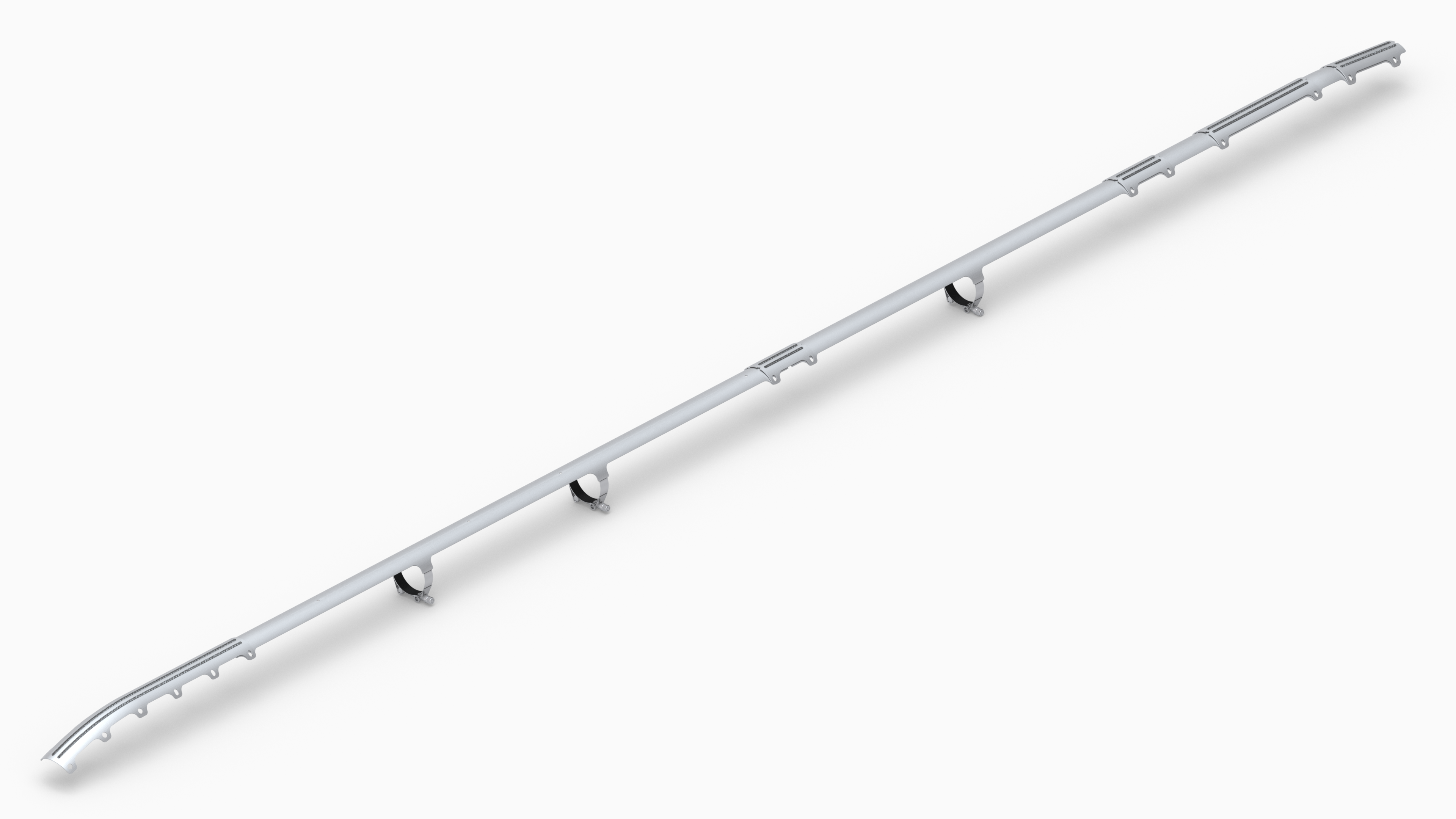

DART OEM Full-Length Wearplates are a pure upgrade to OEM basic protection. This unique kit provides Full-Length OEM Skidtube protection and prevents premature damages and replacement. This kit consists of 2 wearpad kits (D429-1056-011), and 1 wearplate kit (D429-1056-013). One kit per aircraft.

Key Features

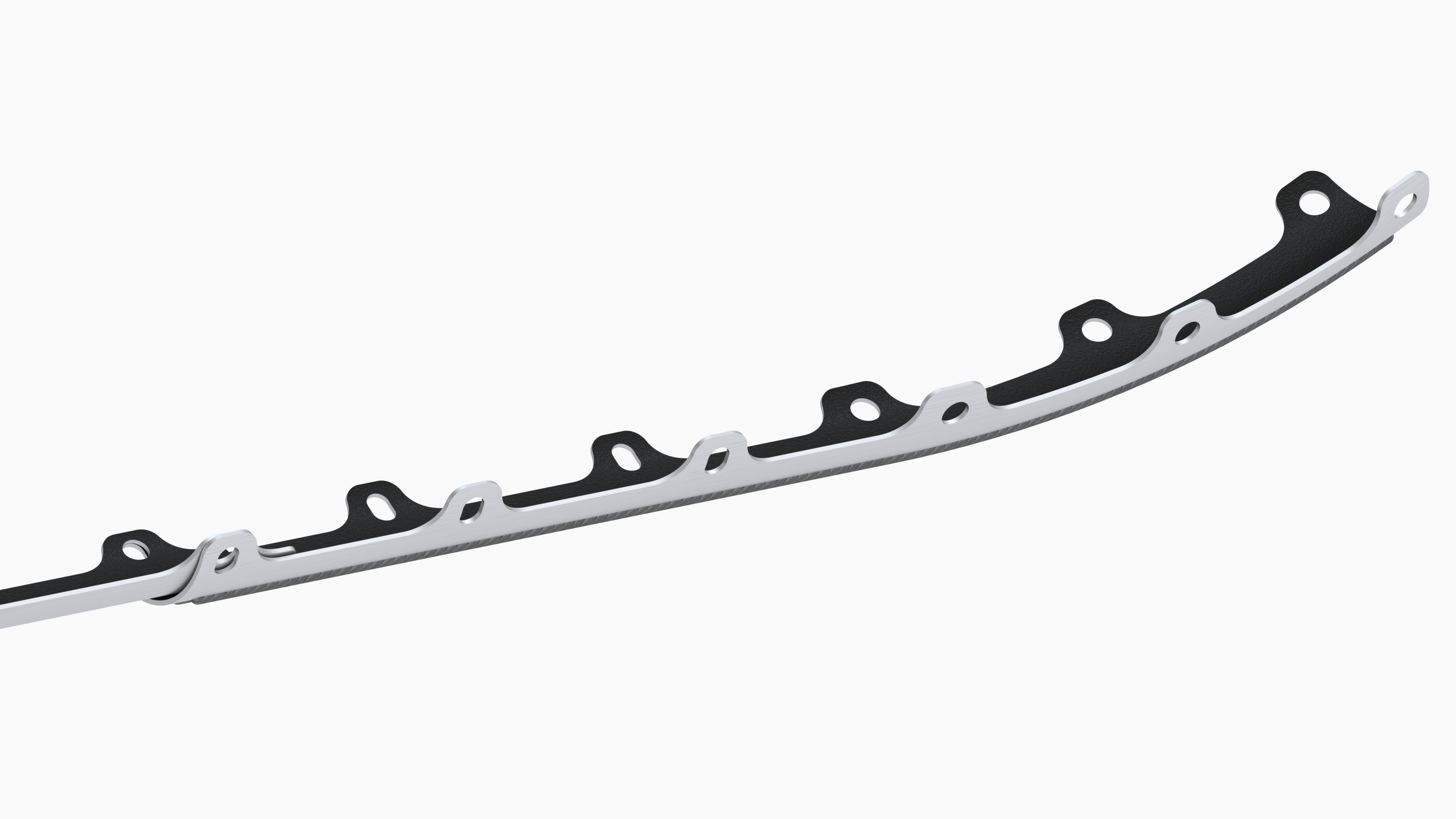

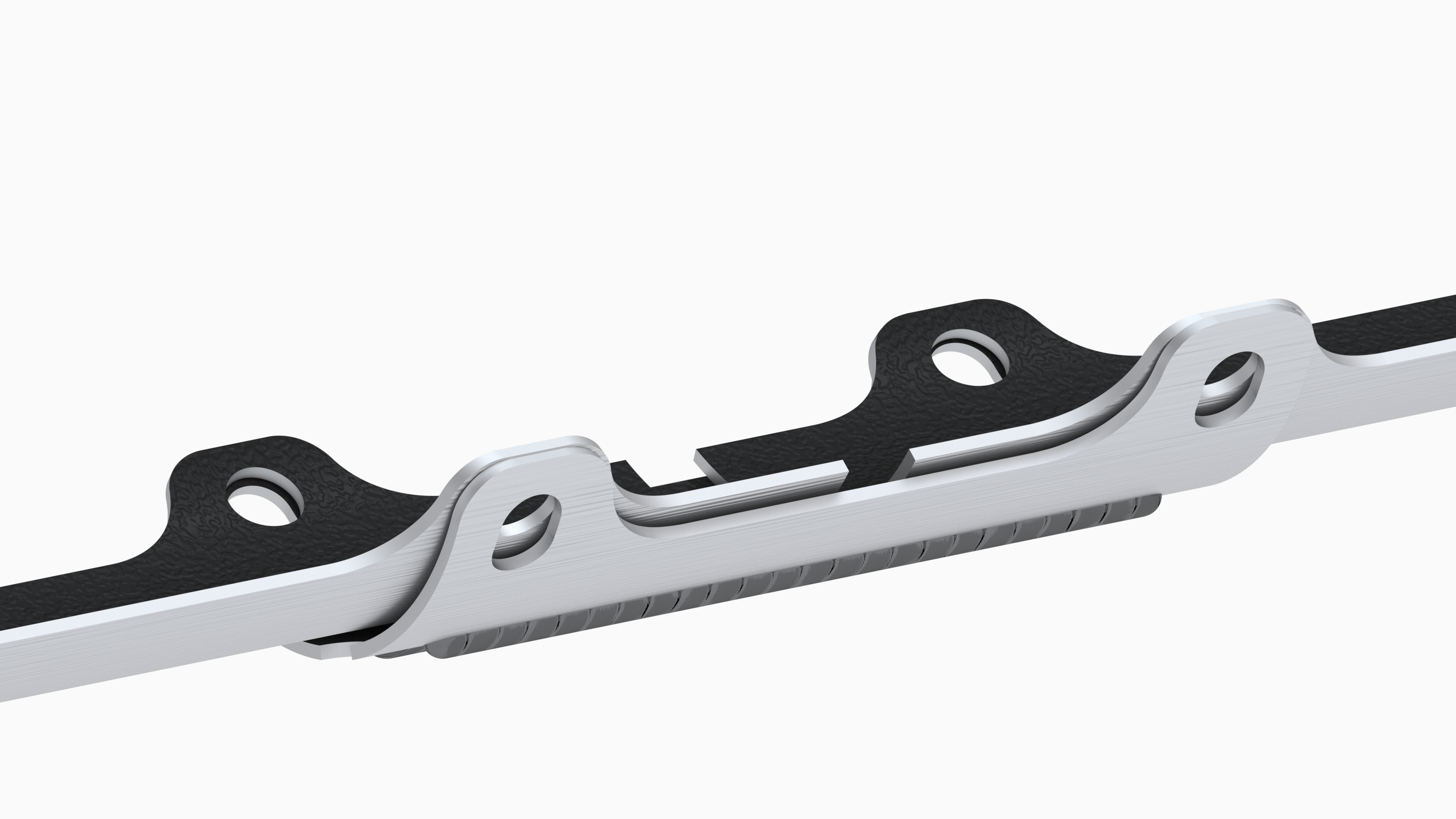

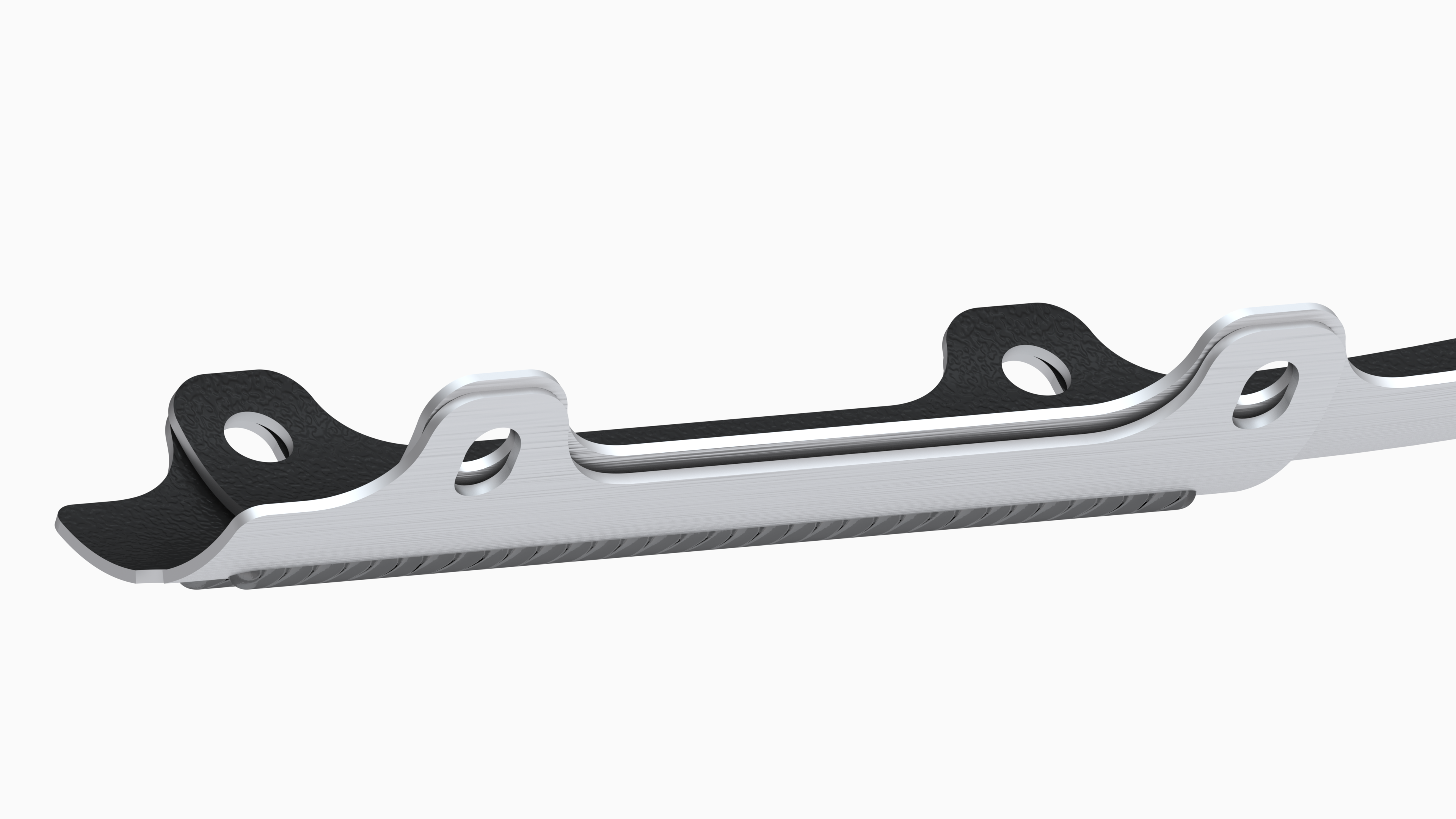

  • Includes LH and RH Wearplates plus all Wearpads required
  • Install on OEM Skidtubes
  • Full-length protection
  • Stainless Steel construction with tungsten carbide welds
  • Installs using existing OEM Wearpad holes and fasteners
  • Additional clamps to secure the install between Wearpads
  • Rockguard rubber inner-finish to prevent corrosion

Key Benefits

  • Prevent premature Skidtube damage
  • Easy to Install
  • No drilling required
  • Negligible weight penalty to significantly reduce maintenance cost

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH18-41 429 Installation of Wearplate Kits
STC FAA - USA SR04174NY 429 Installation of Wearplate Kits
STC EASA - Europe 10067225 429 Installation of Wearplate Kits

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 13.1 lb / 5.9 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A
