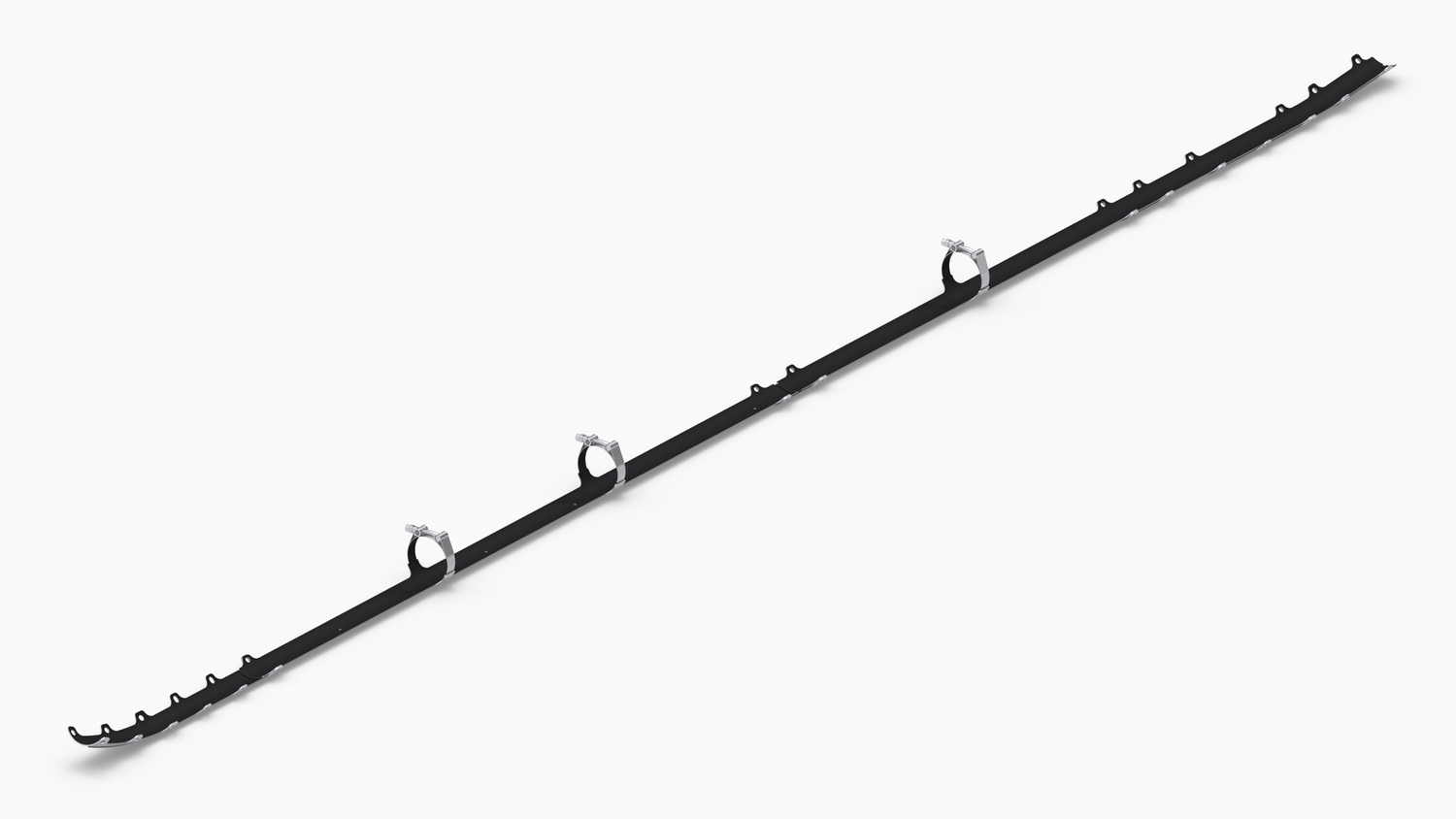

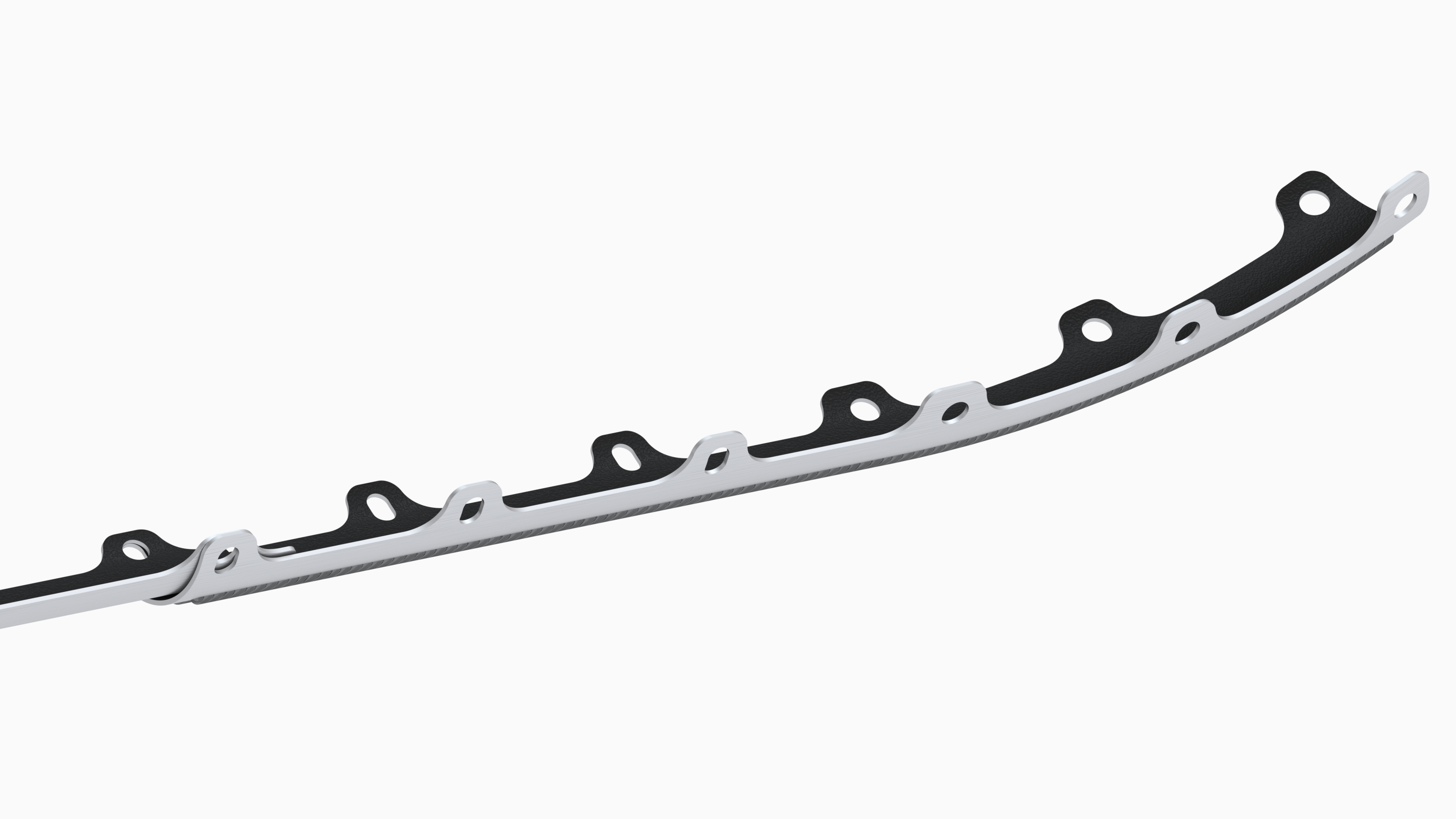

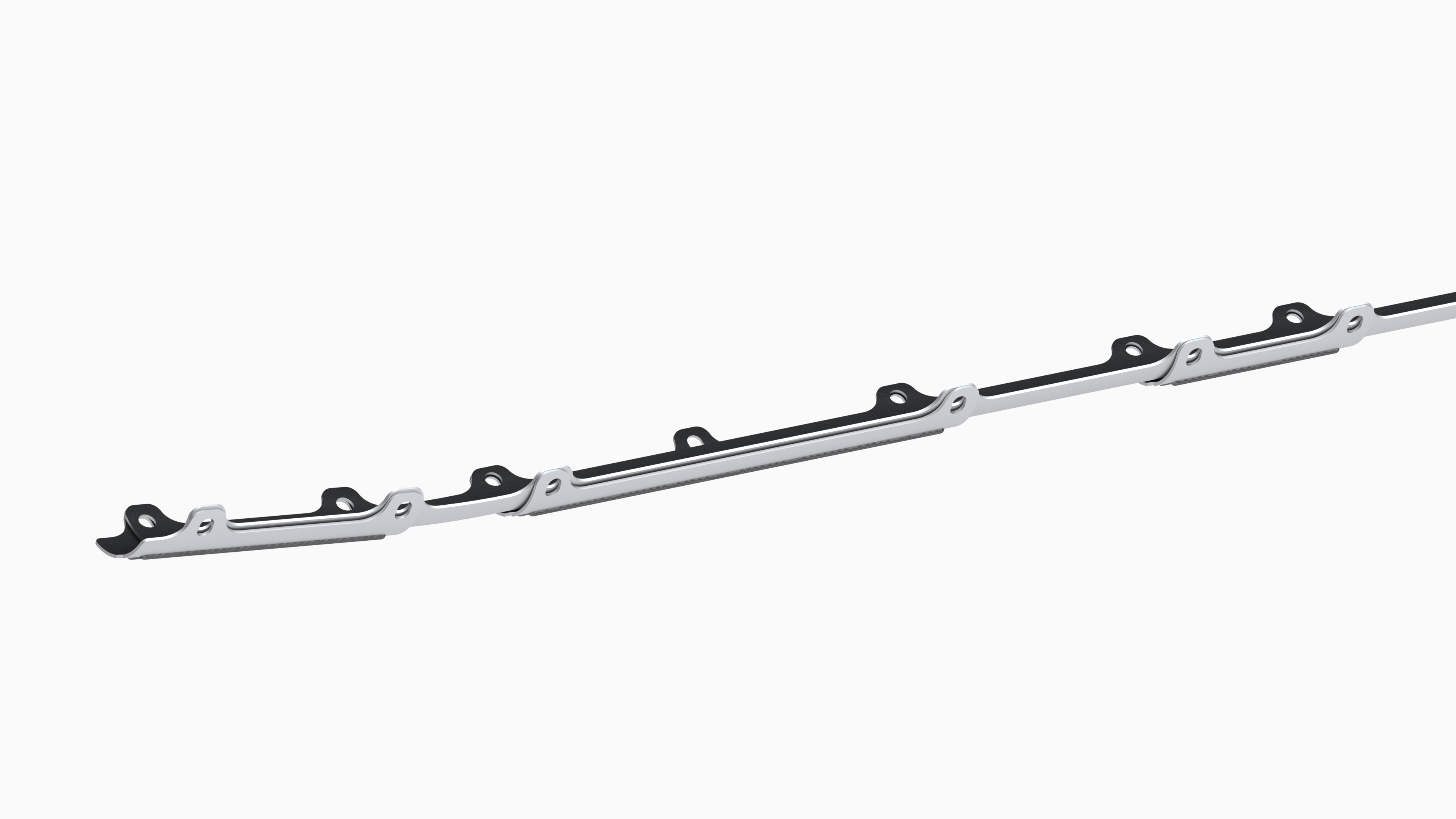

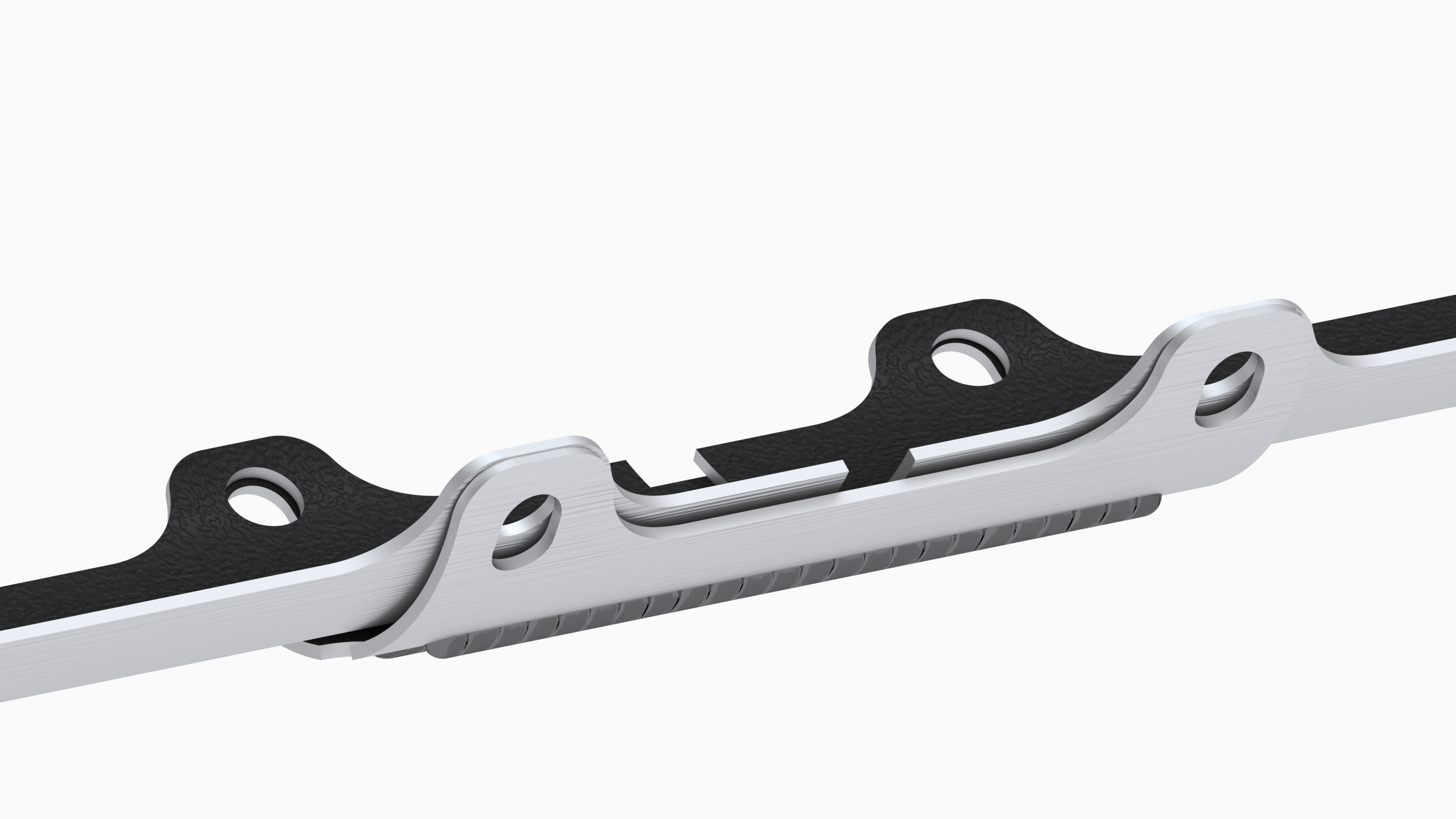

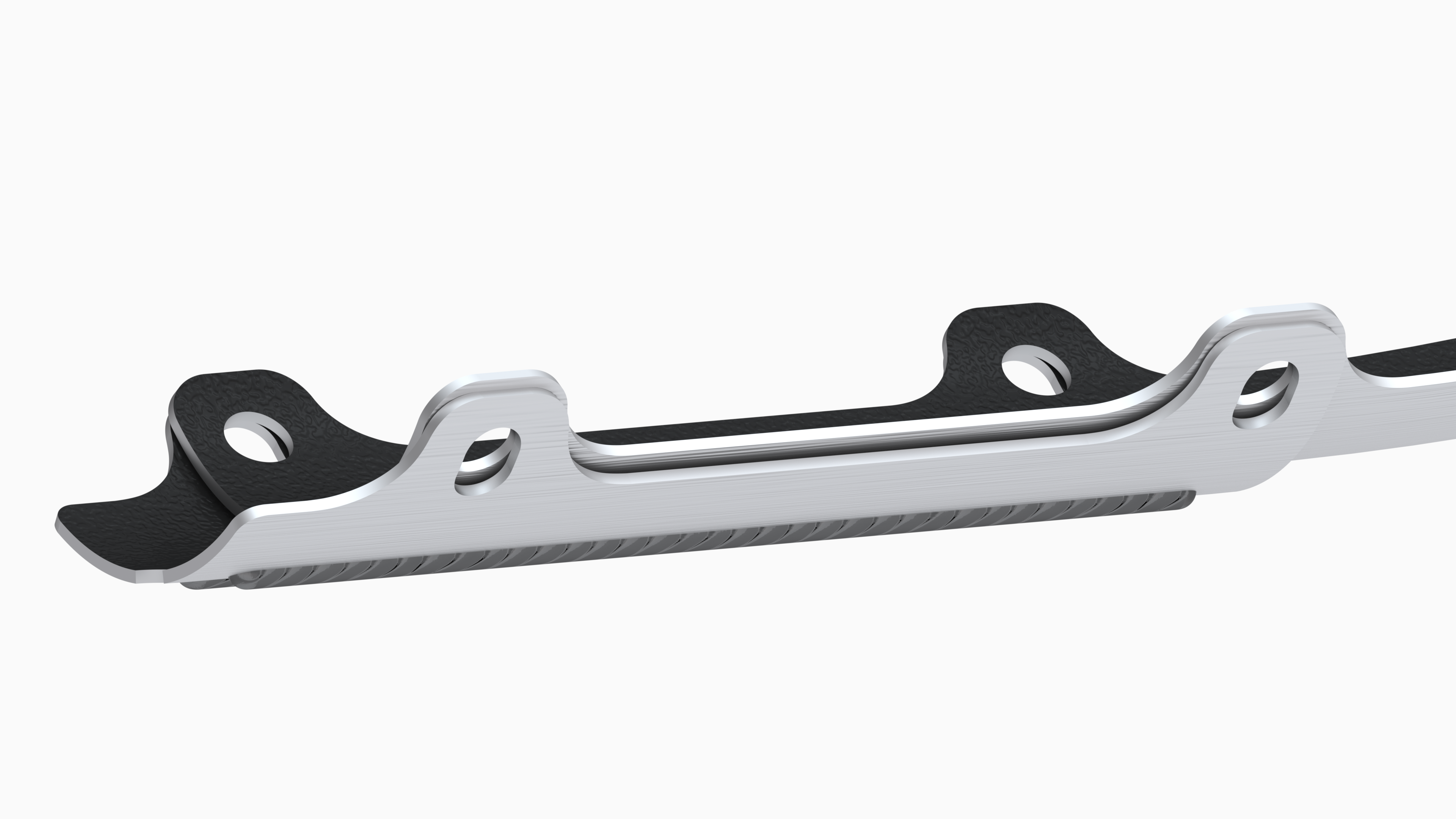

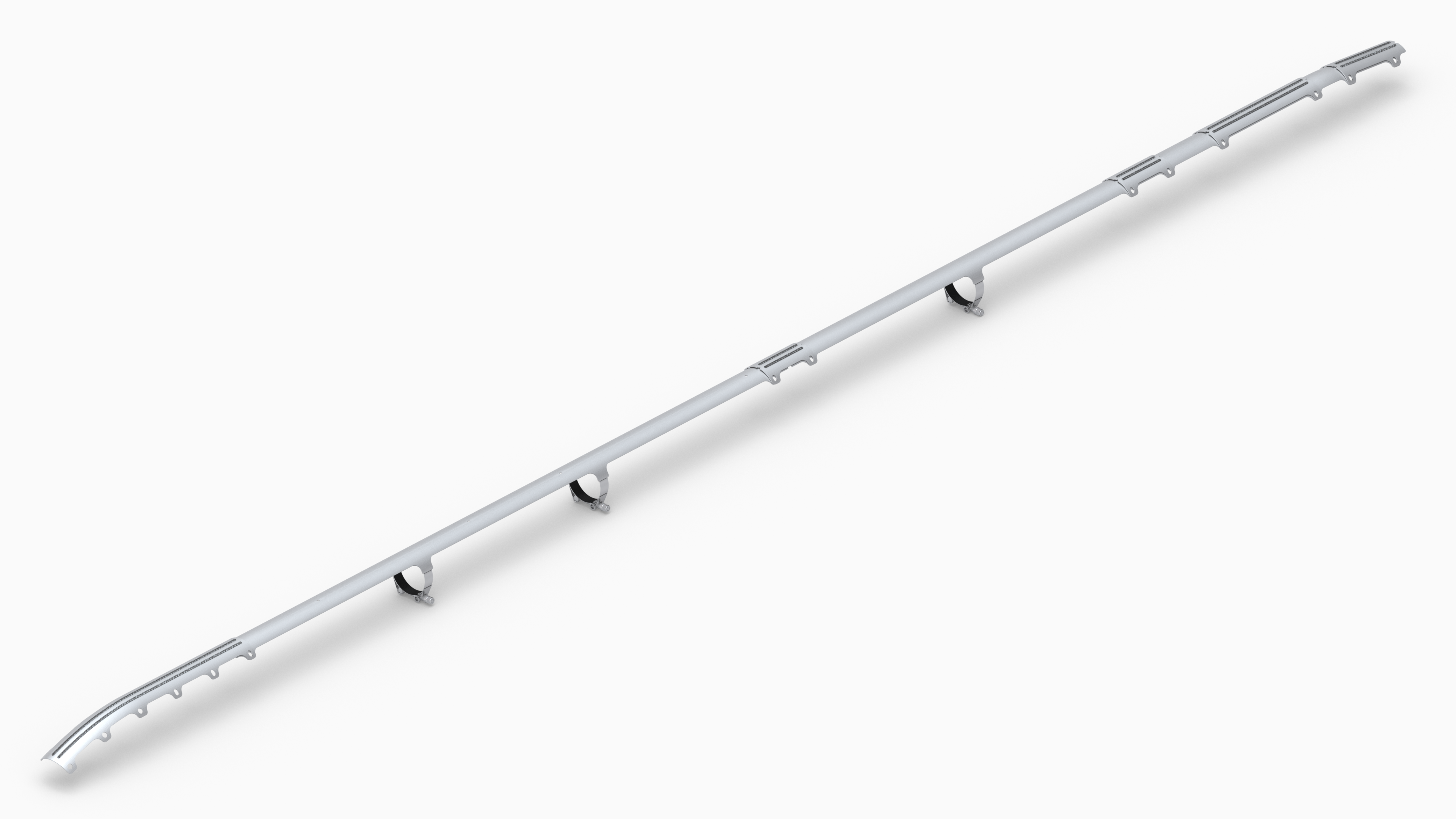

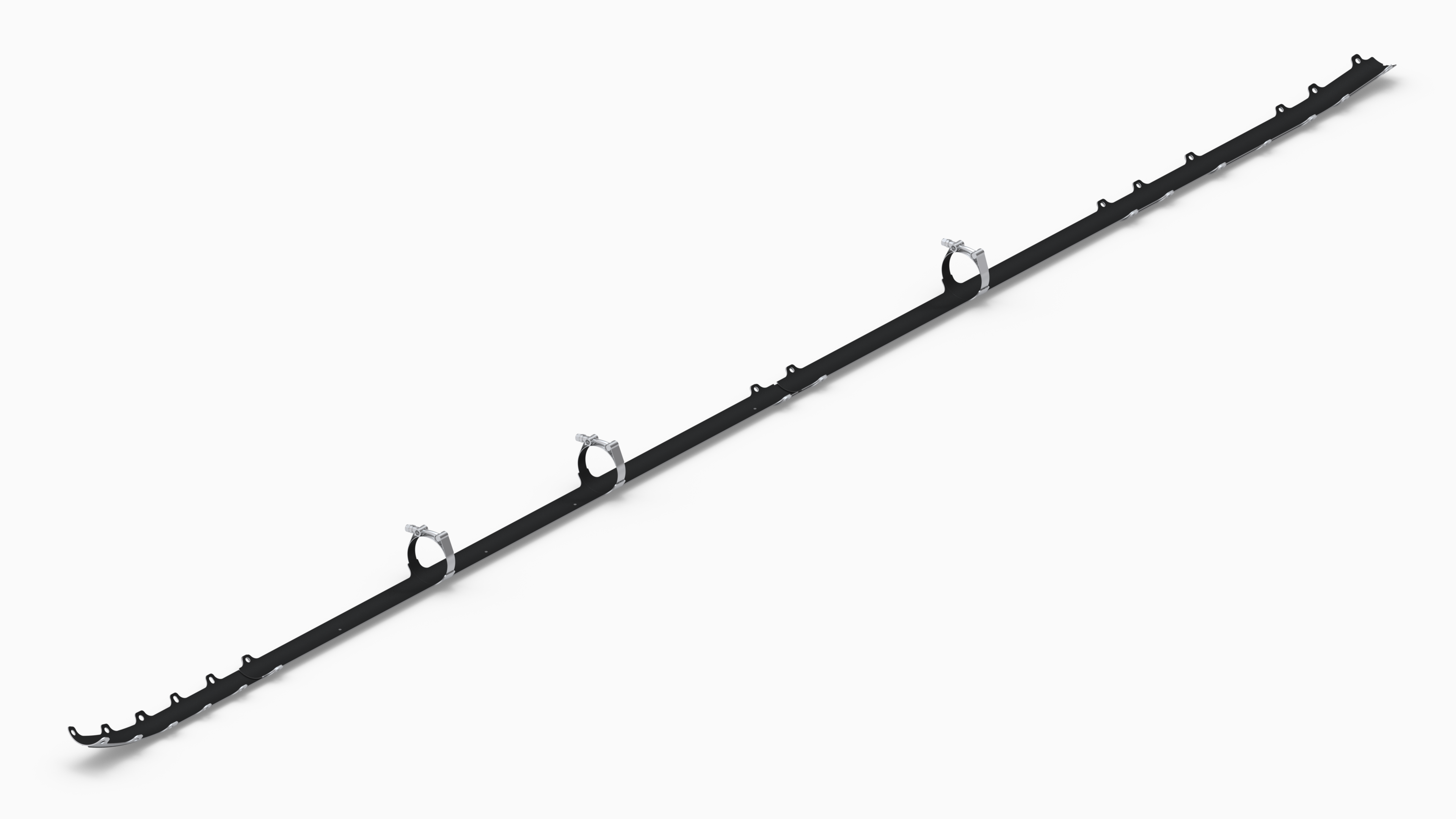

429 - Wearplates - OEM Replacement - Full-Length - RH

Part Number: D429-1056-018
Aircraft Models: Bell - 429

Price:
DART OEM Full-Length Wearplates are a pure upgrade to OEM basic protection. This unique kit provides Full-Length OEM Skidtube protection and prevents premature damages and replacement. This kit consists of 1 wearpad kit (D429-1056-011), 1 fwd wearplate (D5623-042), and 1 aft wearplate (D5623-044) . One kit per skidtube. Sub-component of D429-1056-015.

Description

DART OEM Full-Length Wearplates are a pure upgrade to OEM basic protection. This unique kit provides Full-Length OEM Skidtube protection and prevents premature damages and replacement. This kit consists of 1 wearpad kit (D429-1056-011), 1 fwd wearplate (D5623-042), and 1 aft wearplate (D5623-044) . One kit per skidtube. Sub-component of D429-1056-015.

Key Features

  • Includes RH Wearplates plus Wearpads required
  • Install on OEM Skidtubes
  • Full-length protection
  • Stainless Steel construction with tungsten carbide welds
  • Installs using existing OEM Wearpad holes and fasteners
  • Additional clamps to secure the install between Wearpads
  • Rockguard rubber inner-finish to prevent corrosion

Key Benefits

  • Prevent premature Skidtube damage
  • Easy to Install
  • No drilling required
  • Negligible weight penalty to significantly reduce maintenance cost

Approvals

N/A

OEM Cross References

OEM Replacement / 429-732-105
OEM Replacement / 429-709-101
OEM Replacement / 429-732-107
OEM Replacement / 429-732-103

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

N/A

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 6.6 lb / 3.0 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
