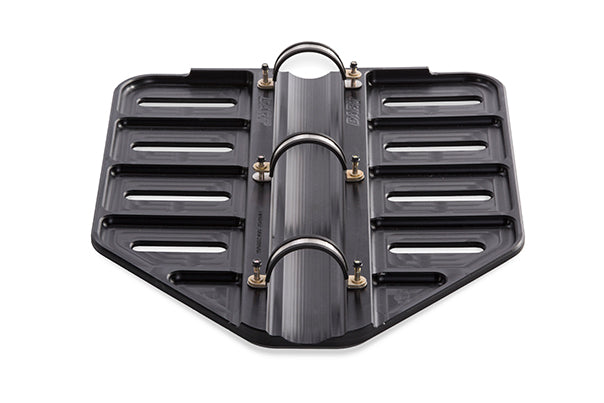

427 Bearpaw / Ski Installation

Mission Equipment
Part Number: D427-659-013
Aircraft Models: Bell - 427

Price:
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws/Ski are constructed of a high density polymer and provide increased support in soft terrain landings as compared to traditional Bearpaws. The Bearpaw/Ski provides an increased footprint along the full-length of the skidtube and features 2 wearplates for additional wear resistance. The polymer resists cracking, ch... Read more
For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws/Ski are constructed of a high density polymer and provide increased support in soft terrain landings as compared to traditional Bearpaws. The Bearpaw/Ski provides an increased footprint along the full-length of the skidtube and features 2 wearplates for additional wear resistance. The polymer resists cracking, chipping and breaking and the machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Keeps nose higher than Bearpaws alone. Ski can be removed and Bearpaws used alone. Price is per aircraft. Read less

Description

For as long as helicopters have been in operation, soft terrain landings have created balancing problems during takeoff and landings. DART Aerospace Bearpaws/Ski are constructed of a high density polymer and provide increased support in soft terrain landings as compared to traditional Bearpaws. The Bearpaw/Ski provides an increased footprint along the full-length of the skidtube and features 2 wearplates for additional wear resistance. The polymer resists cracking, chipping and breaking and the machined construction ensures consistent and deliberate load transfer. This flexible material deflects under high-point contact loads when landing on rocks or roots; its inherent memory ensures the Bearpaws return to their original shape upon take off. *19" wide footprint. Keeps nose higher than Bearpaws alone. Ski can be removed and Bearpaws used alone. Price is per aircraft.

Key Features

  • Wearplates included
  • CNC machined UHMW polymer provides consistent load transfer

Key Benefits

  • No modifications to skidtube required
  • More durable than steel or fiberglass skis
  • Full length coverage of skidtube
  • Modular design allows for removal of fwd ski portions when not required
  • Larger footprint
  • Wearplates provide anti-slip and wear protection
  • High strength polymer with memory, deflects under critical point loading without failure and returns to original shape when unloaded
  • Keeps tail high in soft terrain to prevent tail strikes
  • Lightweight
  • Easy to install
  • Won't chip, crack or break
  • Ground handling wheel compatible
  • Compatible on OEM Skidtubes

Approvals

Approval type Authority Reference number Aircraft approved Description
STC TCCA - Canada SH02-19 427 UHMW Polymer Bearpaw & Ski Installation
STC FAA - USA SR01532NY 427 UHMW Polymer Bearpaw & Ski Installation
STC JCAB - Japan STC-151-TYO 427 UHMW Polymer Bearpaw & Ski Installation
STC IAC AR - Russia TCDS CT255 427 UHMW Polymer Bearpaw & Ski Installation

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

None

Installation Time

4 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 53.00 lbs / 24.04 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
