412 Tri-Bag Float System with Liferafts

Mission Equipment
Part Number: 614.7601
Aircraft Models: Bell - 412

Price:
The 412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to t... Read more

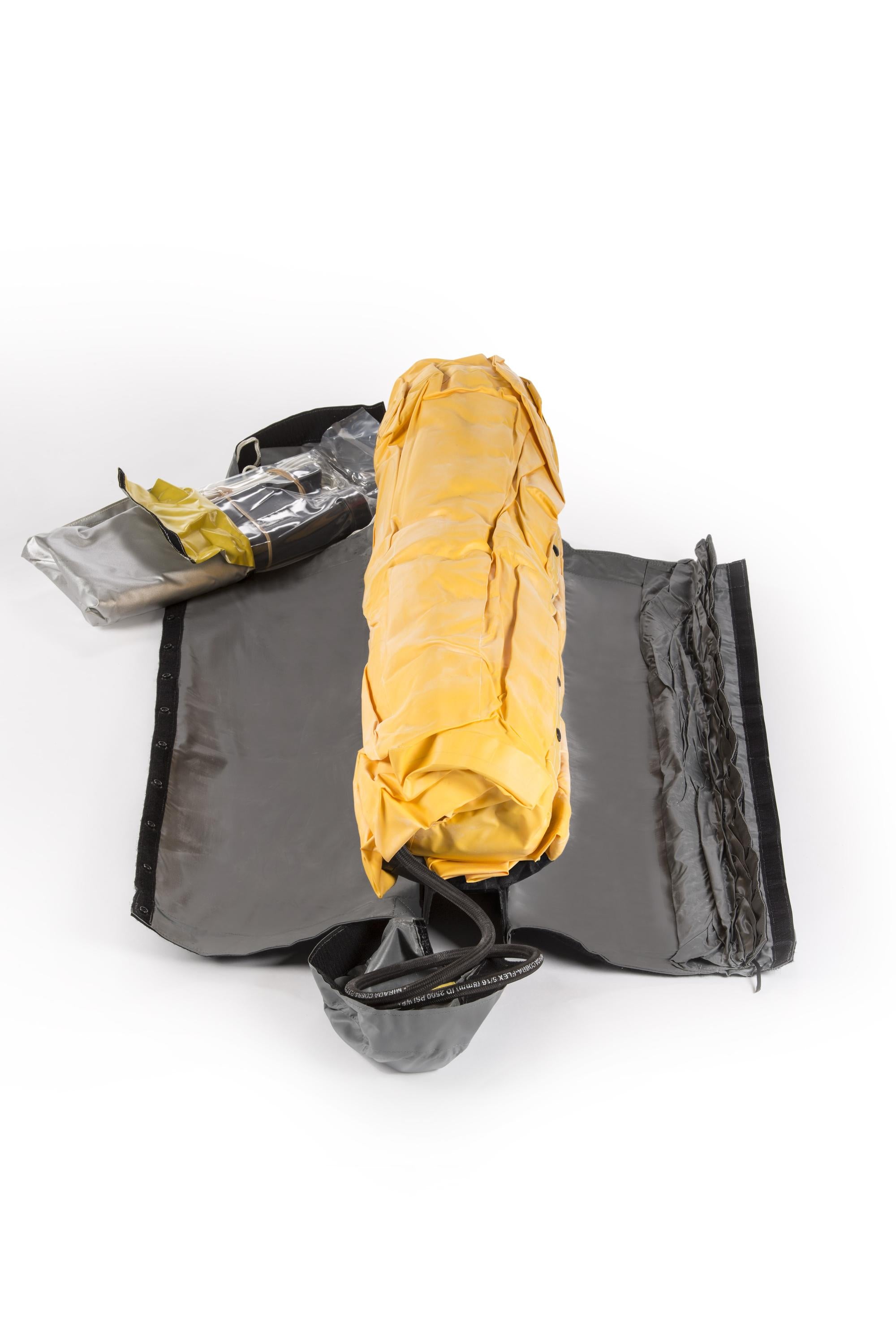

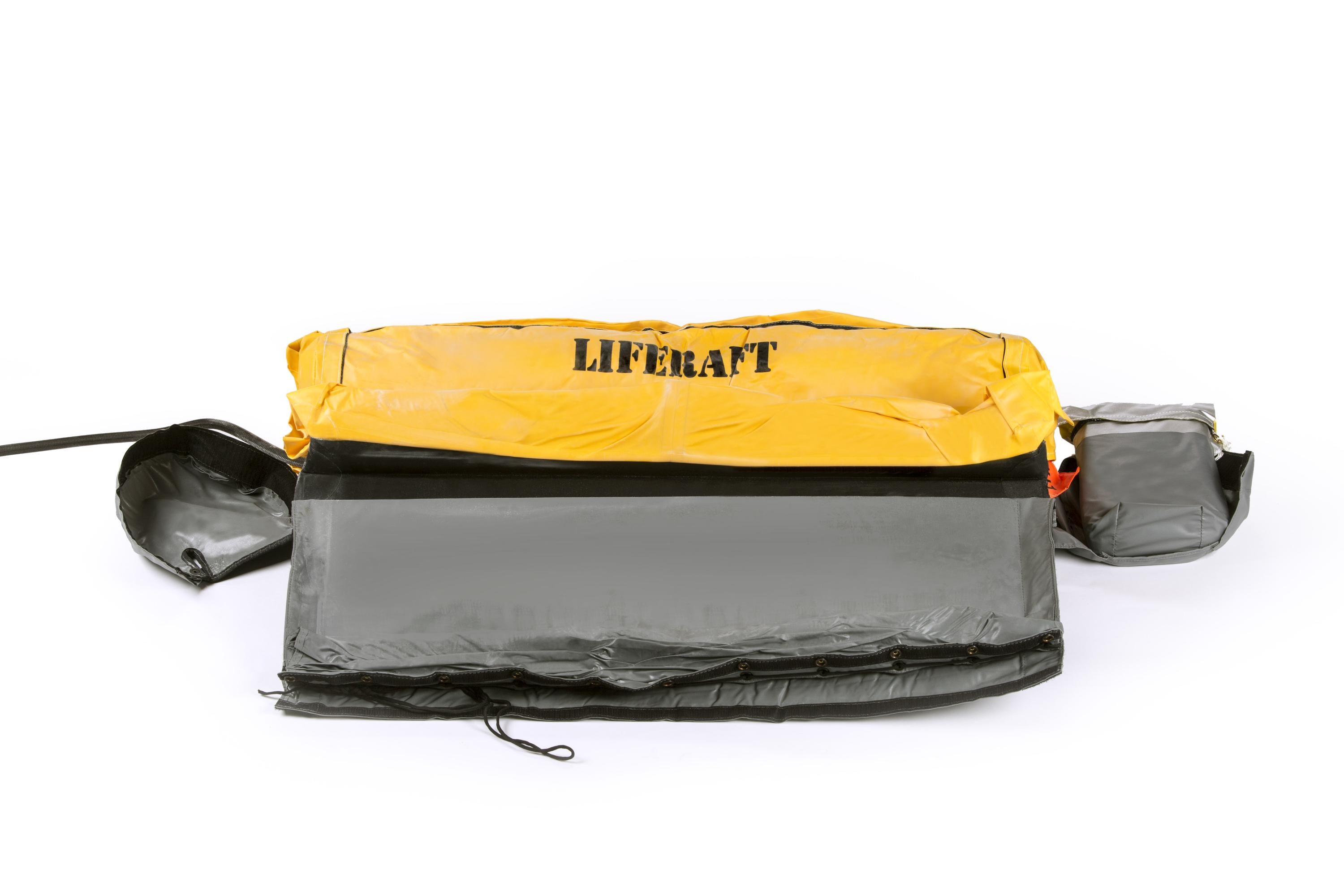

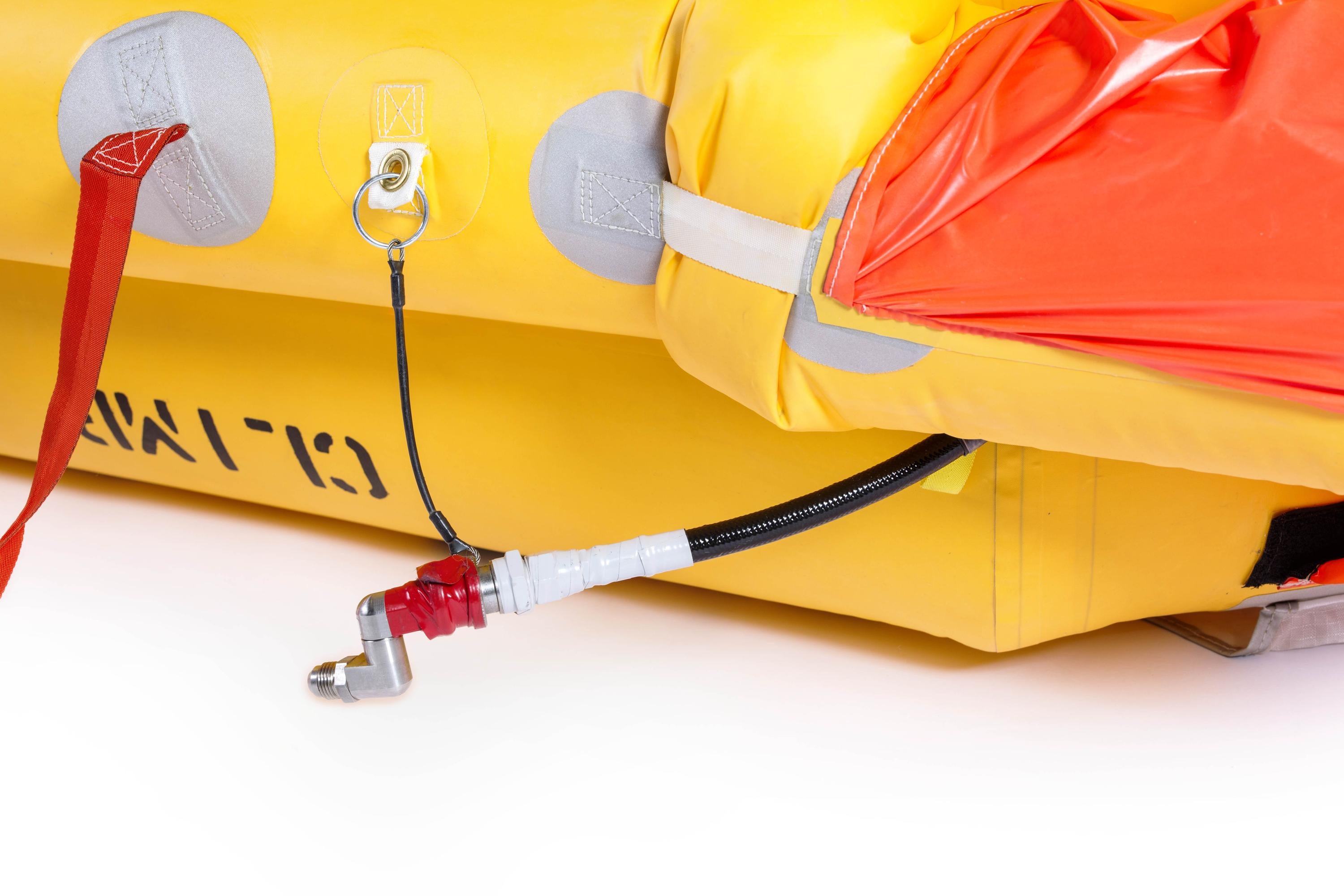

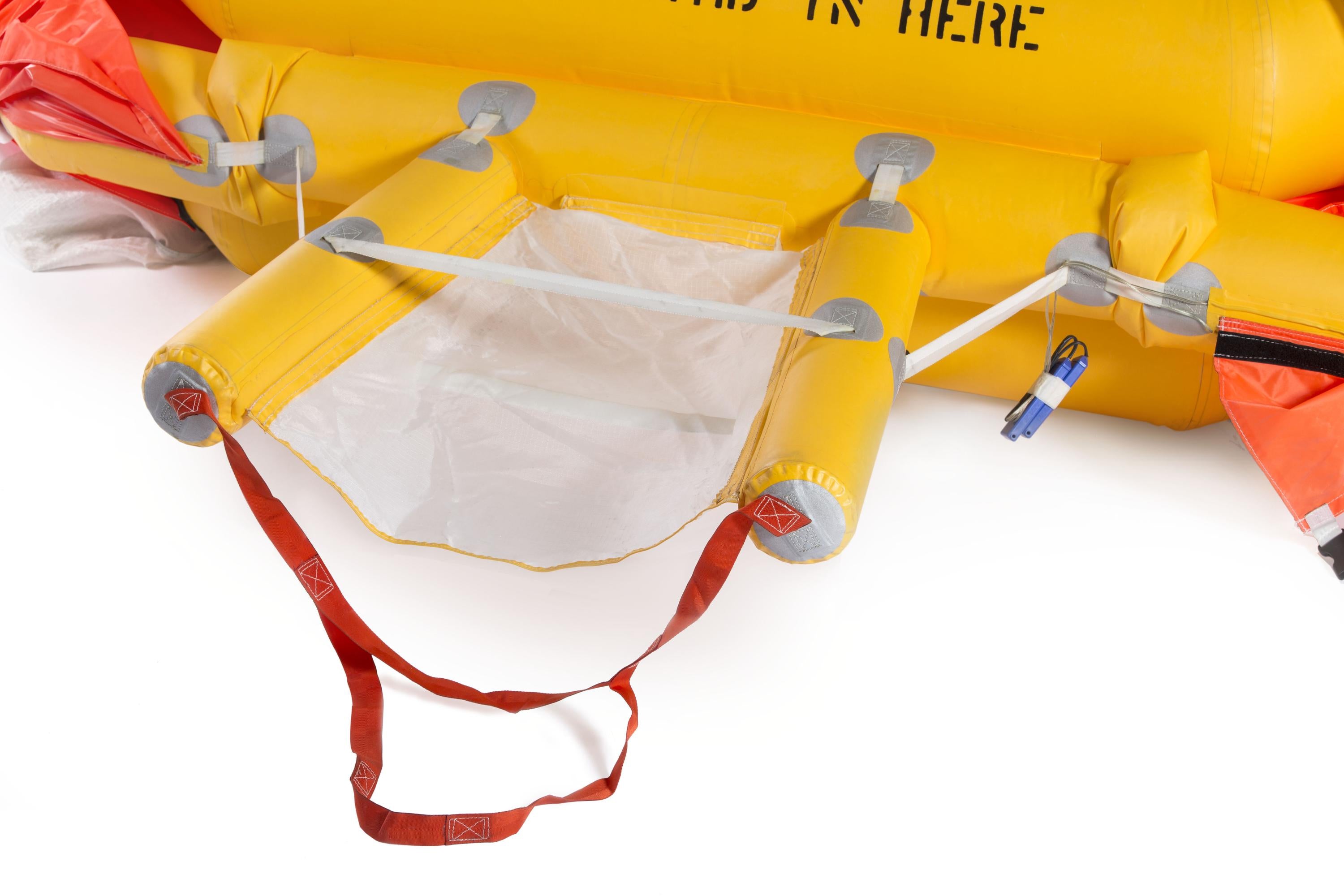

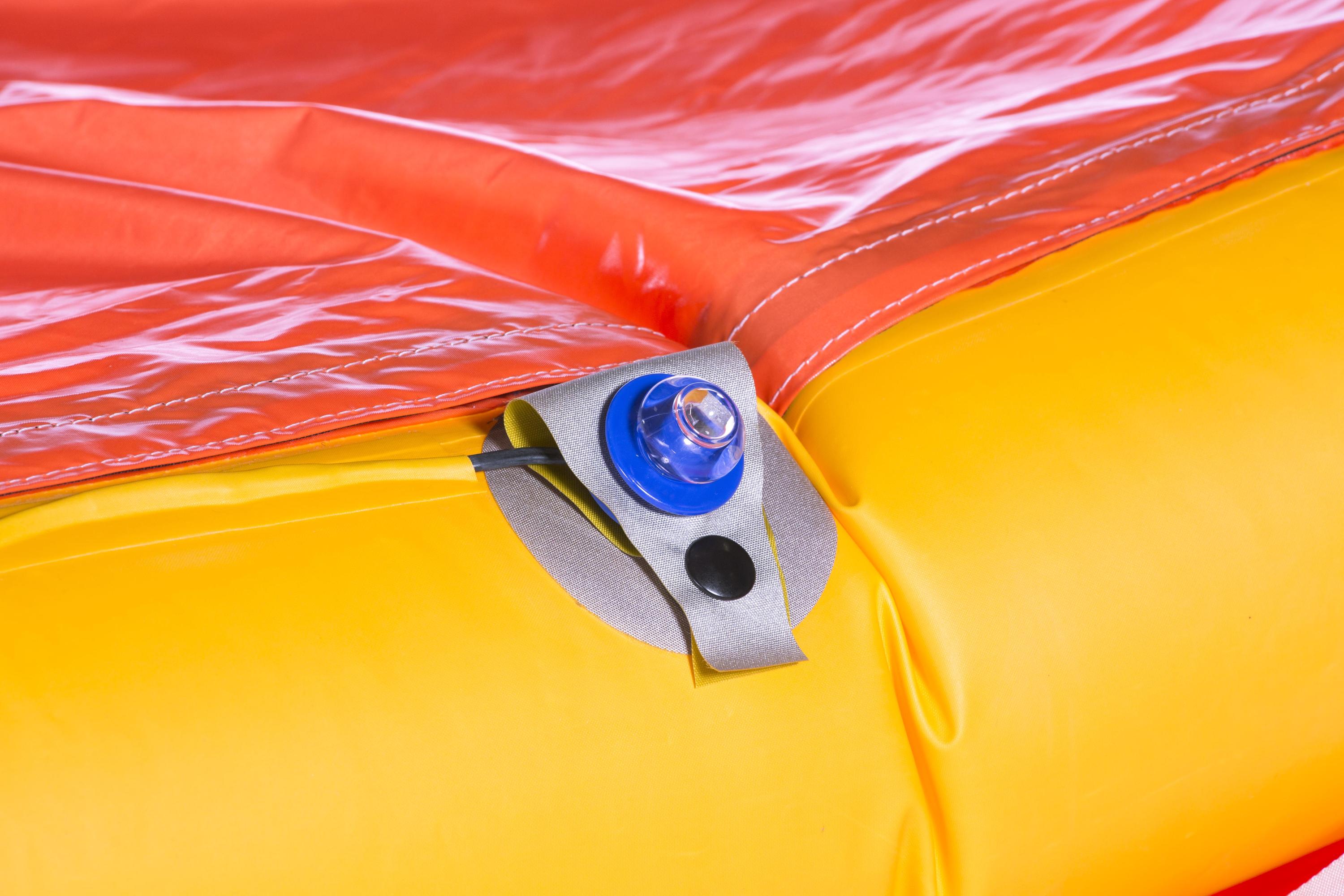

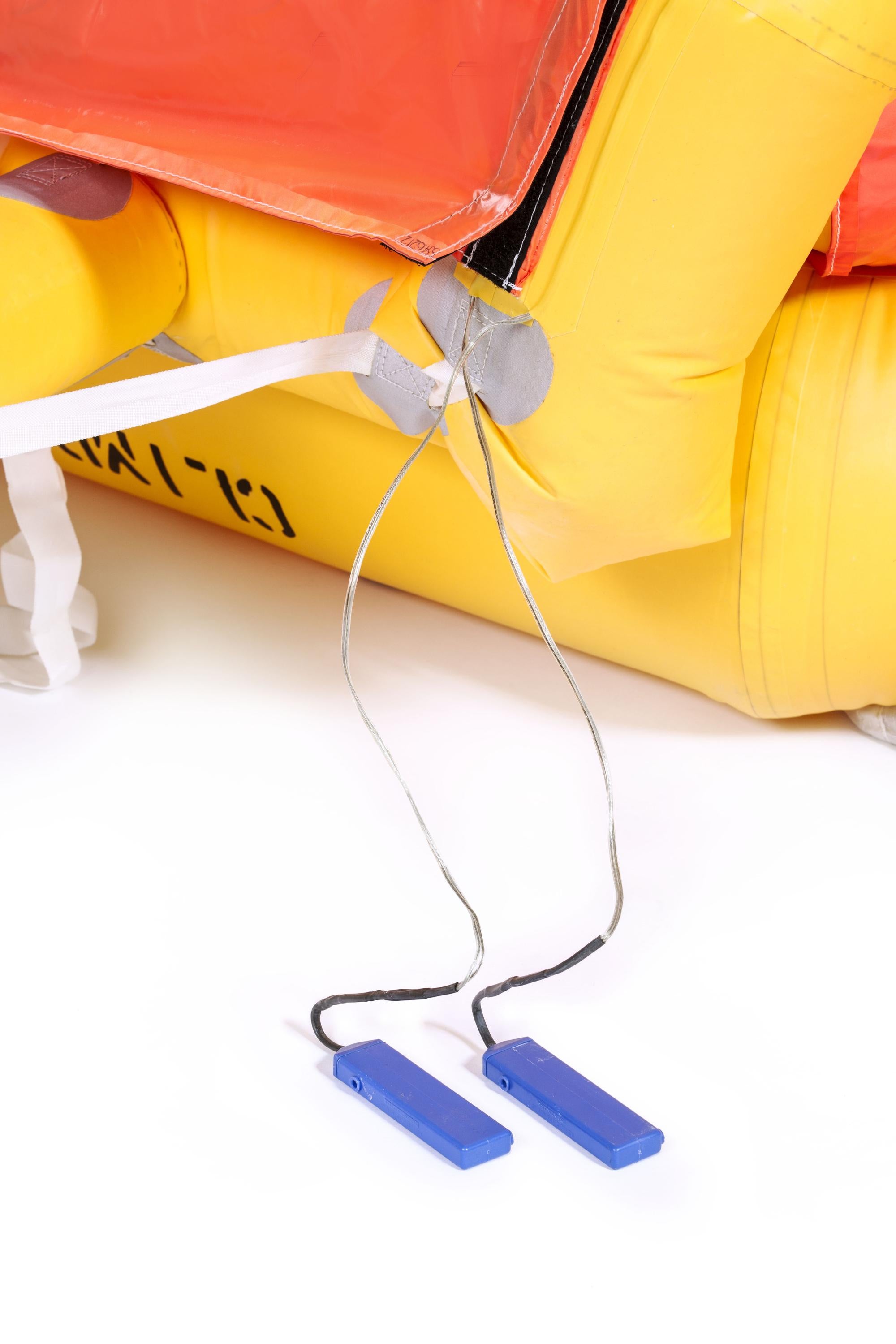

The 412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. *NOW APPROVED FOR 12,200-LB. INCREASED GROSS WEIGHT. Kit includes Fwd, Mid & Aft Tri-Bag floats with integrated liferaft in the Mid floats. Requires installation of D412-630-033/-034 Steps and float skidtubes (like DART D412-742-04X). Price is for complete float with liferaft system. Read less

Description

The 412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. The Emergency Float Kit with Liferafts also contains two 10-man reversible liferafts which are attached to the Mid floats and have their own mechanical inflation system consisting of: 1 liferaft inflation reservoir and 3 inflation handles, 2 attached externally to the passenger steps and 1 attached to the center console on the co-pilot side. *NOW APPROVED FOR 12,200-LB. INCREASED GROSS WEIGHT. Kit includes Fwd, Mid & Aft Tri-Bag floats with integrated liferaft in the Mid floats. Requires installation of D412-630-033/-034 Steps and float skidtubes (like DART D412-742-04X). Price is for complete float with liferaft system.

Key Features

  • Approved for 12,200-lb increased gross weight
  • Exchange program available
  • Available with integrated liferaft (10-man, 15-man overload)
  • Requires installation of D412-630-033/-034 Steps
  • Hoist compatible configuration available
  • Installs on high gear

Key Benefits

  • Lighter than OEM
  • Includes 10-man integrated liferaft
  • No life limit on inflatables (Floats & Liferafts)
  • Best in the industry lead time
  • Increased safety with electrical/mechanical & water sensor activation system
  • Reduced maintenance cost (longer maintenance intervals)

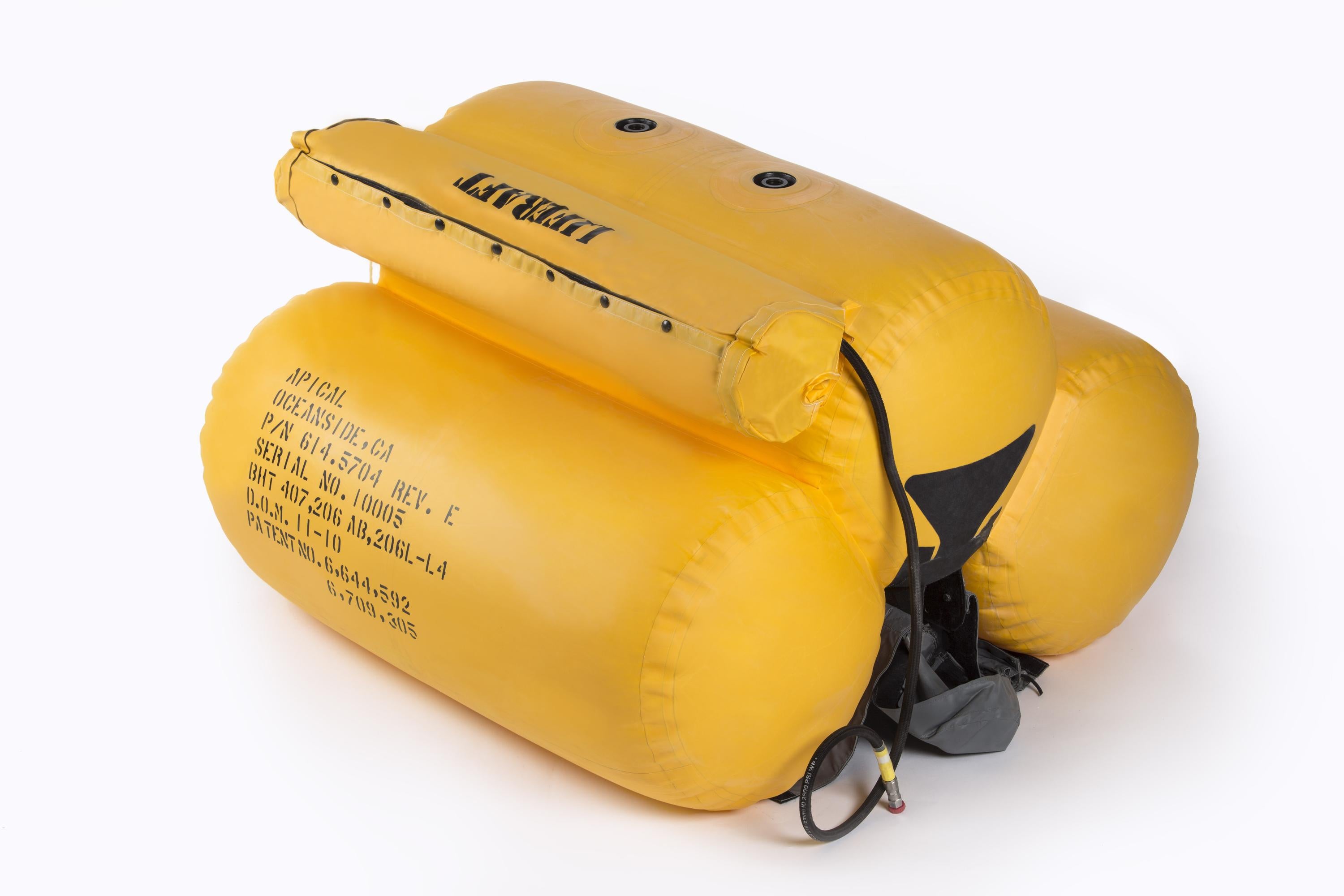

  • Tri-Bag technology allows for: - Significant weight reduction (smaller reservoir & less gas usage) - Increased stability
  • Can install on DART, OEM & AAI float compatible skidtubes
  • Liferafts will be compliant with EASA OPS requirements
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01107 212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System
STC TCCA - Canada Ltr 5009-02 210/212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System
STC FAA - USA SR01779LA 210/212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System

OEM Cross References

OEM Indirect Replacement / 412-706-004-153 + 412-706-004-163 + 412-073-800-113 + 412-050-013-119 + 412-050-013-117 + 1015FASA

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

80 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 328 .00lbs / 148.78 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
