412 Tri-Bag Float System

Part Number: 614.7602
Aircraft Models: Bell - 412

Price:

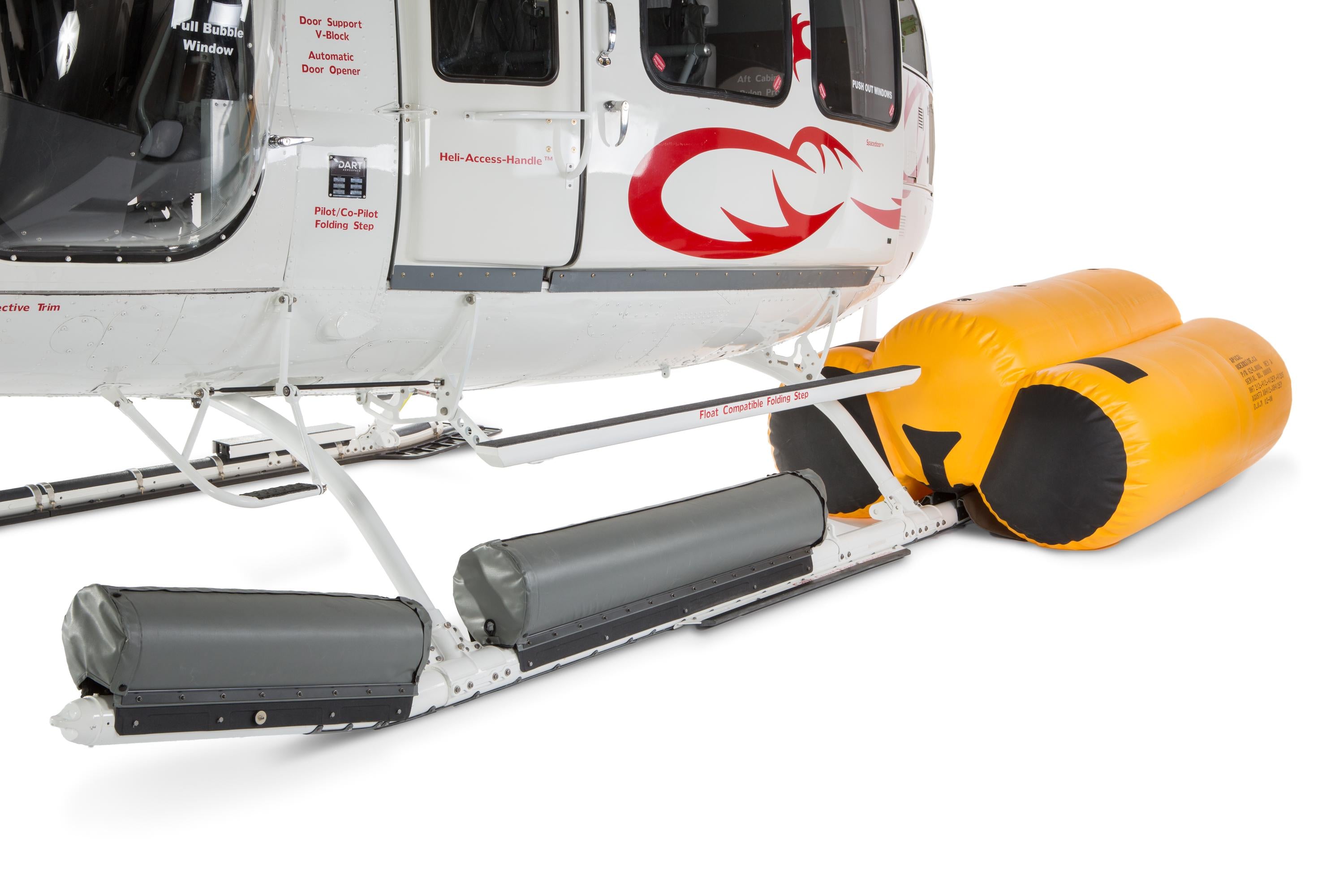

The 412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. *NOW APPROVED FOR 12,200-LB. INCREASED GROSS WEIGHT. Kit includes Fwd, Mid & Aft Tri-Bag floats. Price is for complete float system. Requires installation of D412-630-033/-034 Steps and float skidtubes (like DART D412-742-04X).

Description

The 412 Emergency Float Kits consist of: 6 emergency floats attached to the skid gear, 4 water-activated float switches that are mounted on the underside of the fuselage, a float inflation reservoir located in the nose compartment, a collective-mounted floats switch, a center console-mounted handle lever, and the necessary hardware to complete kit installation. *NOW APPROVED FOR 12,200-LB. INCREASED GROSS WEIGHT. Kit includes Fwd, Mid & Aft Tri-Bag floats. Price is for complete float system. Requires installation of D412-630-033/-034 Steps and float skidtubes (like DART D412-742-04X).

Key Features

  • Approved for 12,200-lb increased gross weight
  • Exchange program available
  • Available with integrated liferaft (10-man)
  • Requires installation of D412-630-033/-034 Steps
  • Hoist compatible configuration available
  • Installs on high gear

Key Benefits

  • Lighter than OEM
  • No life limit on inflatables Floats
  • Best in the industry lead time
  • Increased safety with electrical/mechanical & water sensor activation system
  • Reduced maintenance cost (longer maintenance intervals)

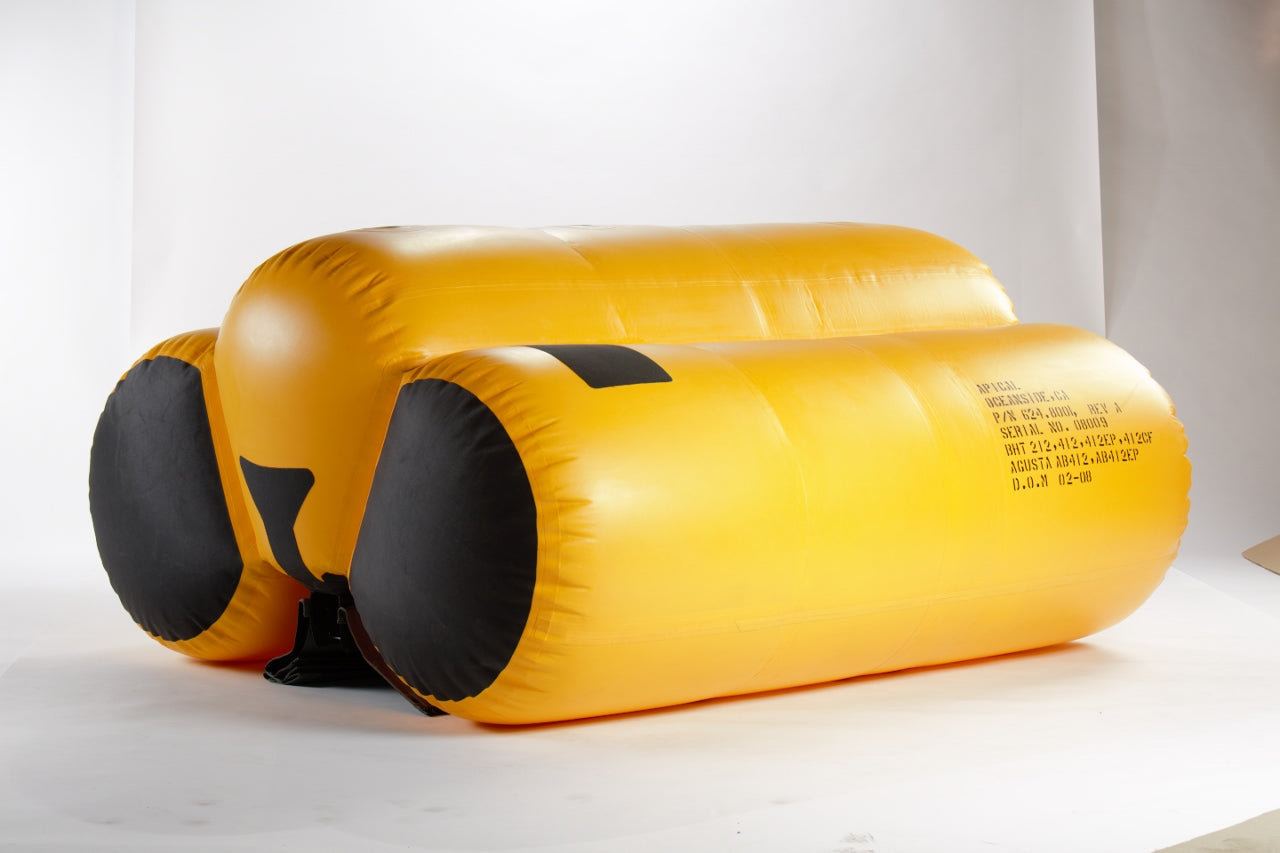

  • Tri-Bag technology allows for: - Significant weight reduction (smaller reservoir & less gas usage) - Increased stability
  • Can install on DART, OEM & AAI float compatible skidtubes
  • Also available 606.7803 Float System Pull Cable Test Tool

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01107 212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System
STC TCCA - Canada Ltr 5009-02 210/212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System
STC FAA - USA SR01779LA 210/212/412/412CF/412EP/AB412/AB412EP Tri-Bag Float System

OEM Cross References

OEM Indirect Replacement / 412-706-004-153 + 412-706-004-163 + 412-073-800-113 + 412-050-013-119 + 412-050-013-117

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

60 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 216.00 lbs / 97.98 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
