Description

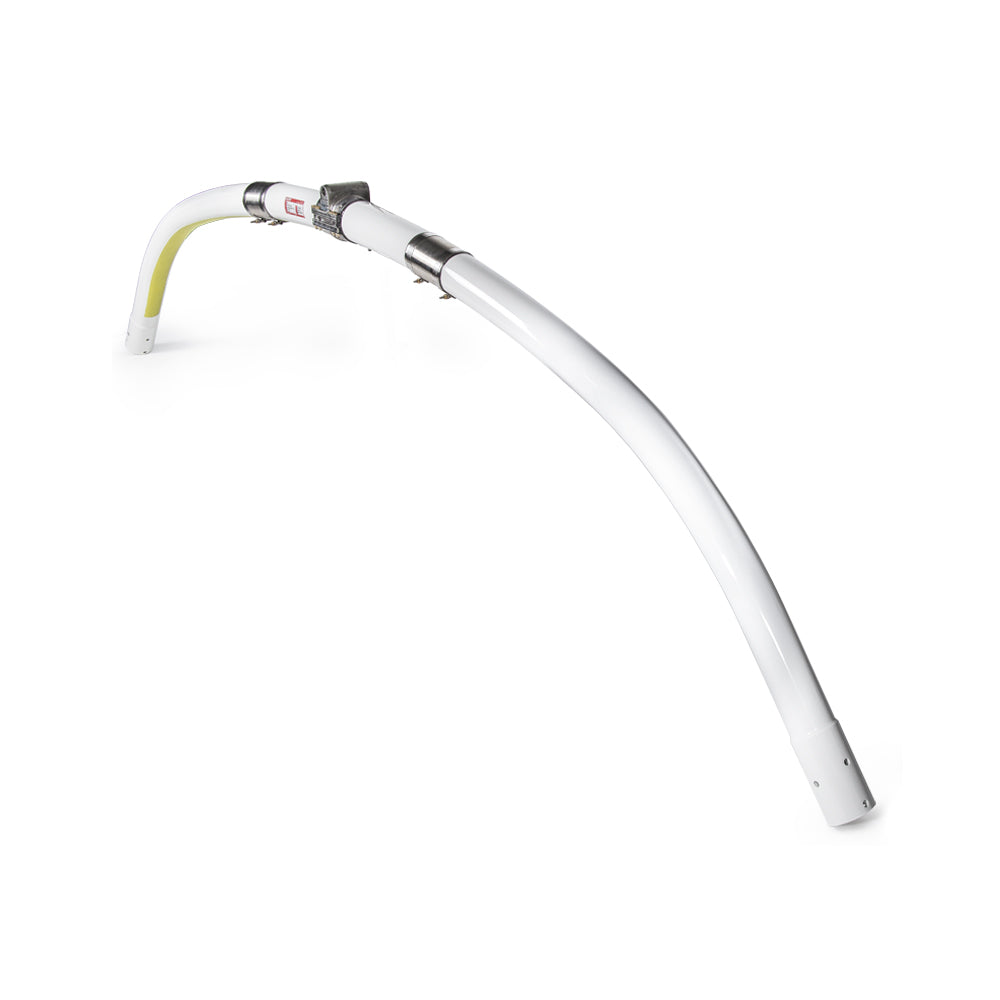

Helicopter operators count on DART Aerospace Landing Gear for a safe and secure landing anywhere - anytime. The exclusive 412 Stainless Steel Aft High Crosstube is 4 times more durable than the conventional aluminum crosstube and offers superior corrosion resistance. The elimination of FPI also makes it a convenient and economical solution for all 412 operators.
*Measures 26" / 66 cm from ground to bottom of crosstube. Compatible with DART/OEM/AAI standard and float skidtubes. Life lime 40,000 landings. No FPI required.
Key Features
- Now TCCA/FAA/EASA approved to 12,200 lb gross weight
- Aft crosstube made of 17-4 heavy-duty stainless steel construction
- Measures 26" / 66 cm from ground to bottom of crosstube
- Out-of-the-box painted white
- Crosstubes can be replaced as a set or on an individual basis
- Compatible with DART & OEM skidtubes
Key Benefits
- 4 X more durable than regular crosstube
- 300% more landings than regular crosstube; retirement life of 40,000 landings
- No FPI (Fluorescent Penetrant Inspection) required
- Increased fatigue resistance - more durable
- Corrosion resistant
- Crosstube is a straight replacement for OEM - no compatibility issues
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | EASA.IM.R.S.01304 | 204B/205A1/205B/212/214B/214B1/412/412EP | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | TCCA - Canada | SH01-9 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | FAA - USA | SR01298NY | 204B/205A/205A1/205B/210/212/214B/214B1/412/412CF/412EP/AB412/AB412EP/HH-1K/TH-1F/L/UH-1A/UH-1B/UH-1E/UH-1F/UH-1H/UH-1L/UH-1P | D212-664 & D412-664 Crosstube (214 models are approved for max gross weight of 11900 lb) |
| STC | DGCA - Mexico | IA-316/2015 | 204B/205A1/205B/212/214B/214B1/412/412CF/412EP | Crosstube Installation |
