412 Replacement Mid-Float with Liferafts, Internal Hoist Compatible

Mission Equipment
Part Number: 614.0805
Aircraft Models: Bell - 412

Price:
The patented, Externally Mounted Liferaft System for the Bell 412 is the lightest externally mounted liferaft system available. The system is designed to integrate into the OEM 412 Emergency Float System. The kit comes complete with 2 replacement Mid floats equipped with 2 twin tube, full canopy, reversible, 10-man liferaft assemblies which are activated via the supplied inflation system. The system weighs 112 lbs / 51 kg (net), a savings of approximately 72-133 lbs /... Read more
The patented, Externally Mounted Liferaft System for the Bell 412 is the lightest externally mounted liferaft system available. The system is designed to integrate into the OEM 412 Emergency Float System. The kit comes complete with 2 replacement Mid floats equipped with 2 twin tube, full canopy, reversible, 10-man liferaft assemblies which are activated via the supplied inflation system. The system weighs 112 lbs / 51 kg (net), a savings of approximately 72-133 lbs / 32-60 kg over comparable aftermarket jettison liferaft systems. *Integrates with DART (Apical) & OEM float systems. Replacement LH & RH Mid-bag floats each include a reversible 10-man liferaft. Price is for liferafts, Mid floats & inflation system. Includes protection for the float to prevent chafing when installed in conjunction with internal hoists. Read less

Description

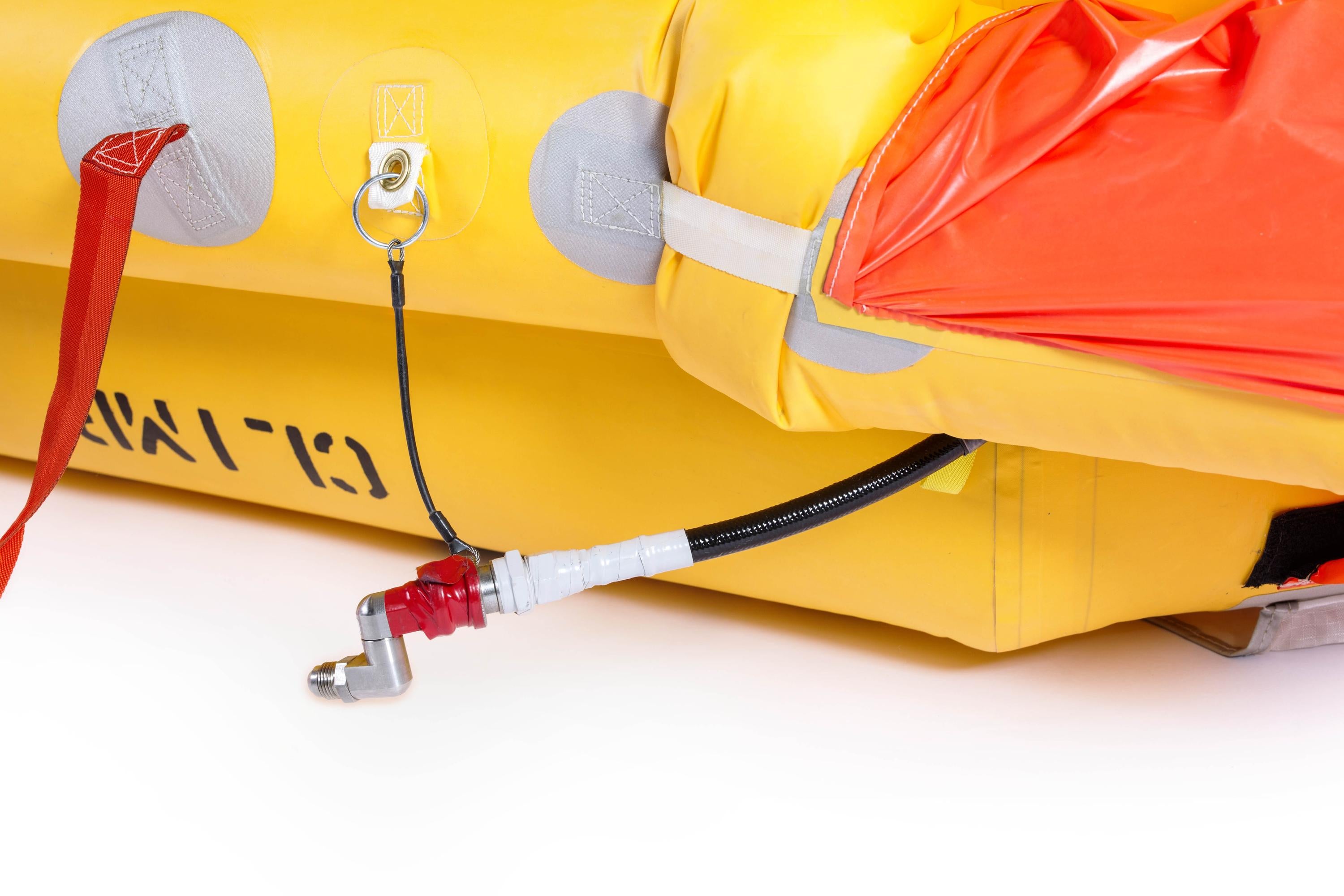

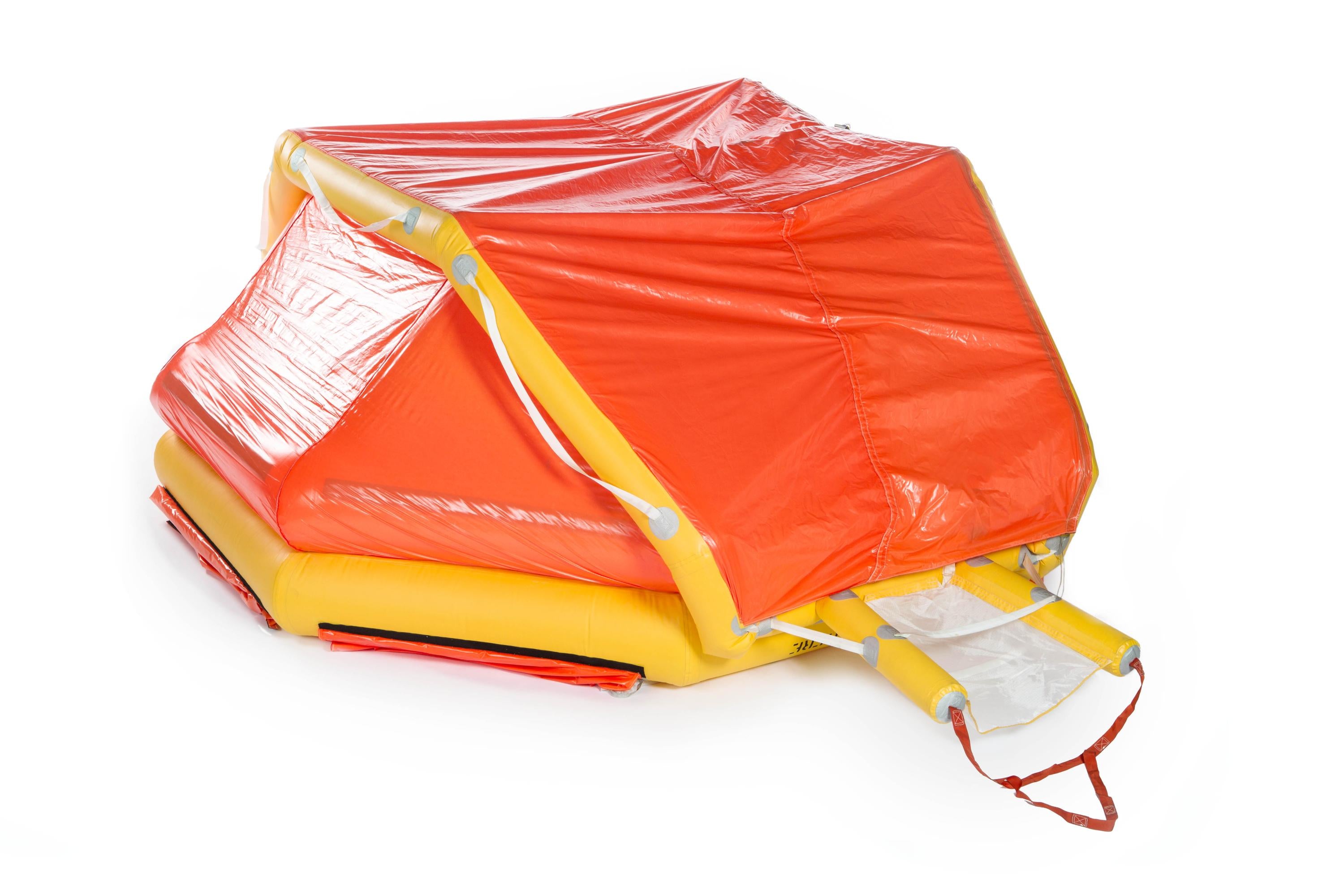

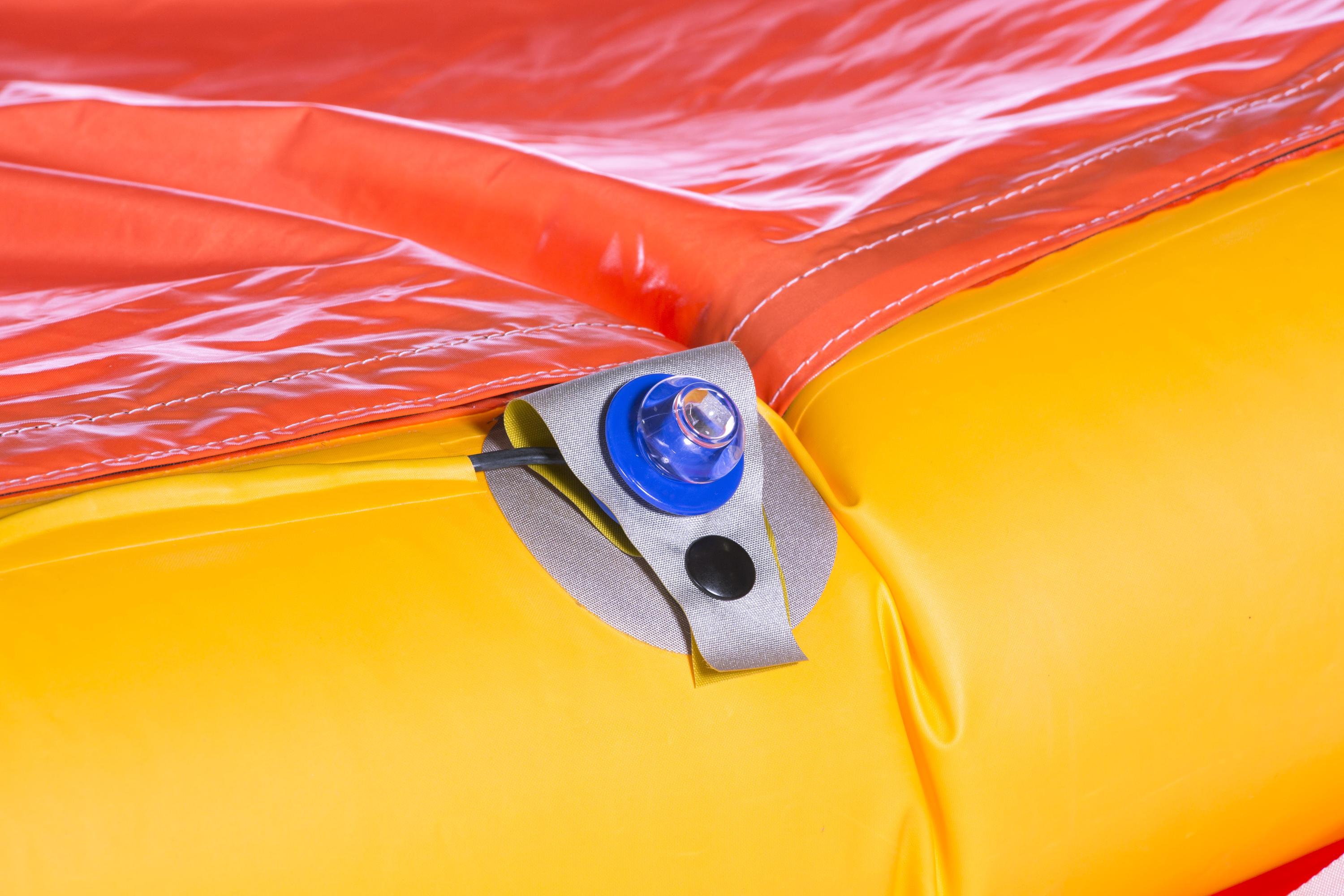

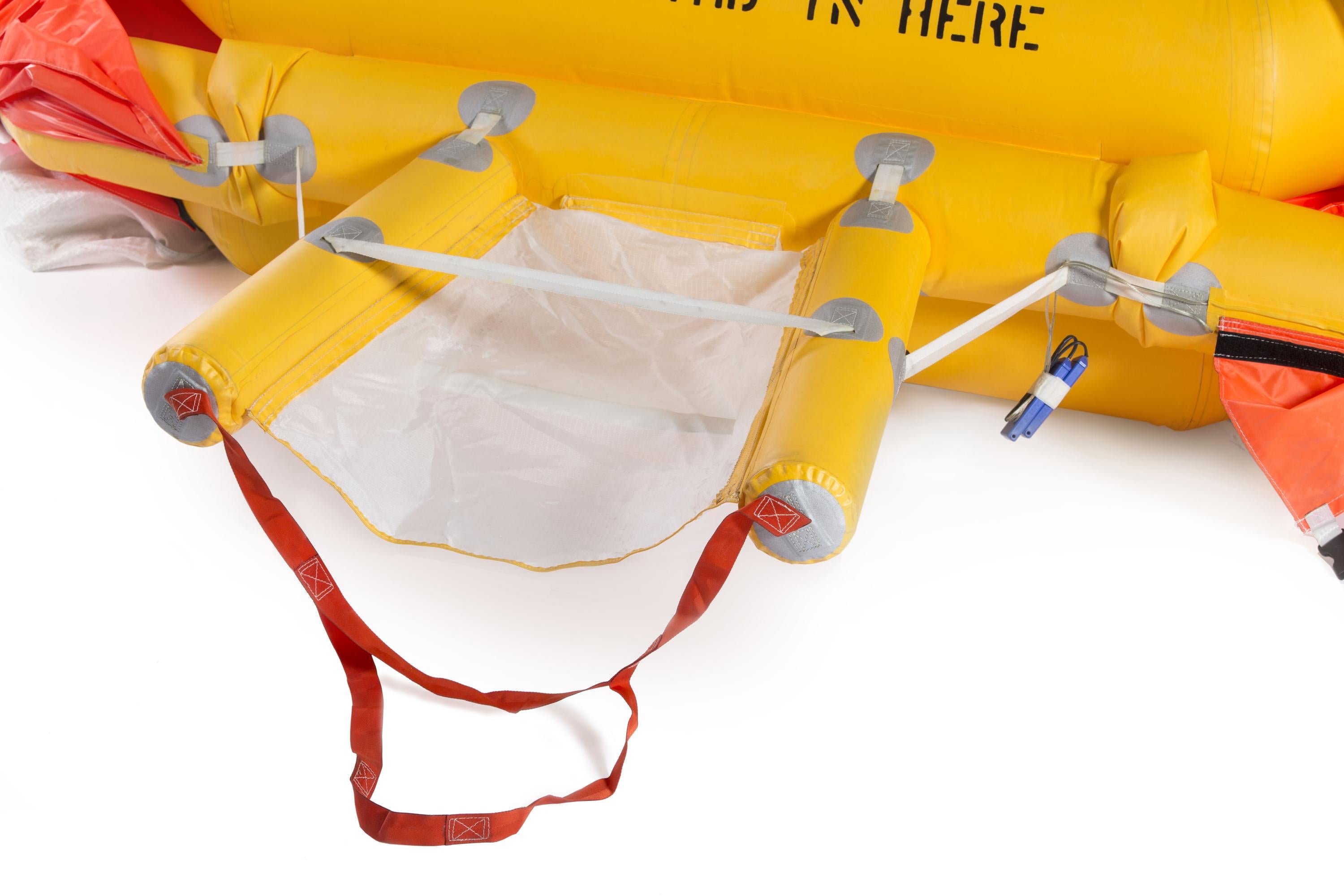

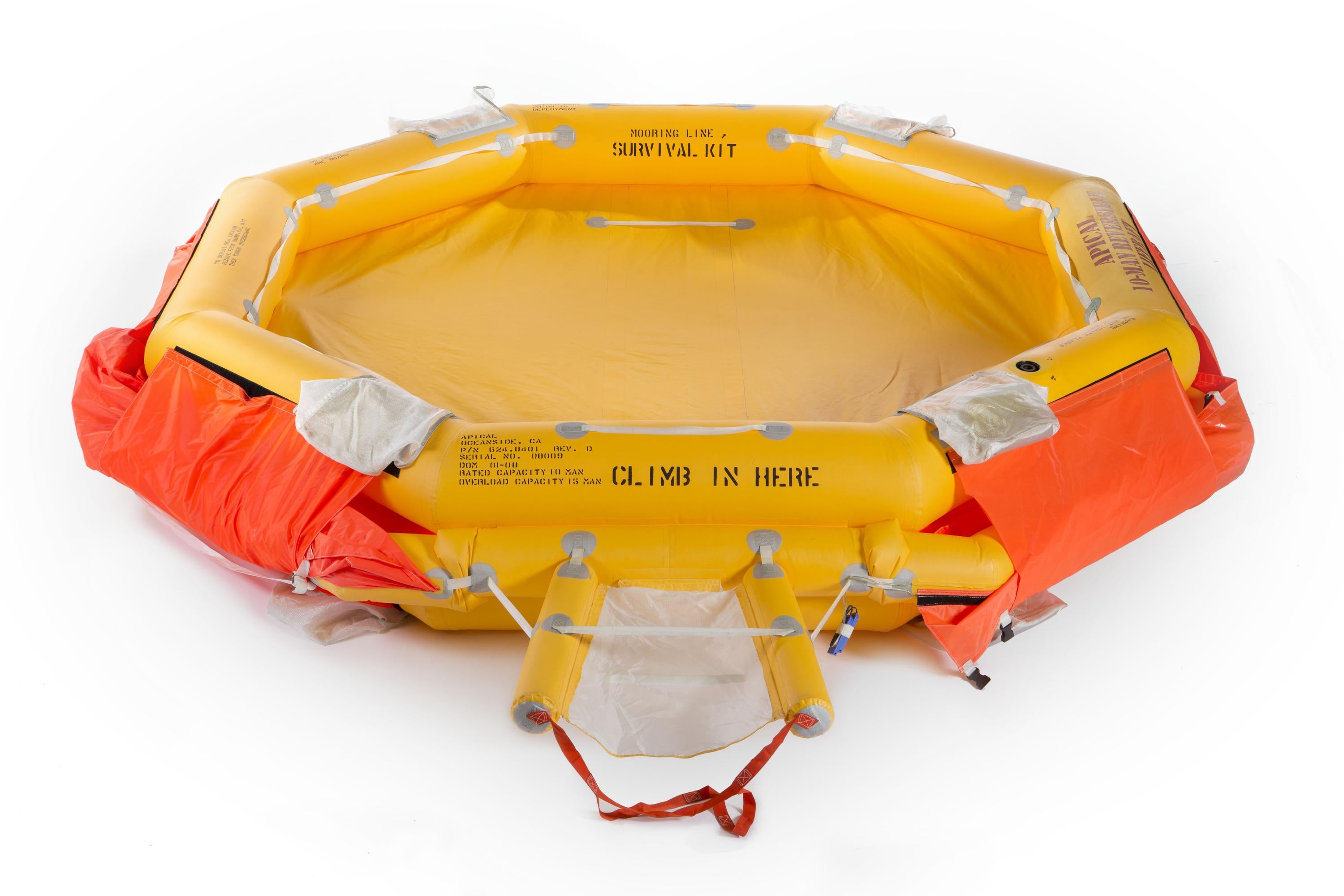

The patented, Externally Mounted Liferaft System for the Bell 412 is the lightest externally mounted liferaft system available. The system is designed to integrate into the OEM 412 Emergency Float System. The kit comes complete with 2 replacement Mid floats equipped with 2 twin tube, full canopy, reversible, 10-man liferaft assemblies which are activated via the supplied inflation system. The system weighs 112 lbs / 51 kg (net), a savings of approximately 72-133 lbs / 32-60 kg over comparable aftermarket jettison liferaft systems. *Integrates with DART (Apical) & OEM float systems. Replacement LH & RH Mid-bag floats each include a reversible 10-man liferaft. Price is for liferafts, Mid floats & inflation system. Includes protection for the float to prevent chafing when installed in conjunction with internal hoists.

Key Features

  • Installs on high gear

Key Benefits

N/A

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe EASA.IM.R.S.01202 412/412EP Replacement Mid-Float with Liferafts
STC TCCA - Canada SH06-20 412/412CF/412EP Replacement Mid-Float with Liferafts
STC FAA - USA SR01459LA 412/412CF/412EP Replacement Mid-Float with Liferafts

OEM Cross References

N/A

External Warning

N/A

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

20 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 112.50 lbs / 51.03 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
