Description

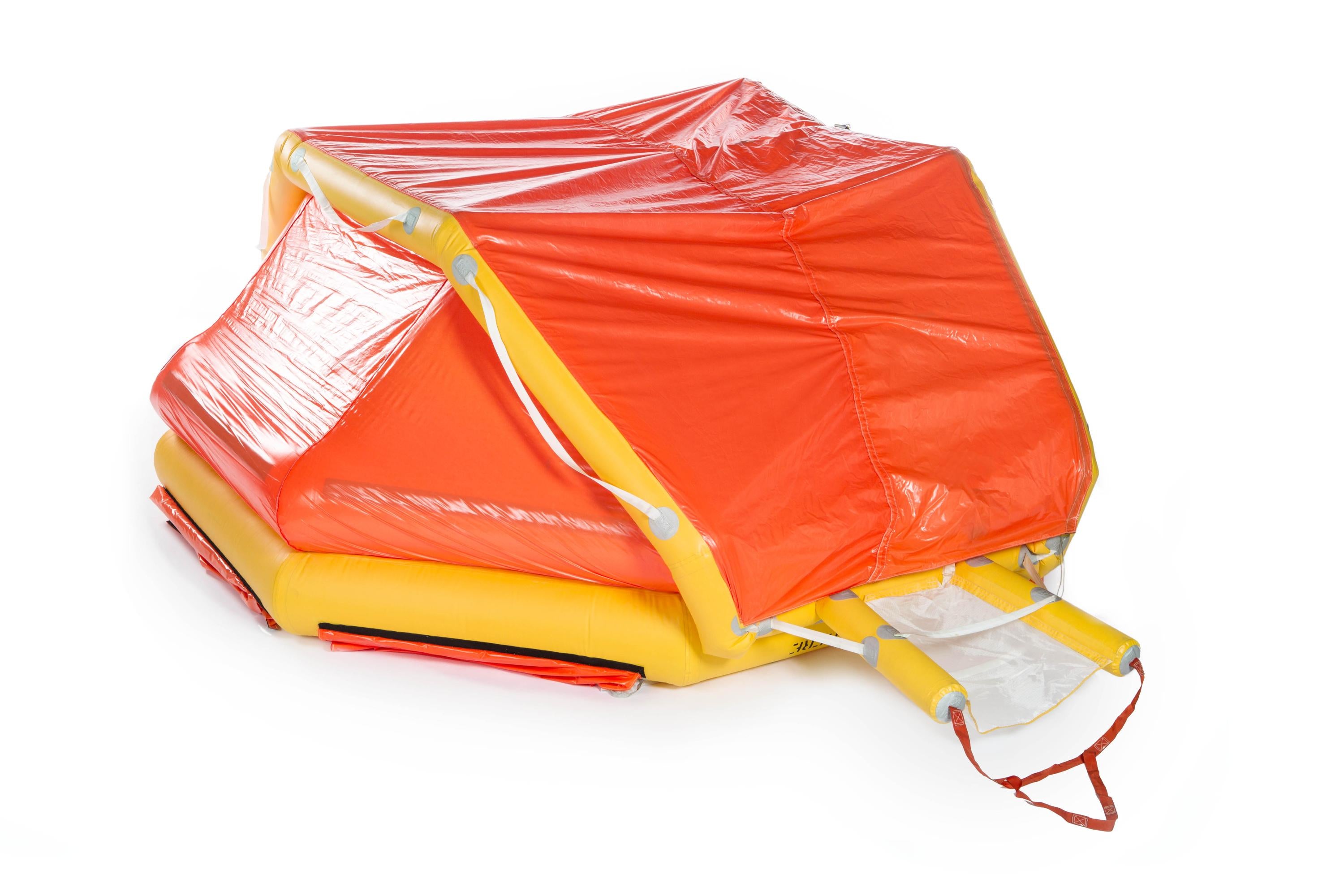

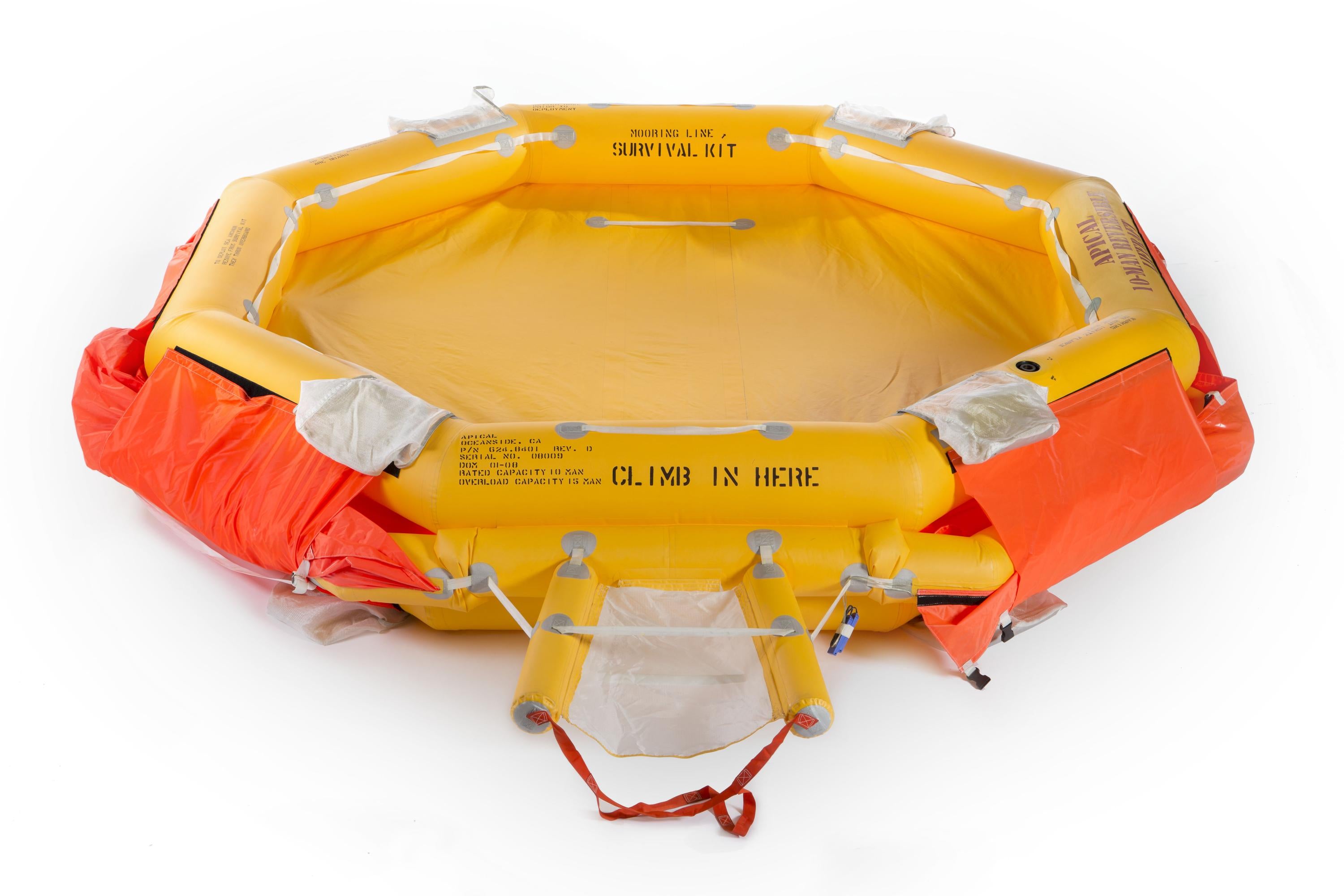

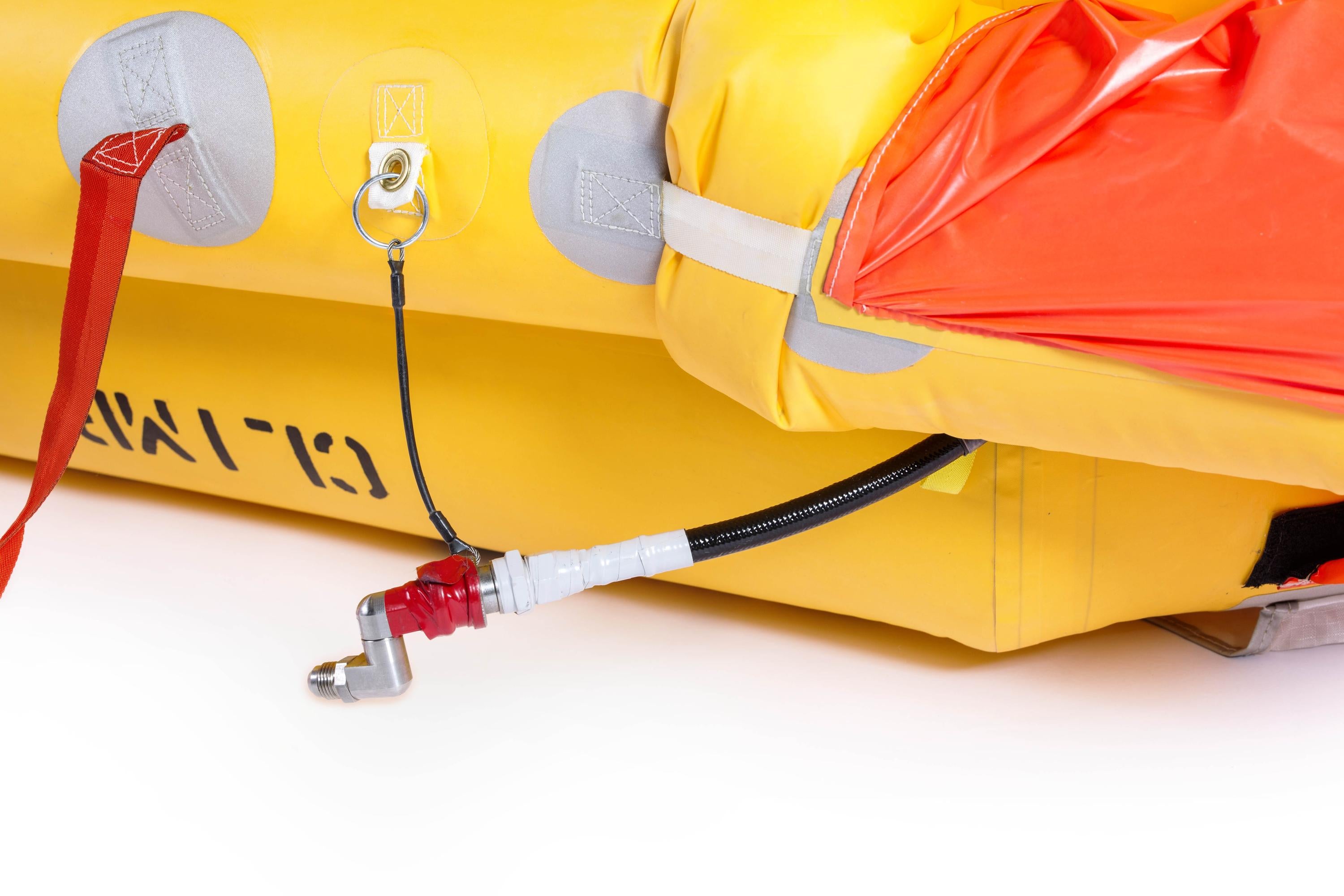

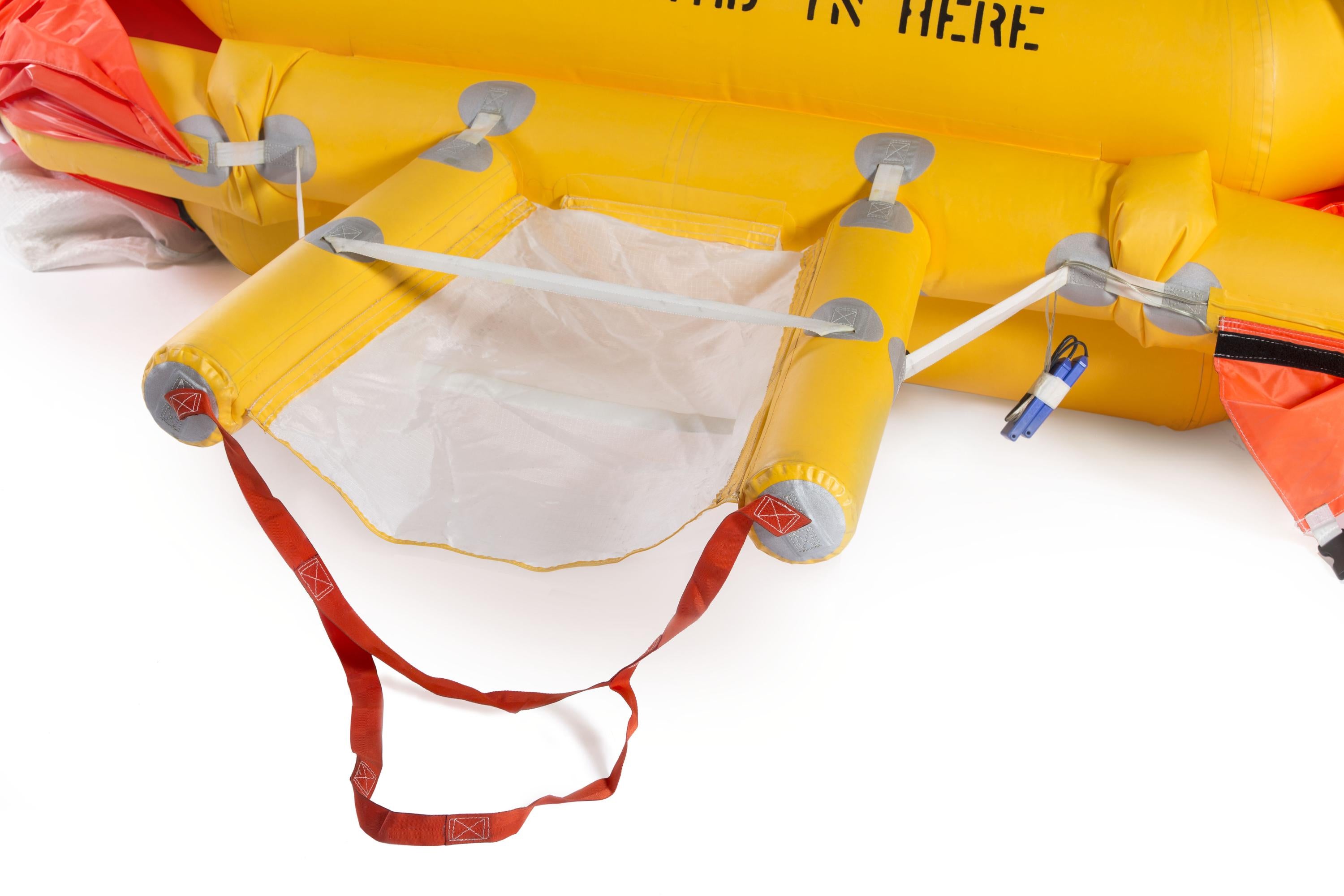

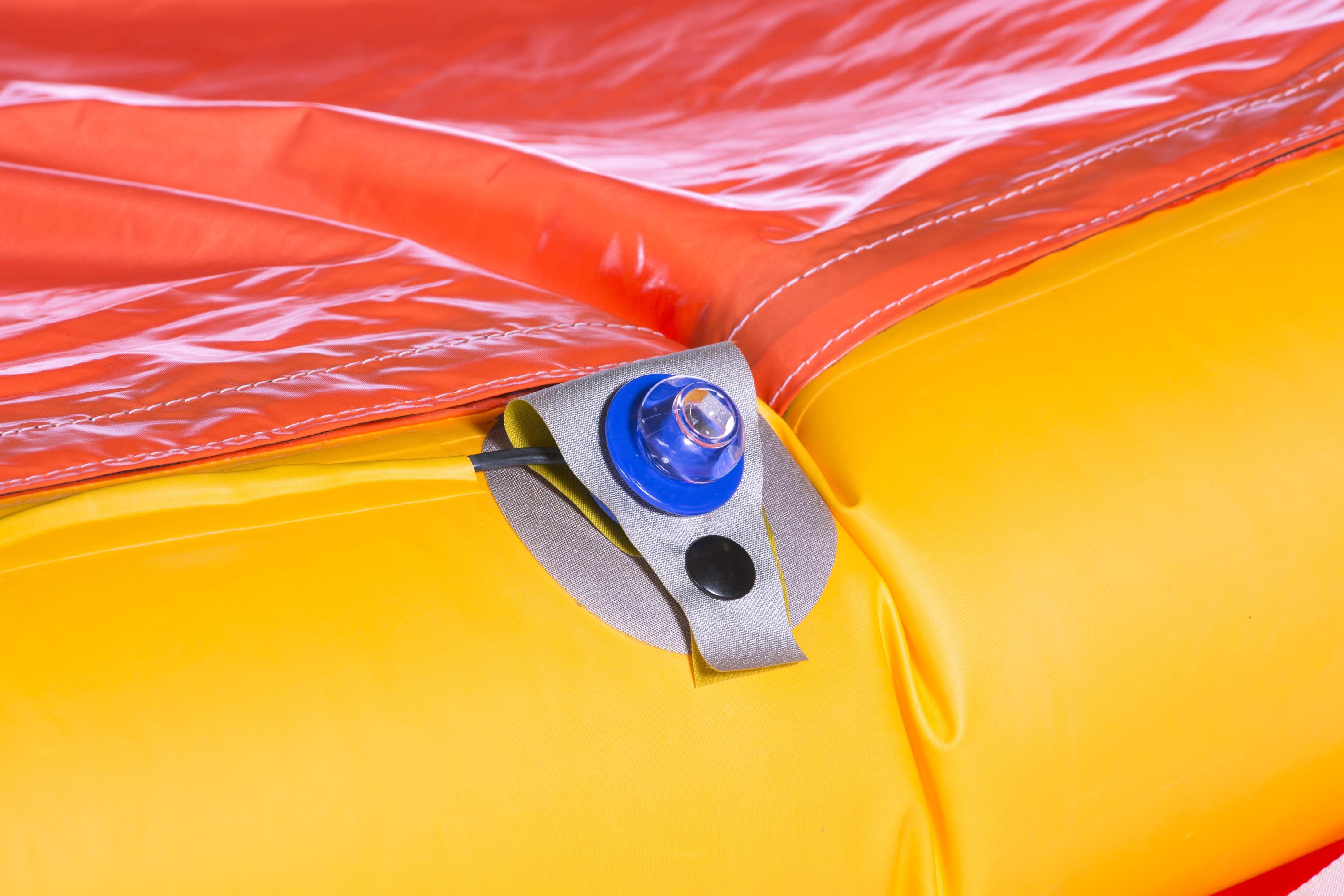

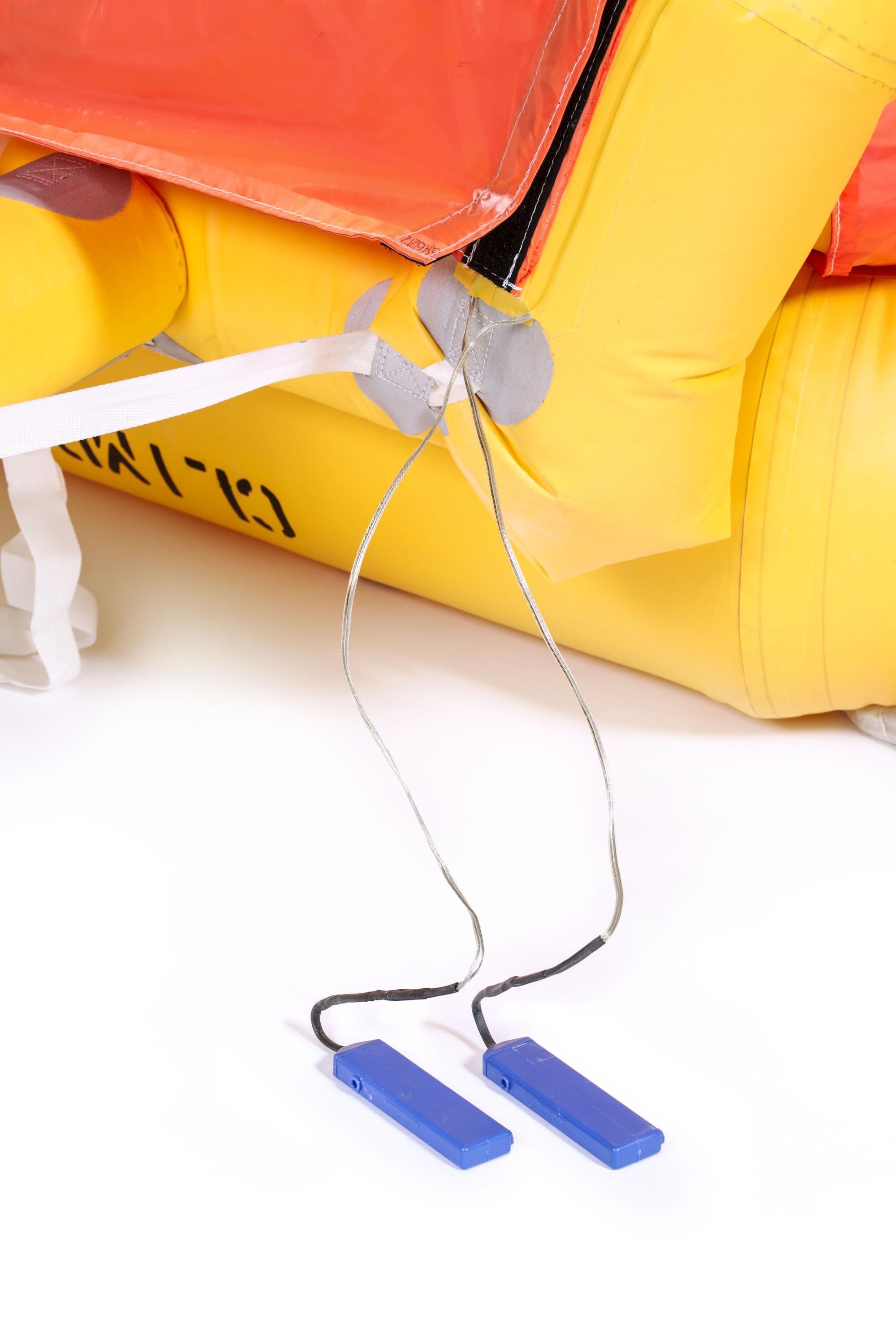

The patented, Externally Mounted Liferaft System for the Bell 412 is the lightest externally mounted liferaft system available. The system is designed to integrate into the OEM 412 Emergency Float System. The kit comes complete with 2 replacement Mid floats equipped with 2 twin tube, full canopy, reversible, 10-man liferaft assemblies which are activated via the supplied inflation system. The system weighs 112 lbs / 51 kg (net), a savings of approximately 72-133 lbs / 32-60 kg over comparable aftermarket jettison liferaft systems.
*Integrates with DART (Apical) & OEM float systems. Replacement LH & RH Mid-bag floats each include a reversible 10-man liferaft. Price is for liferafts, Mid floats & inflation system.
Key Features
- Installs on high gear
Key Benefits
N/A
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | EASA.IM.R.S.01202 | 412/412EP | Replacement Mid-Float with Liferafts |
| STC | TCCA - Canada | SH06-20 | 412/412CF/412EP | Replacement Mid-Float with Liferafts |
| STC | FAA - USA | SR01459LA | 412/412CF/412EP | Replacement Mid-Float with Liferafts |
