Description

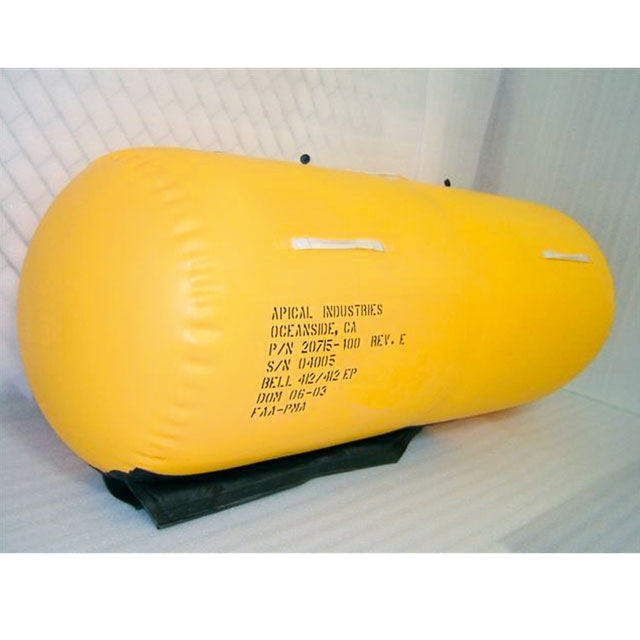

The Bell 412 uses 6 floats (2 forward, 2 middle and 2 Aft). The right and left forward and middle floats (20715) are interchangeable and the right and left Aft floats (20714) are interchangeable. The forward or middle floats consists of 4 separate air-holding chambers. The chambers are separated by bulkheads made of the same urethane coated nylon as the tube to minimize the loss of buoyancy in the event of puncture or tear. Each chamber contains an inlet check valve for inflation by the cylinder/valve assembly, a topping valve for manual inflation and a pressure relief valve (PRV) to prevent over-pressurization.
*Replaces Bell Fwd & Mid floats (412-050-013-117). Approved for intermix with Bell floats. Price is per float.
Key Features
- Exchange program available
Key Benefits
- Economic option for OEM float system
- Reduced maintenance cost (longer maintenance intervals)
Approvals
| Approval type | Authority | Reference number | Aircraft approved | Description |
|---|---|---|---|---|
| STC | EASA - Europe | 10061095 | 212/412/412EP | Installation of Emergency Float Assemblies |
| STC | TCCA - Canada | SH07-34 | 412/412EP | Replacement Emergency Floats |
| STC | FAA - USA | SR01298LA | 412/412EP | Replacement Emergency Floats |
