412 Cable Cutter System, Standard

Part Number: 647.3701
Aircraft Models: Bell - 412

Price:
The Cable Cutters Kit provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The kits are designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. Similar cable/wire cutting devices have proven to be effective even during multiple wire strikes. The kits incorporate both an upper and lower cutter and each... Read more
The Cable Cutters Kit provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The kits are designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. Similar cable/wire cutting devices have proven to be effective even during multiple wire strikes. The kits incorporate both an upper and lower cutter and each cutter is designed with high strength cutting blades. The DART (Apical) cutter designs are tested to verify the capability to cut a cable having a 14,000 lbs / 6,350 kg tensile strength. The kit is available in either a high or low landing gear configuration. An optional GPS Antenna Mount Kit is also available, which allows placement on the upper cutter deflector for ideal positioning of the antenna. *Compatible with aircraft on standard landing gear. Read less

Description

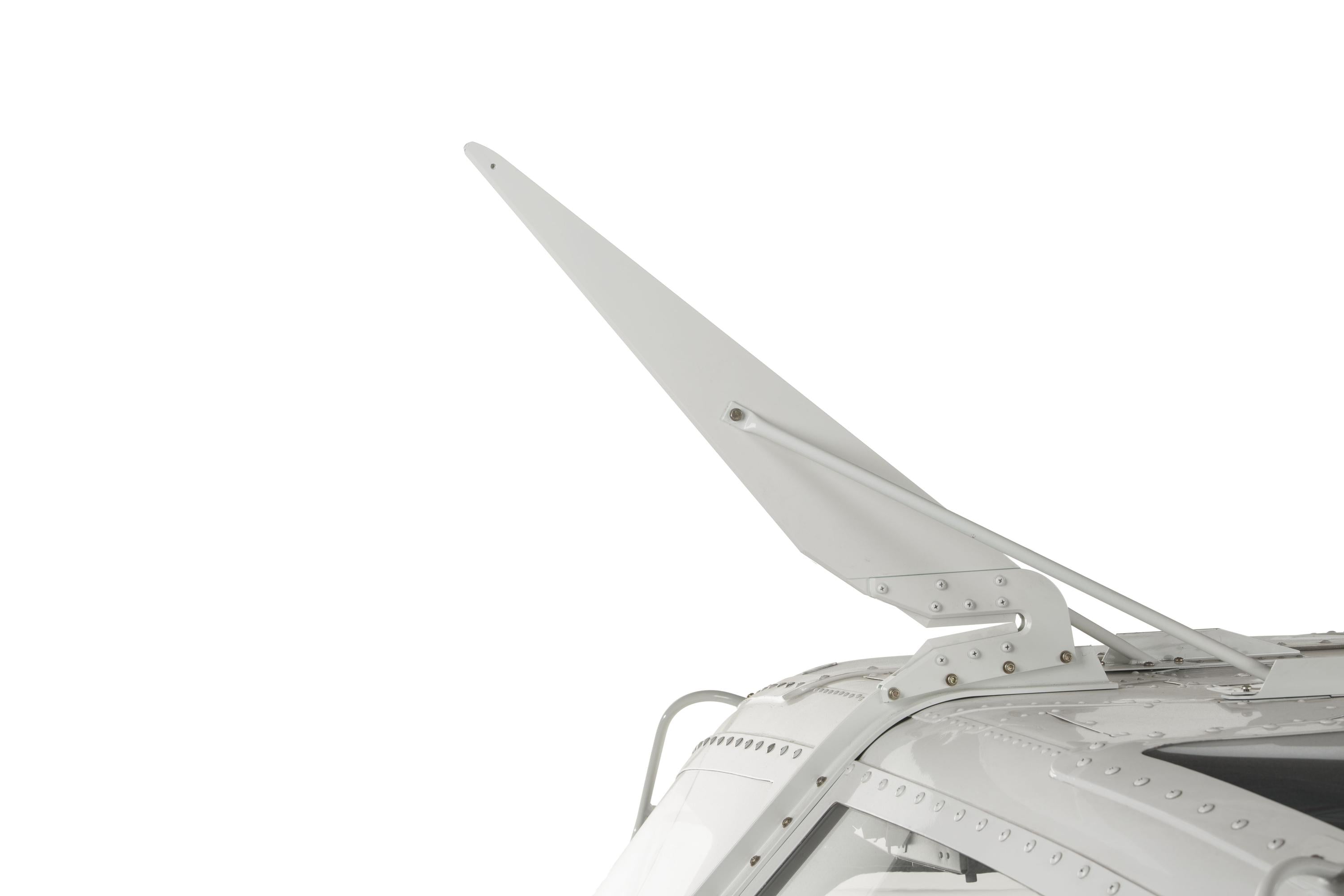

The Cable Cutters Kit provides a means of protecting the helicopter during a wire strike by providing the capability to cut a cable or wire before catastrophic damage occurs. The kits are designed to reduce the possibility of a cable or wire entering the cockpit and to reduce the chance of flight control damage. Similar cable/wire cutting devices have proven to be effective even during multiple wire strikes. The kits incorporate both an upper and lower cutter and each cutter is designed with high strength cutting blades. The DART (Apical) cutter designs are tested to verify the capability to cut a cable having a 14,000 lbs / 6,350 kg tensile strength. The kit is available in either a high or low landing gear configuration. An optional GPS Antenna Mount Kit is also available, which allows placement on the upper cutter deflector for ideal positioning of the antenna. *Compatible with aircraft on standard landing gear.

Key Features

  • Includes: upper & lower cutter/deflector & support struts, windshield deflector

Key Benefits

  • Added safety

Approvals

Approval type Authority Reference number Aircraft approved Description
STC EASA - Europe 10061316 AB412/AB412EP Cable Cutters Kit
STC JCAB - Japan STC-522-TYO 212/412EP TCCA STC SH21-30 for the 647.3700 series Cable Cutter installations on the Bell 412EP models
STC EASA - Europe 10030503 204B/205A1/212/214B/214B1/412/412EP Cable Cutters Kit
STC TCCA - Canada P-10-0175 204B/205A/205A1/205B/212/214B/214B1/412/412EP Cable Cutters Kit
STC FAA - USA SR02289LA 204B/205A/205A1/205B/212/214B/214B1/412/412EP/AB412/AB412EP Cable Cutters Kit

OEM Cross References

OEM Replacement / 364-83300-5

External Warning

Kit contains parts with limited shelf life, will ship with a minimum life of 3 months.

Prerequisite

N/A

Compatible With

N/A

Not Compatible With

N/A

Flight Restrictions

N/A

Installation Time

35 hrs

Dimensions And Weight

  • Length: N/A
  • Width: N/A
  • Weight Display: 16.00 lbs / 7.26 kg

Load Capacity And Volume

  • Volume: N/A
  • Load Capacity: N/A

Technical Documentation

Downloads

N/A
